Trim, Lid, Latch, Strut, Hinge Replacement - Rear Compartment

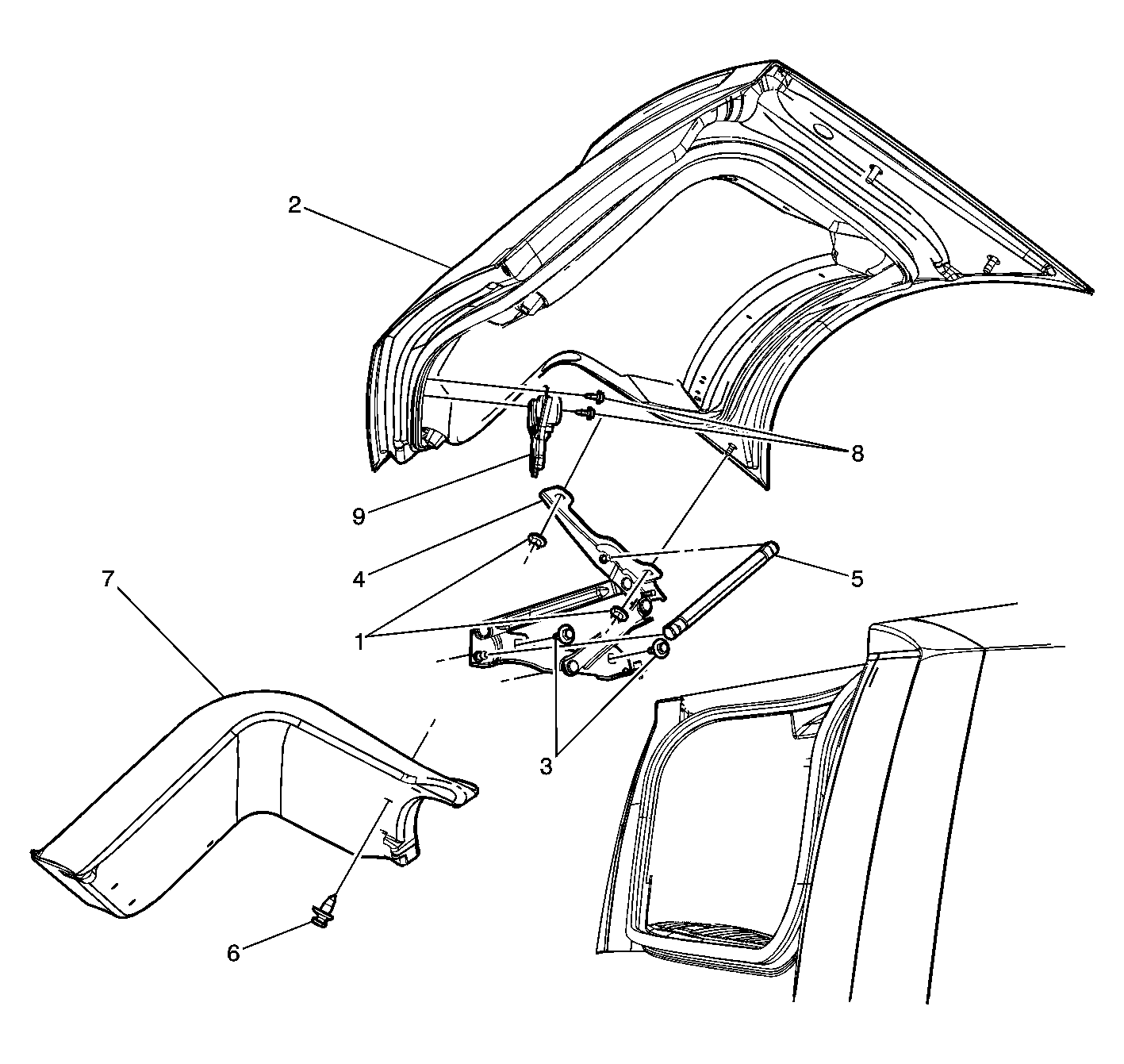

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Rear Compartment Lid Replacement | |
| 1 | Nut, Rear Compartment Lid Hinge (Qty: 4) Tighten: 9 N.m (80 lb in) |
| 2 | Lid Assembly, Rear Compartment Tip: Disconnect and reconnect wiring harness connectors when removing and replacing rear compartment lid. |
| Rear Compartment Lid Hinge Replacement | |
| 1 | Nut, Rear Compartment Lid Hinge (Qty: 4) Tighten: 9 N.m (80 lb in) |
| 2 | Lid Assembly, Rear Compartment Tip: Disconnect and reconnect wiring harness connectors when removing and replacing rear compartment lid. |
| 3 | Bolt, Rear Compartment Lid Hinge (Qty: 4) Tighten: 9 N.m (80 lb in) |
| 4 | Hinge Assembly, Rear Compartment Lid (Qty: 2) |
| Rear Compartment Lid Strut Assembly Replacement | |
| 5 | Strut Assembly, Rear Compartment Lid (Qty: 2) Tip: Remove the metal clip at the ends of the strut with a flat bladed tool and pull strut assembly away from the studs. |
| Rear Compartment Lid Inner Trim Panel Assembly Replacement | |
| 6 | Retainer, Rear Compartment Lid Inner Panel (Qty: 8) |
| 7 | Trim Assembly, Rear Compartment Lid Inner Panel |
| Rear Compartment Lid Latch Assembly Replacement | |
| 6 | Retainer, Rear Compartment Lid Inner Panel (Qty: 8) |
| 7 | Trim Assembly, Rear Compartment Lid Inner Panel |
| 8 | Bolt, Rear Compartment Lid Latch (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 9 | Latch Assembly, Rear Compartment Lid |
