Power Window Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

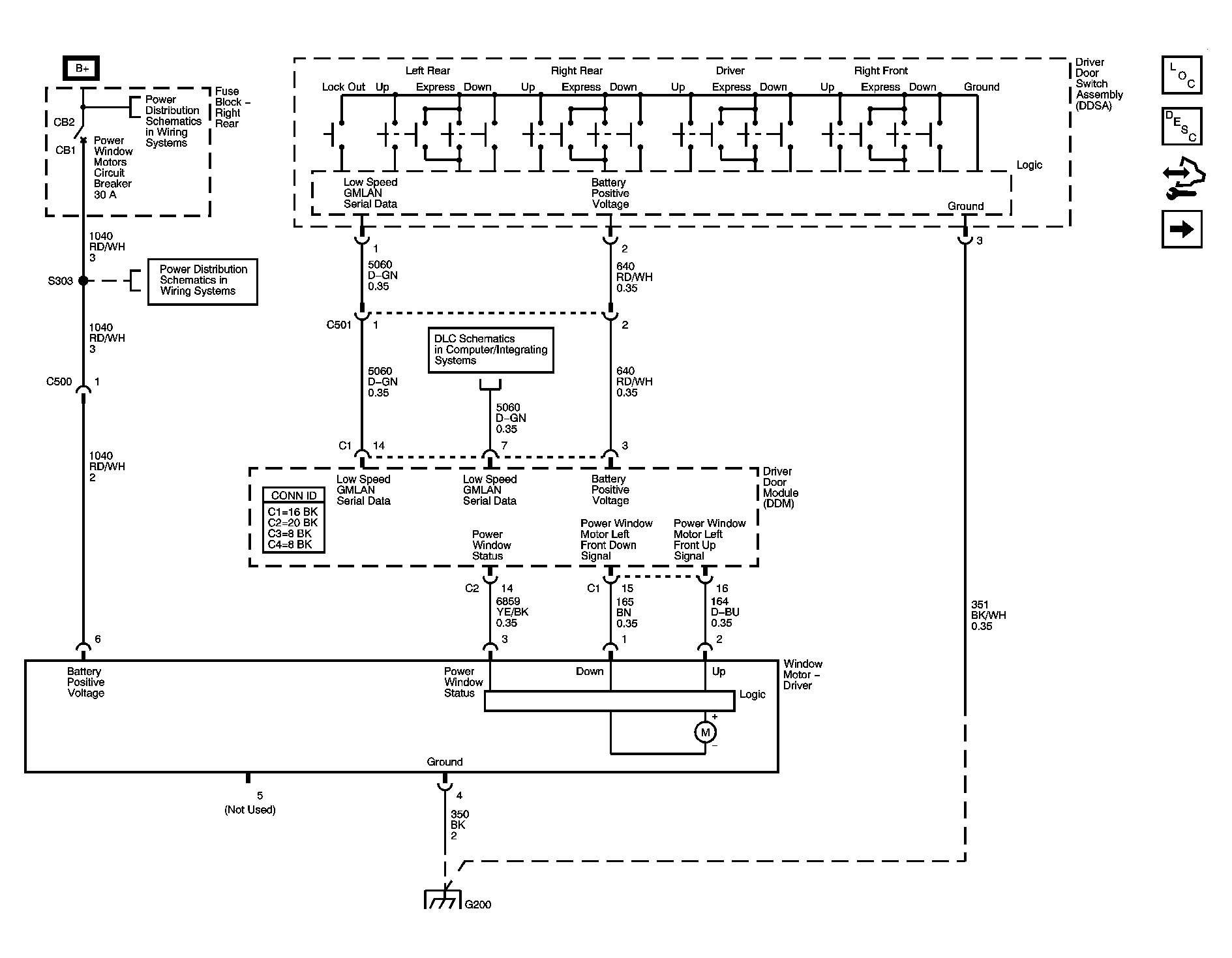

Fig 1: Driver Window Switches, Motor Schematics

Courtesy of GENERAL MOTORS CORP.

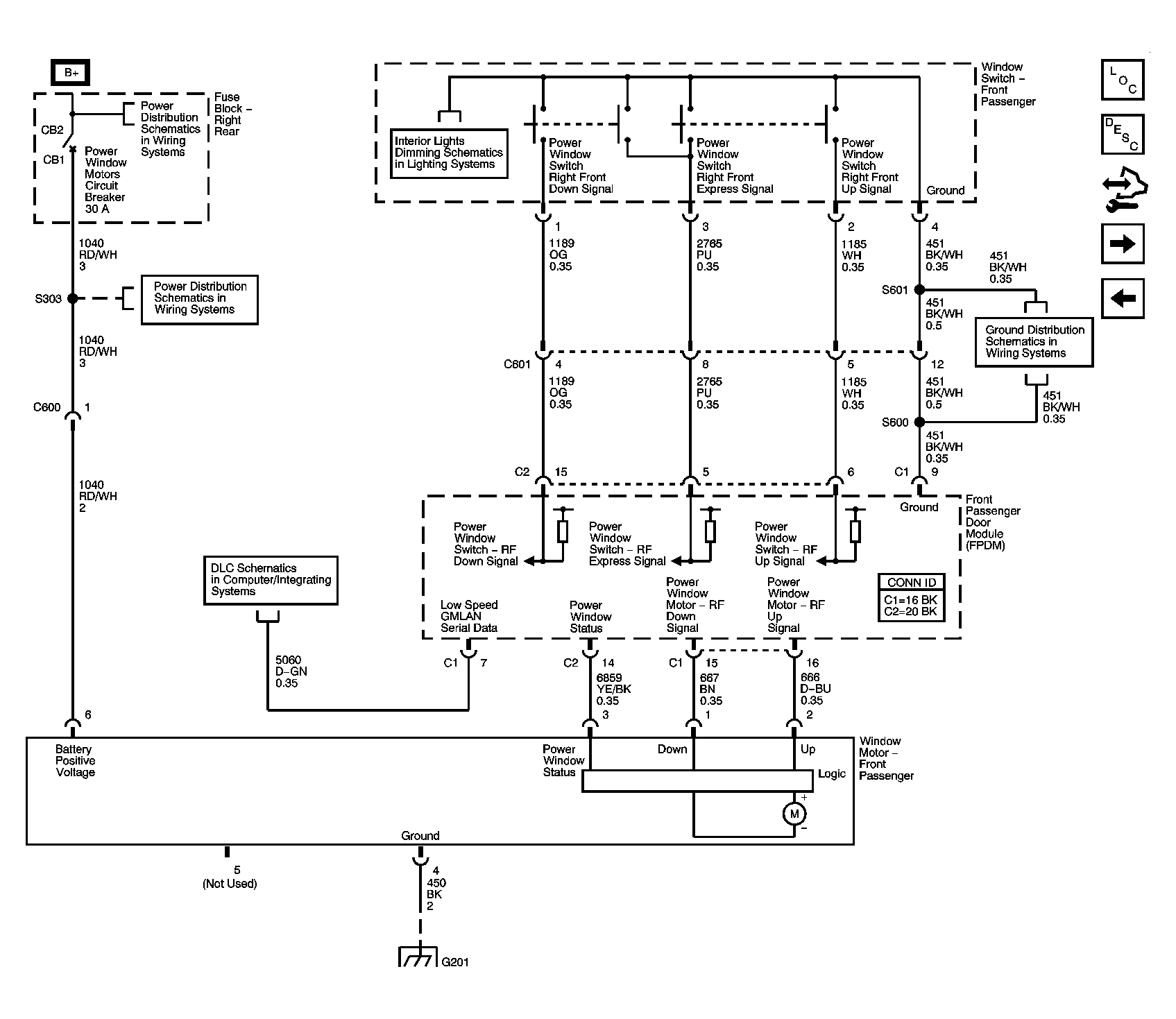

Fig 2: Front Passenger Window Switch, Motor Schematics

Courtesy of GENERAL MOTORS CORP.

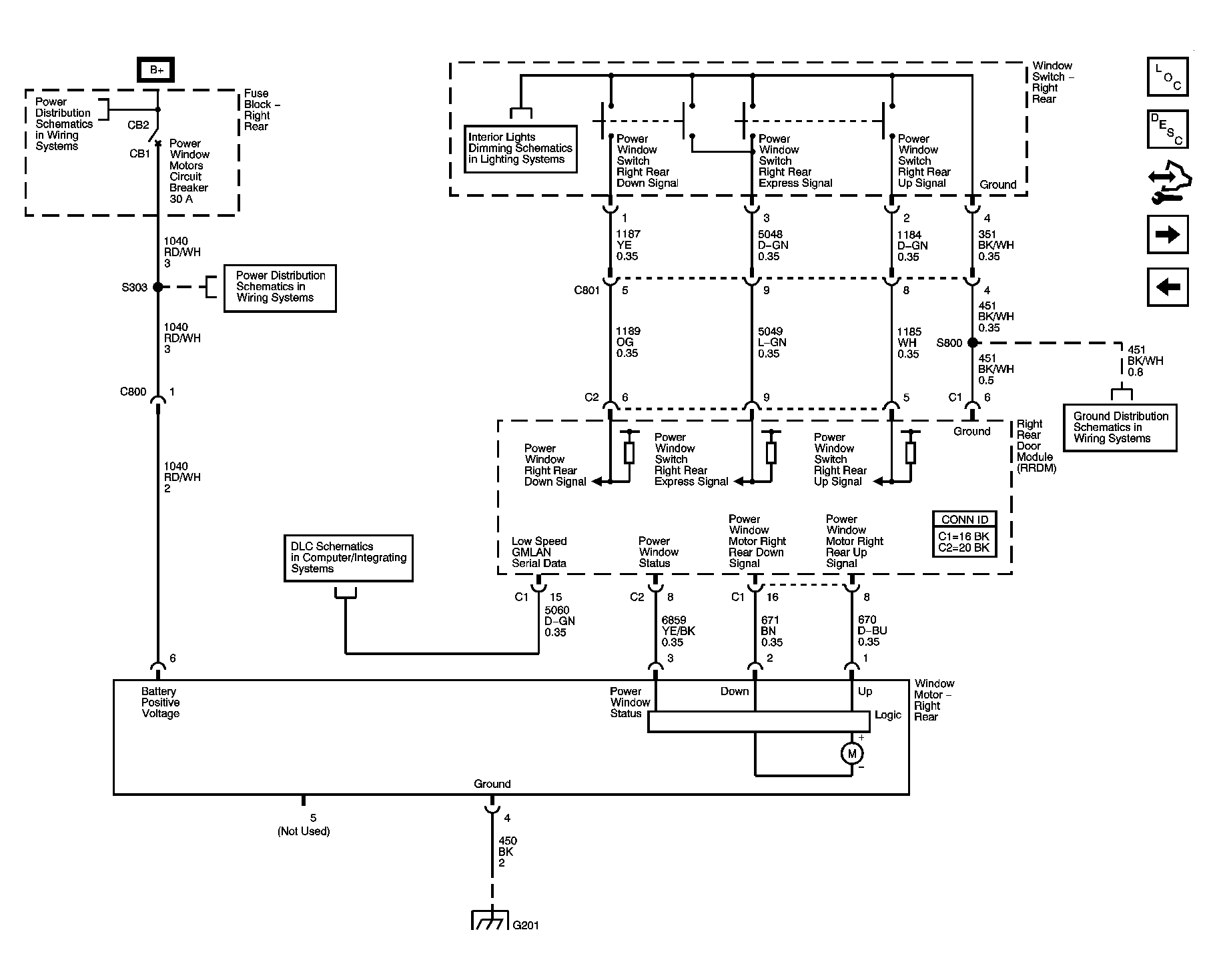

Fig 3: Right Rear Window Switch, Motor Schematics

Courtesy of GENERAL MOTORS CORP.

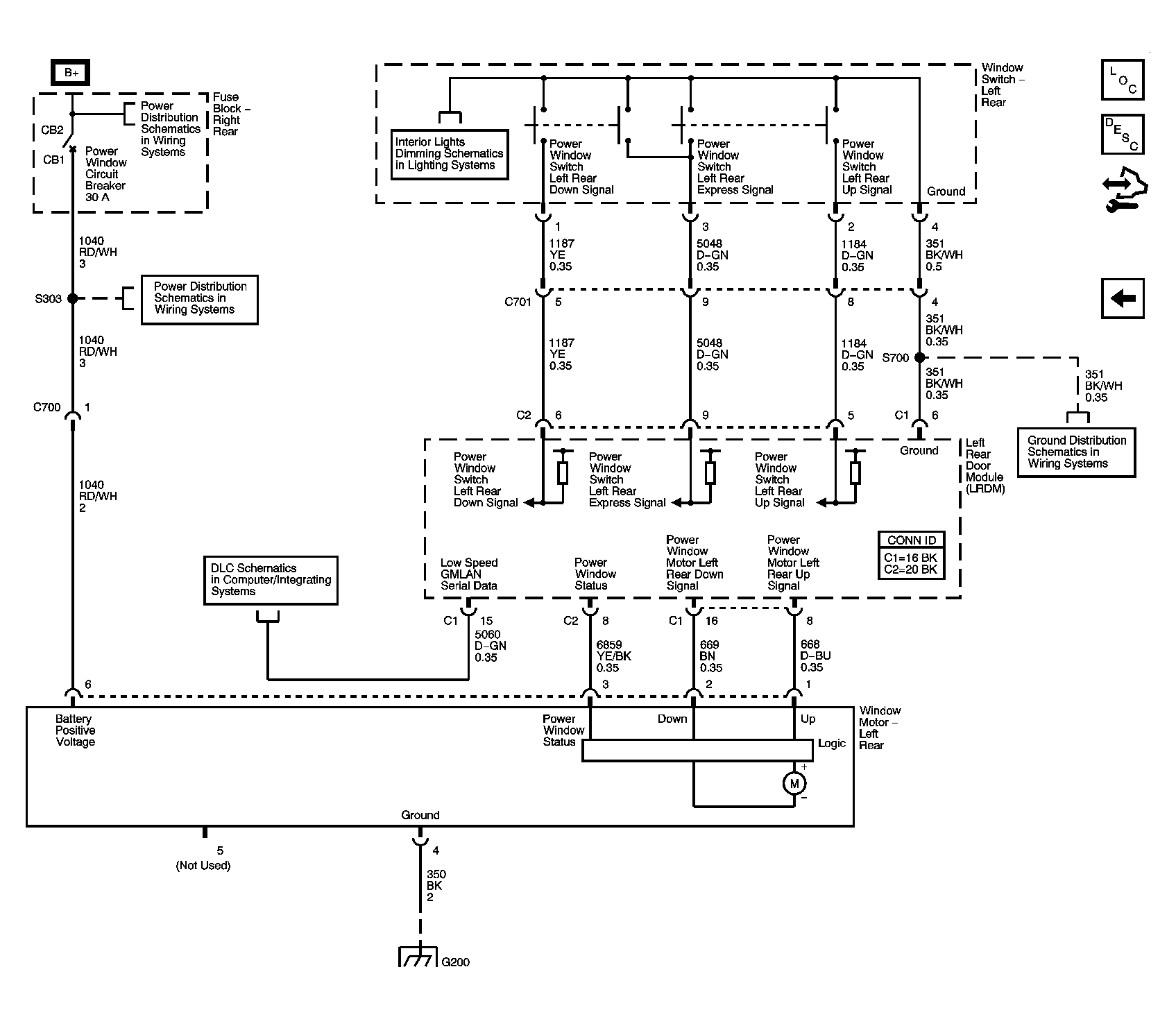

Fig 4: Left Rear Window Switch, Motor Schematics

Courtesy of GENERAL MOTORS CORP.
