Inside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

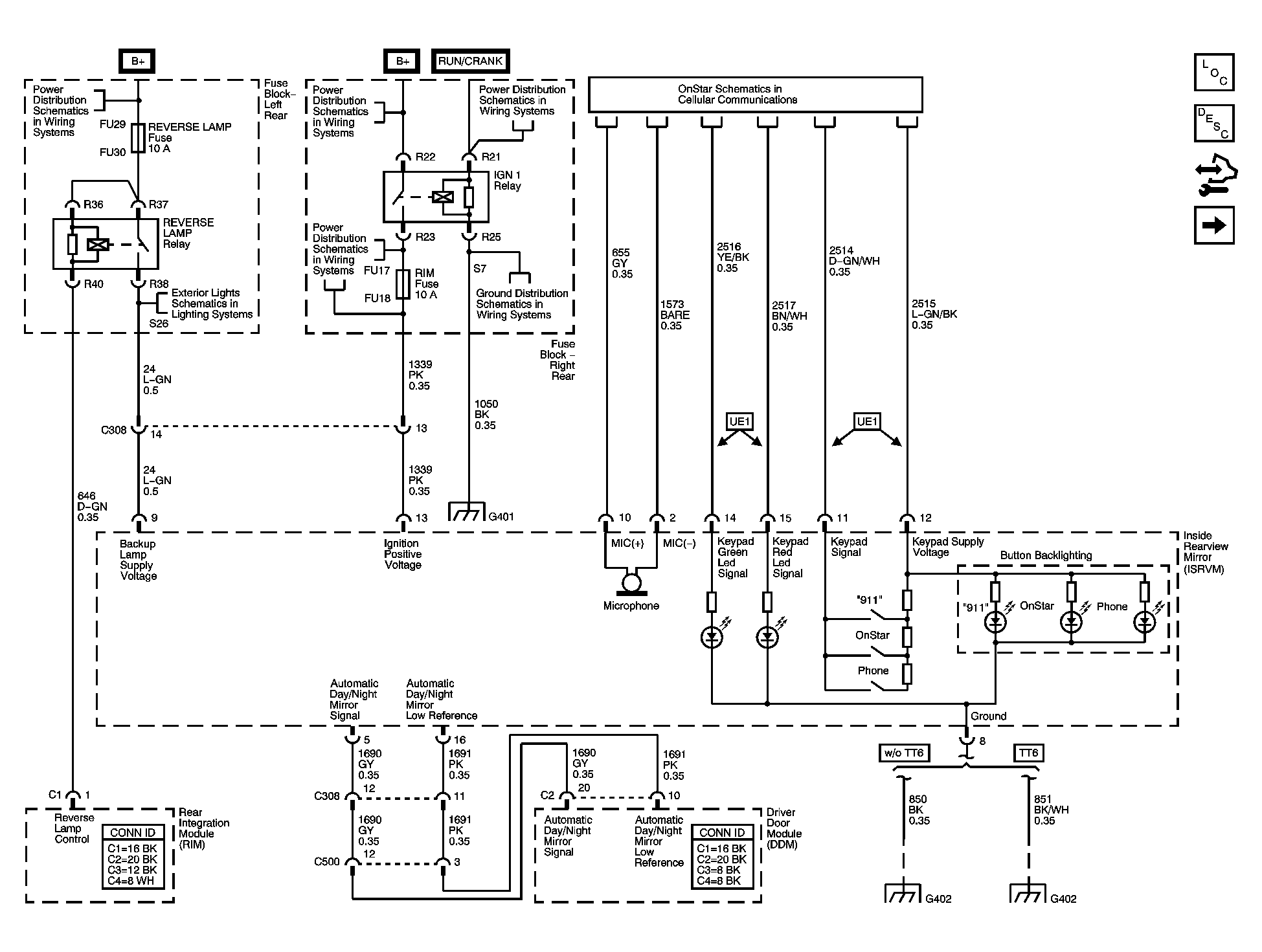

Fig 1: Inside Rearview Mirror (ISRVM), Power and Ground Schematics

Courtesy of GENERAL MOTORS CORP.

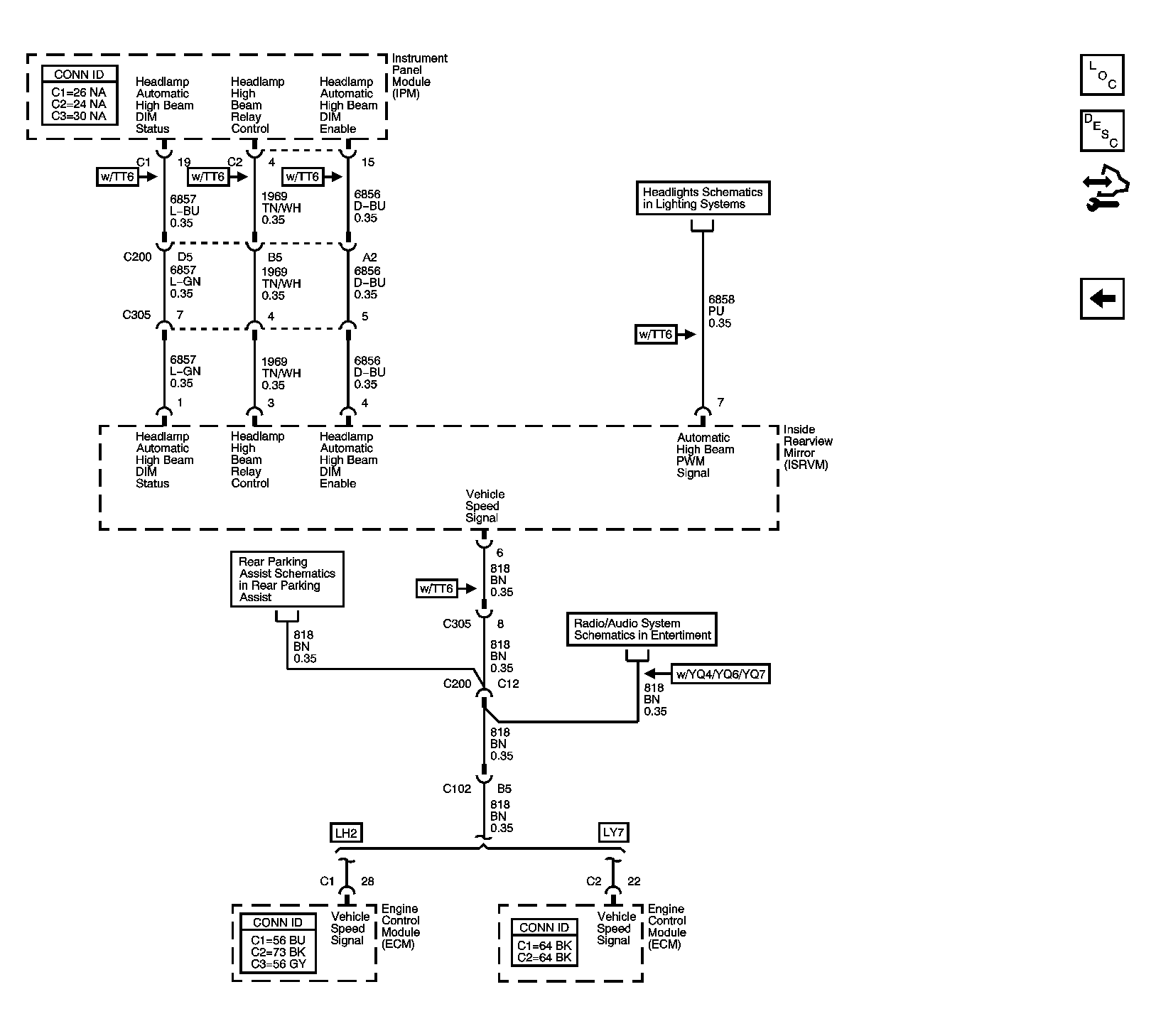

Fig 2: Inside Rearview Mirror (ISRVM): Automatic Headlamp Dimming Signals Schematics

Courtesy of GENERAL MOTORS CORP.
