Power Distribution Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

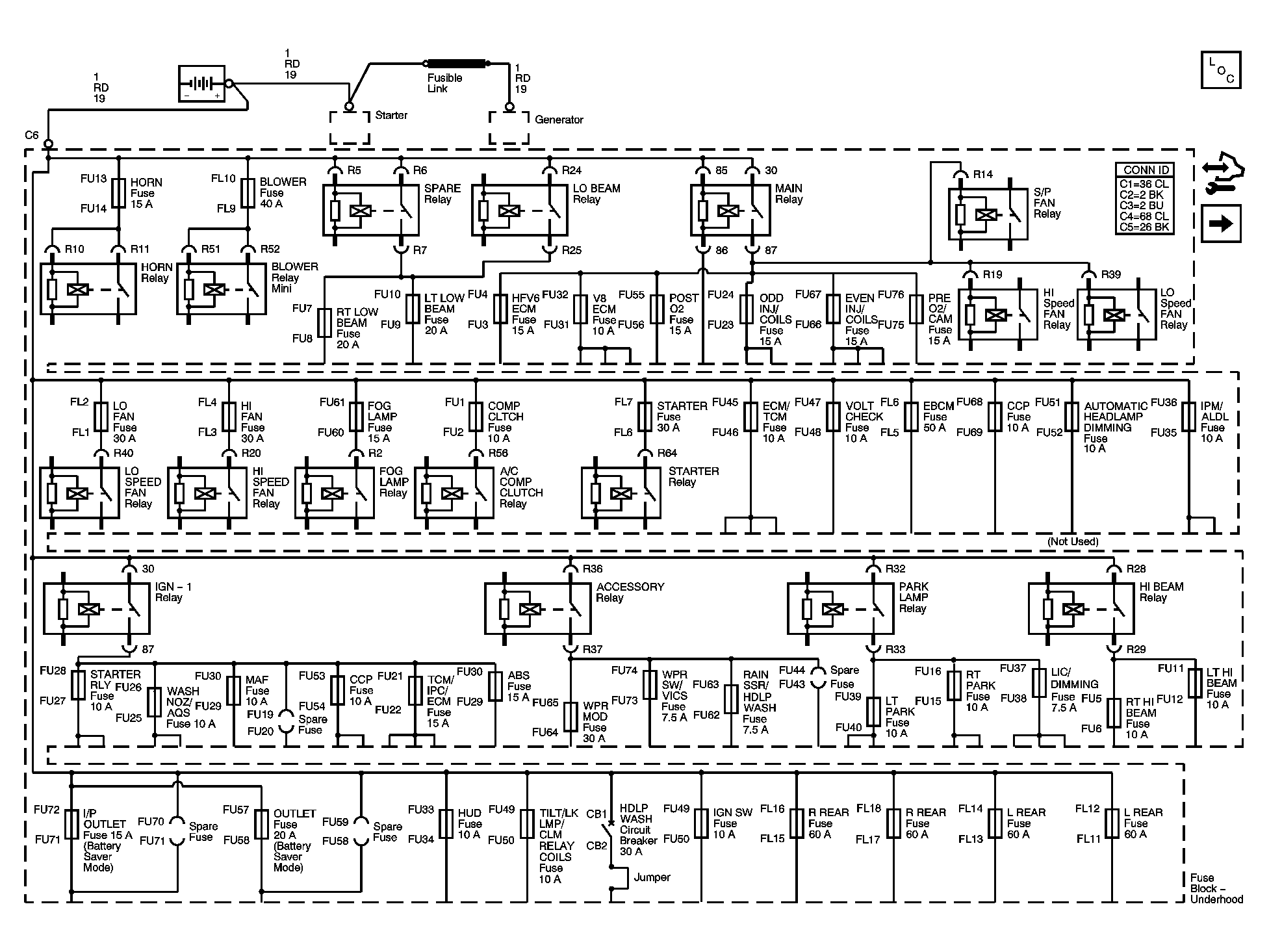

Fig 1: Fuse Block - Underhood Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuse Block - Left Rear Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

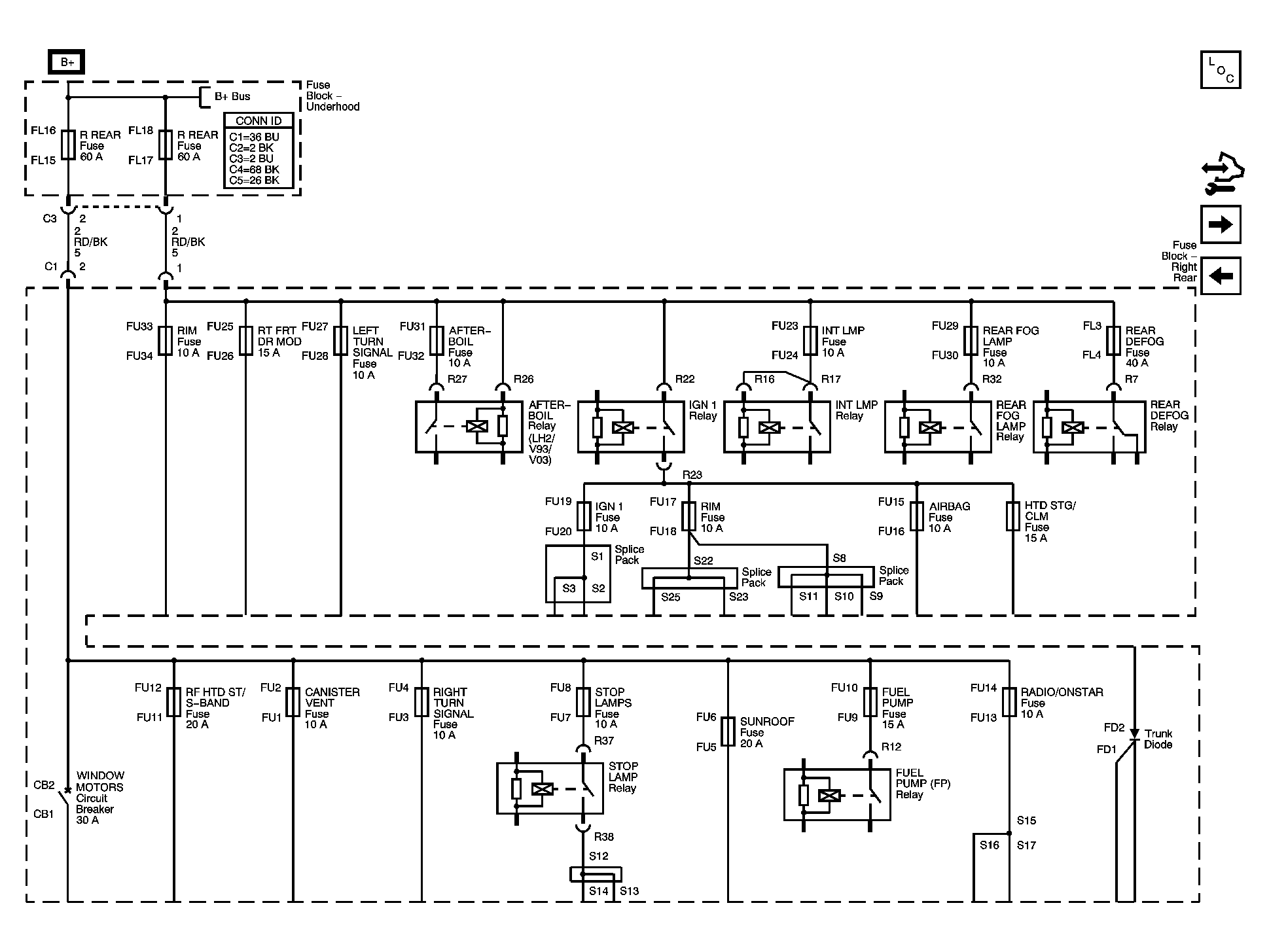

Fig 3: Fuse Block - Right Rear Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

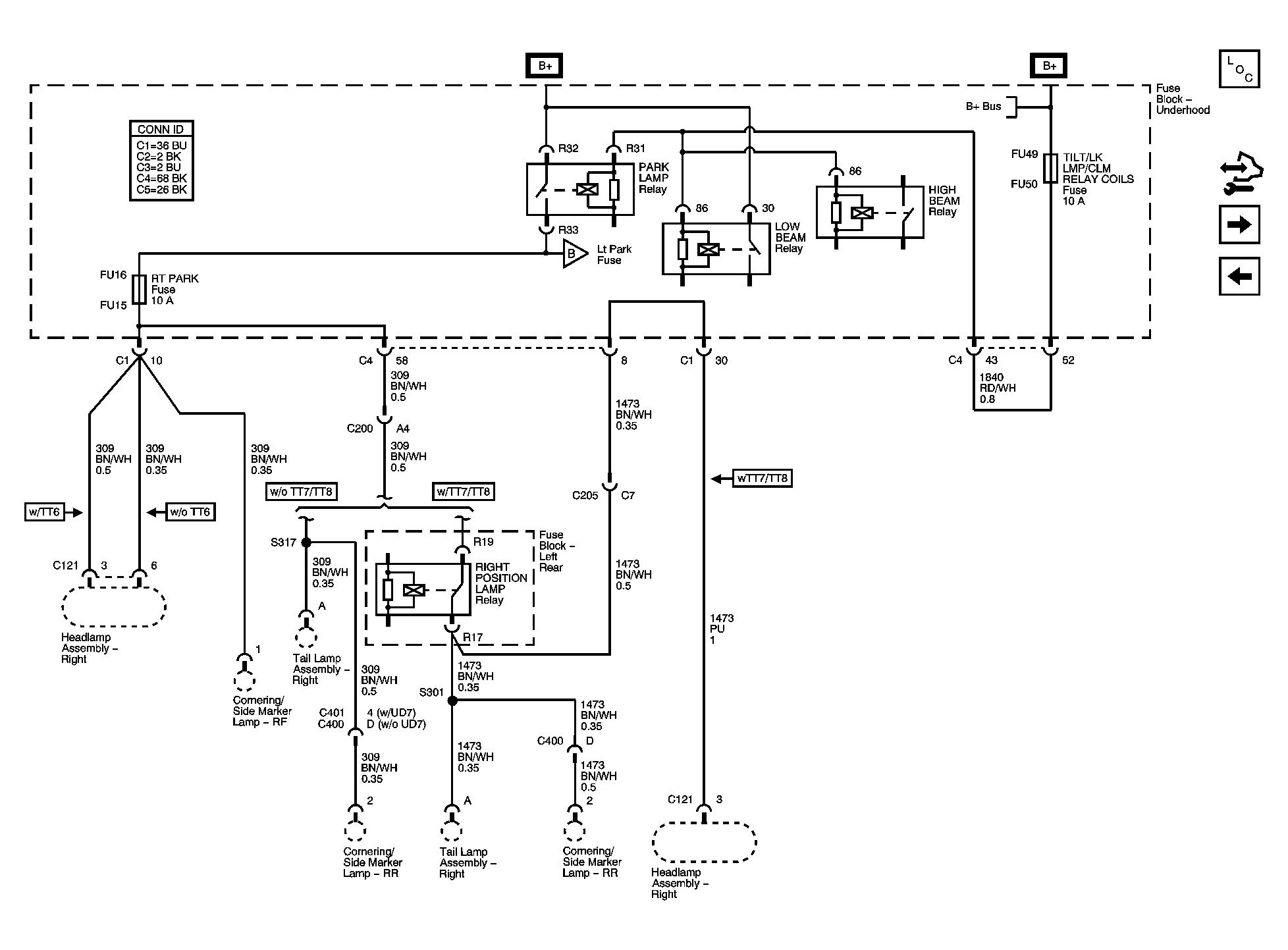

Fig 4: Fuse Block - Underhood Relay/Fuses: PARK LAMP RELAY, RT PARK FUSE, TILT/LK/LMP/CLM RELAY COILS FUSE Schematics

Courtesy of GENERAL MOTORS CORP.

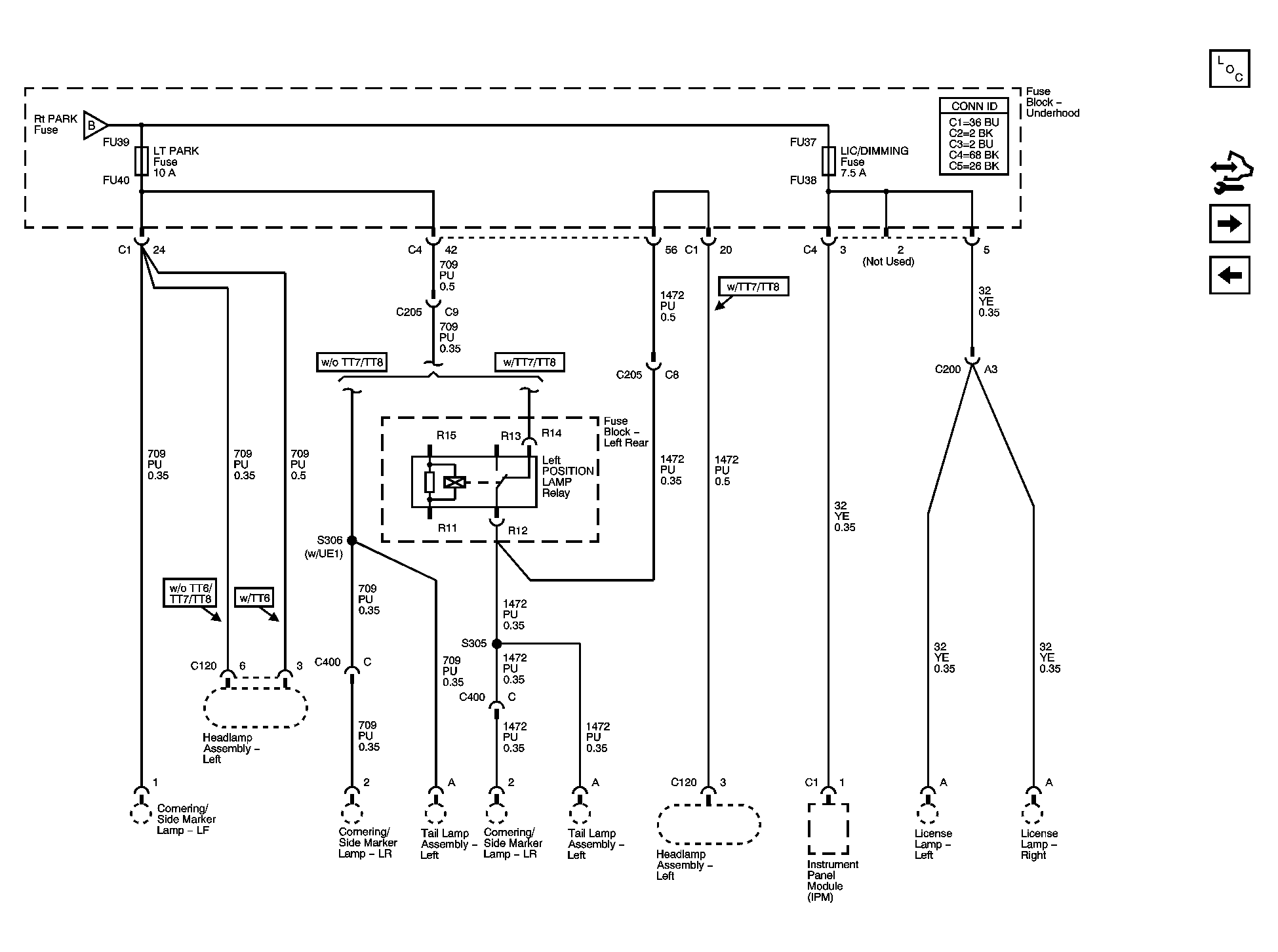

Fig 5: Fuse Block - Underhood Fuses: LT PARK FUSE, LICENSE/DIMMING FUSE Schematics

Courtesy of GENERAL MOTORS CORP.

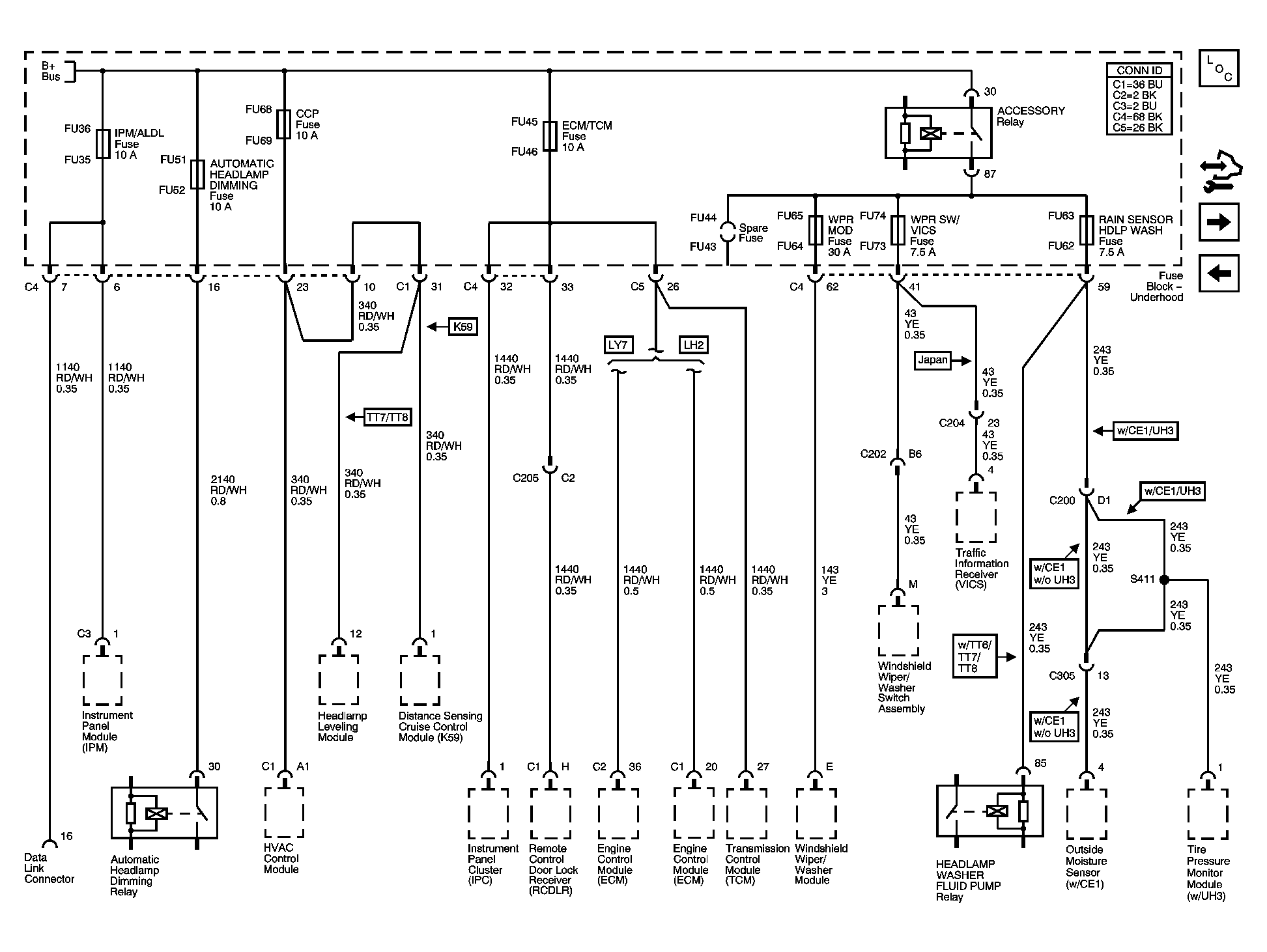

Fig 6: Fuse Block - Underhood Fuses/Relay: IPM/ALDL, SMART BEAM, CCP, ECM/TCM, WPR MOD, WPR SW/VICS and RAIN SENSOR/HDLP WASH FUSES, ACCESSORY RELAY Schematics

Courtesy of GENERAL MOTORS CORP.

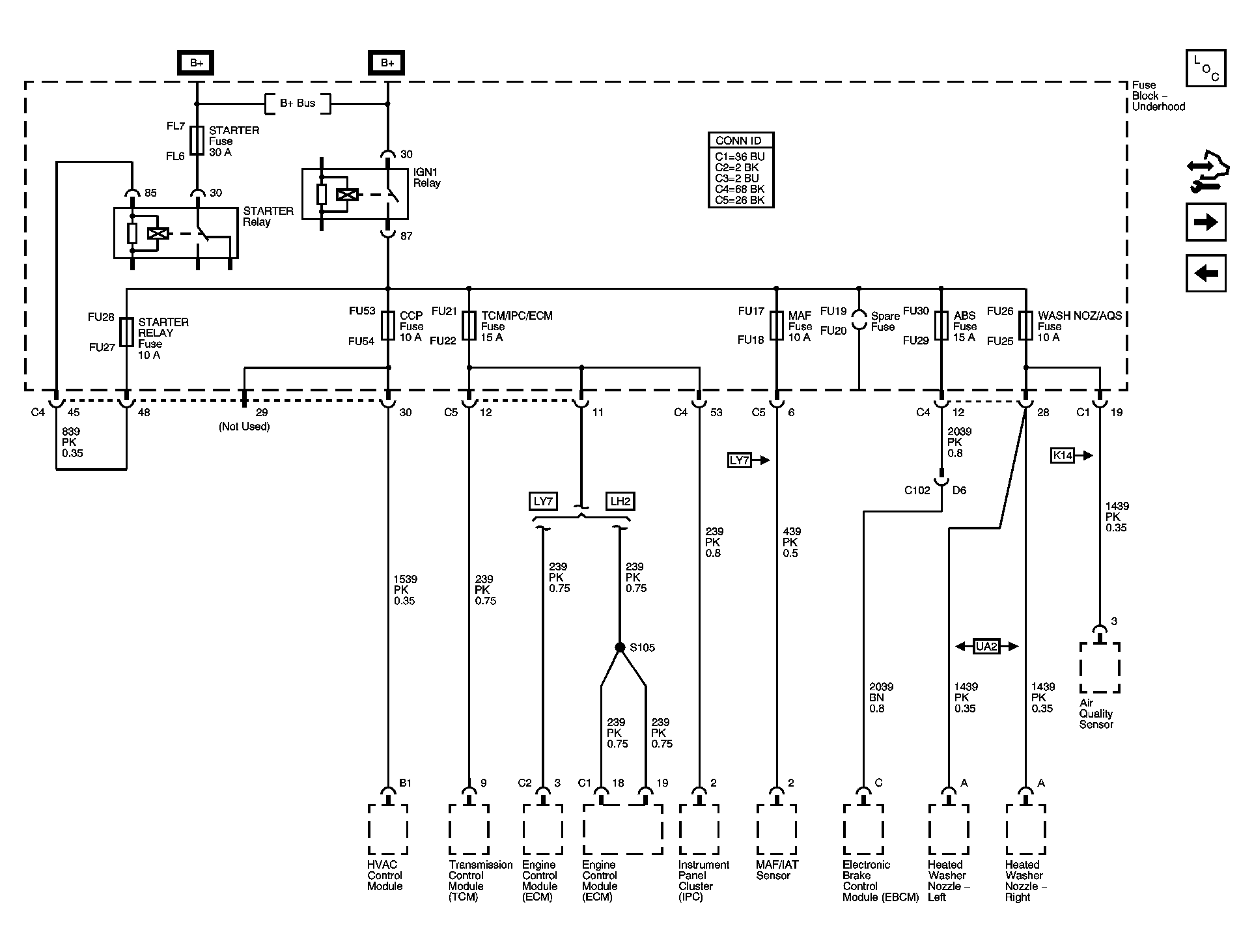

Fig 7: Fuse Block - Underhood: STARTER, IGN 1 Relays, STARTER, STARTER RELAY, CCP, TCM/IPM/ECM, MAF, ABS and WASHER NOZZLE/ACC FUSES Schematics

Courtesy of GENERAL MOTORS CORP.

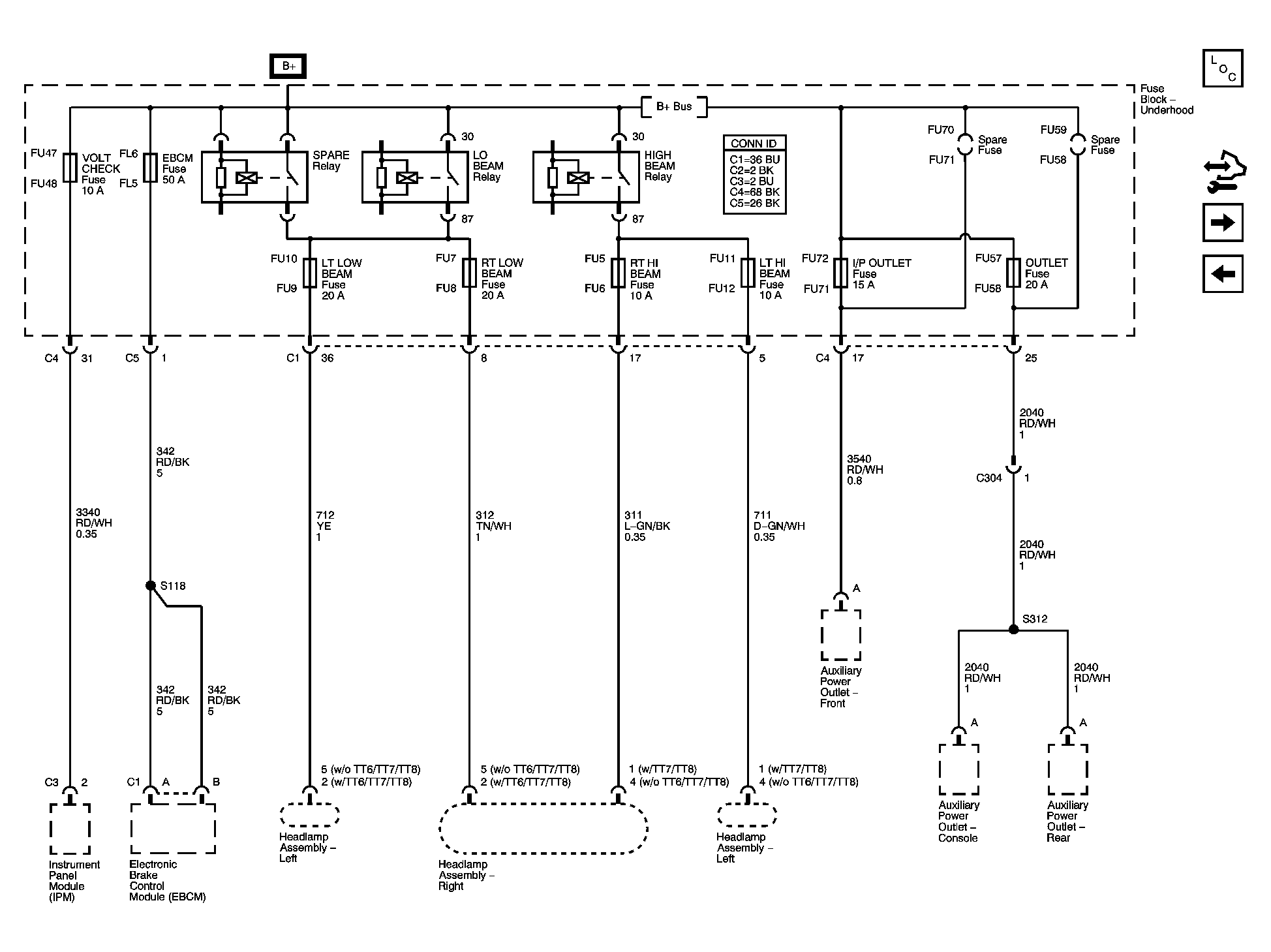

Fig 8: Fuse Block - Underhood: LO BM, HI BEAM, POWER OUTLET and SPARE RELAYS, VOLT CHECK, EBCM, LT LO BEAM, RT LO BM, RT HI BM, LT HI BM, I/P OUTLET AND OUTLET Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

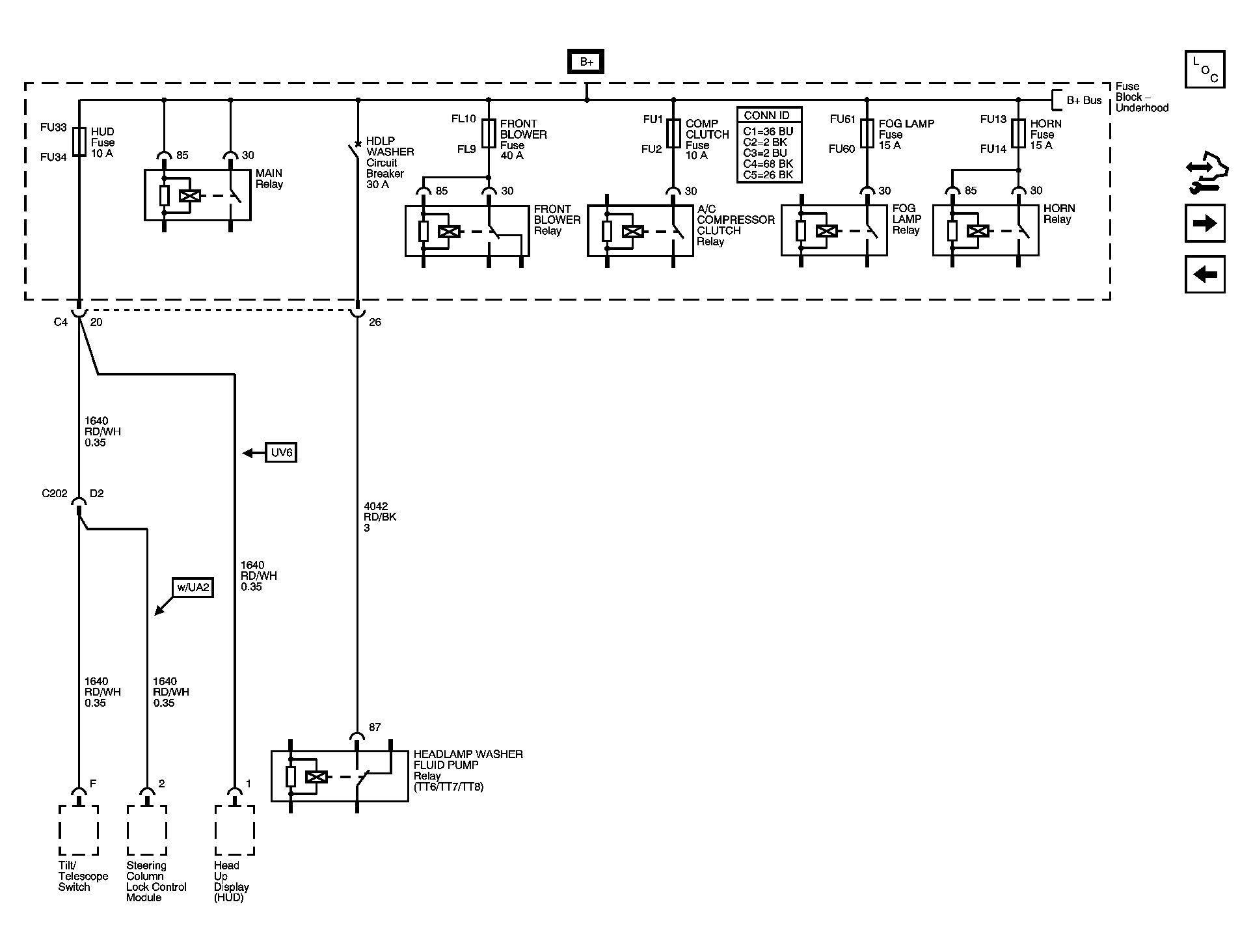

Fig 9: Fuse Block - Underhood: HUD, FRONT BLOWER, COMP CLTCH, FOG LAMP, HORN Fuses, HDLP WASHER CIRCUIT BREAKER, MAIN RELAY Schematics

Courtesy of GENERAL MOTORS CORP.

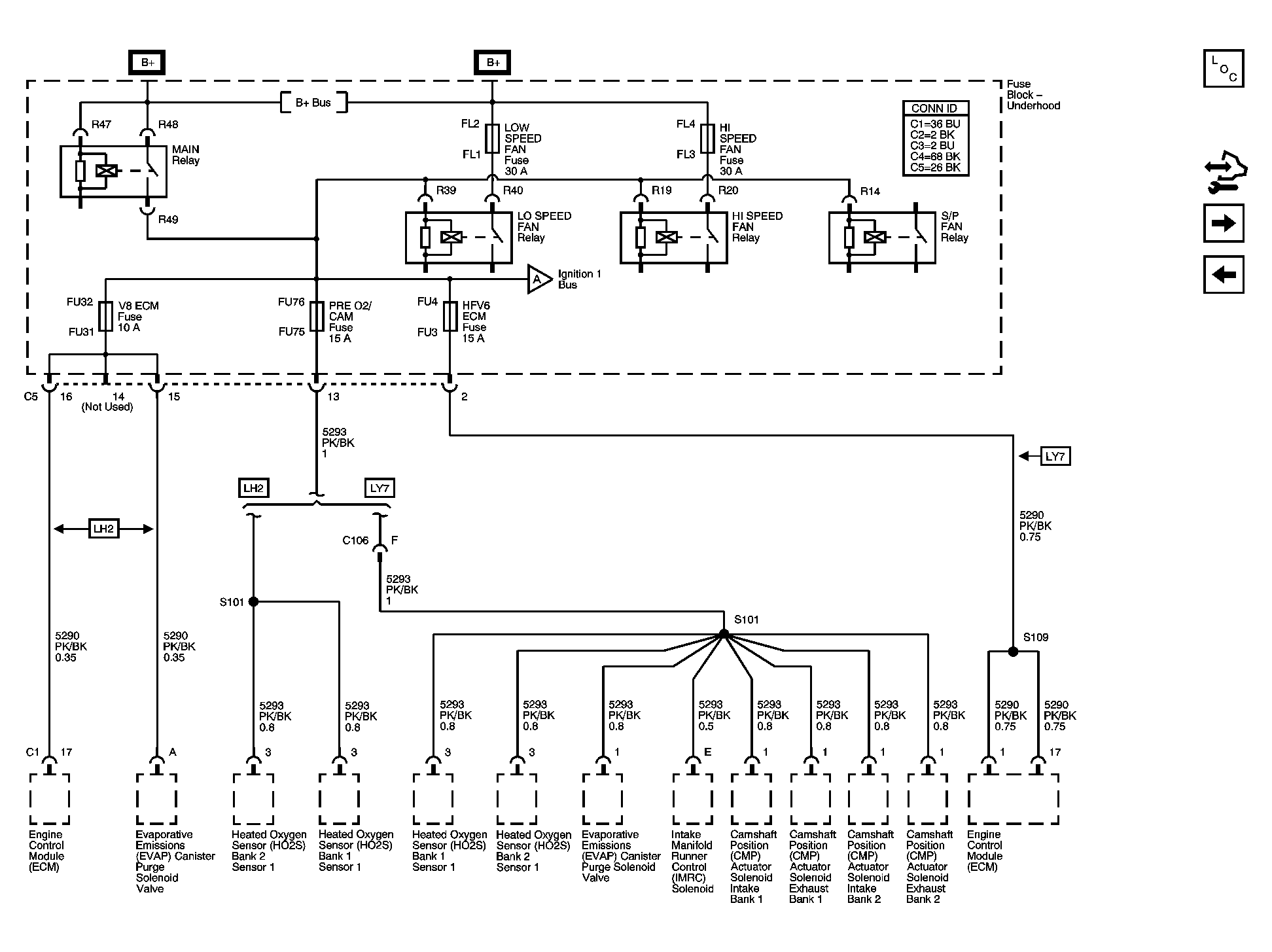

Fig 10: Fuse Block - Underhood: Main, Low Speed, Hi Speed and S/P Fan Relays; V8 ECM, PRE O2/CAM, HFV6 ECM, Low Speed Fan and Hi Speed Fan Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

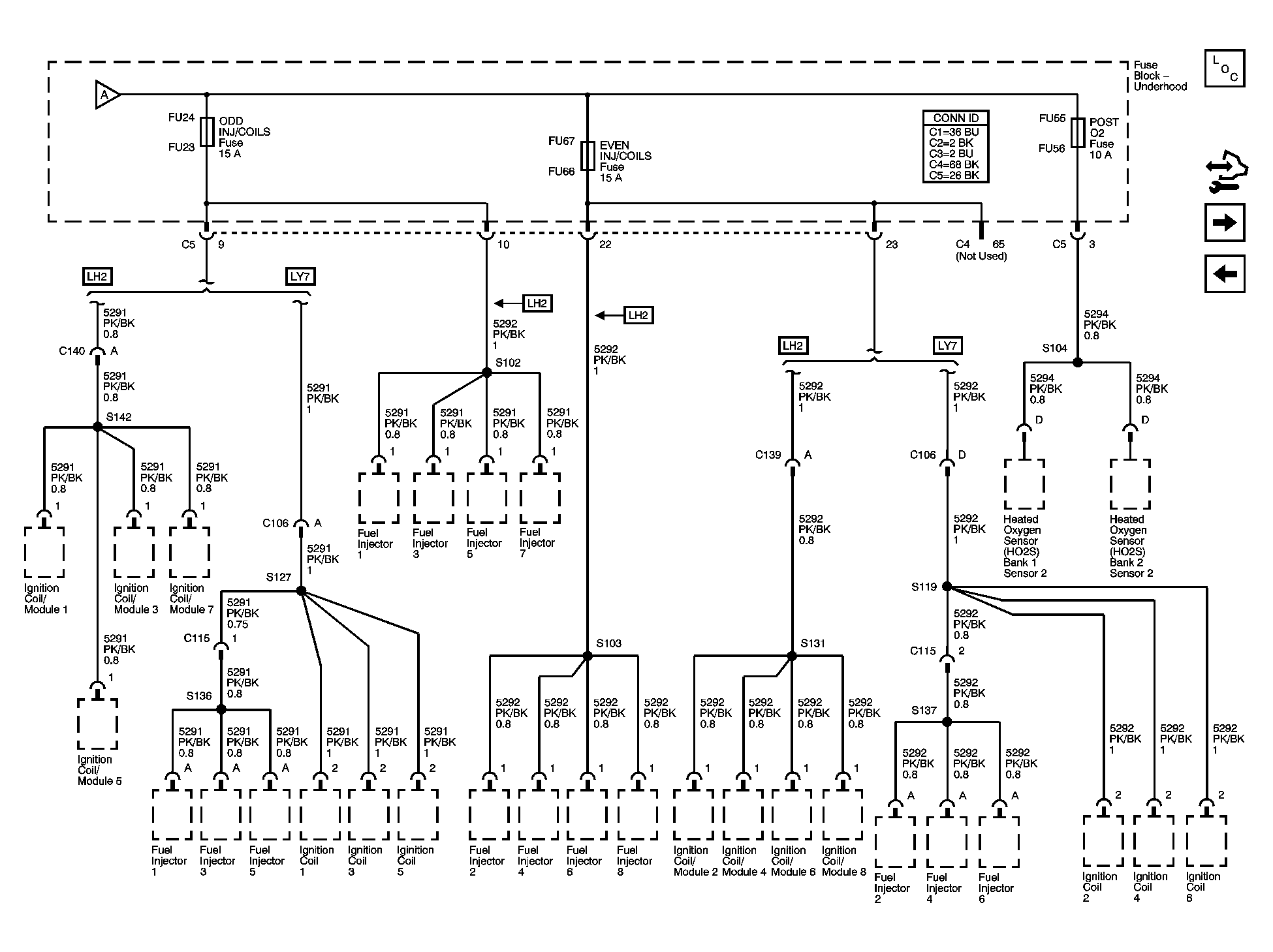

Fig 11: Fuse Block - Underhood: ODD INJ/COILS, EVEN INJ/COILS AND POST O2 FUSES Schematics

Courtesy of GENERAL MOTORS CORP.

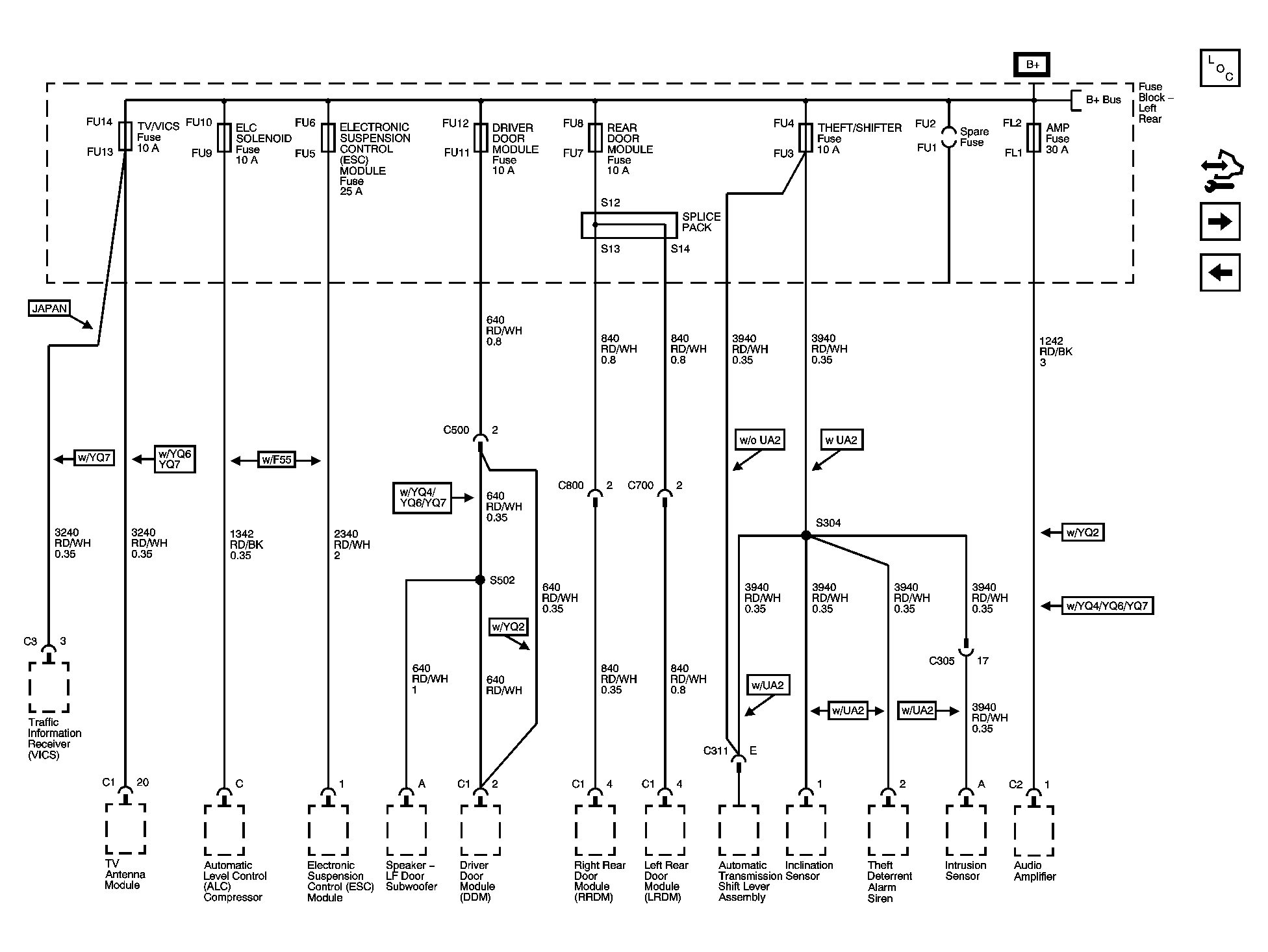

Fig 12: Fuse Block - Left Rear: TV/VICS, ELC SOL, ESC MODULE, DVR DR MODULE, REAR DOOR MODULE, THEFT/SHIFTER AND AMP FUSES Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 13: Fuse Block - Left Rear: Seats Circuit Breaker Schematics

Courtesy of GENERAL MOTORS CORP.

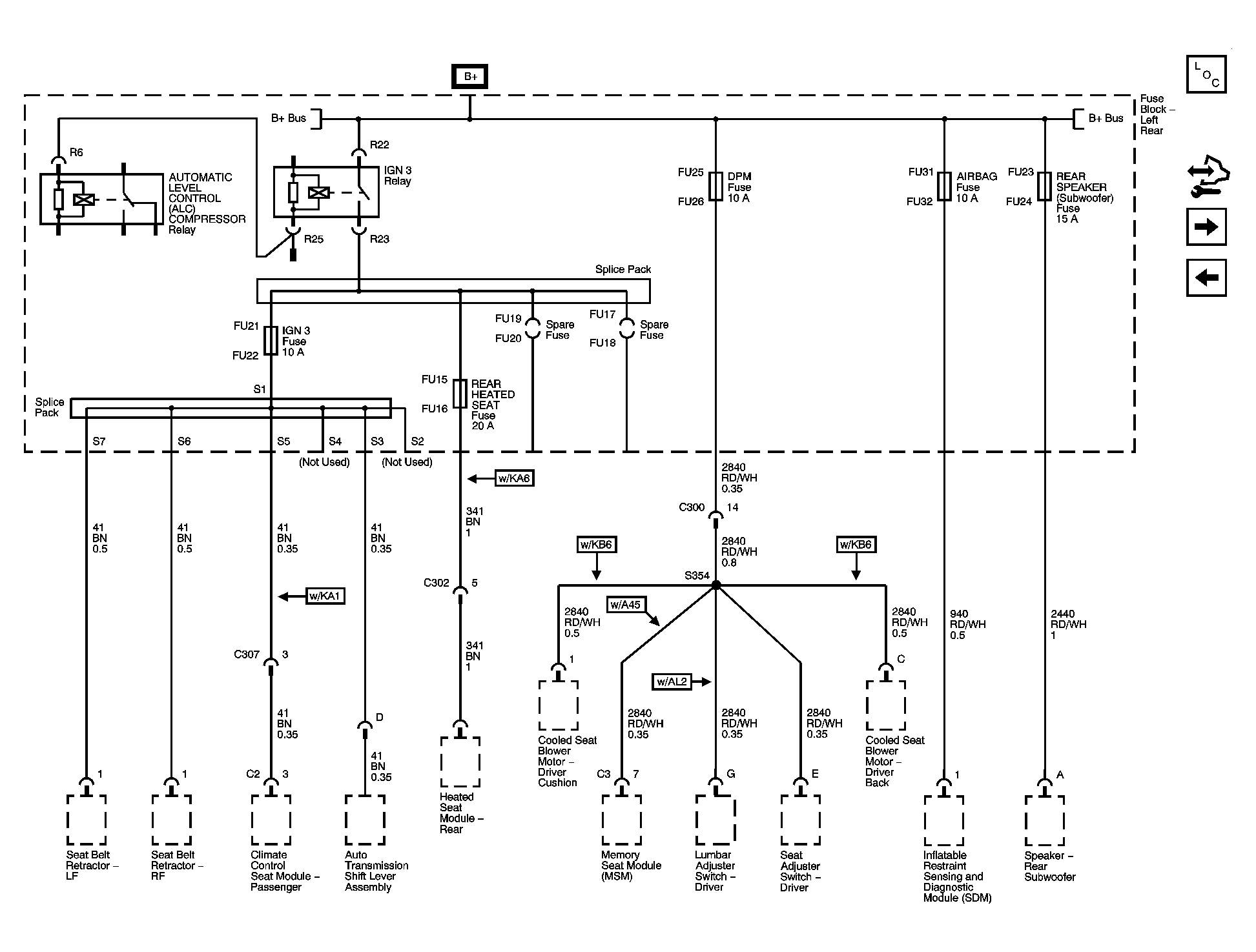

Fig 14: Fuse Block - Left Rear: IGN 3 RELAY, IGN 3, REAR HEATED SEAT, MEMORY, AIRBAG and REAR SHELF SPEAKER FUSES Schematics

Courtesy of GENERAL MOTORS CORP.

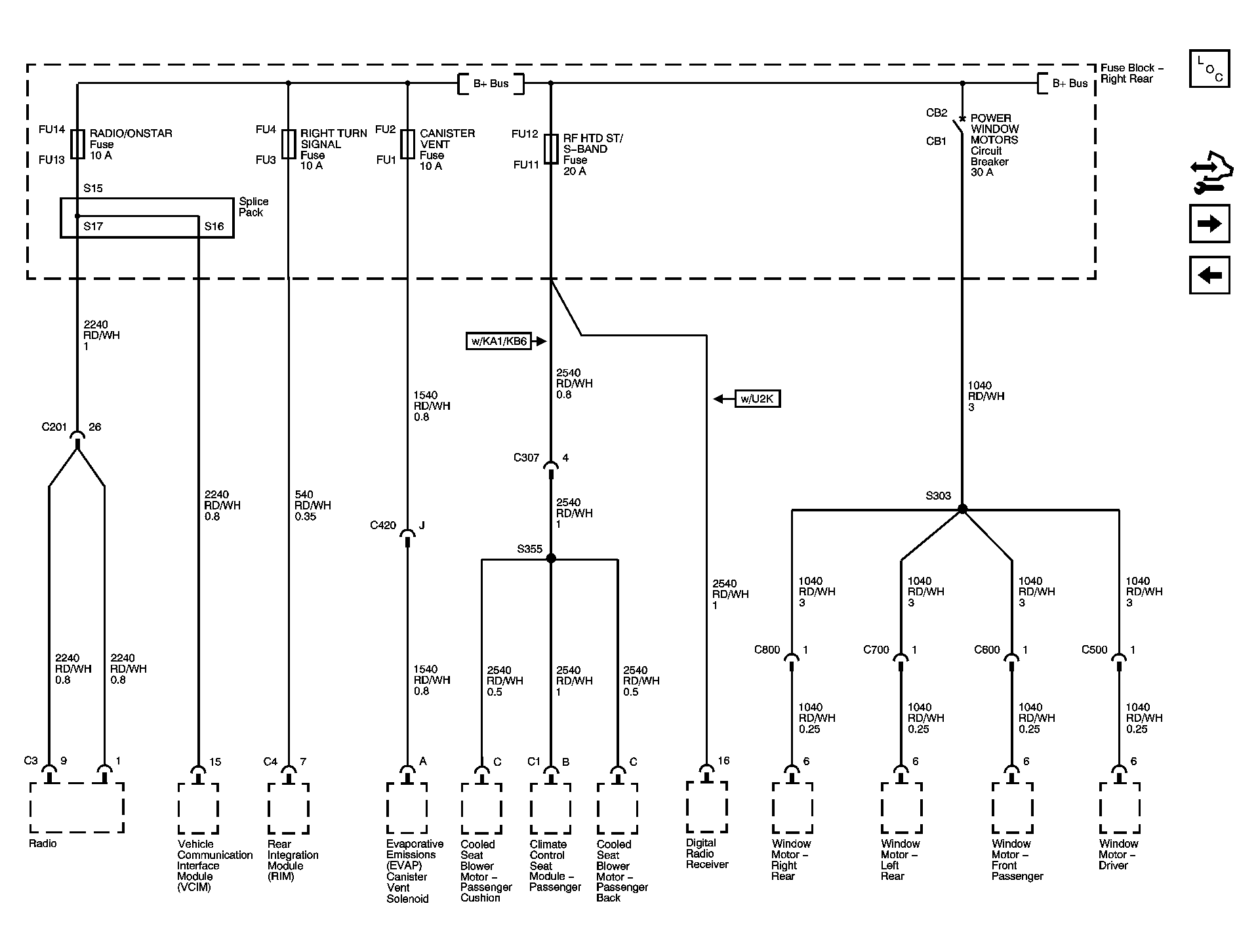

Fig 15: Fuse Block - Right Rear: RADIO/ONSTAR, RT TURN SIGNAL, CANISTER VENT and RF HEATED/VENTED SEAT Fuses, WINDOW MOTORS CIRCUIT BREAKER Schematics

Courtesy of GENERAL MOTORS CORP.

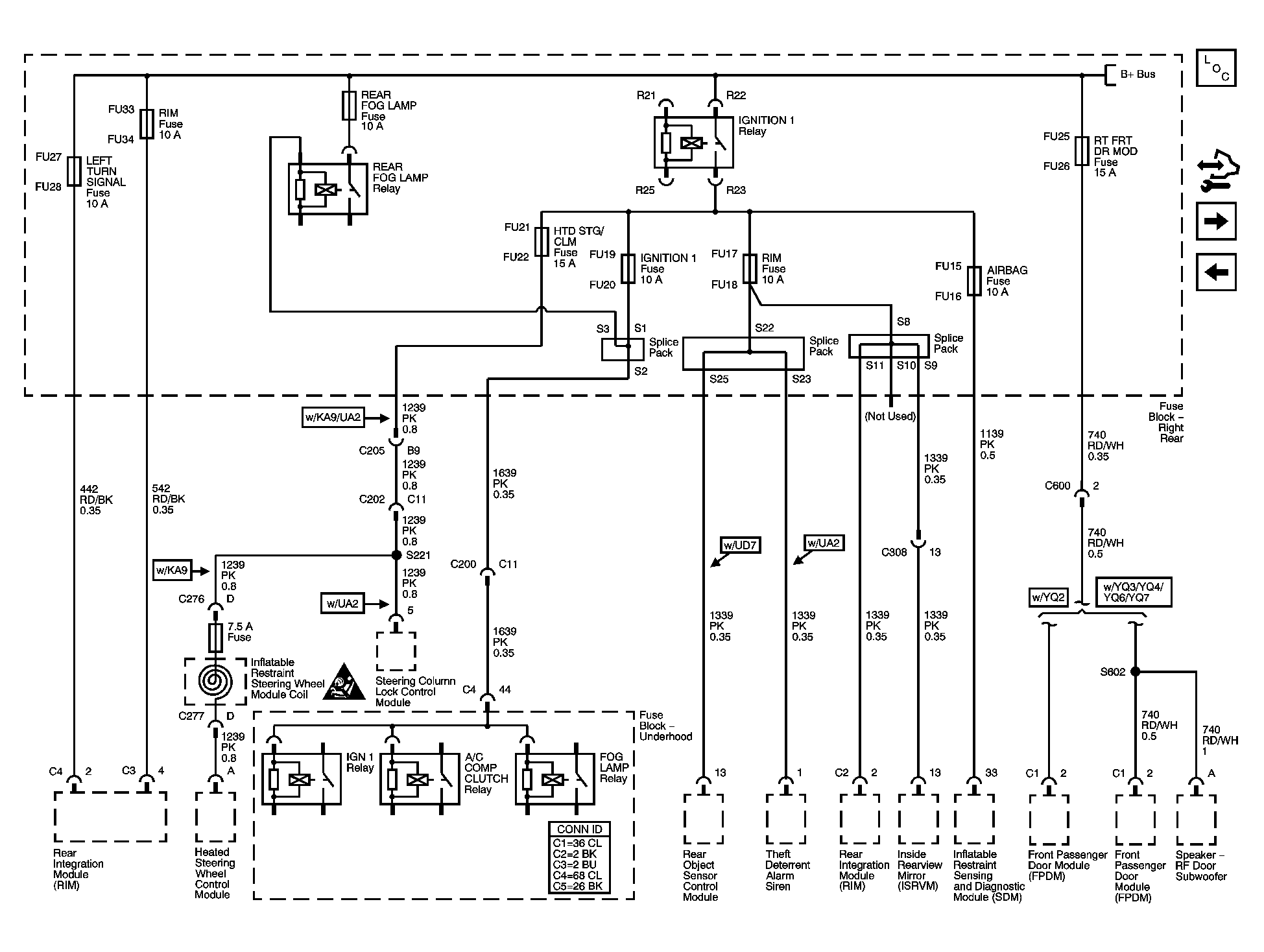

Fig 16: Fuse Block - Right Rear: LT TURN SIGNAL, RIM(1), REAR FOG LAMP, FT PASS. DOOR MODULE, HTD STG CLM, IGN 1, RIM(2) AND AIRBAG FUSES, REAR FOG LAMP AND IGN 1 RELAYS Schematics

Courtesy of GENERAL MOTORS CORP.

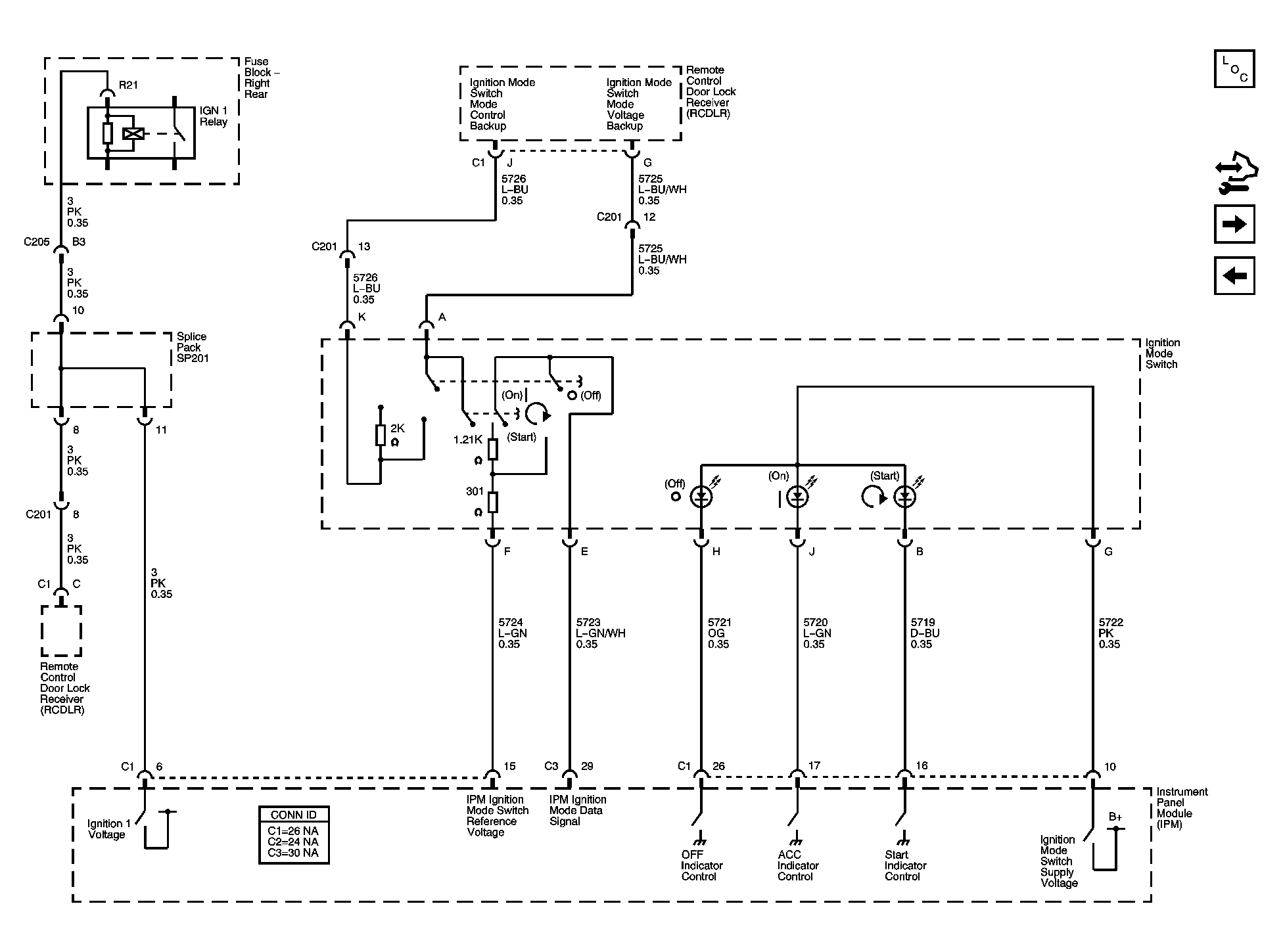

Fig 17: Ignition Mode Switch Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 18: Power Modes Schematics

Courtesy of GENERAL MOTORS CORP.
