Engine Cooling Schematics

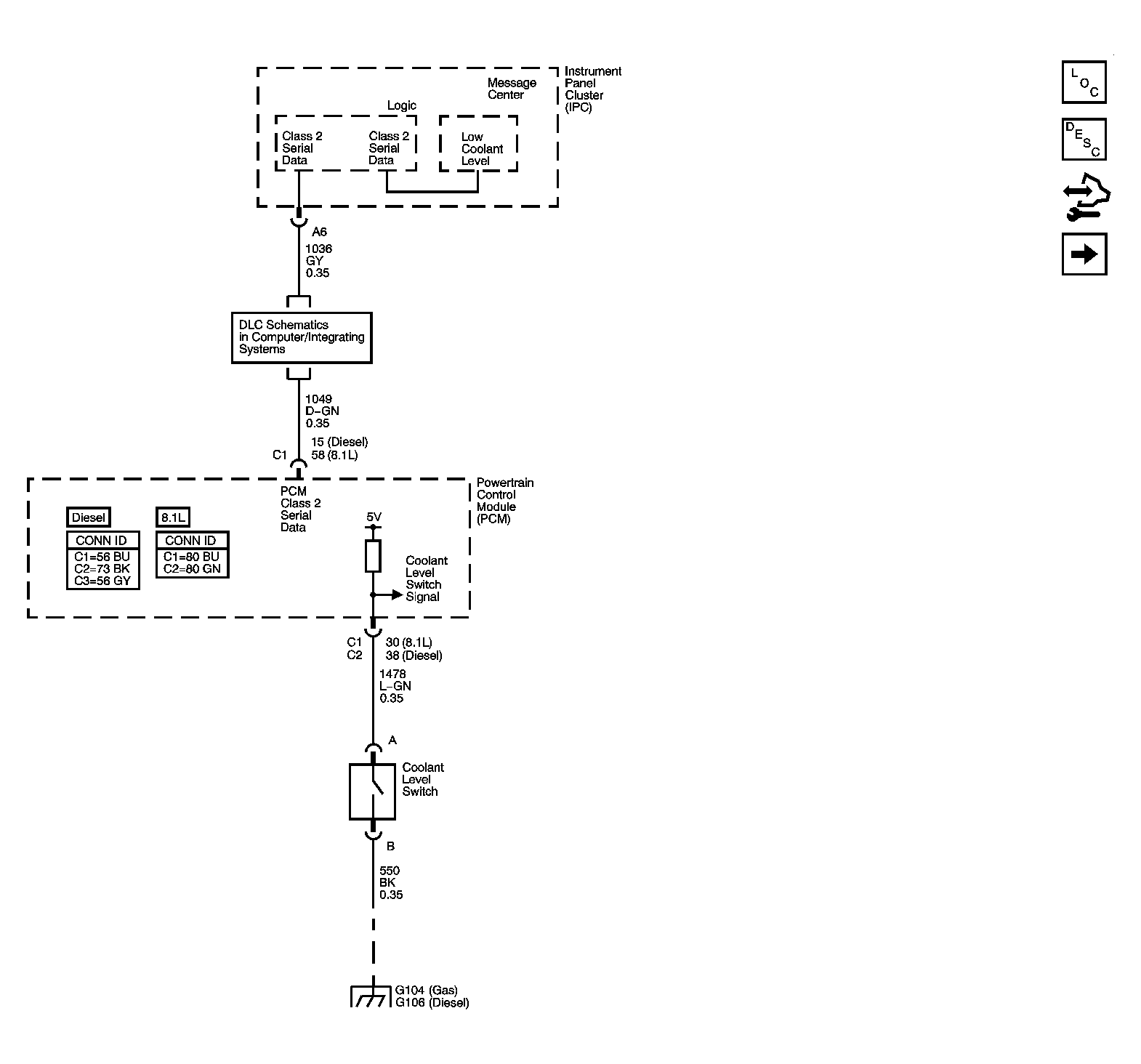

Fig 1: Engine Cooling Schematic (8.1L & Diesel)
GM1460039Courtesy of GENERAL MOTORS CORP.

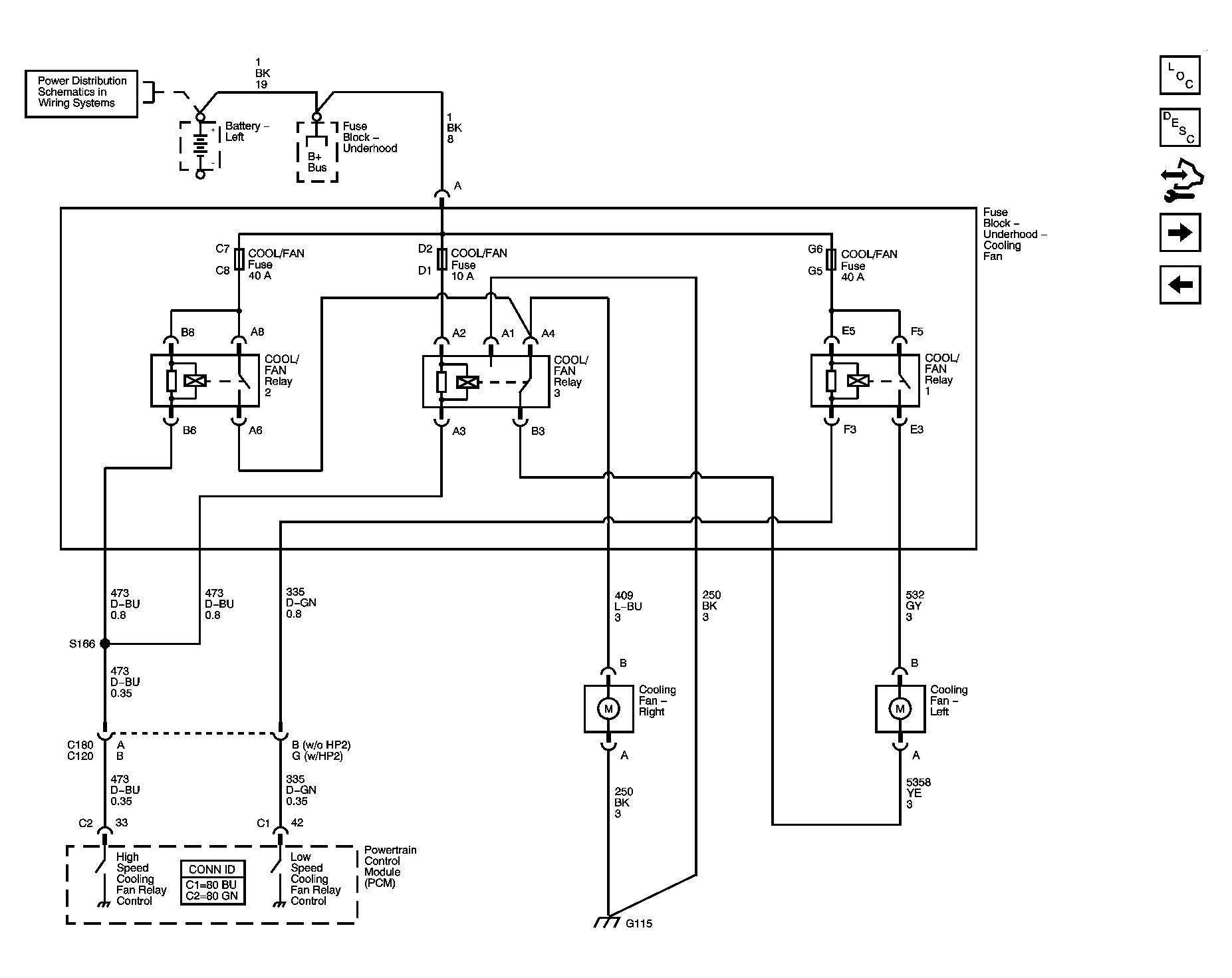

Fig 2: Engine Cooling Schematic (10 Series)
GM1460047Courtesy of GENERAL MOTORS CORP.

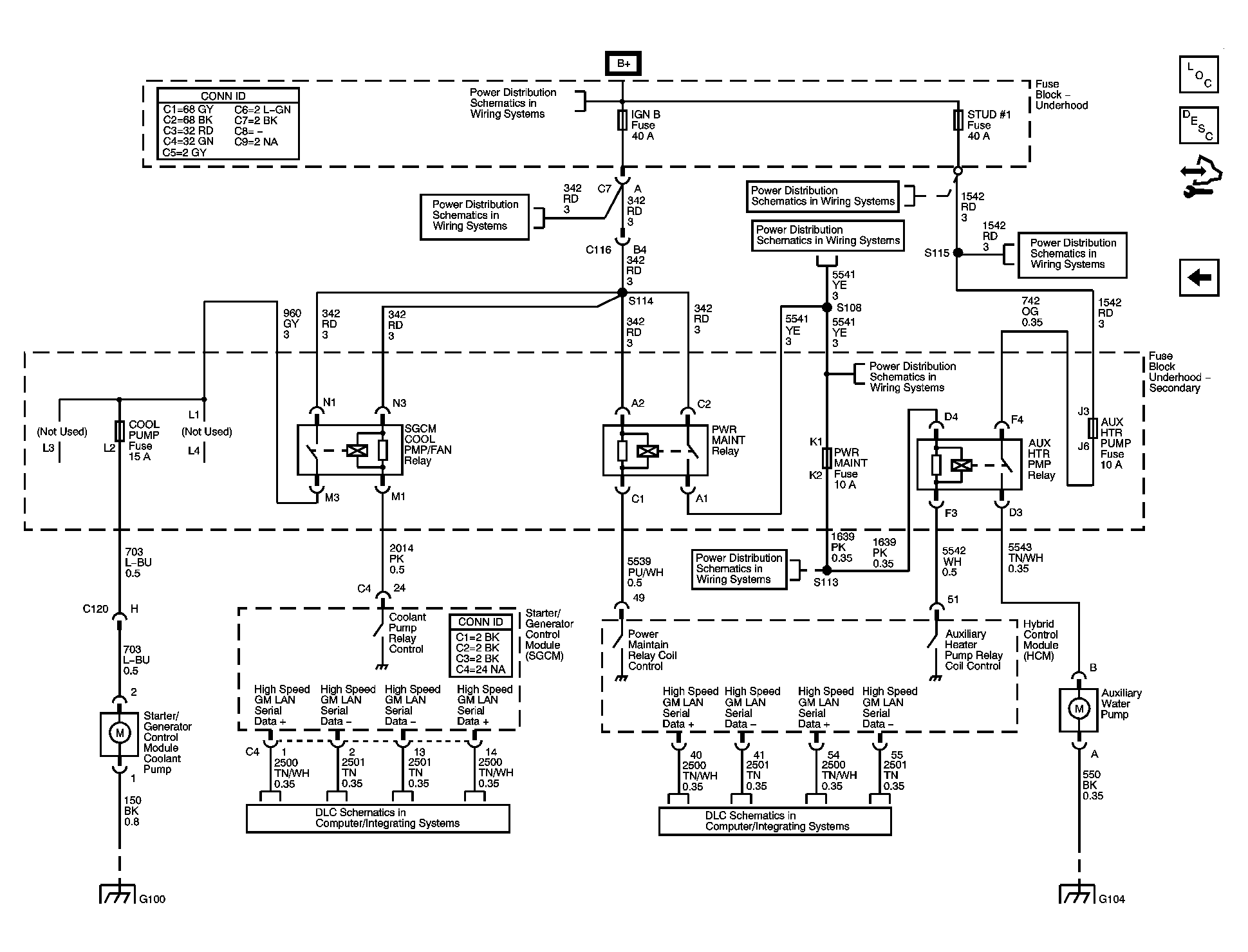

Fig 3: Engine Cooling Schematic (HP2)
GM1460057Courtesy of GENERAL MOTORS CORP.
