Theft Deterrent System Schematics

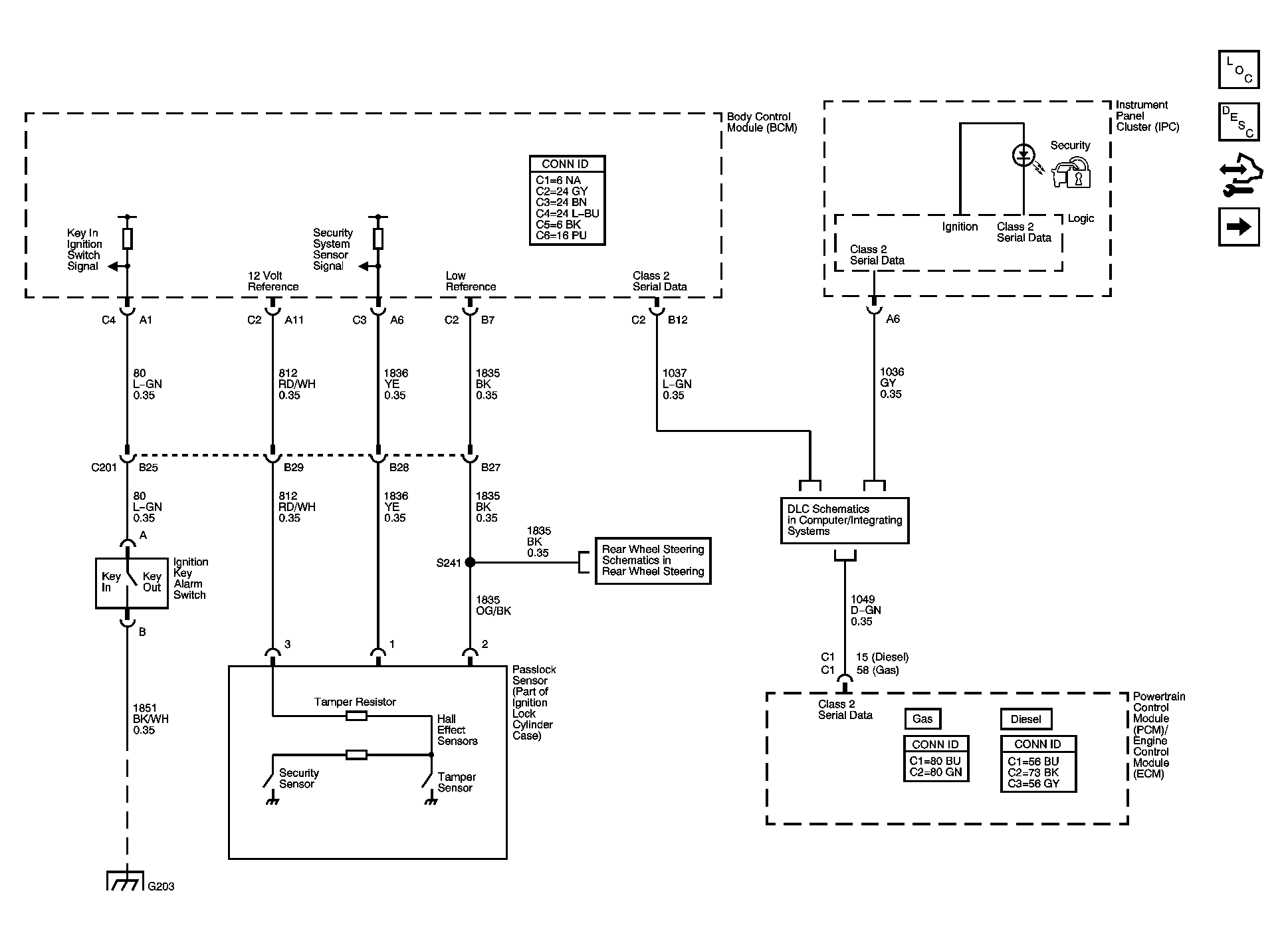

Fig 1: Vehicle Theft Deterrent Schematics

GM1548627

Courtesy of GENERAL MOTORS CORP.

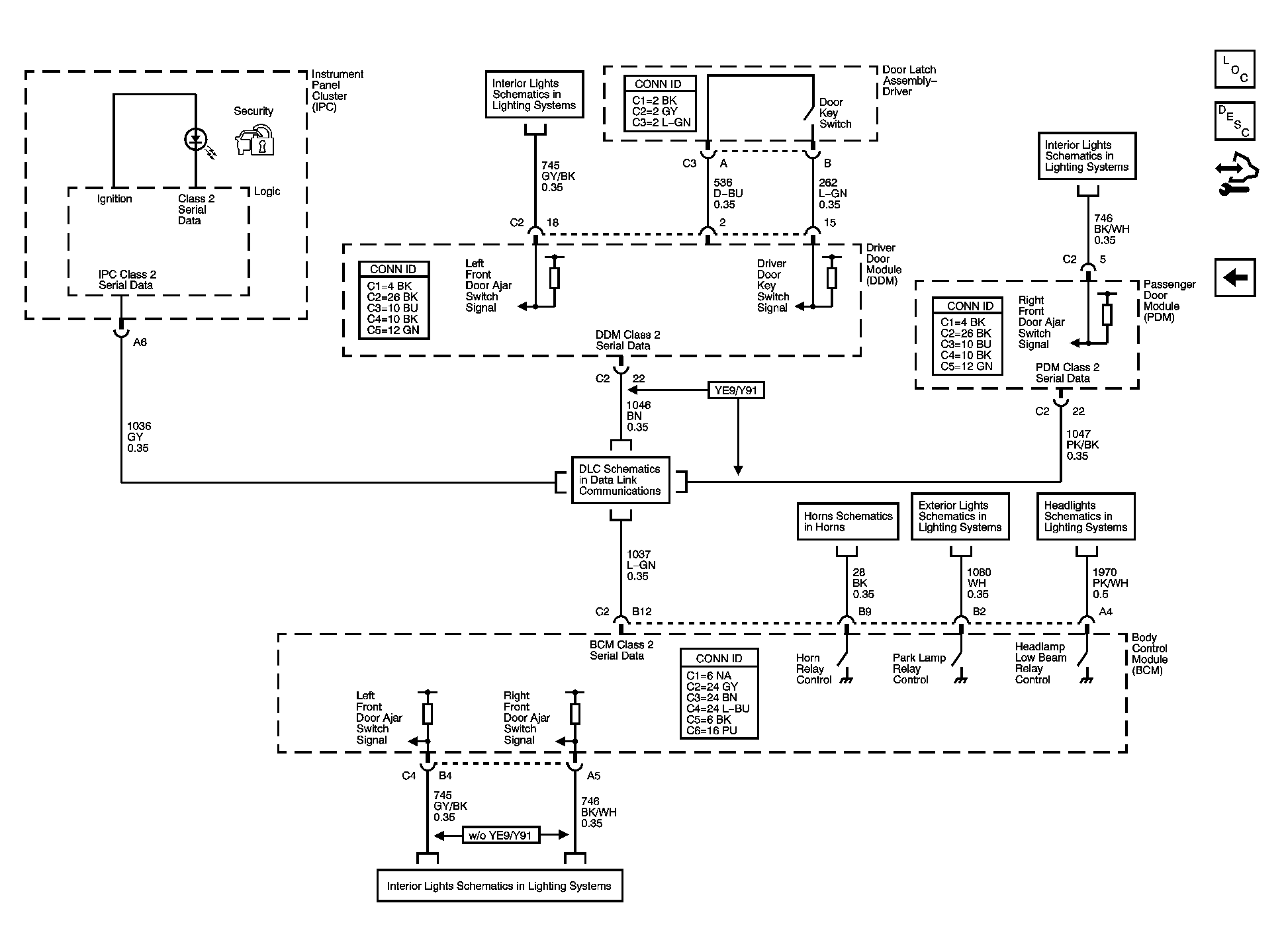

Fig 2: Content Theft Deterrent Schematics

GM1548628

Courtesy of GENERAL MOTORS CORP.
