Wiper/Washer System Schematics

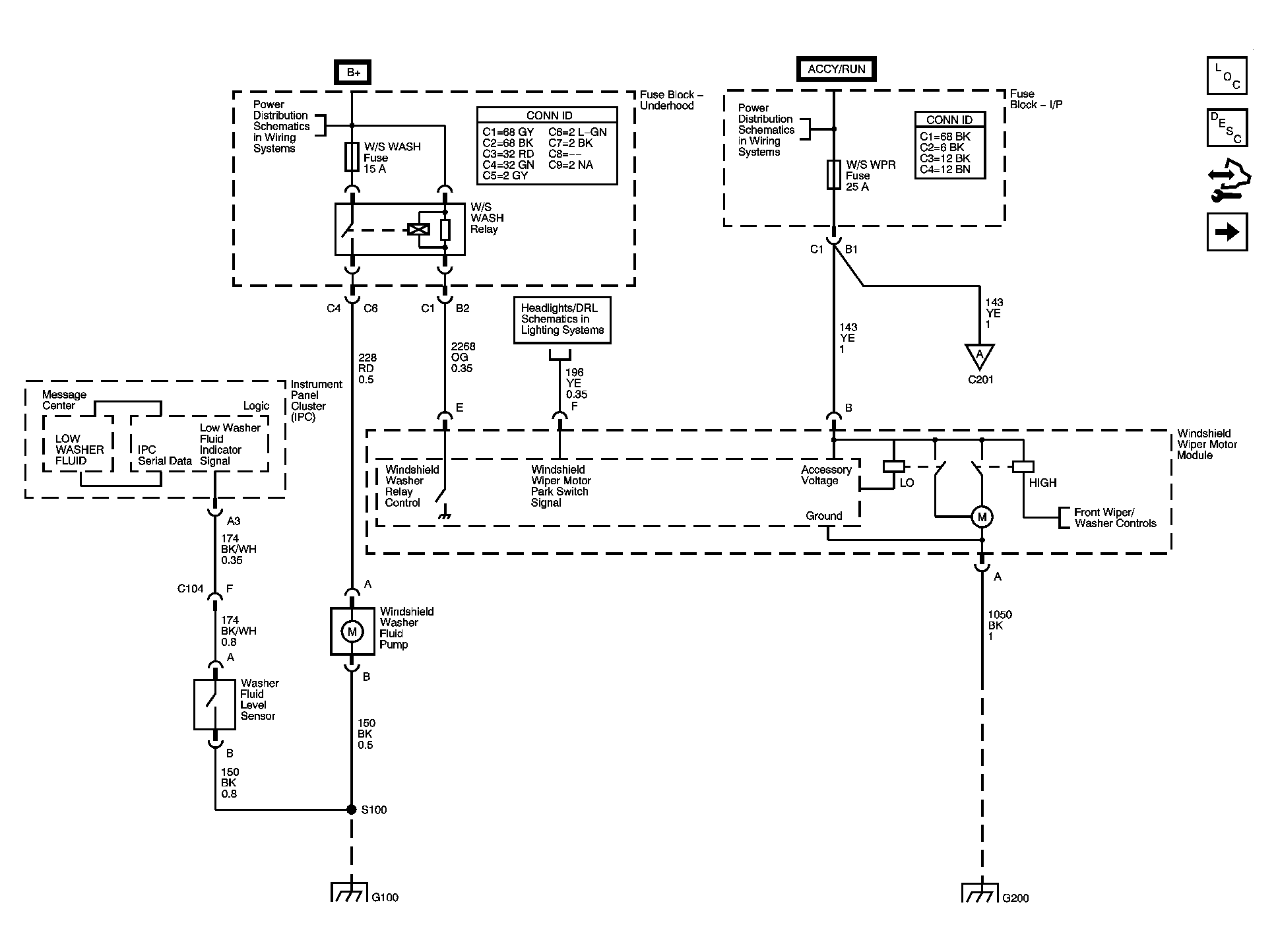

Fig 1: Front Wiper/Washer Power, Ground and Control Schematic
Courtesy of GENERAL MOTORS CORP.

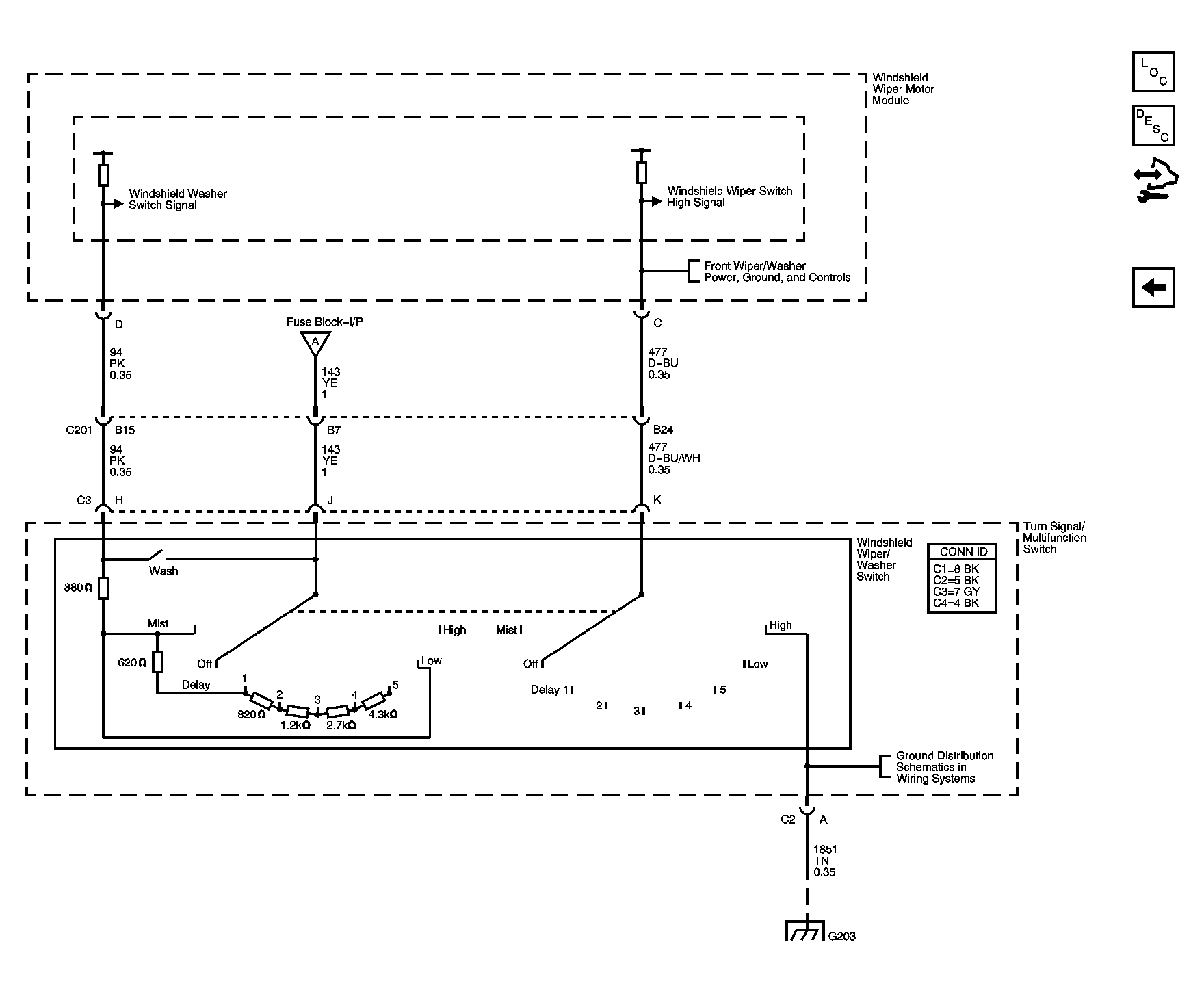

Fig 2: Front Wiper/Washer Controls Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
