Interior Lights Schematics

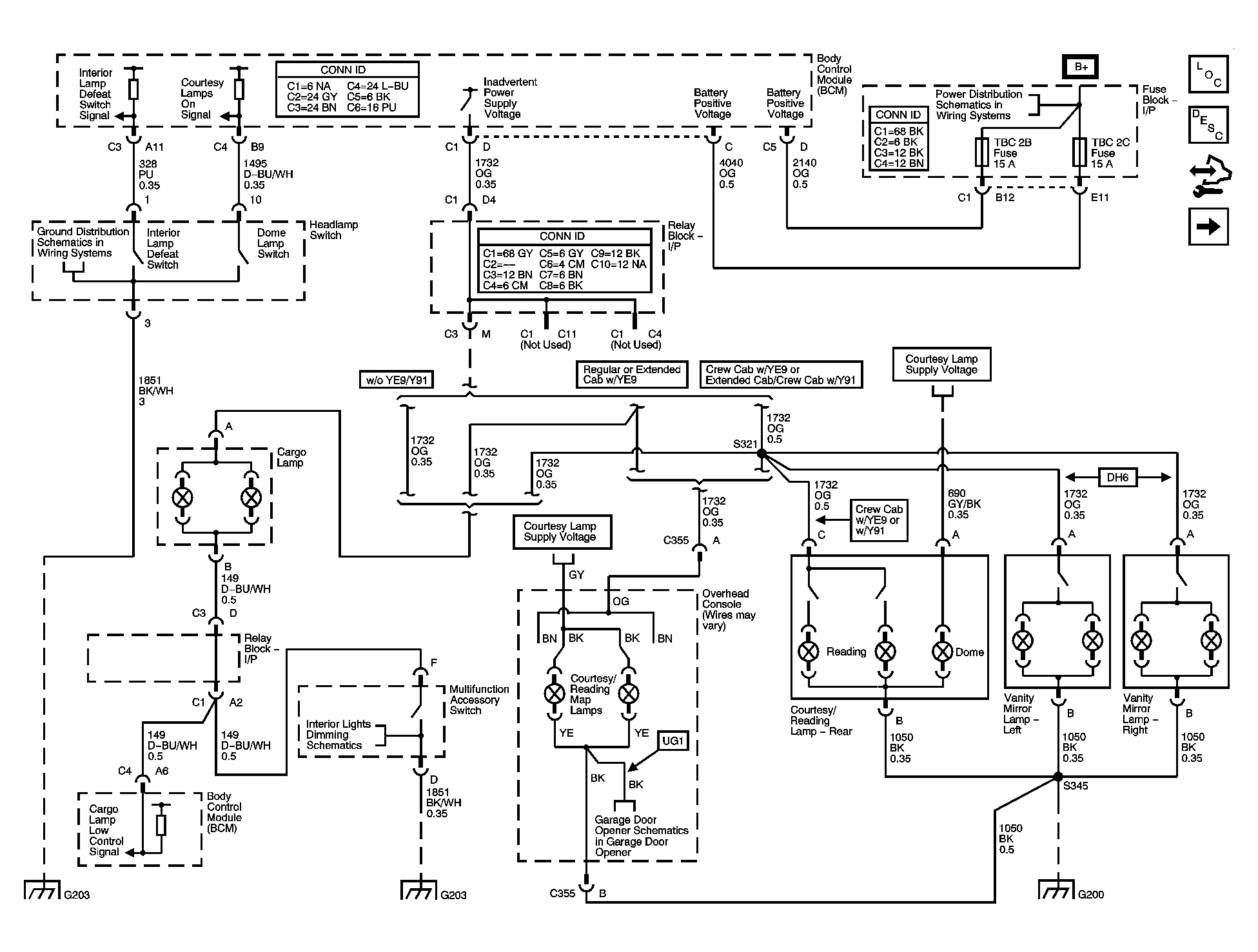

Fig 1: Interior Lamps Controls and Interior Lamps Schematic - 1 of 2
GM1533557Courtesy of GENERAL MOTORS CORP.

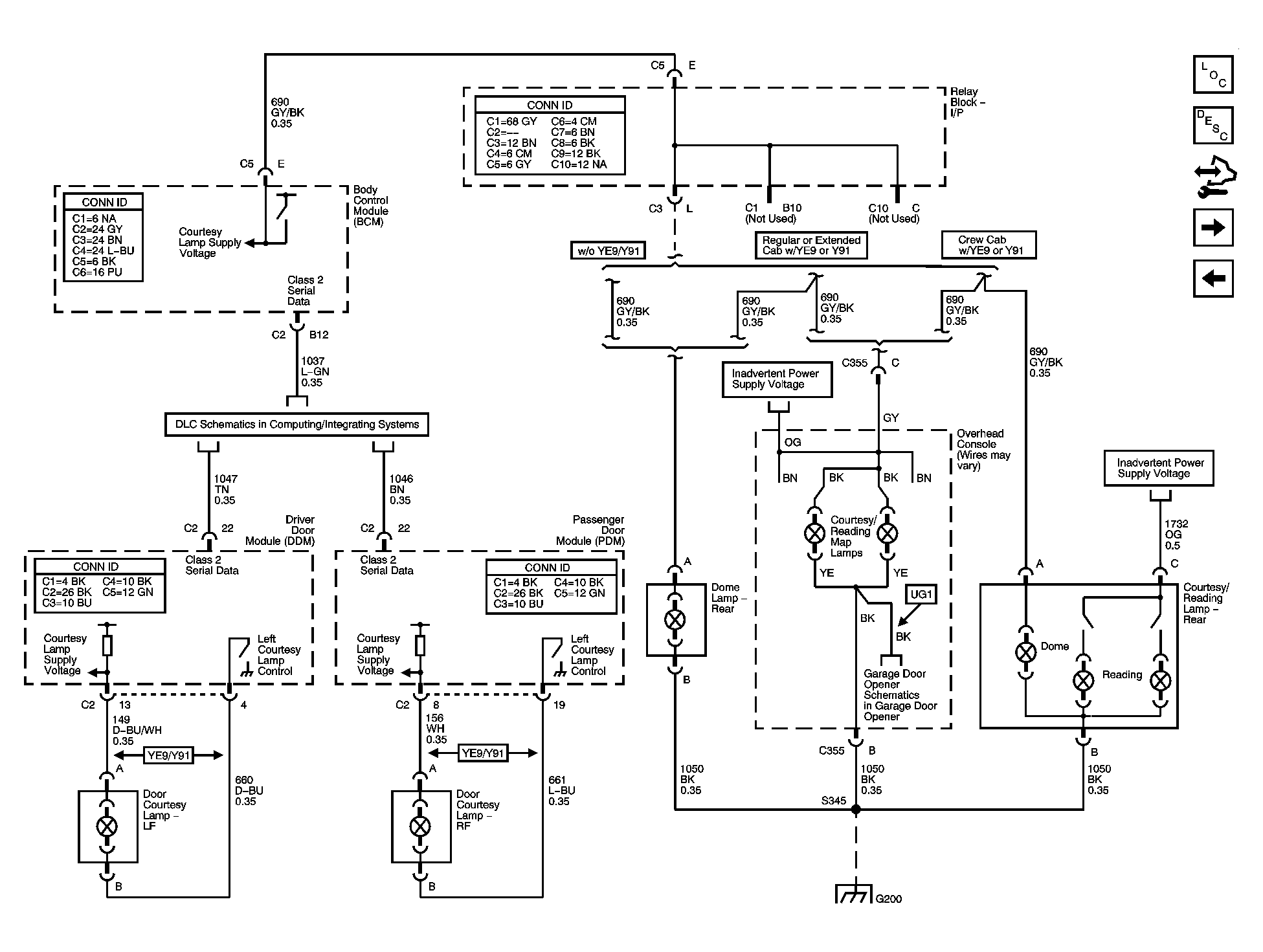

Fig 2: Interior Lamps Schematic - 2 of 2
GM1533558Courtesy of GENERAL MOTORS CORP.

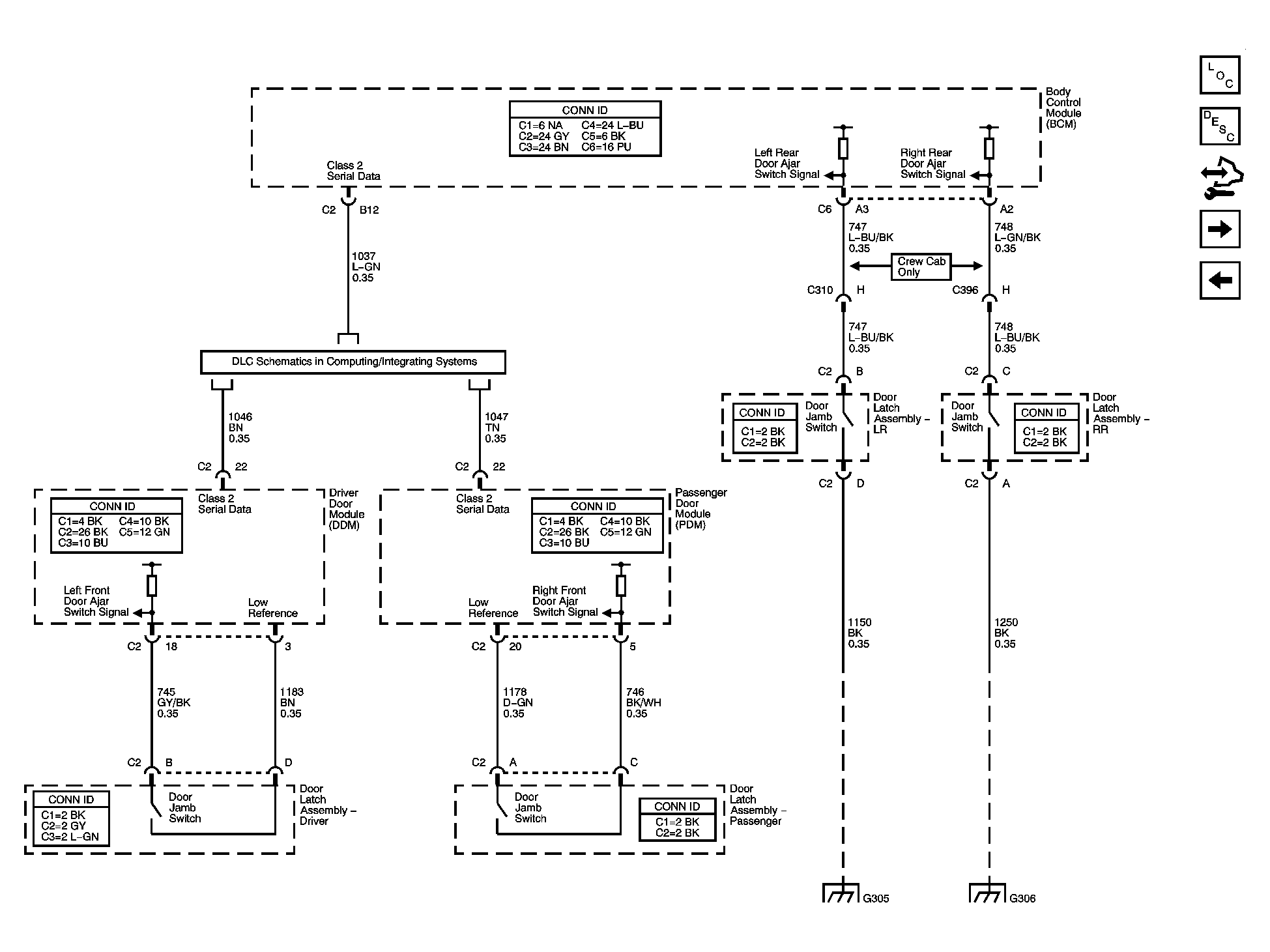

Fig 3: Door Jamb Switches Schematic (YE9/Y91)
GM1533560Courtesy of GENERAL MOTORS CORP.

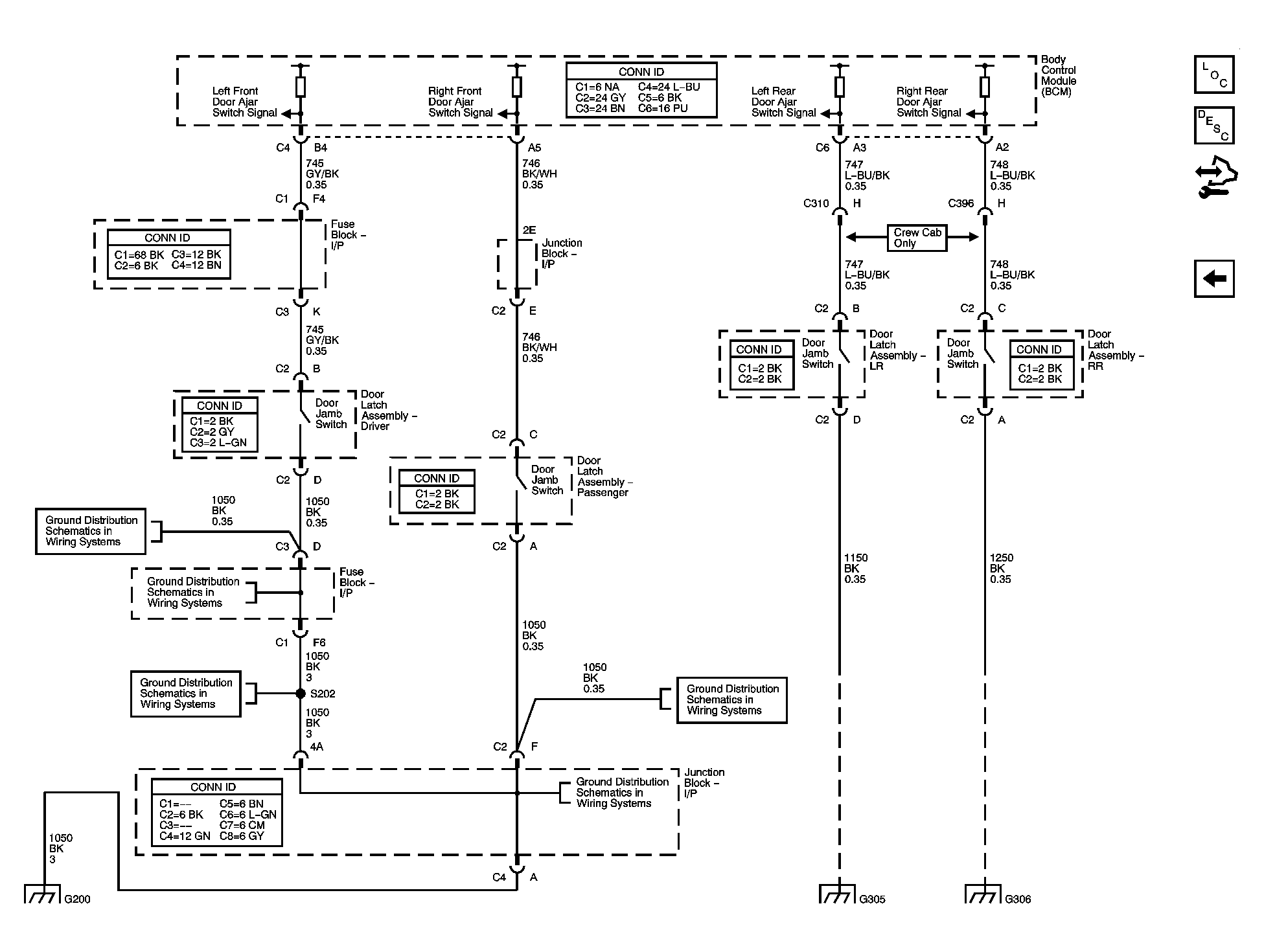

Fig 4: Door Jamb Switches Schematic (w/o YE9/Y91)
GM1533584Courtesy of GENERAL MOTORS CORP.
