Interior Lights Dimming Schematics

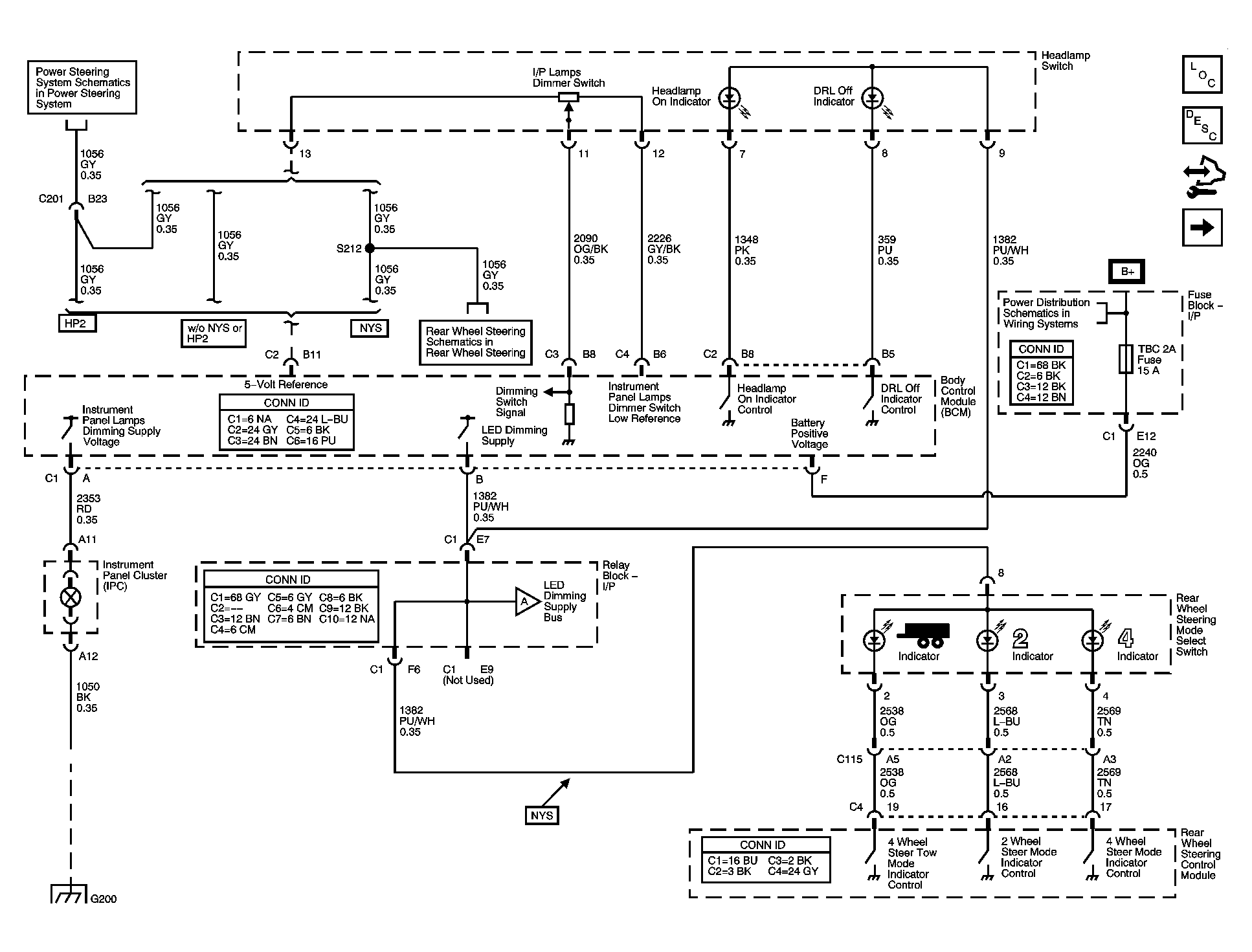

Fig 1: Interior Lights Dimming Control and LED Dimming Supply Schematic - 1 of 2
GM1533618Courtesy of GENERAL MOTORS CORP.

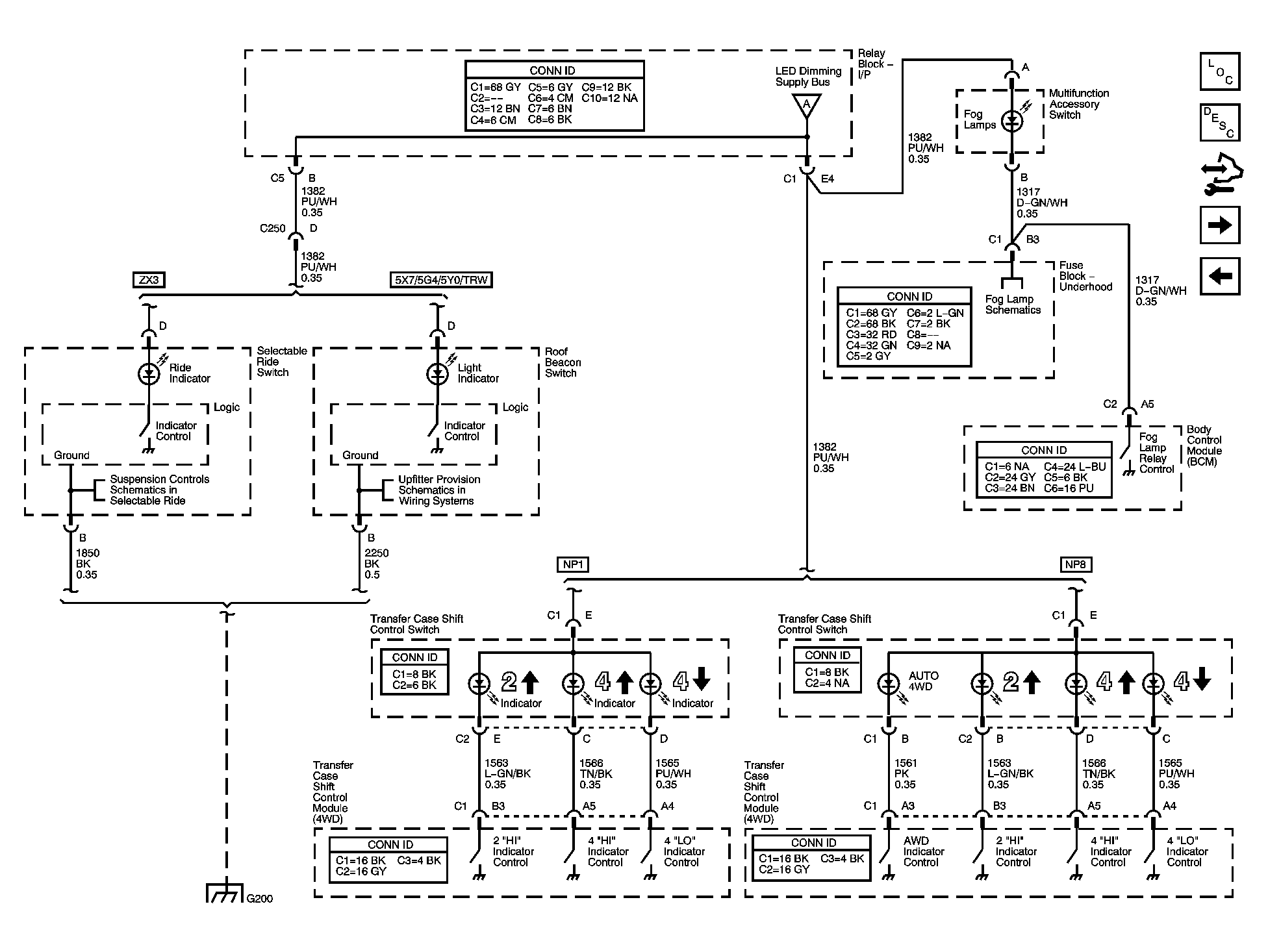

Fig 2: LED Dimming Supply Schematic - 2 of 2
GM1533620Courtesy of GENERAL MOTORS CORP.

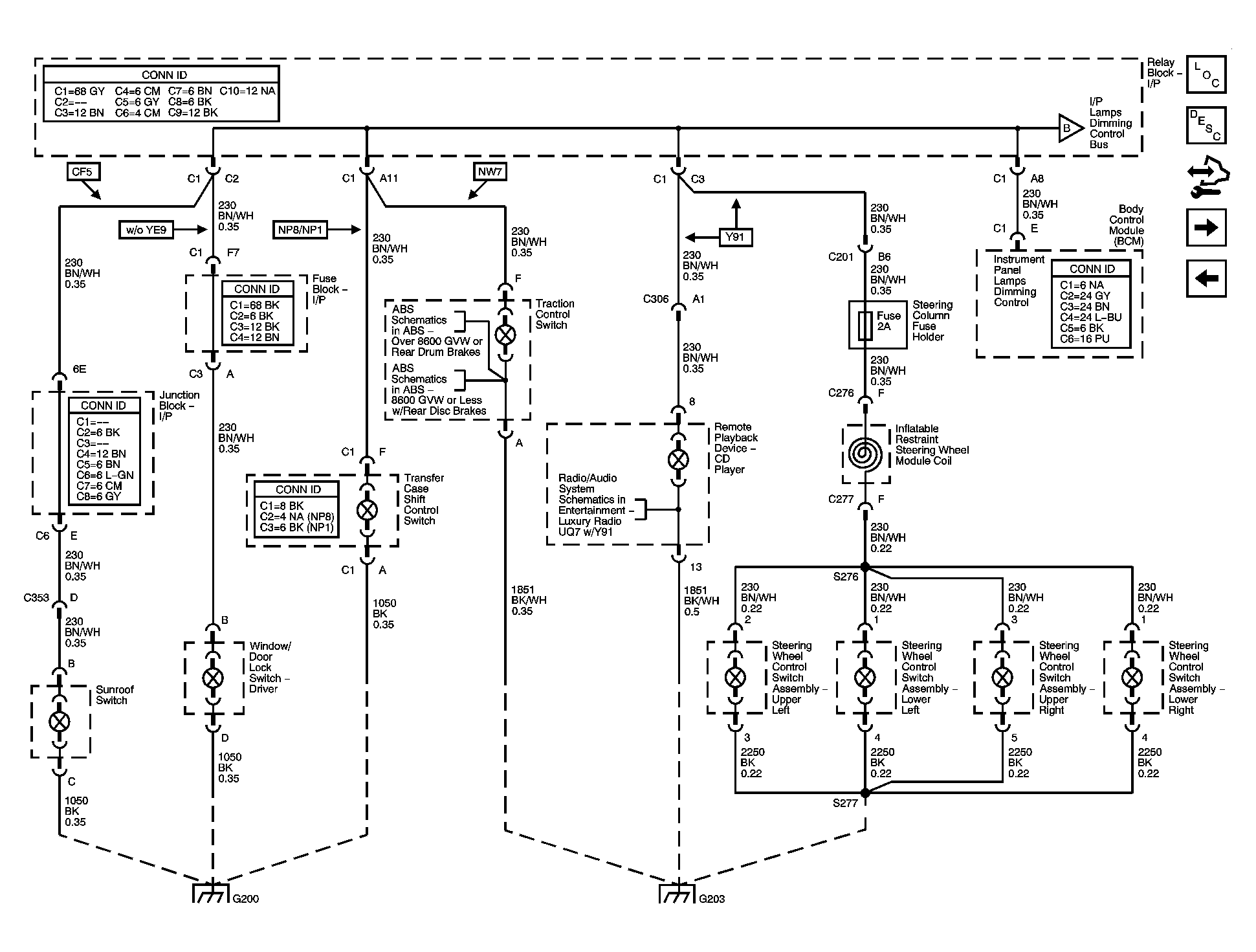

Fig 3: I/P Lamps Dimming Control Supply Schematic - 1 of 3
GM1533624Courtesy of GENERAL MOTORS CORP.

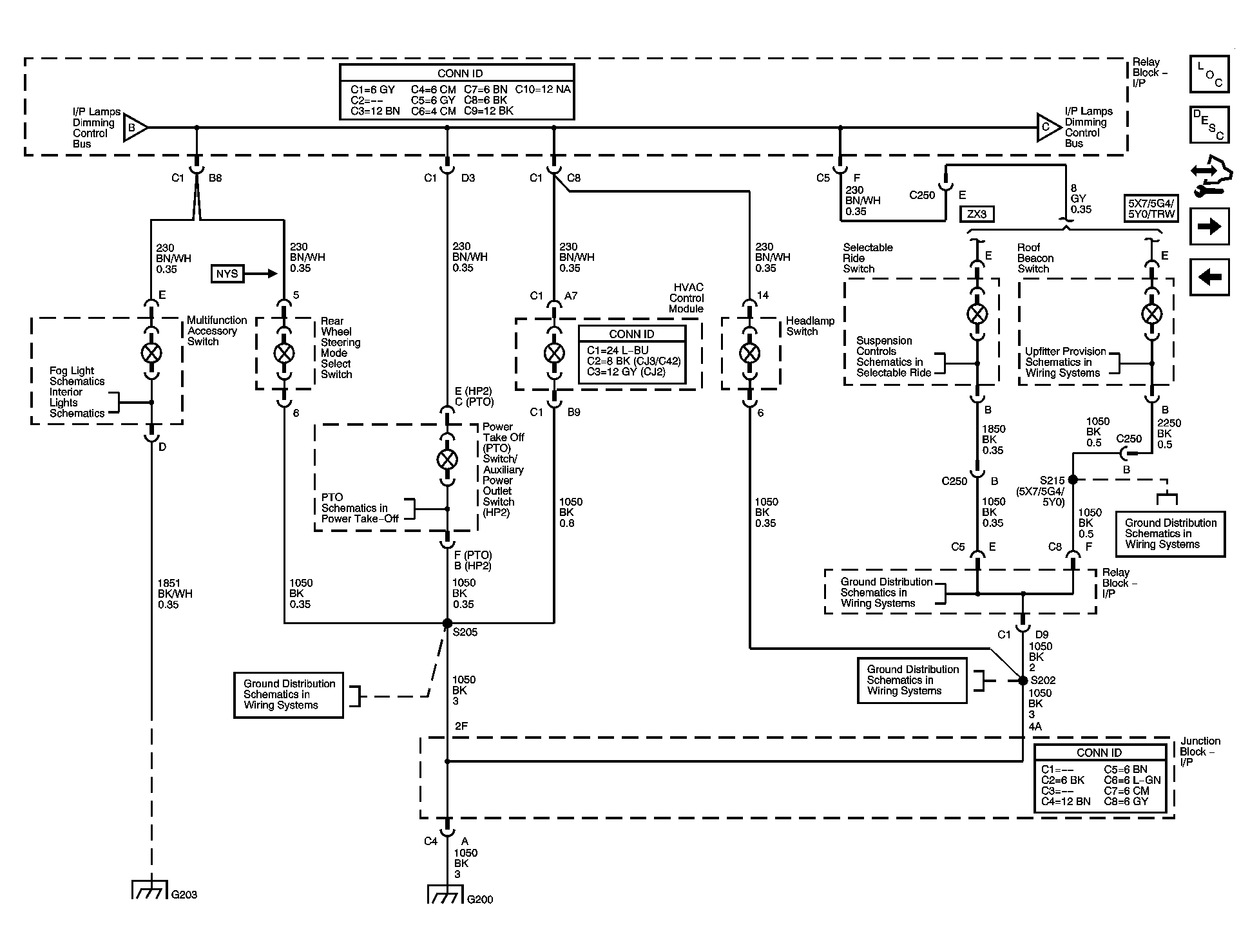

Fig 4: I/P Lamps Dimming Control Supply Schematic - 2 of 3
GM1533626Courtesy of GENERAL MOTORS CORP.

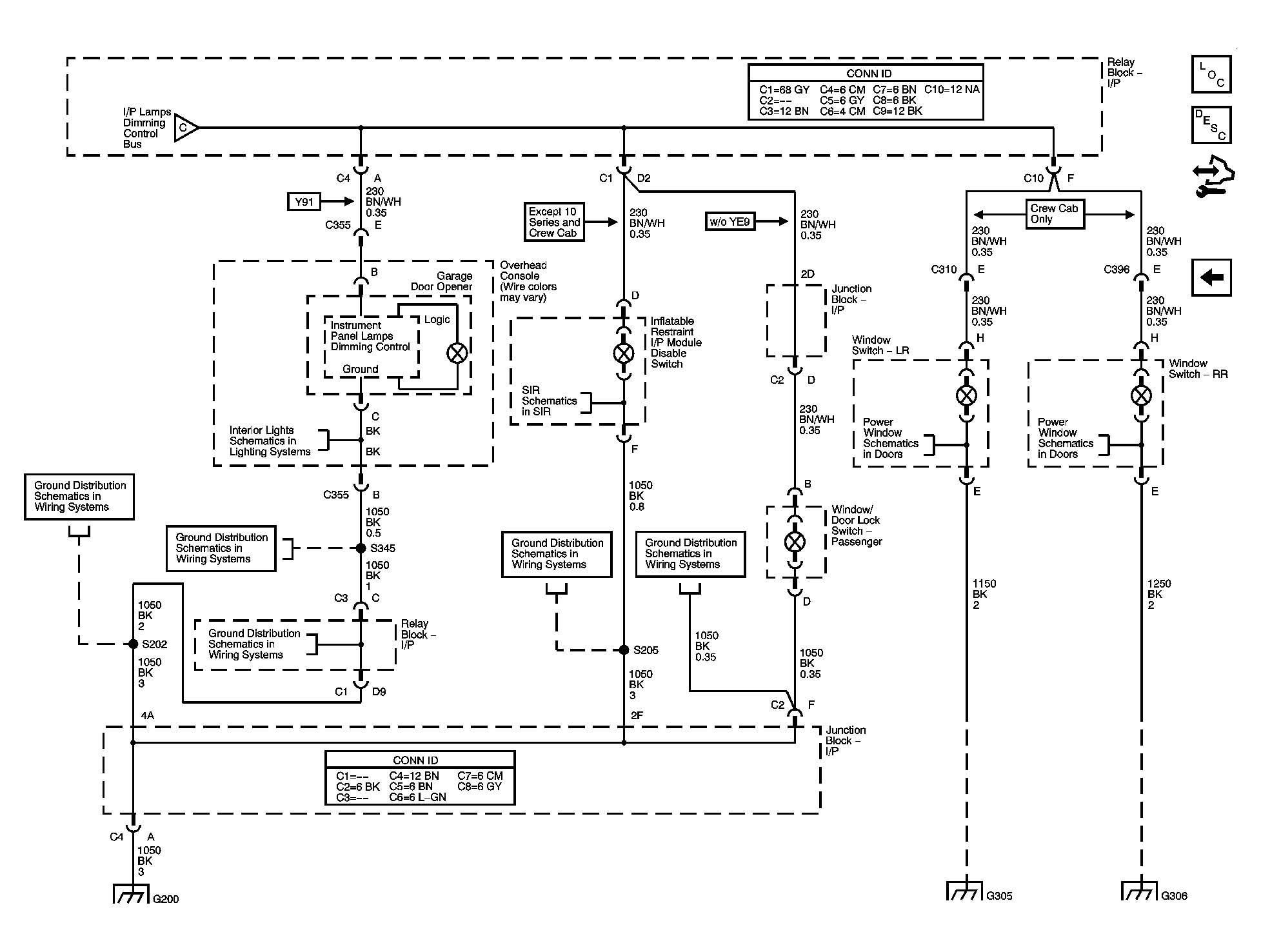

Fig 5: I/P Dimming Control Supply Schematic - 3 of 3
GM1533628Courtesy of GENERAL MOTORS CORP.
