Brake Warning System Schematics

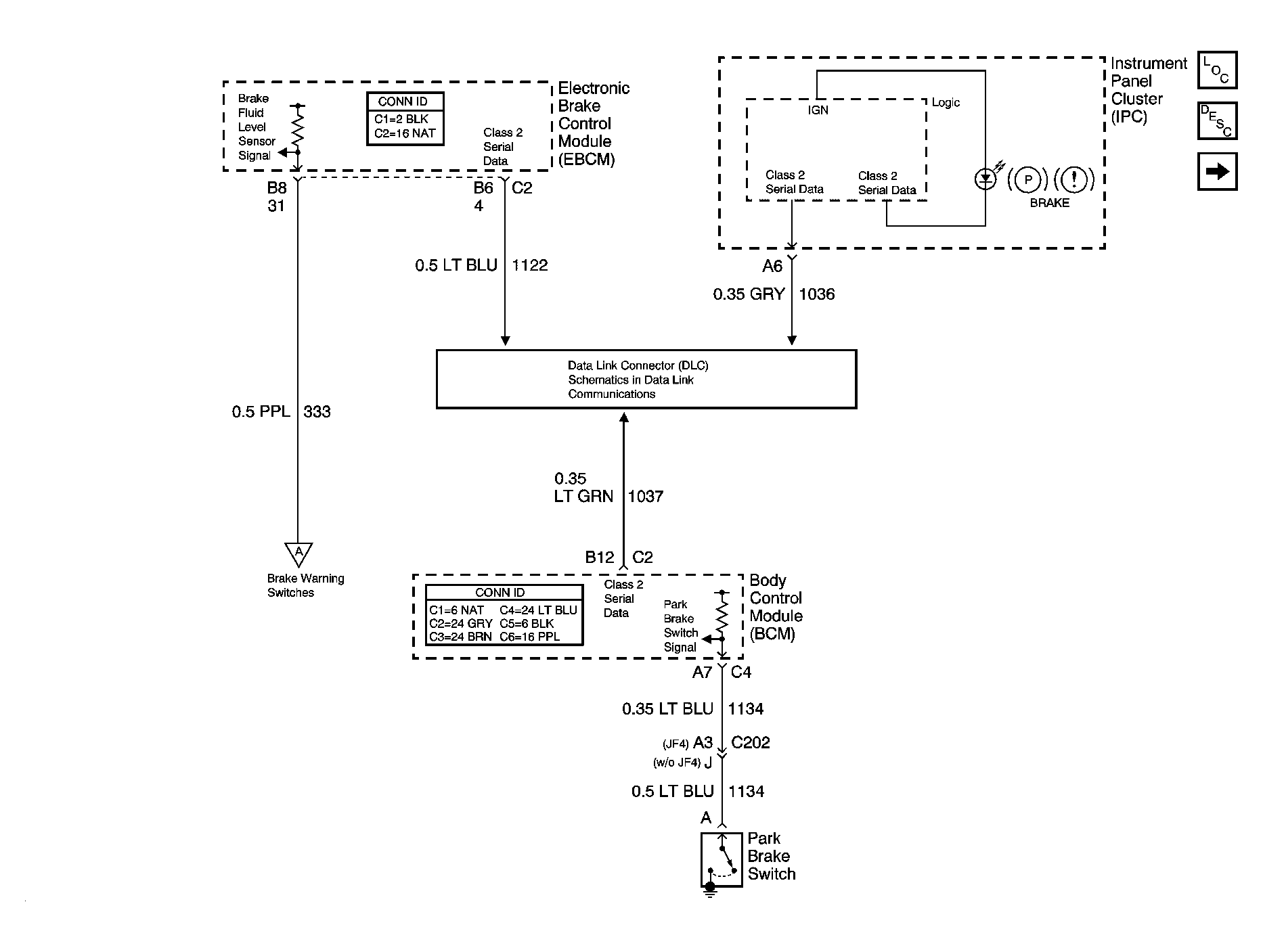

Fig 1: Serial Data & Park Brake Signal Schematic
GM1251879Courtesy of GENERAL MOTORS CORP.

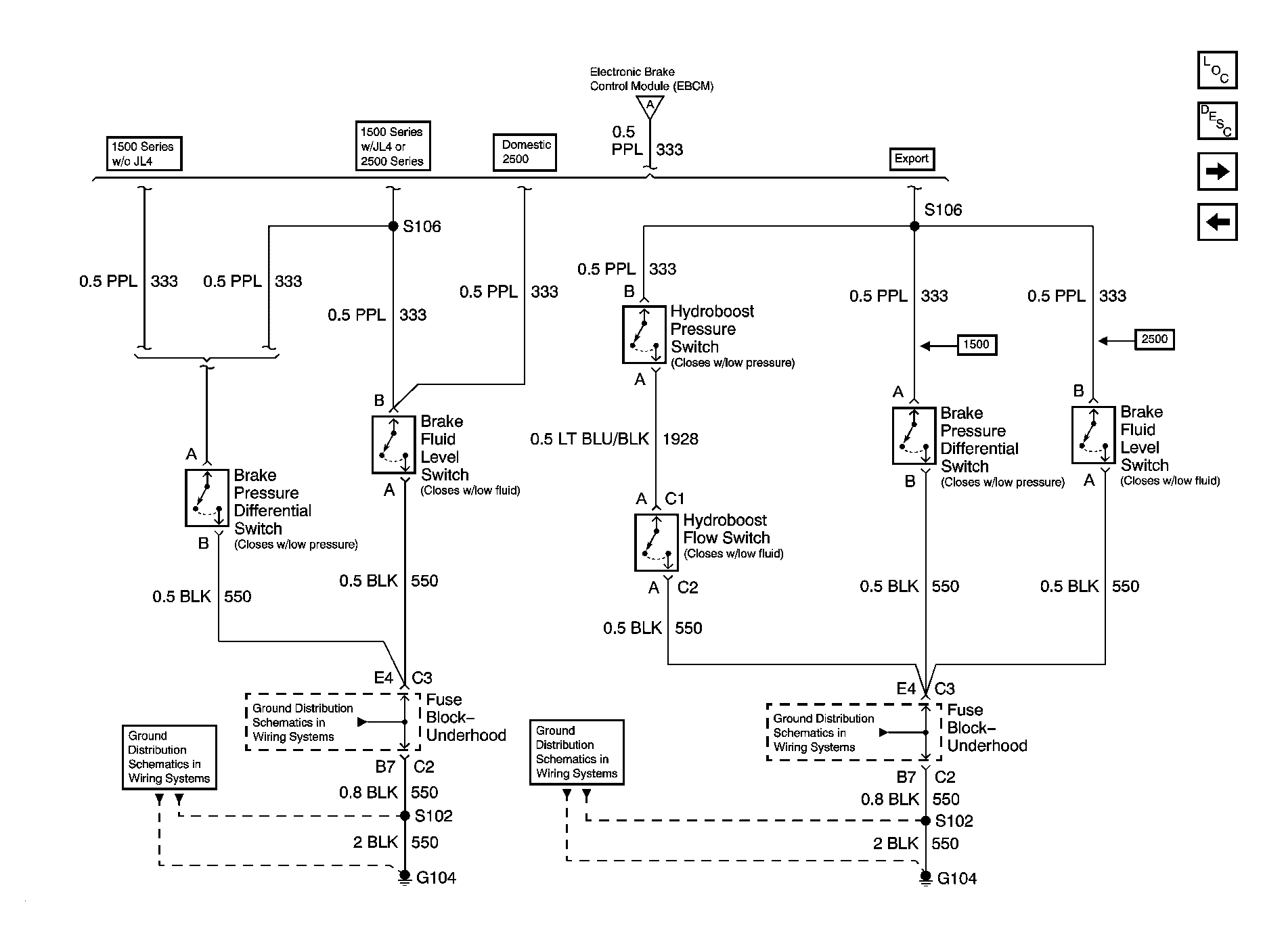

Fig 2: Fluid Switches Schematic
GM1251883Courtesy of GENERAL MOTORS CORP.
Fig 3: Supplemental Brake Assist Schematic
GM1241517Courtesy of GENERAL MOTORS CORP.
