Exterior Lights Schematics

Refer to Exterior Lights in SYSTEM WIRING DIAGRAMS .

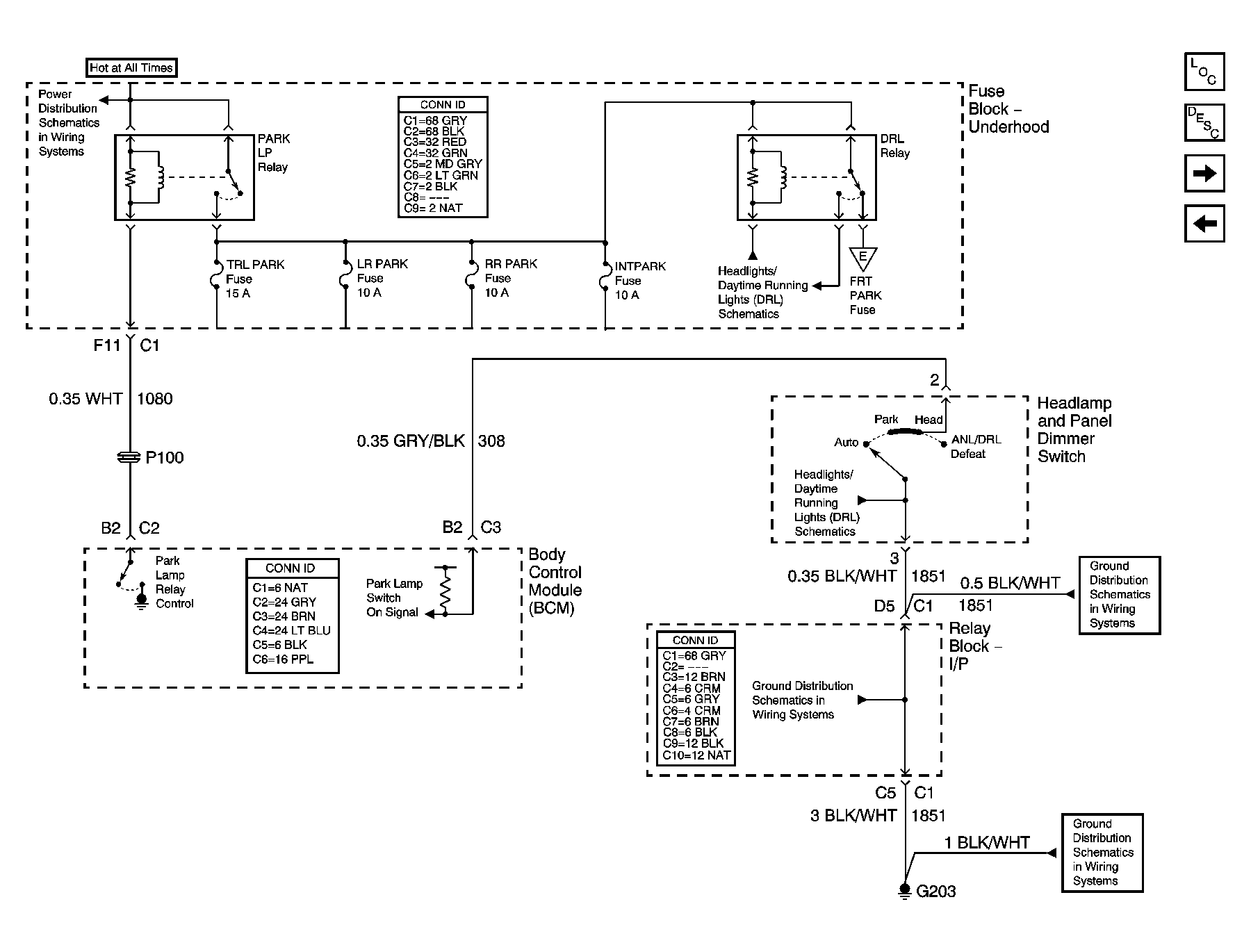

Fig 1: Park Lamp Relay Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

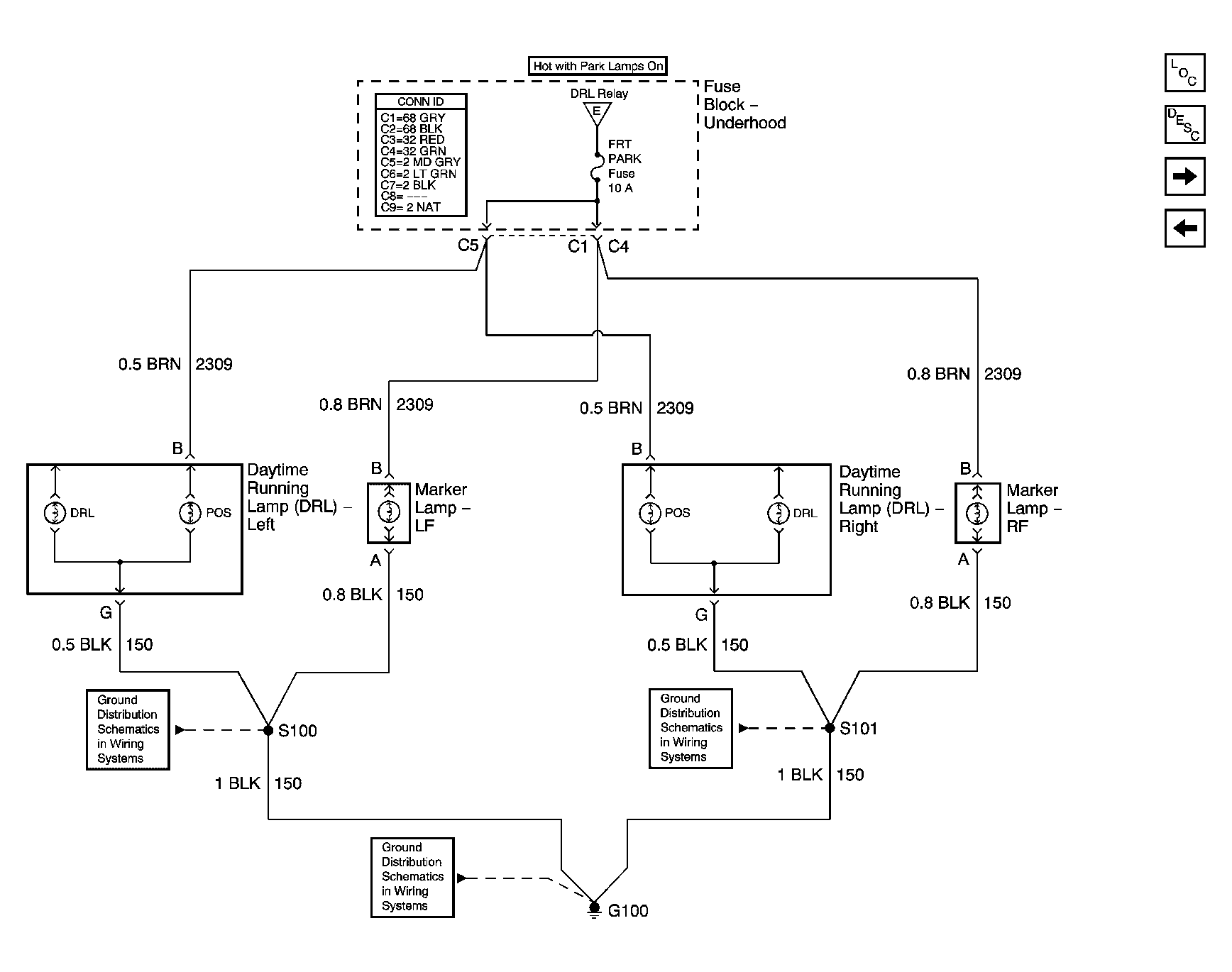

Fig 2: Front Park Lamps Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

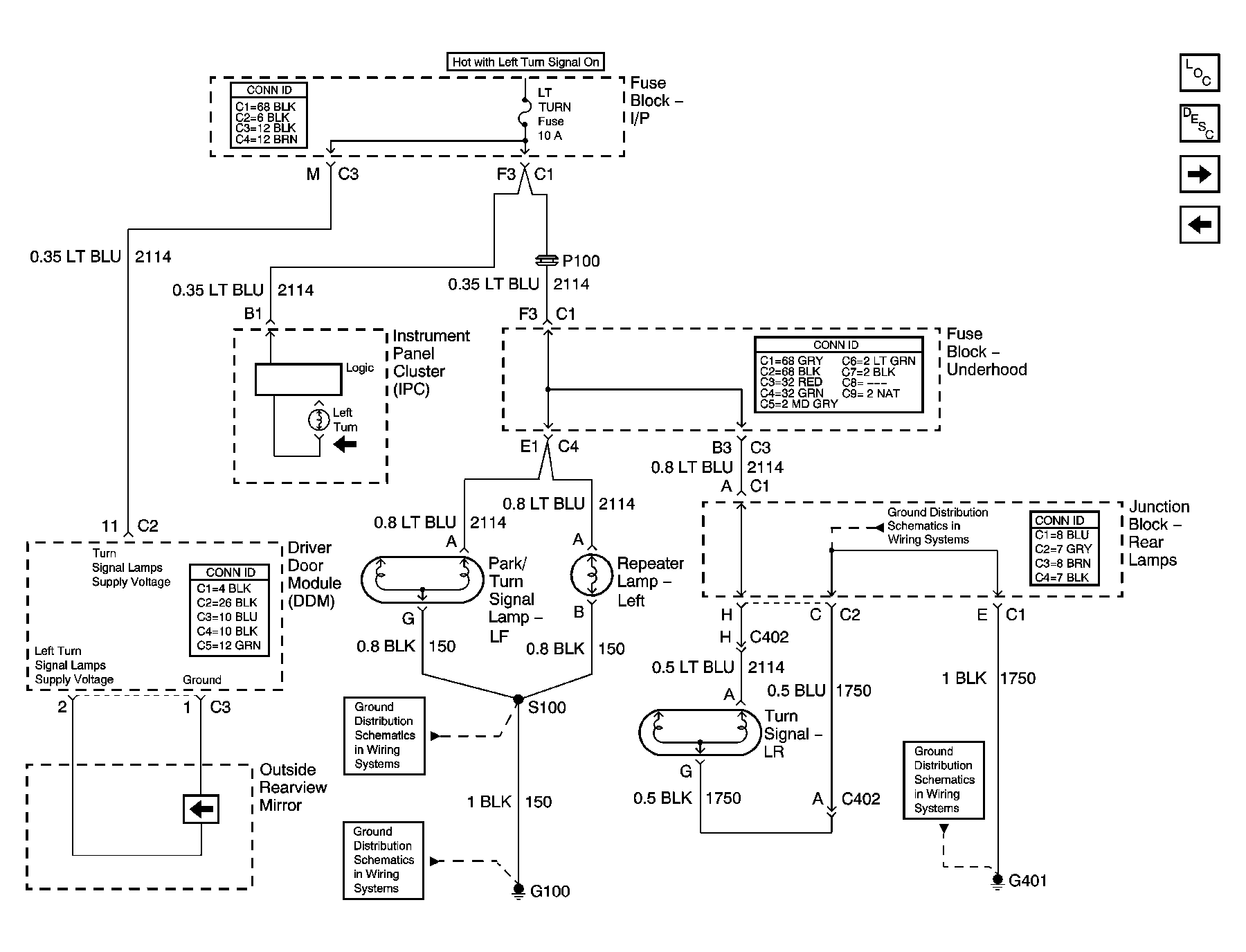

Fig 3: Left Turn Signals Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

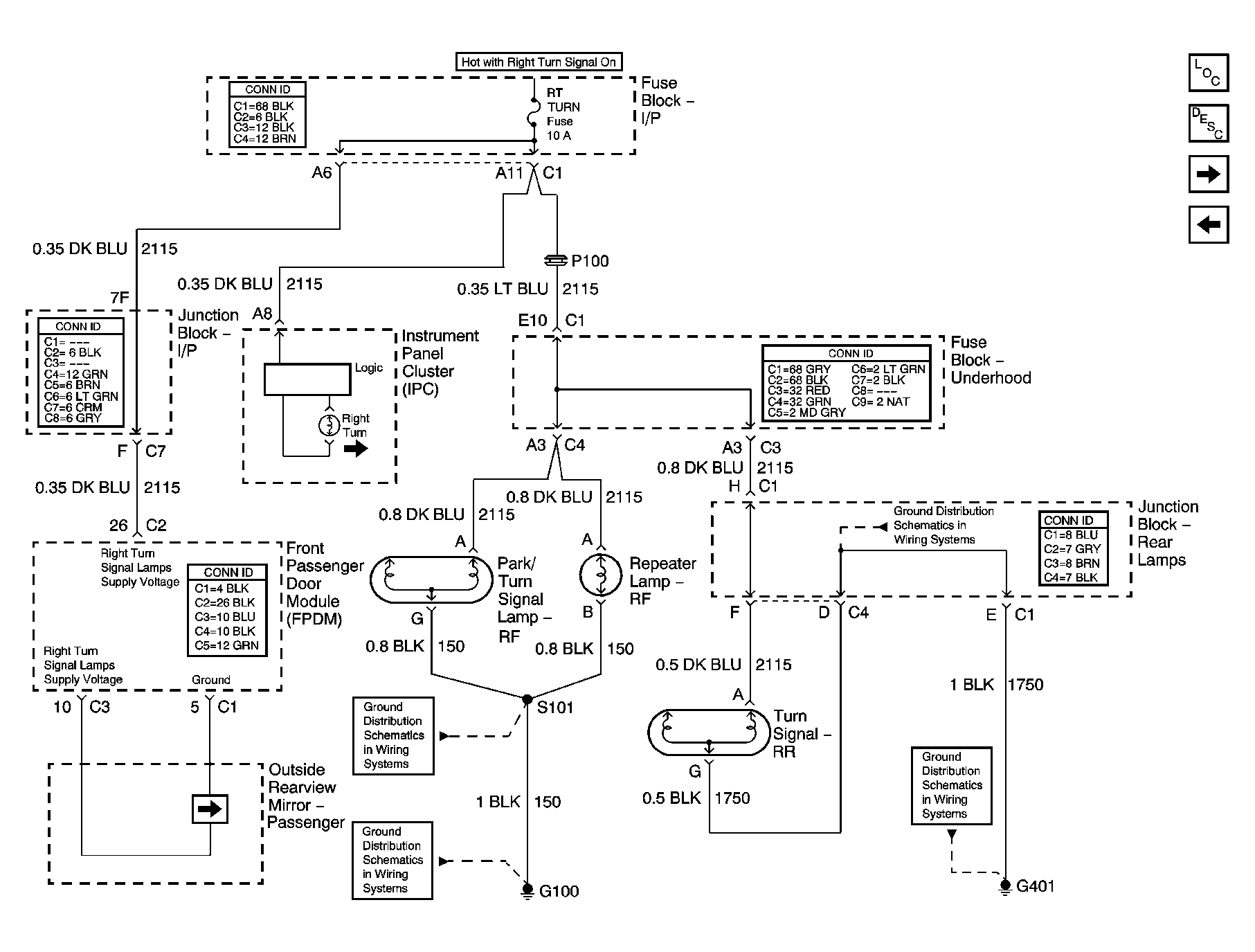

Fig 4: Right Turn Signals Schematic (Export)

Courtesy of GENERAL MOTORS CORP.
