DTC P1810: Notes

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

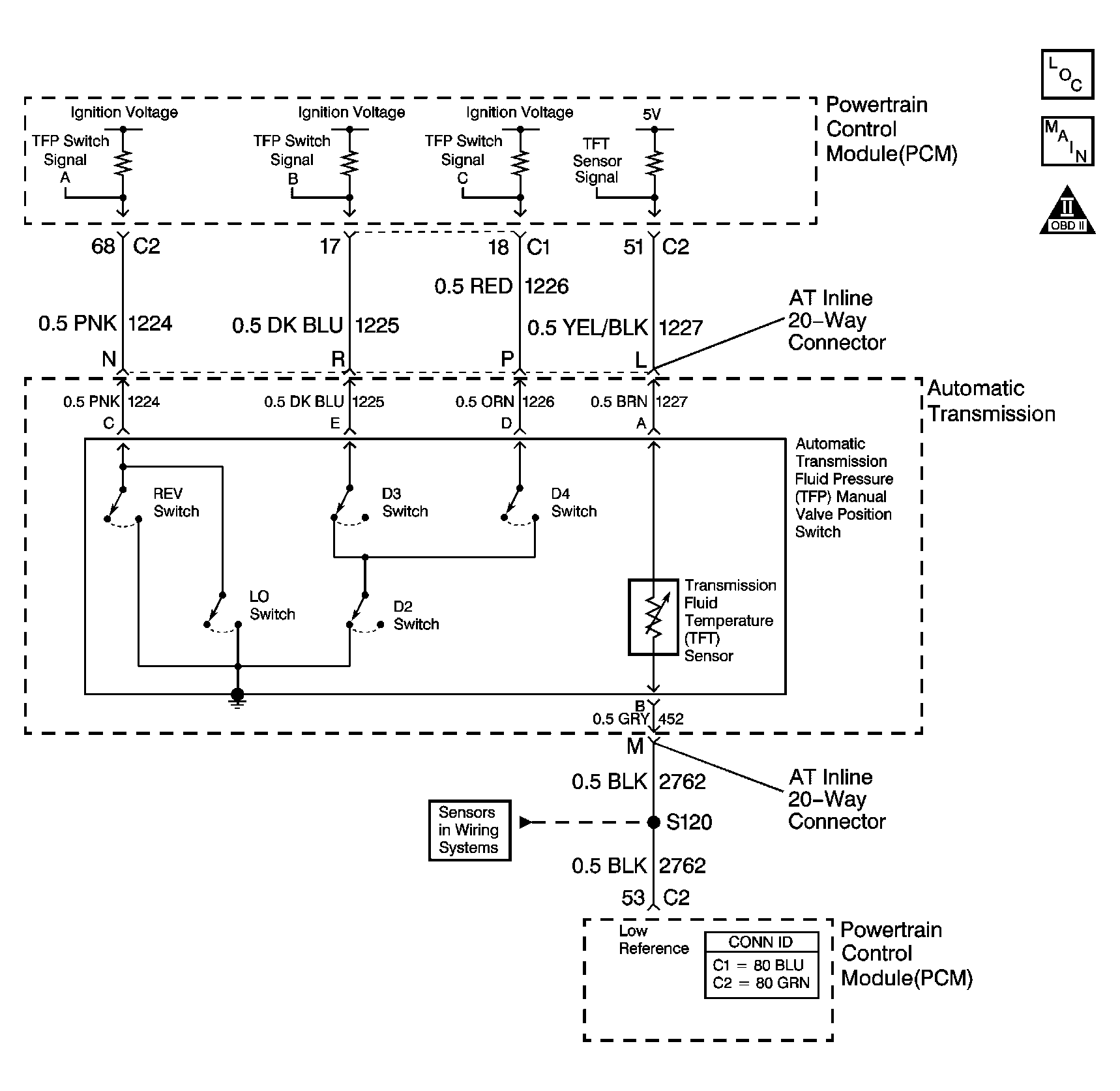

Fig 1: Automatic Transmission Fluid Temperature (TFT) Sensor Schematic
GM1323669Courtesy of GENERAL MOTORS CORP.
