HVAC Component Views

Fig 1: A/C Accumulator (4.3L)
GM614435Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Low Pressure Switch
2 A/C Accumulator
3 High Side Service Port
4 C100
5 Low Side Service Port

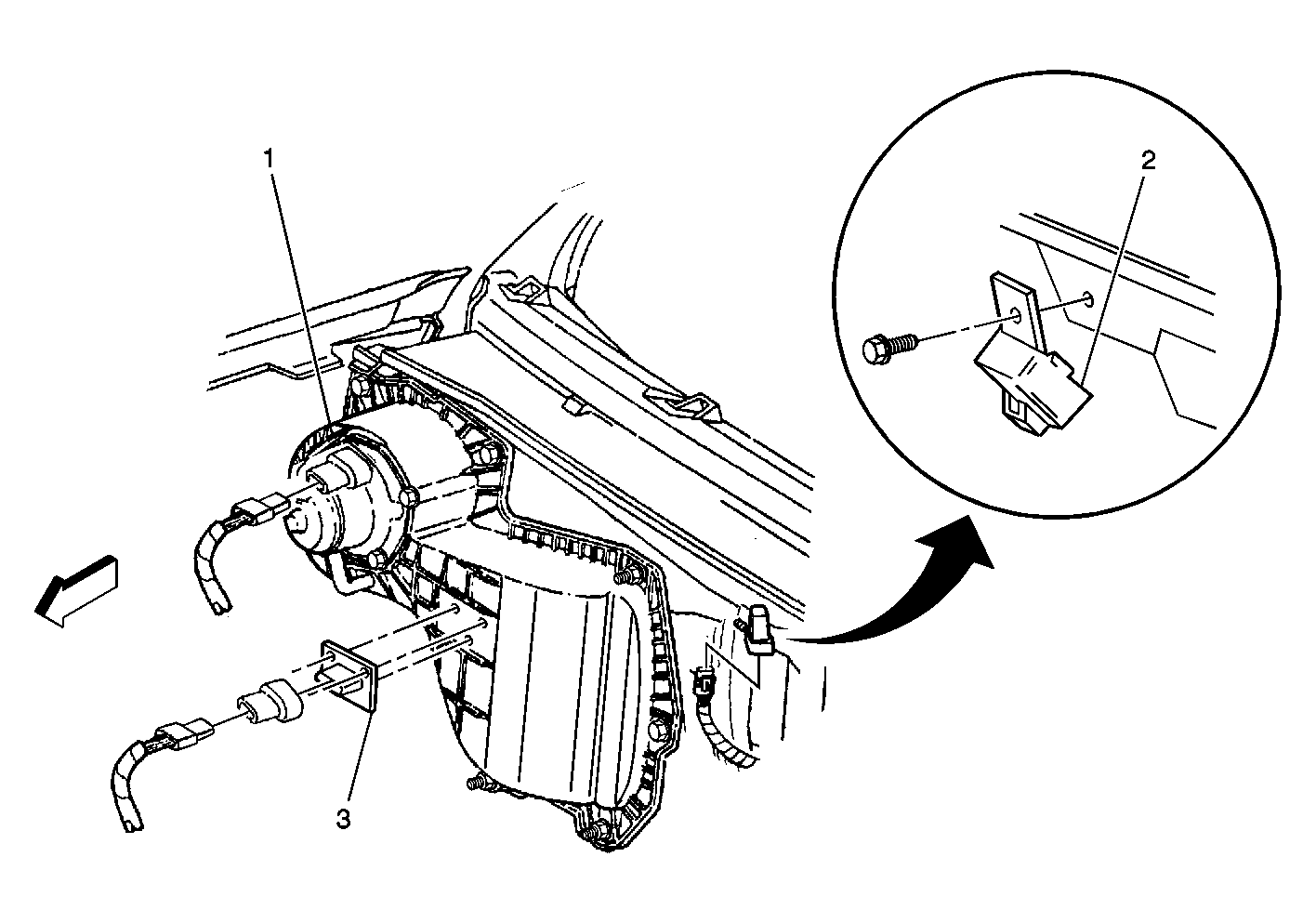

Fig 2: Body Wiring to Blower Motor and Resistor (RPO C42)
GM595462Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor and Connector
2 Blower Motor Relay
3 Blower Motor Resistor and Connector

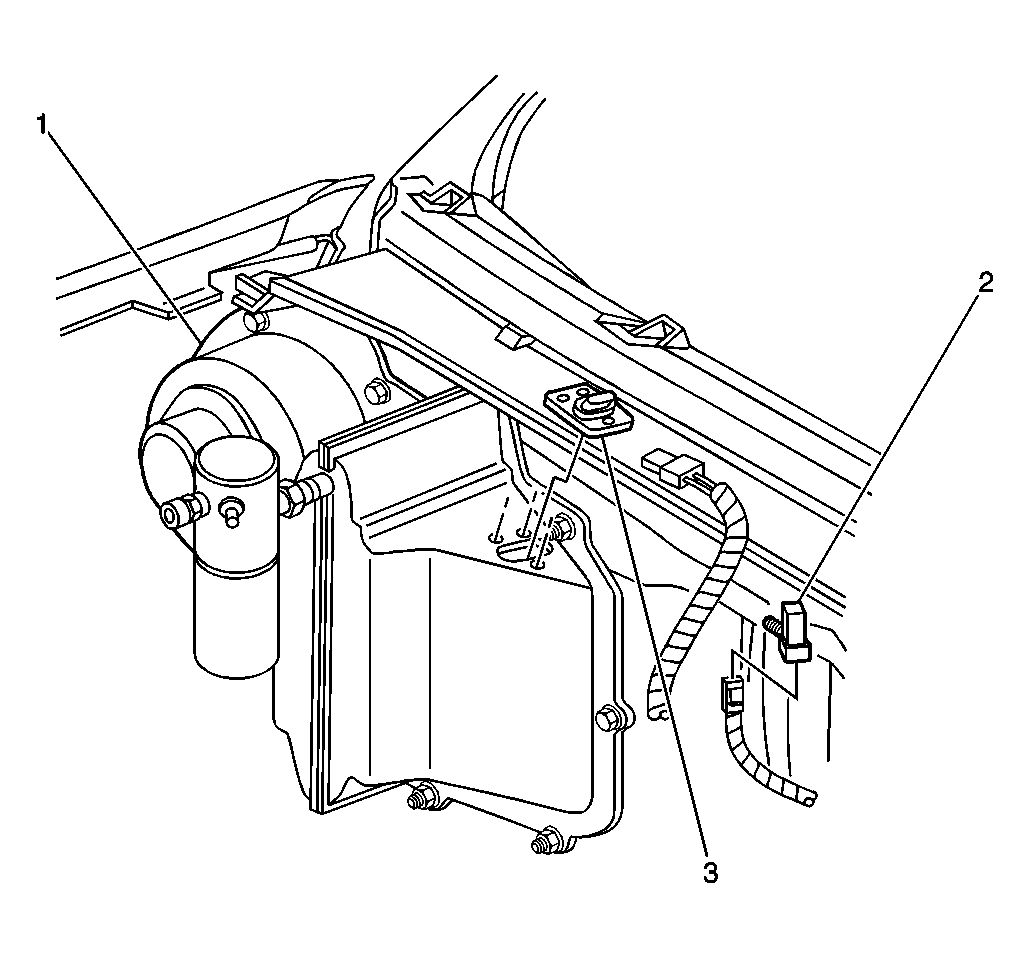

Fig 3: Body Wiring to Blower Motor and Resistor (RPO C60)
GM531763Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor and Connector
2 Blower Motor Relay
3 Blower Motor Resistor and Connector

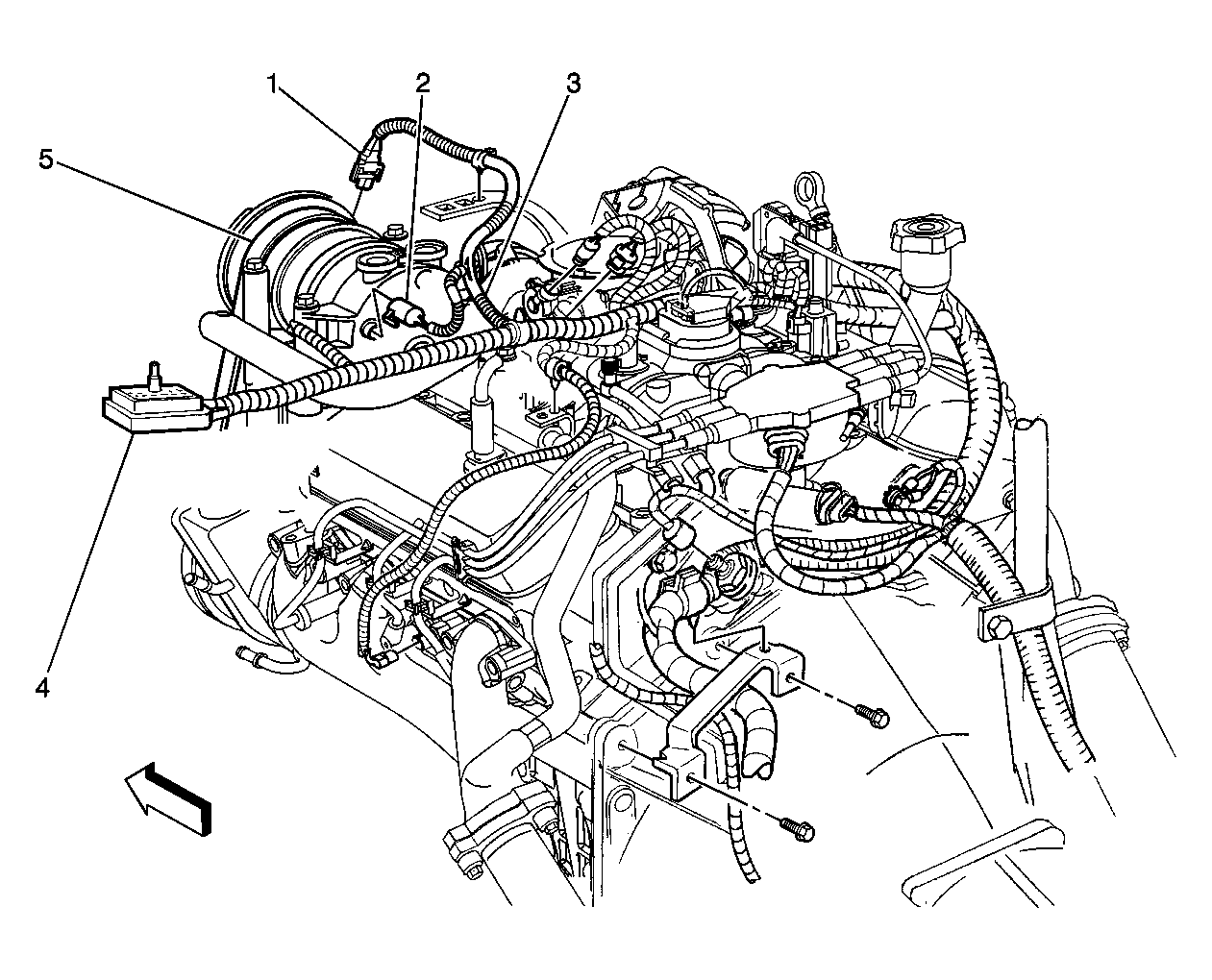

Fig 4: Engine Harness to A/C Compressor and Diode (4.3L)
GM392568Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch Connector
2 A/C Compressor High Pressure Switch Connector
3 A/C Compressor Clutch Diode, S103 and S104
4 Fuse Block - Underhood Connector C2
5 A/C Compressor

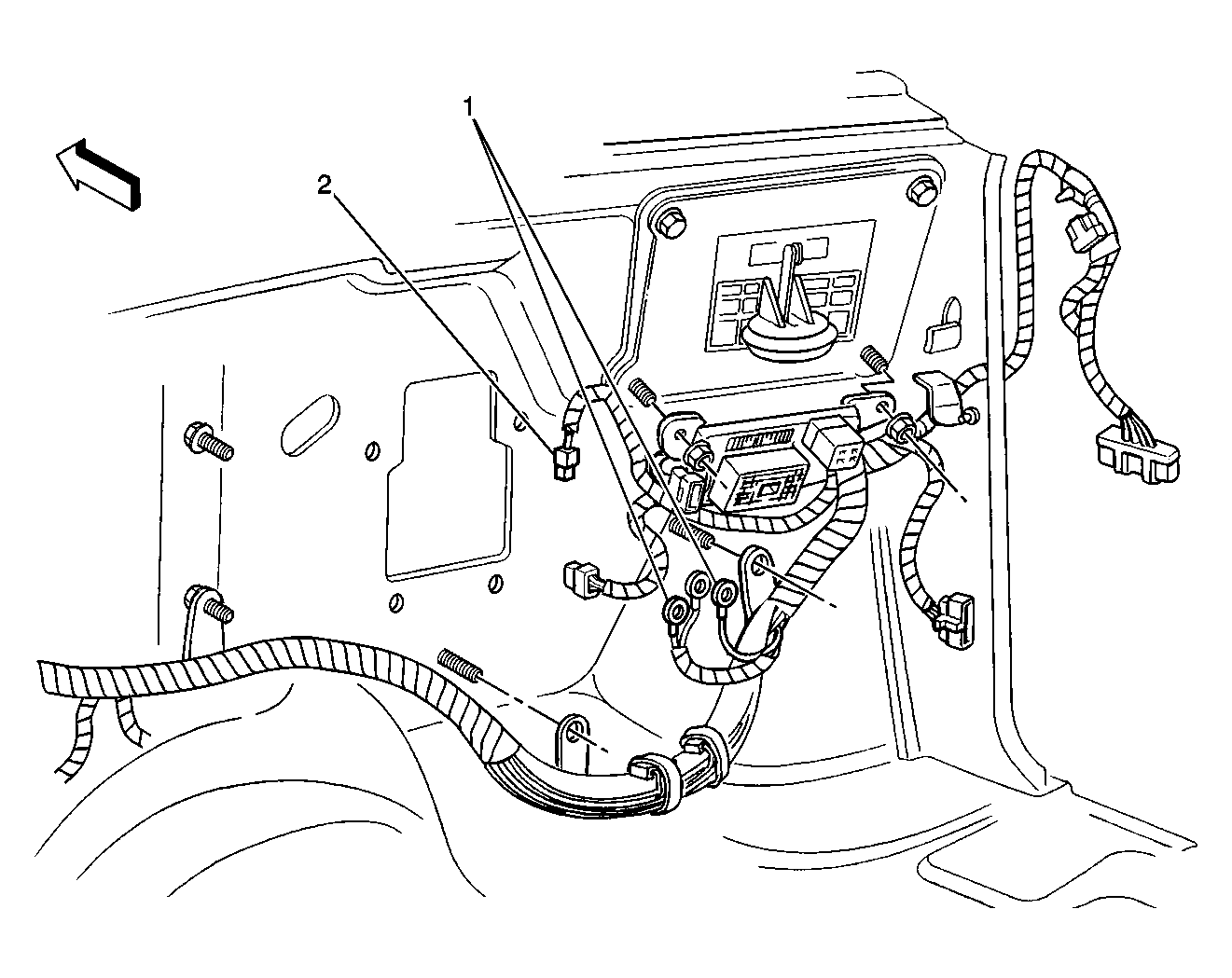

Fig 5: Instrument Panel Wiring, RF
GM392578Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G203, G204, and G205
2 Air Temperature Actuator Connector

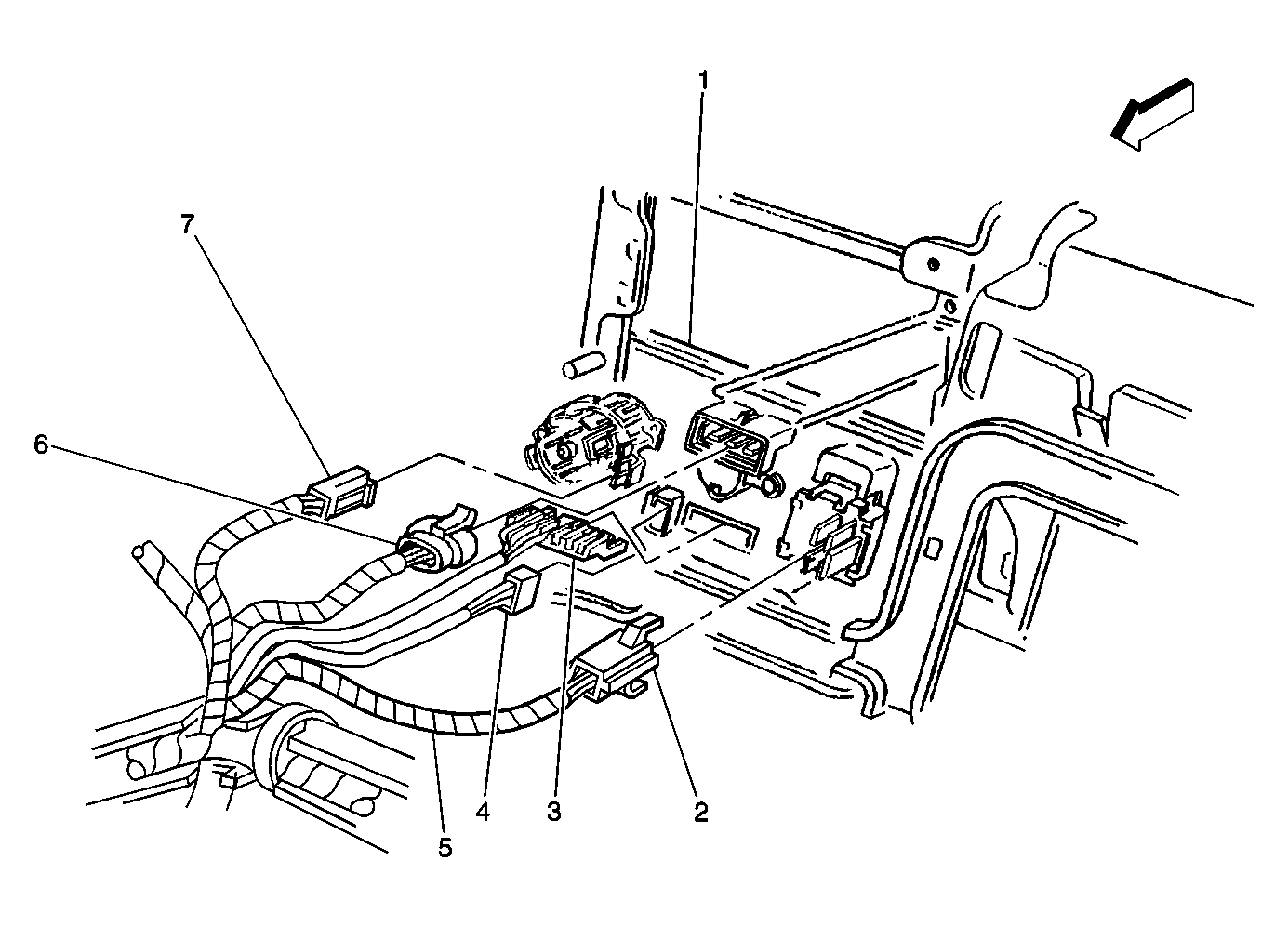

Fig 6: IP Wiring to HVAC Control Assembly
GM392587Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Control Assembly
2 HVAC Control Assembly Connector C4
3 HVAC Control Assembly Connector C1
4 HVAC Control Assembly Connector C5
5 S215
6 HVAC Control Assembly Connector C3
7 HVAC Control Assembly Connector C2
