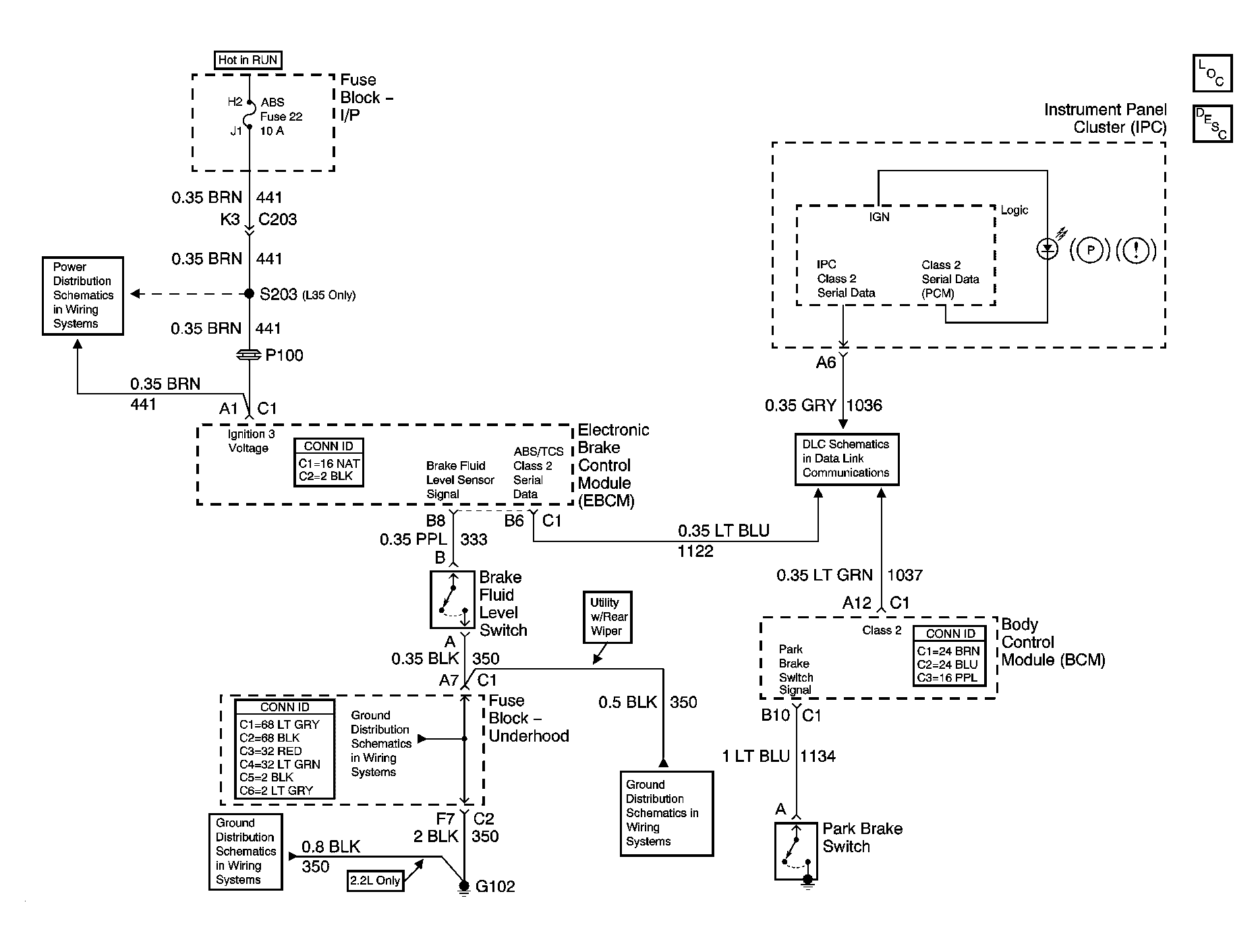

Home >> GMC >> 2004 >> Jimmy 4D Utility, 4WD, Automatic >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake System >> Schematic and Routing Diagrams >> Brake Warning System Schematics
