Power Roof Systems Component Views (w/o ZRX/XTREME)

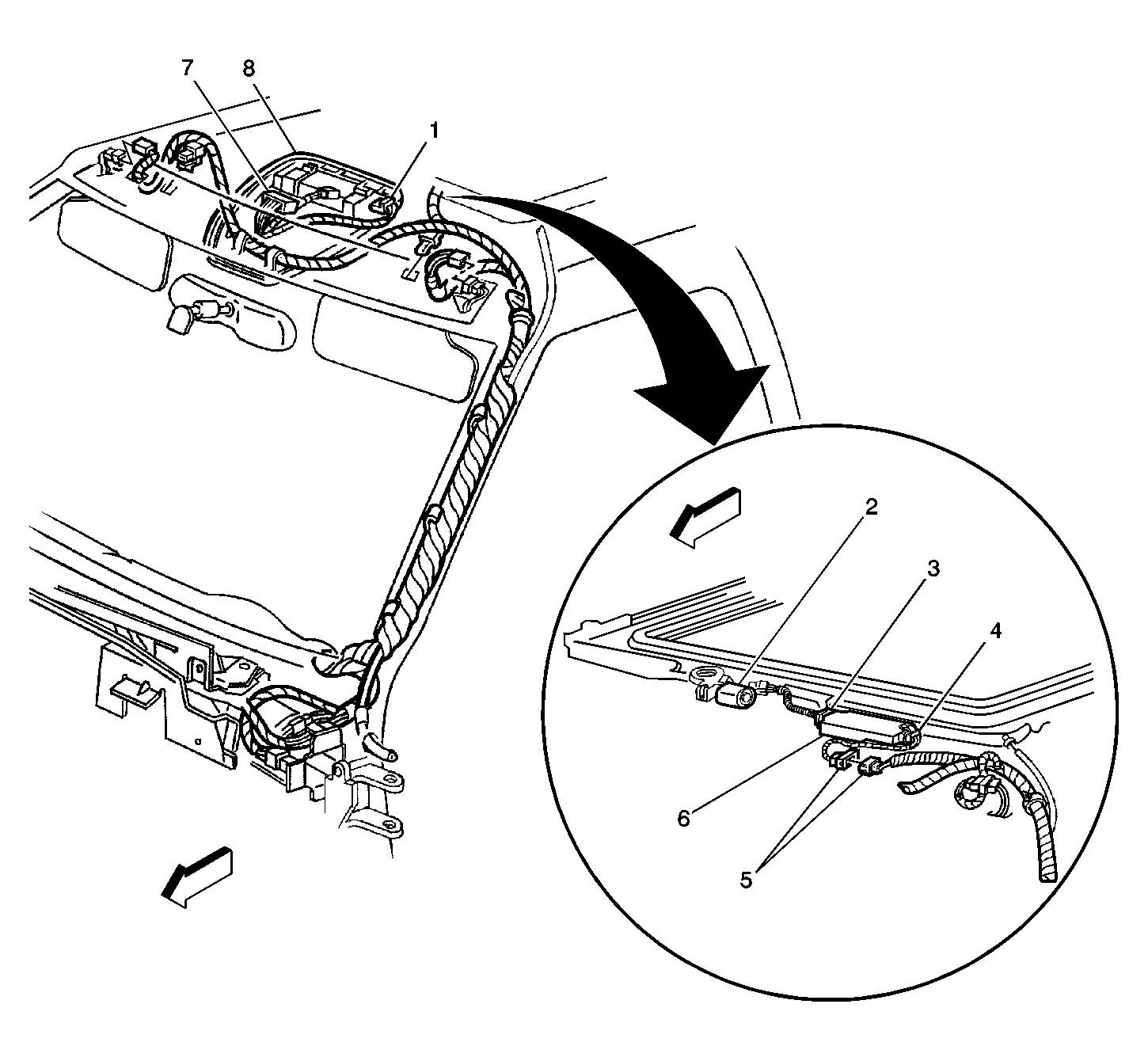

Fig 1: Sunroof Control Module and Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Center (DIC) C2
2	Sunroof Motor
3	Sunroof Control Module C2
4	Sunroof Control Module C1
5	C300
6	Sunroof Control Module
7	Driver Information Center (DIC) C1
8	Driver Information Center (DIC)

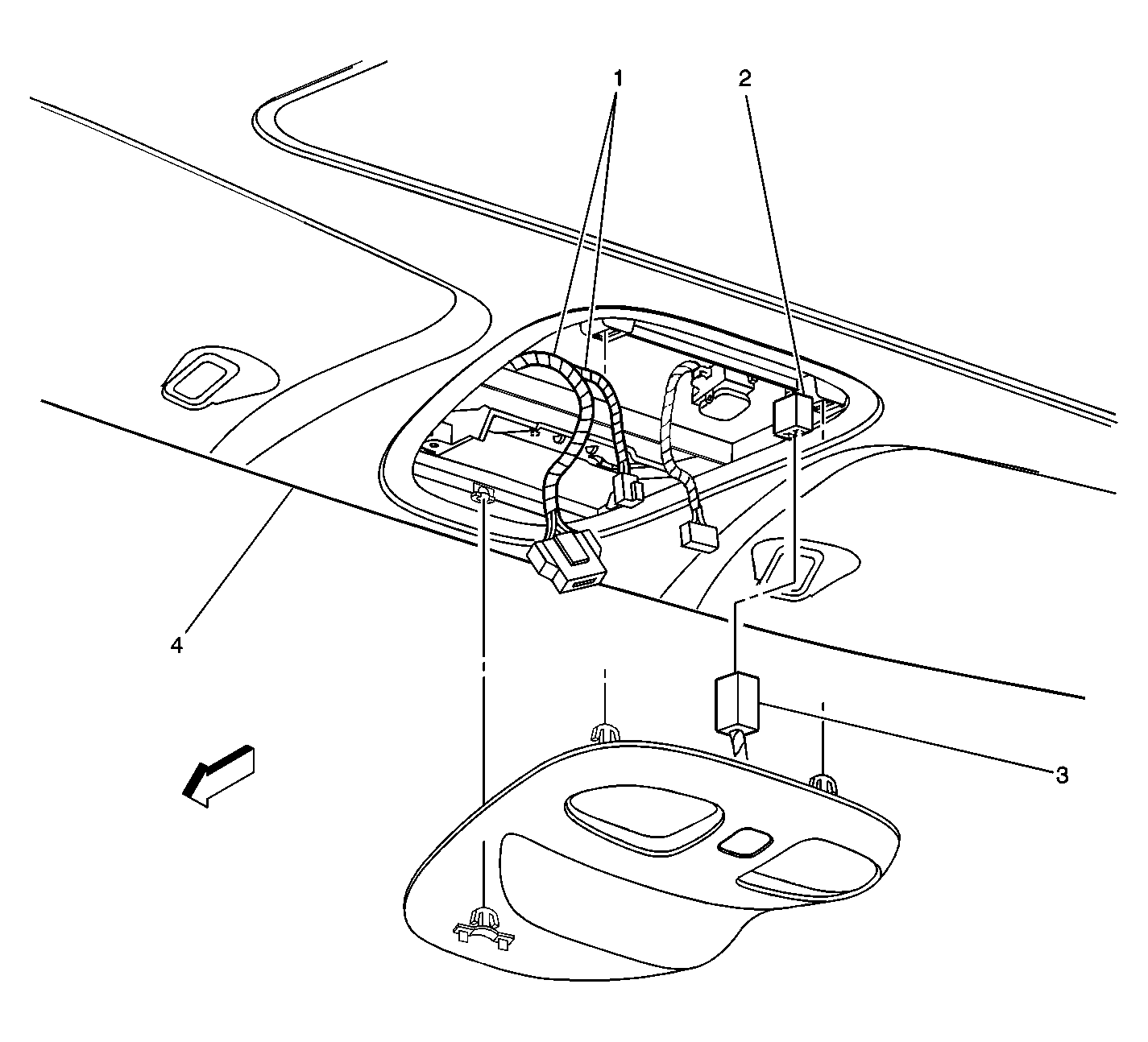

Fig 2: Sunroof Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp Wiring Harness
2	Sunroof Connector
3	Sunroof Switch Connector
4	Roof Trim Panel
