Power Roof Systems Component Views (w/ZRX/Xtreme)

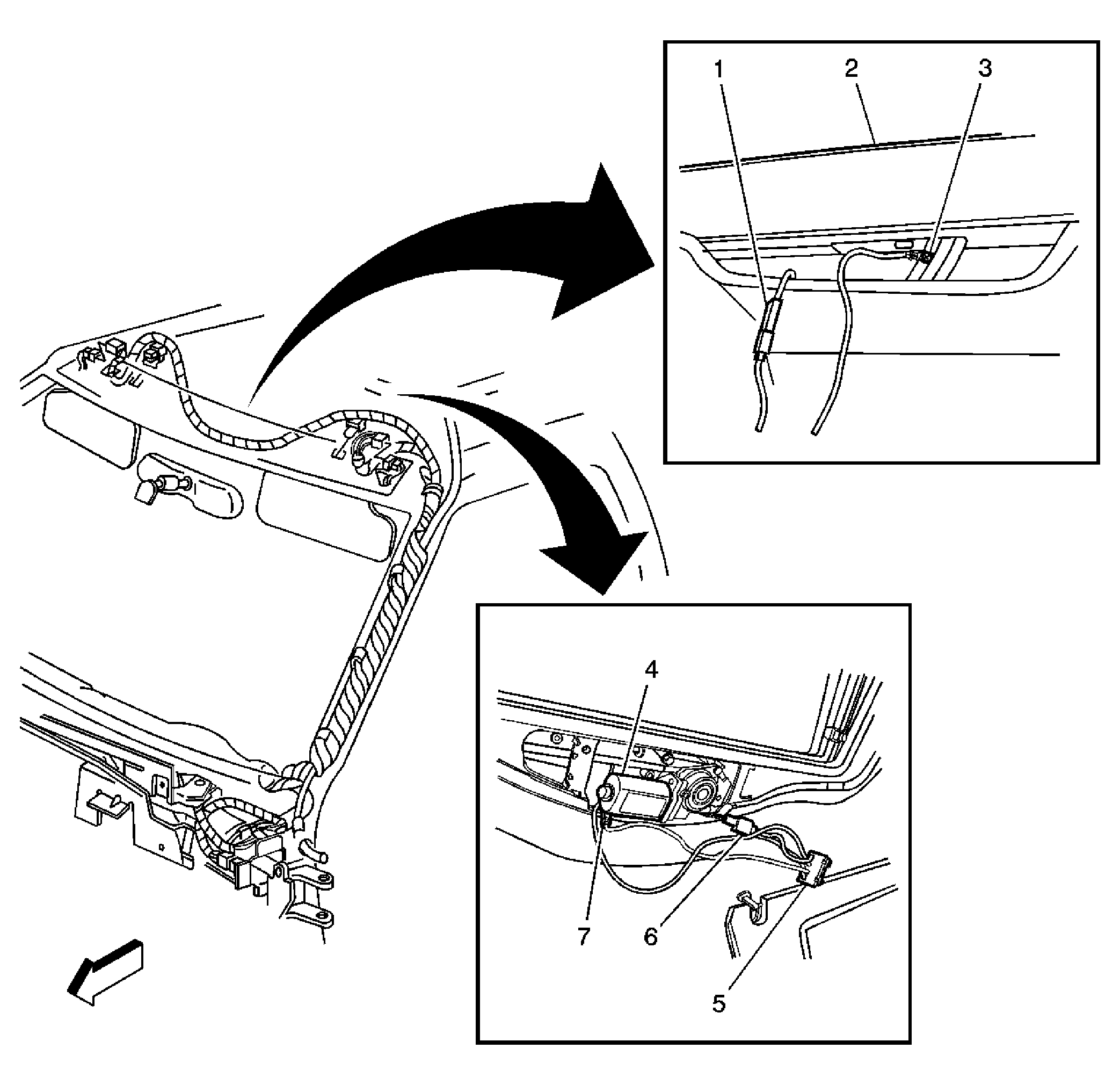

Fig 1: Sunroof Components (ZRX, Extreme w/ CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch C2
2	Sunroof Opening
3	G300
4	Sunroof Motor
5	Sunroof Switch
6	Sunroof Switch C1
7	Sunroof Ground Lead (G300)
