Body Rear End Schematics

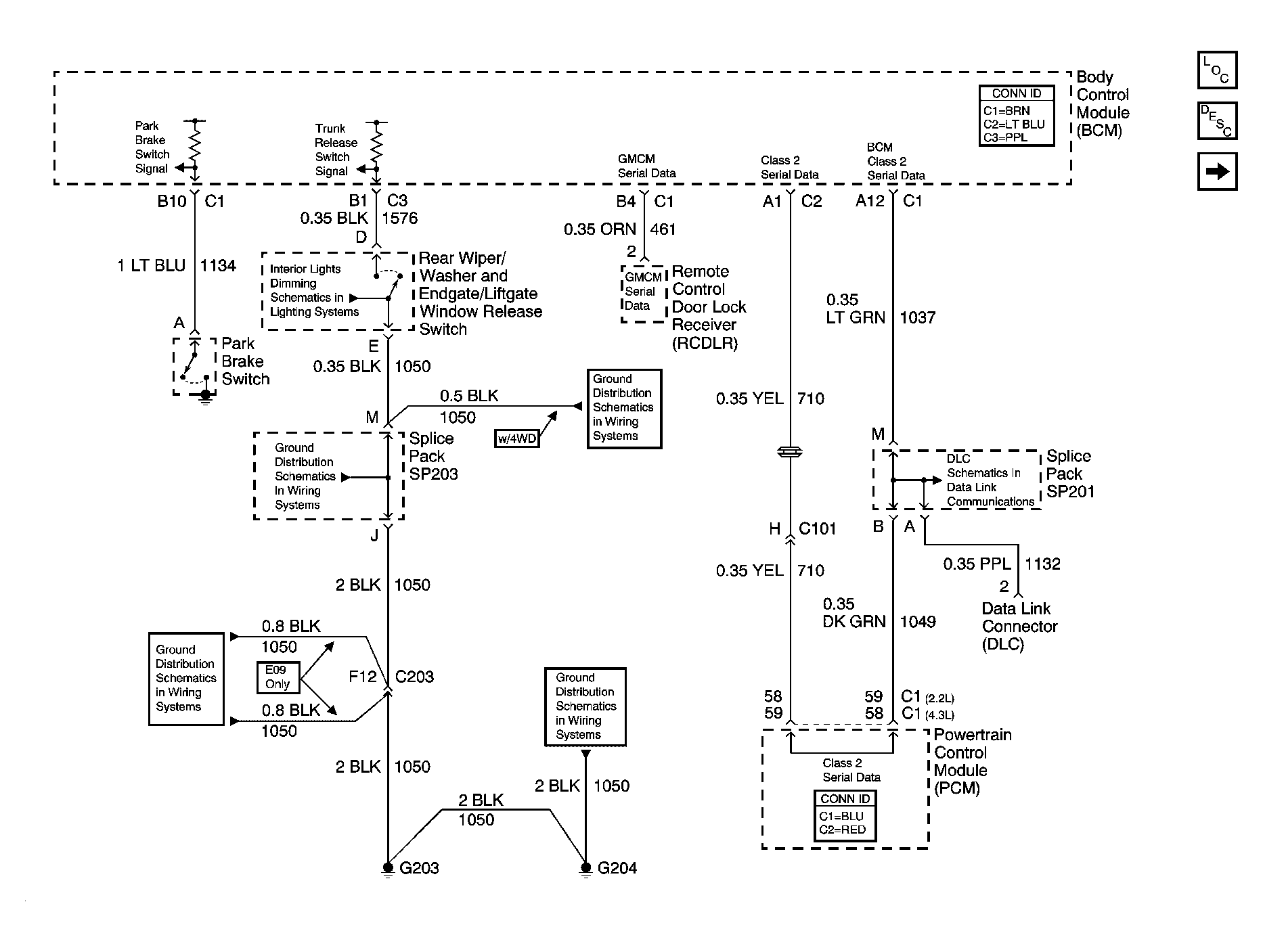

Fig 1: Input Schematic
GM888612Courtesy of GENERAL MOTORS CORP.

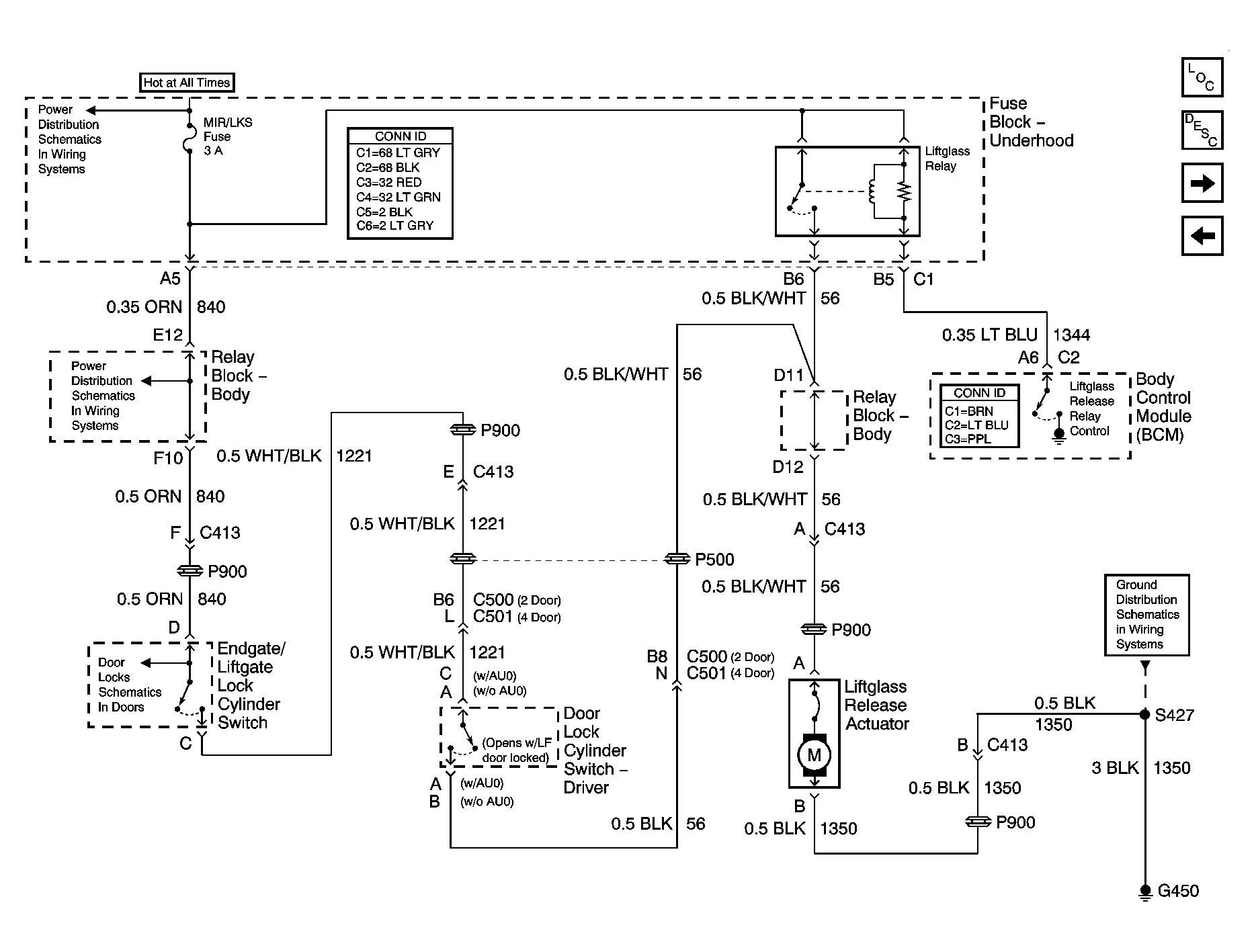

Fig 2: Output Schematic
GM755926Courtesy of GENERAL MOTORS CORP.

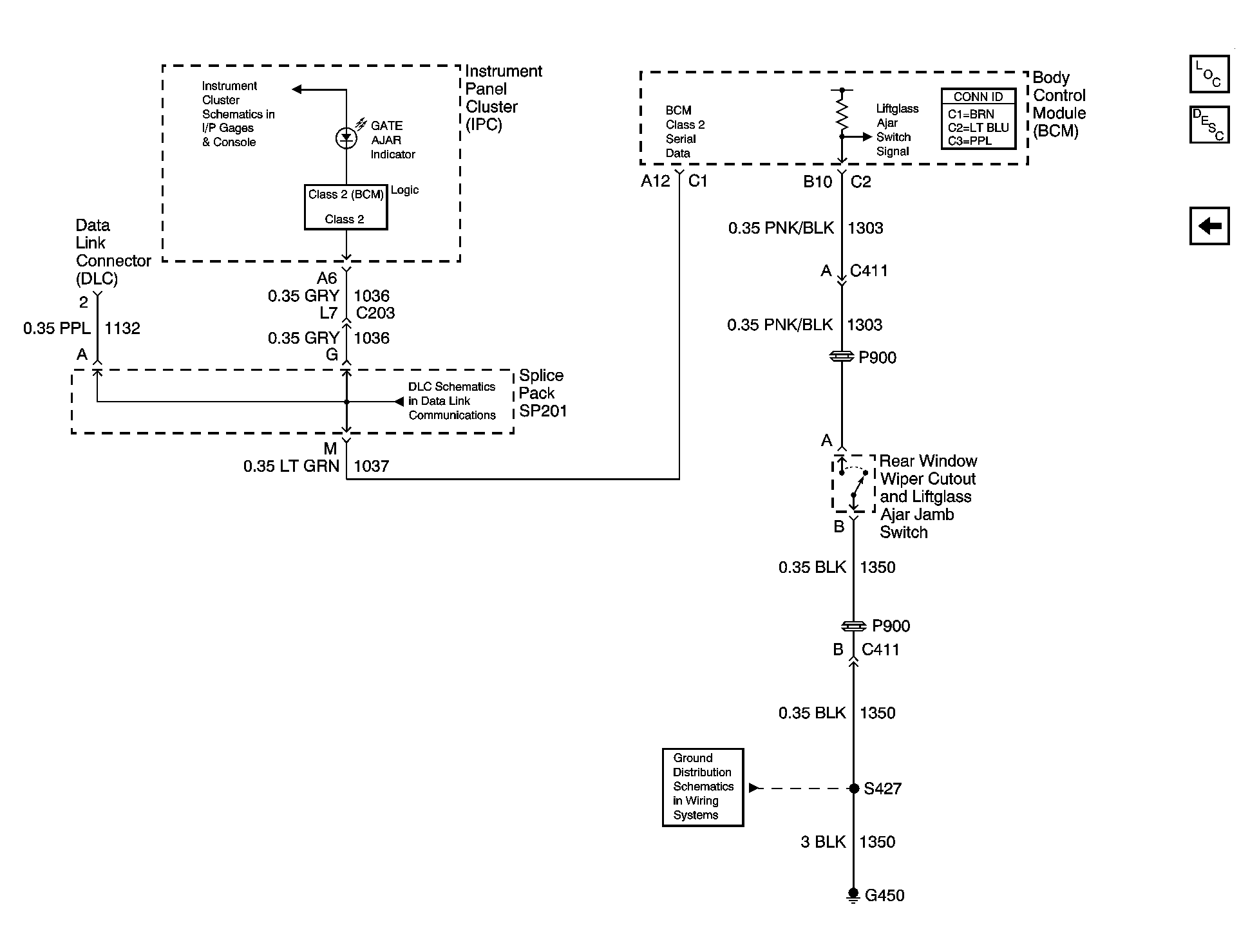

Fig 3: Gate Ajar Indicator Schematic
GM755927Courtesy of GENERAL MOTORS CORP.
