Body Rear End Component Views

Fig 1: Endgate Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Wiper Motor Controller - Rear
2	Rear Window Wiper Cutout and Liftglass Ajar Jamb Switch
3	P900
4	Endgate Harness
5	Liftglass Release Actuator
6	Liftglass/Endgate Lock Cylinder Switch
7	Endgate

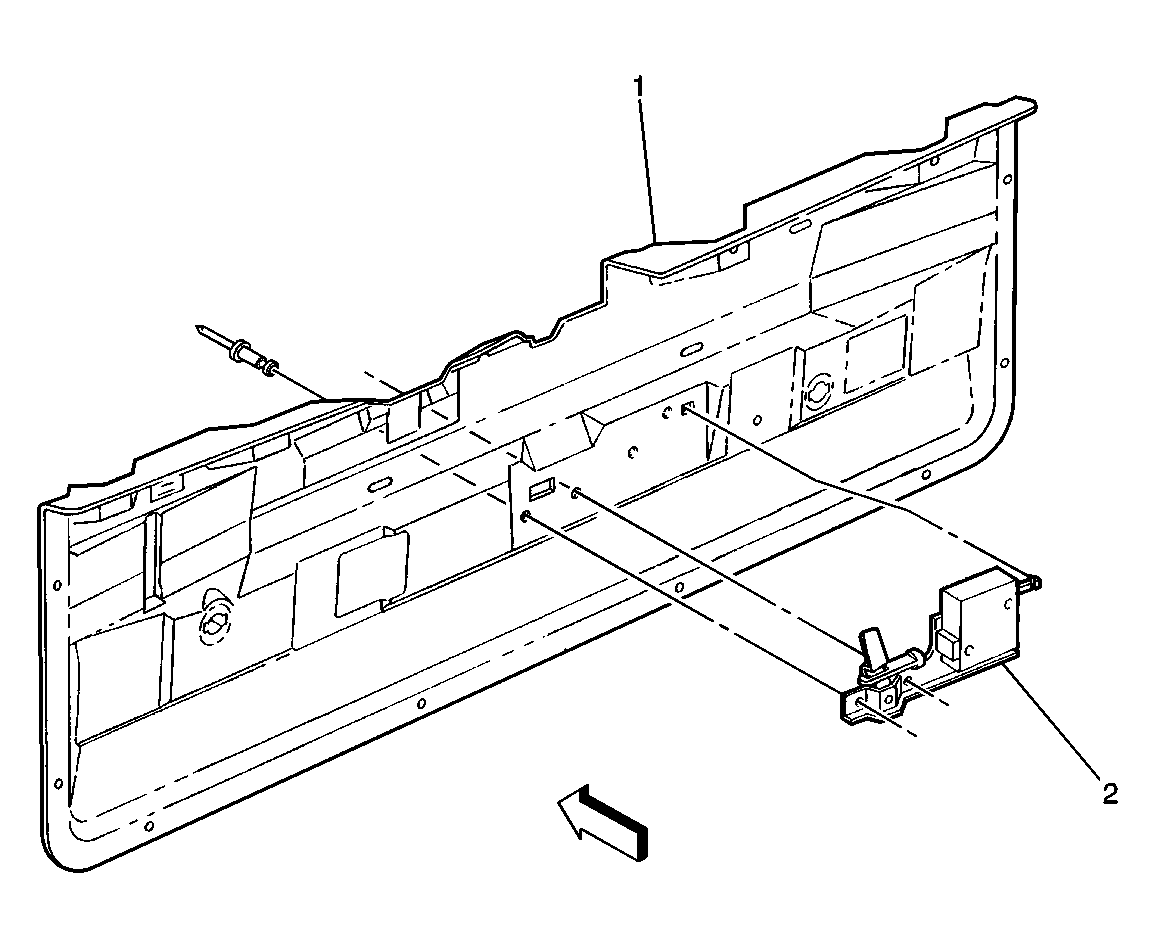

Fig 2: Liftglass Release Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Endgate Cover
2	Liftglass Release Actuator

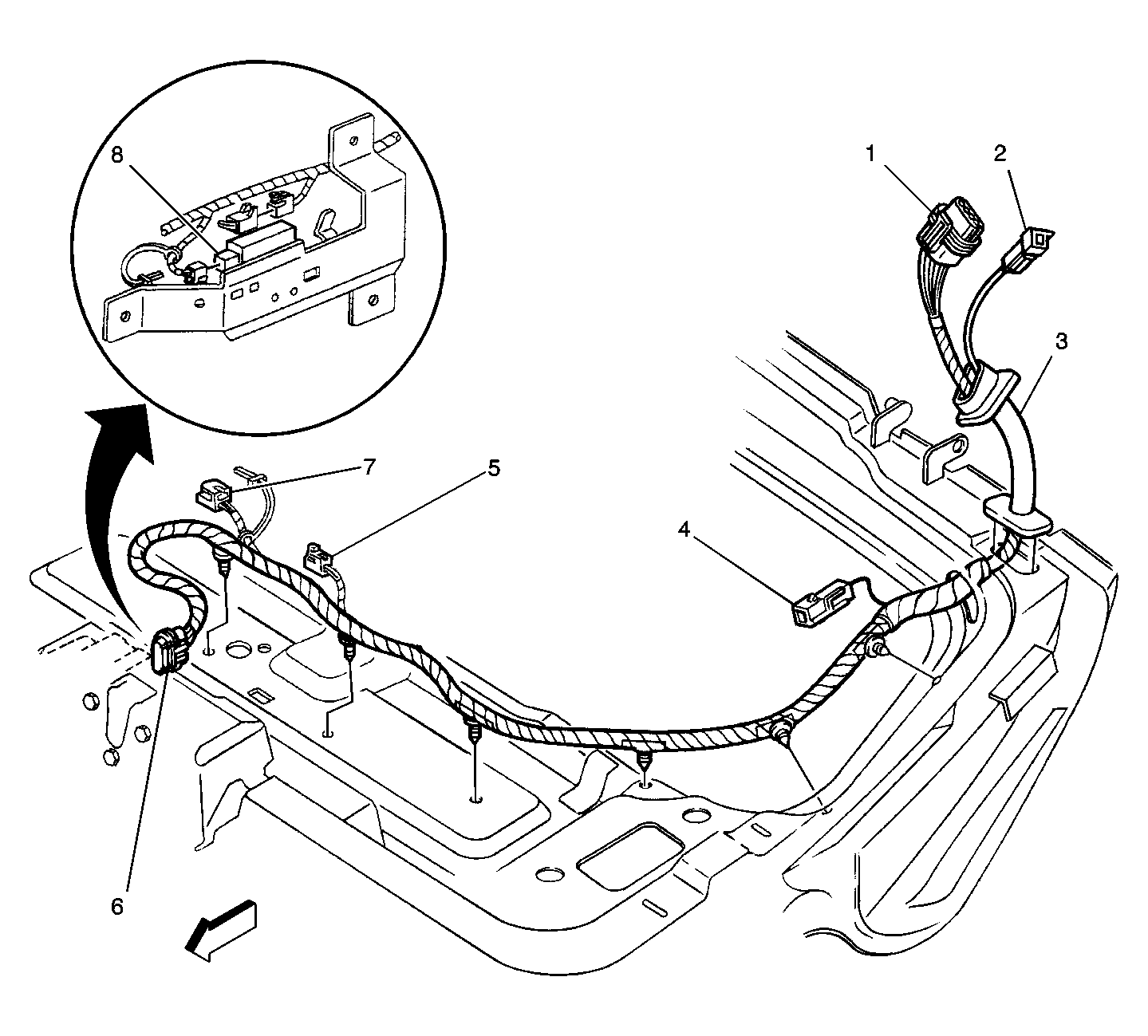

Fig 3: Liftgate (Utility) Harness View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C426, Left (C428, Right)
2	C427, Left (C429, Right)
3	P901
4	C432, Left (C433, Right)
5	Liftgate Switch Connector
6	Liftgate Lock Actuator Connector
7	Liftgate Release Actuator Connector
8	Liftgate Release Actuator
