Theft Deterrent System Schematics

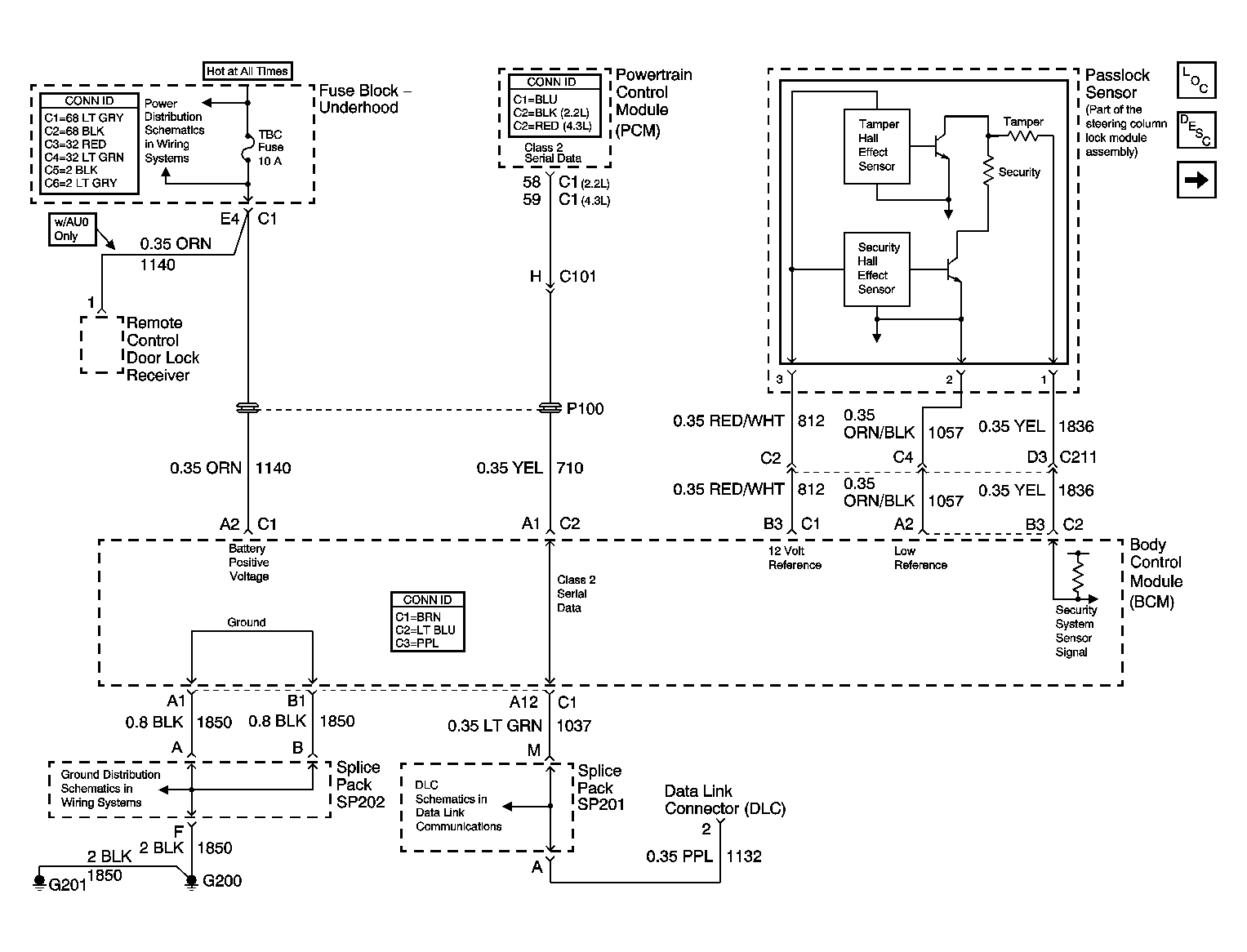

Fig 1: Power, Ground and Passlock™ Sensor Schematic
GM755921Courtesy of GENERAL MOTORS CORP.

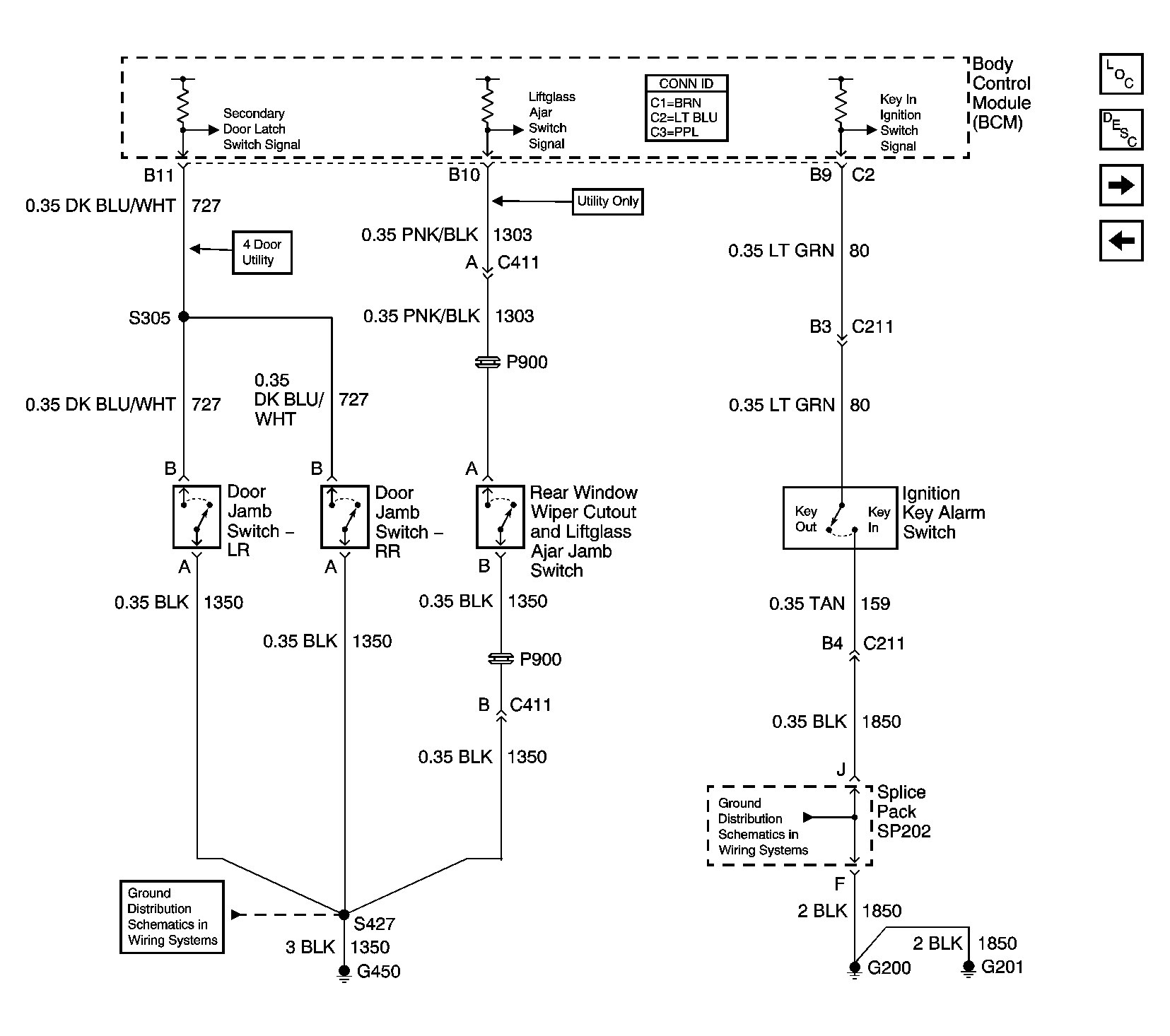

Fig 2: Door Jamb Switch Inputs Schematic
GM755923Courtesy of GENERAL MOTORS CORP.

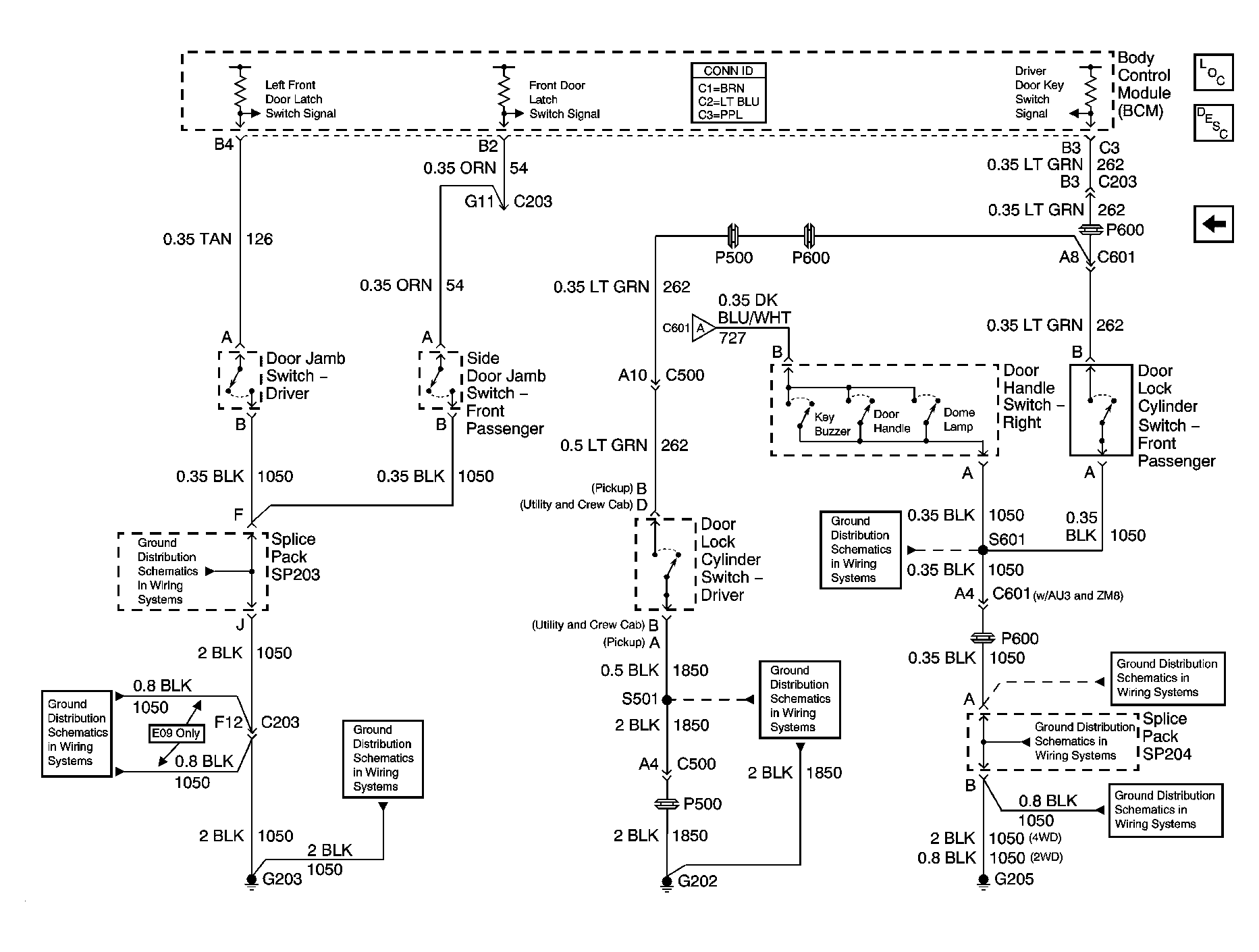

Fig 3: Door Handle Switch Inputs Schematic
GM880463Courtesy of GENERAL MOTORS CORP.
