Interior Lights Dimming Schematics

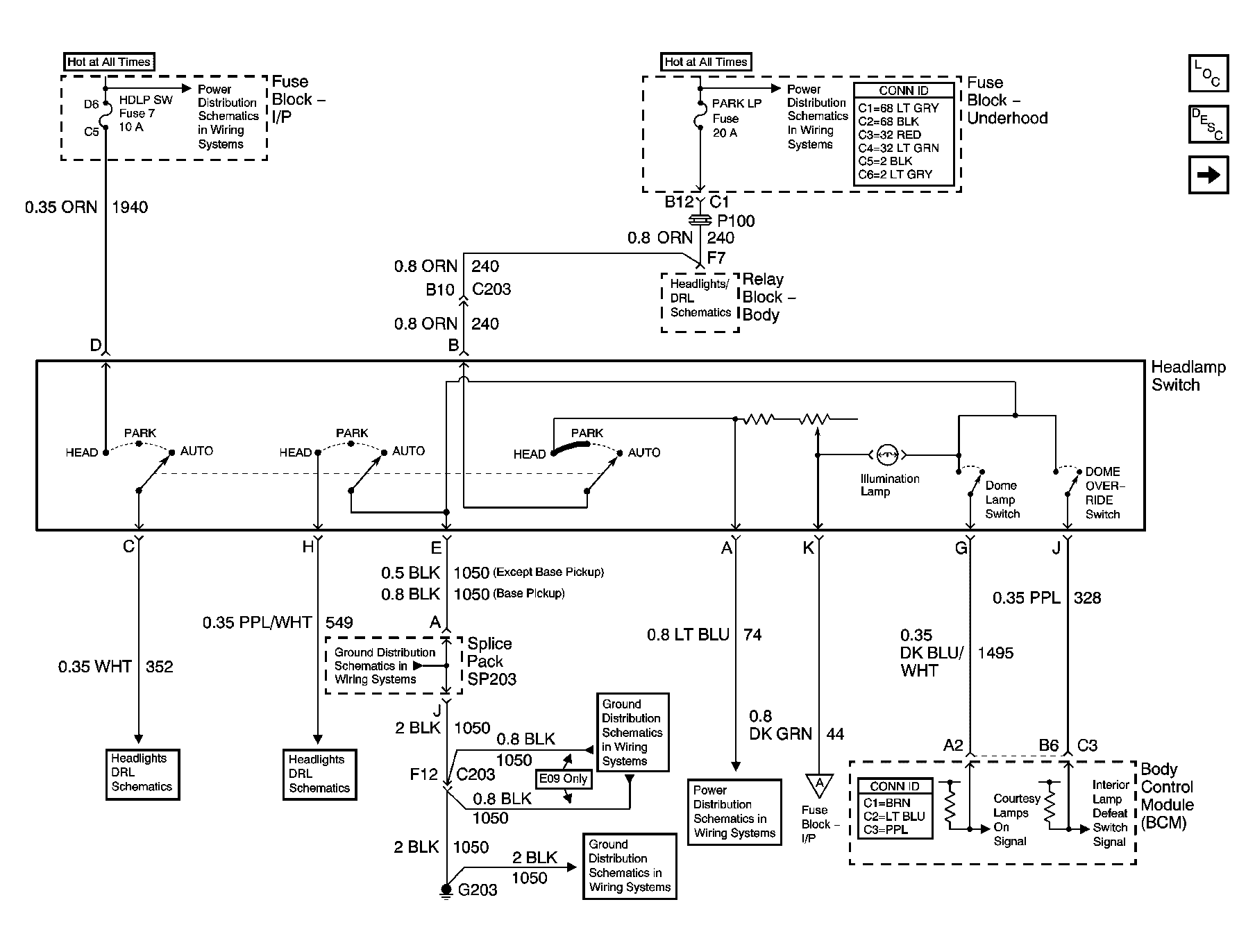

Fig 1: Headlamp Switch
GM886075Courtesy of GENERAL MOTORS CORP.

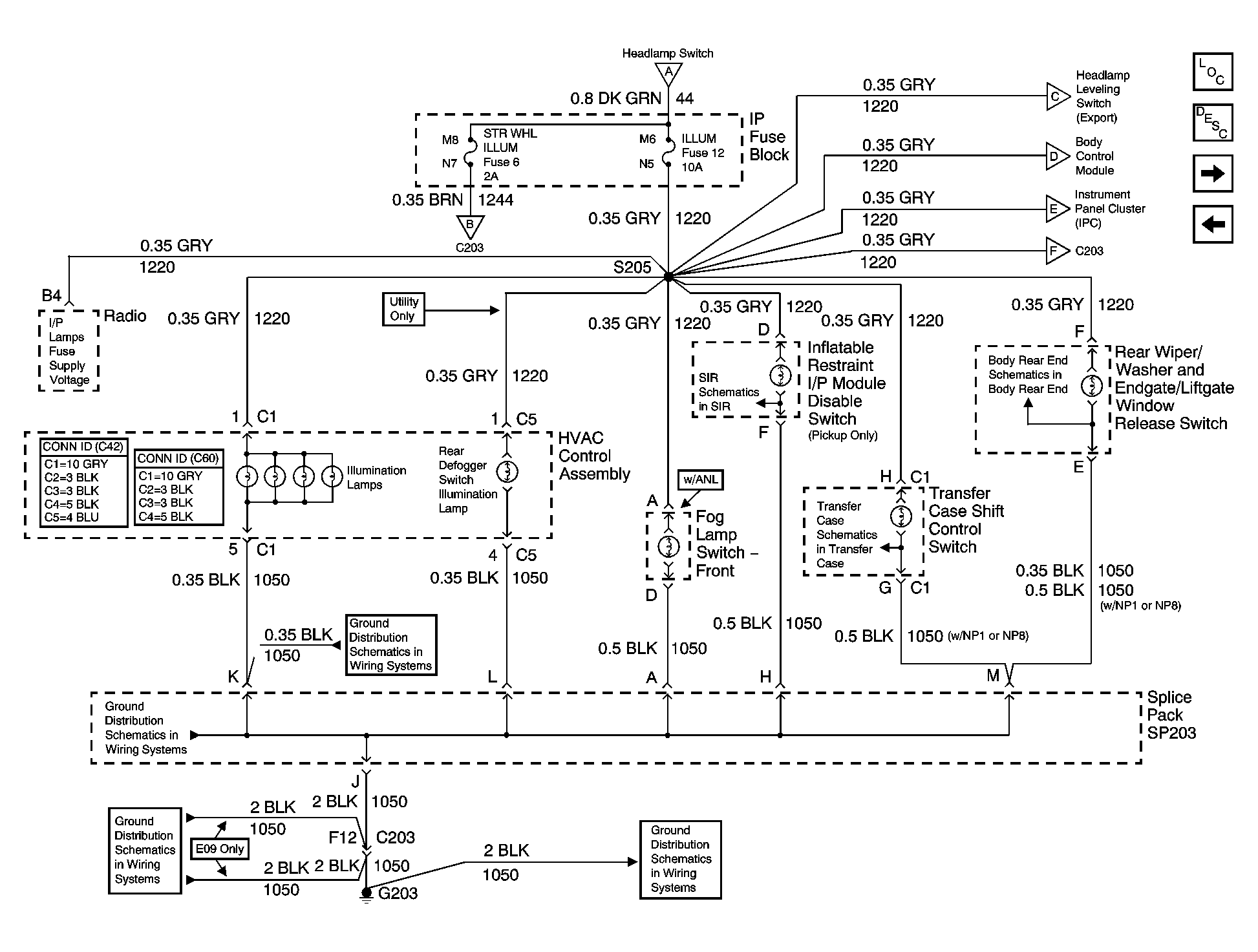

Fig 2: ILLUM Fuse 12
GM879707Courtesy of GENERAL MOTORS CORP.

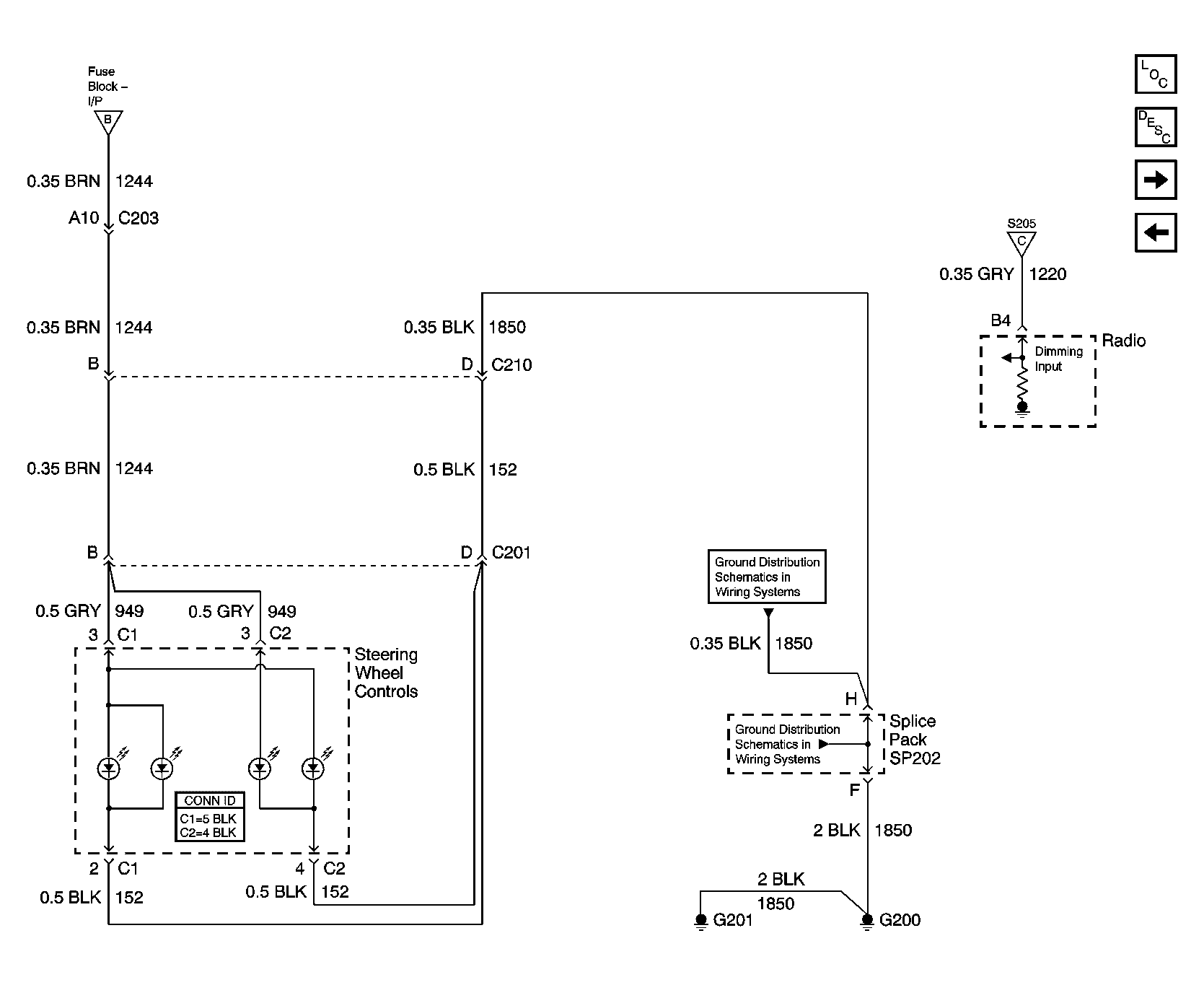

Fig 3: Steering Wheel Controls
GM879717Courtesy of GENERAL MOTORS CORP.

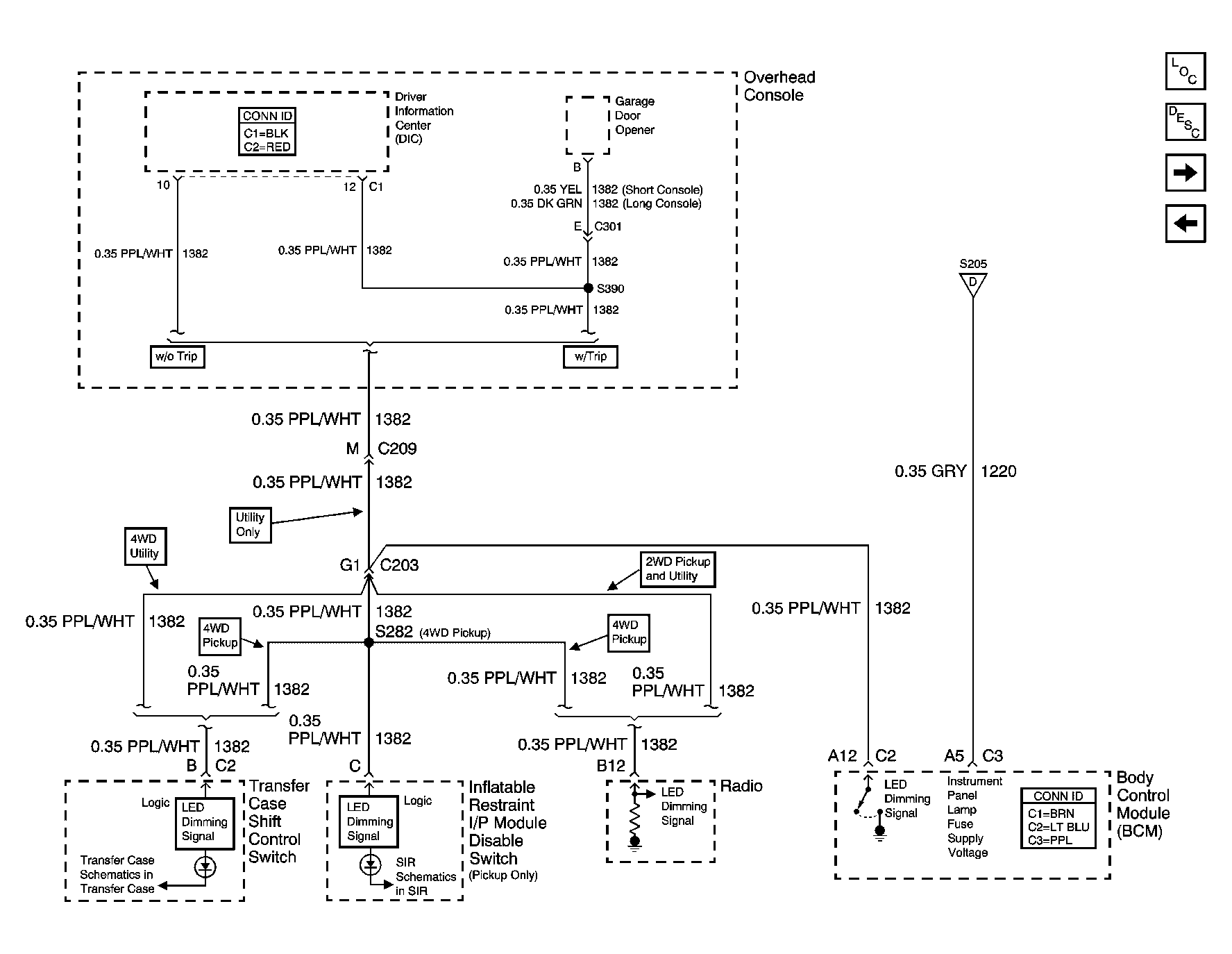

Fig 4: LED Dimming Signal
GM879720Courtesy of GENERAL MOTORS CORP.

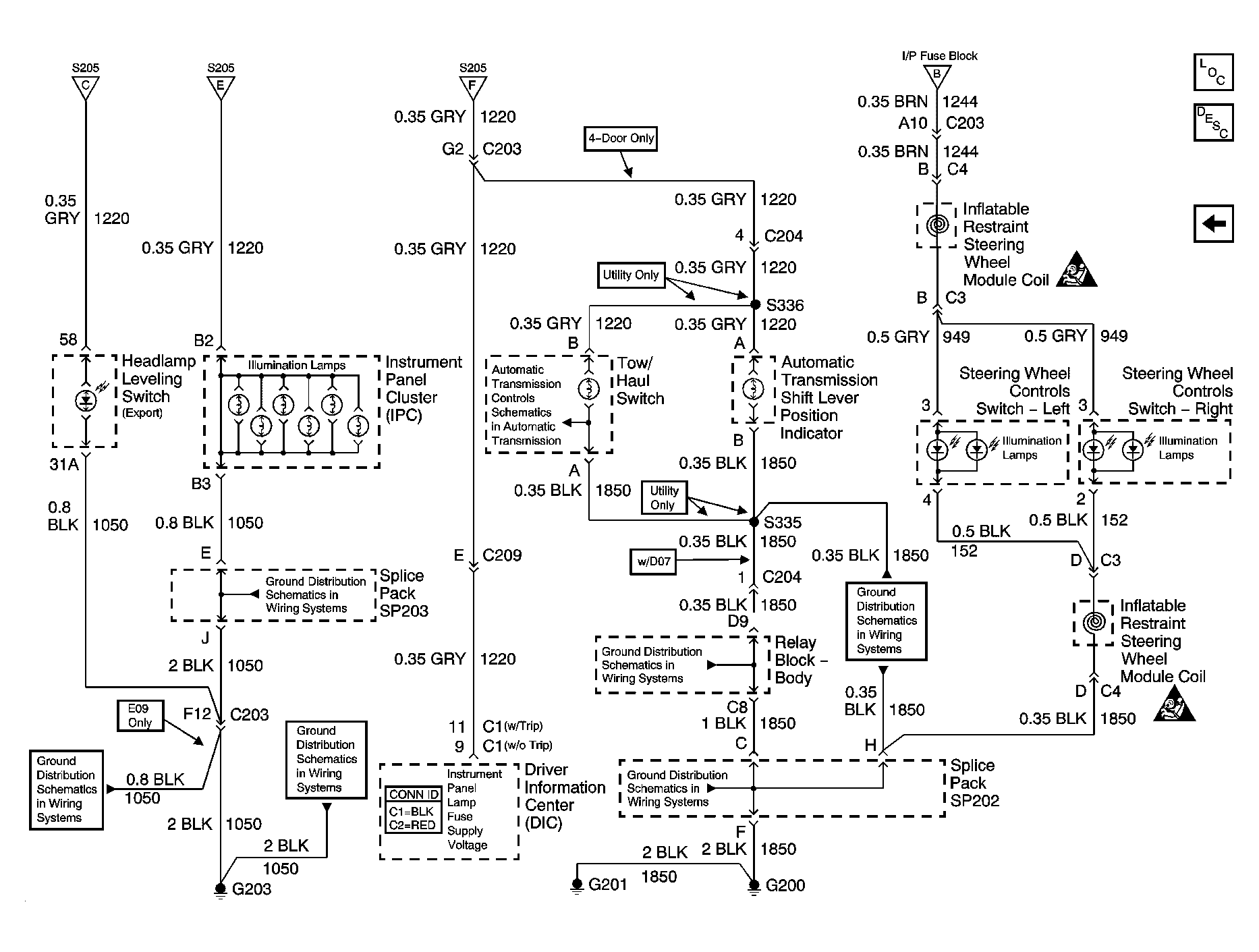

Fig 5: Instrument Panel Cluster, BCM and Automatic Transmission Indicators
GM886093Courtesy of GENERAL MOTORS CORP.
