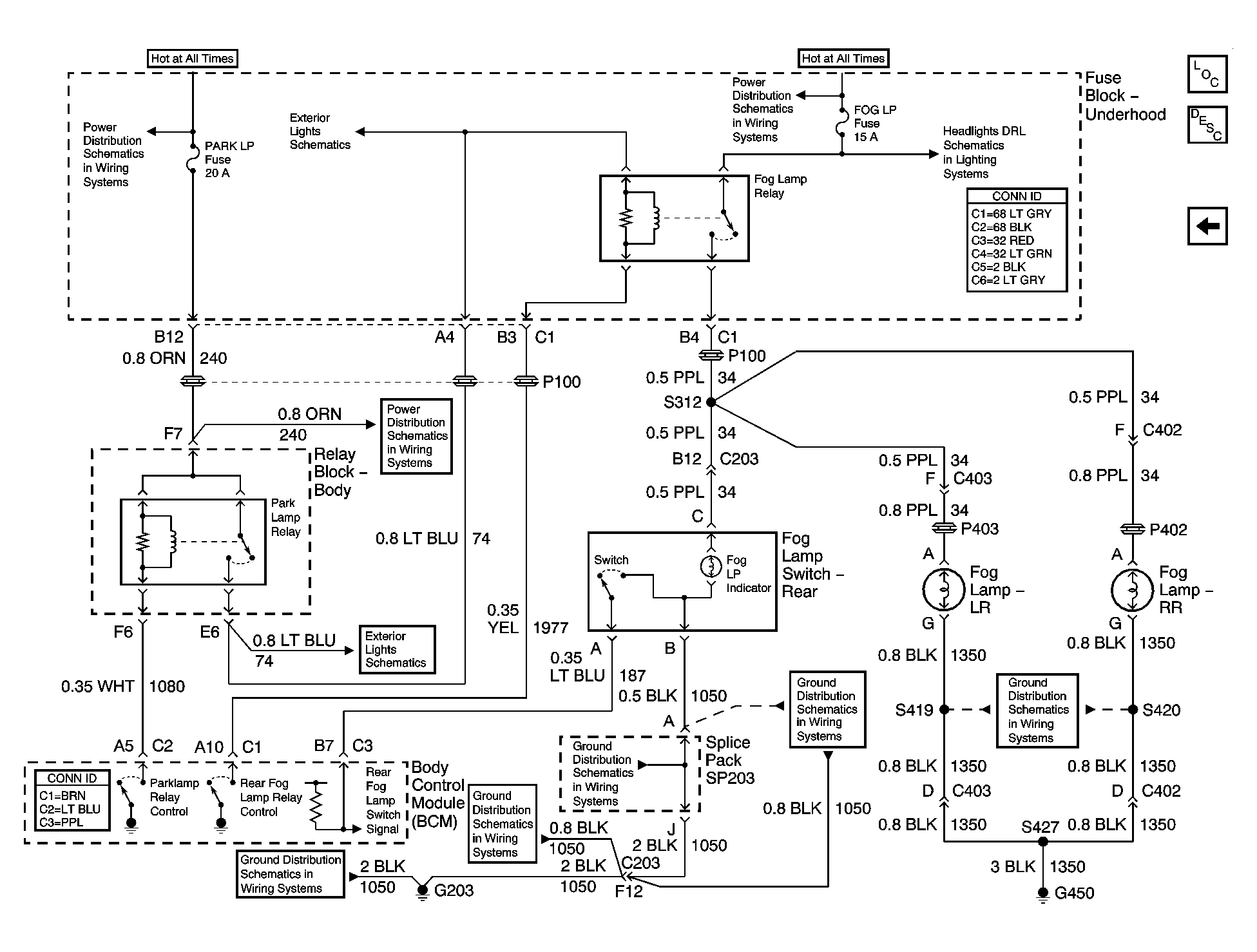

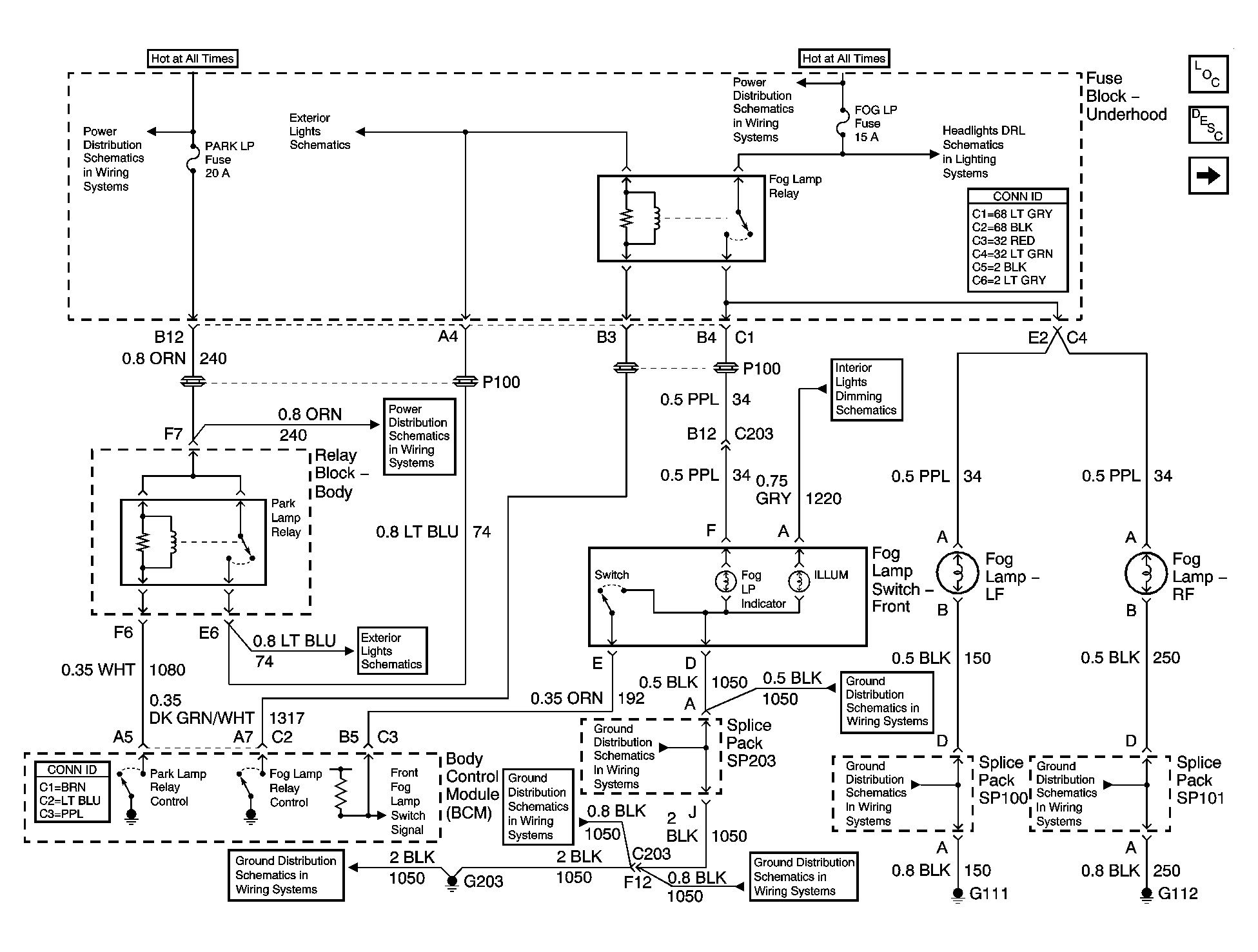

Home >> GMC >> 2004 >> Jimmy 4D Utility, 4WD, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic and Routing Diagrams >> Fog Lights Schematics
