Exterior Lights Schematics

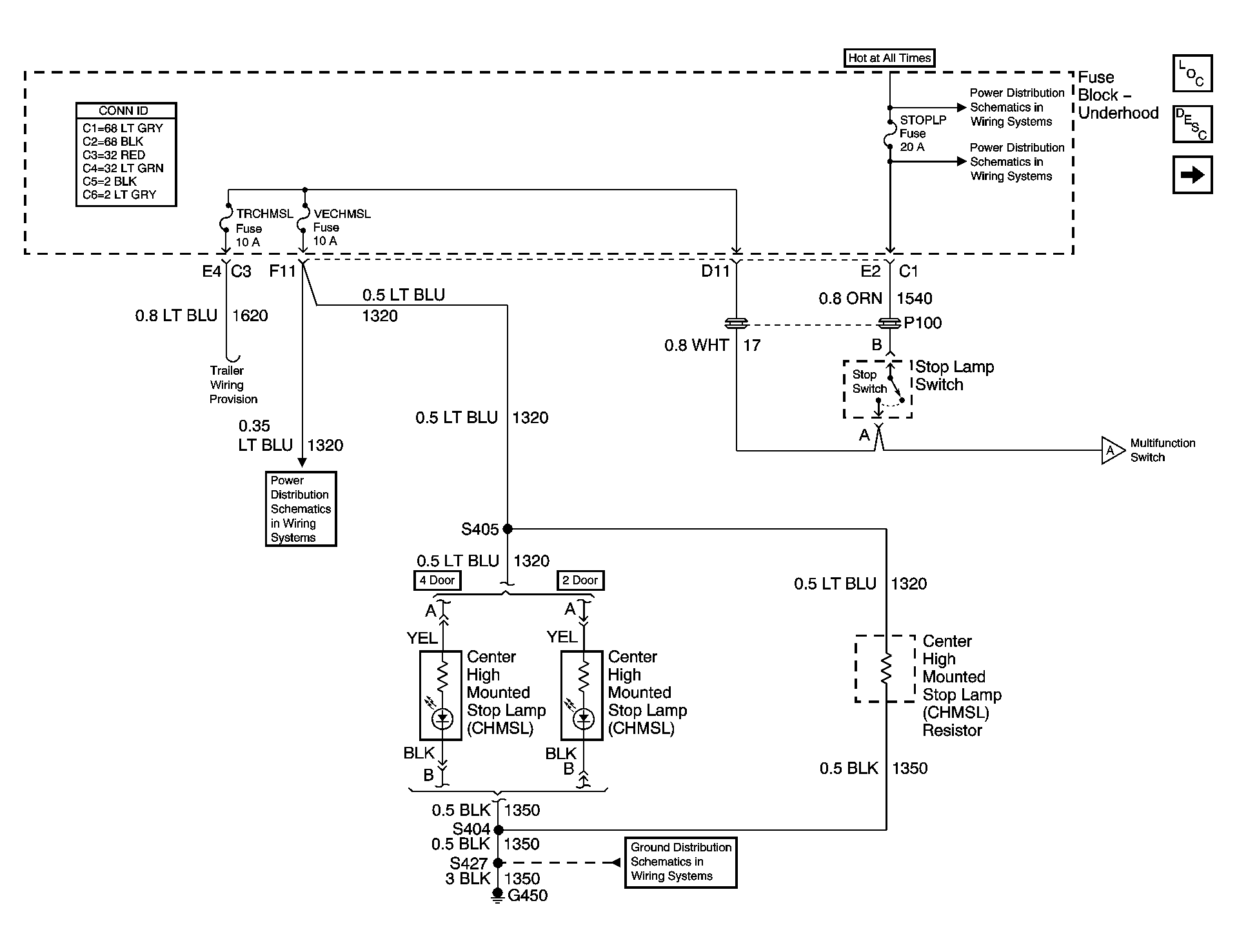

Fig 1: Center High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

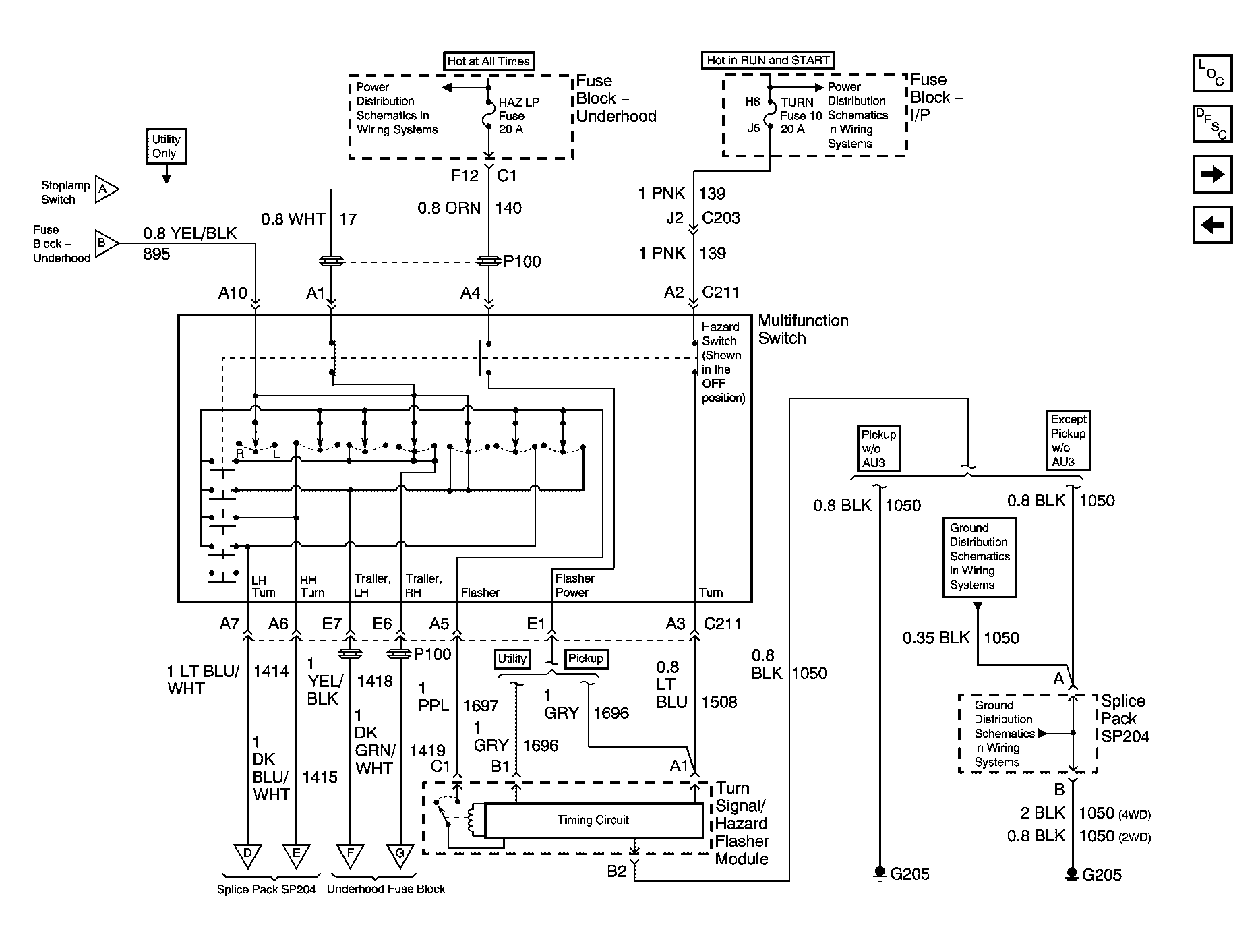

Fig 2: Multifunction Switch and Turn Signal Lamp Flasher

Courtesy of GENERAL MOTORS CORP.

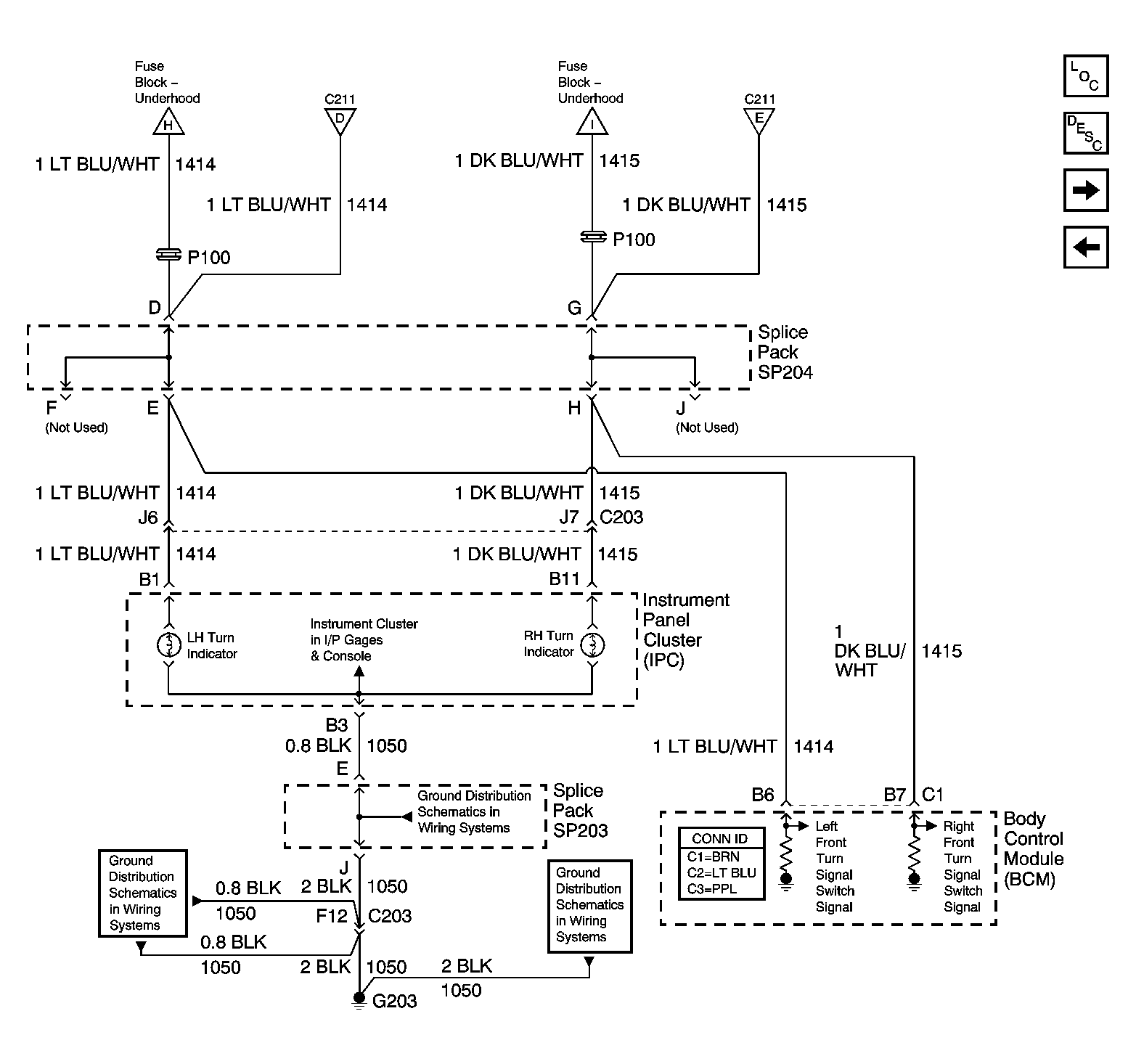

Fig 3: Instrument Cluster Turn Signal Indicators

Courtesy of GENERAL MOTORS CORP.

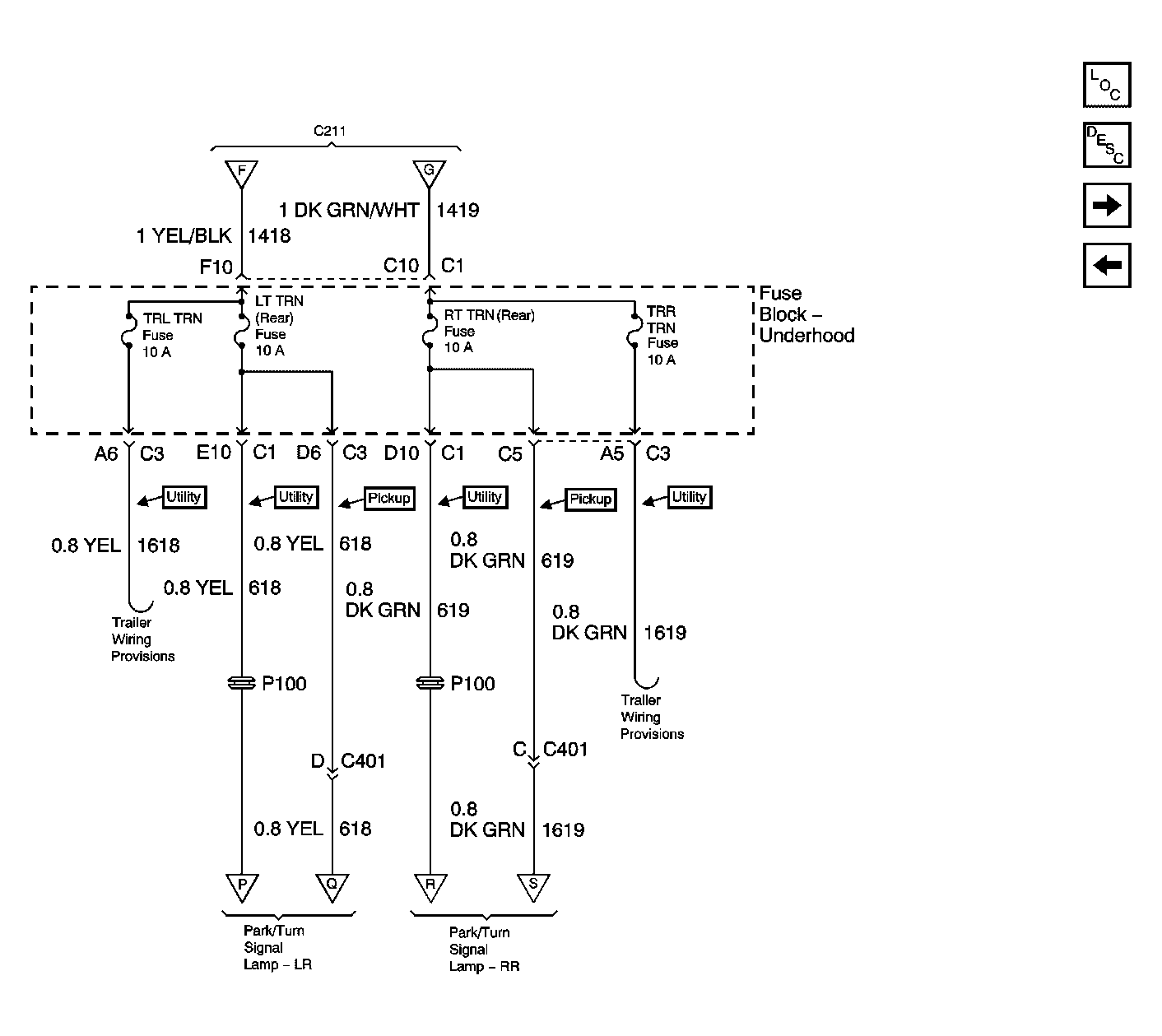

Fig 4: Turn Signal Fuses

Courtesy of GENERAL MOTORS CORP.

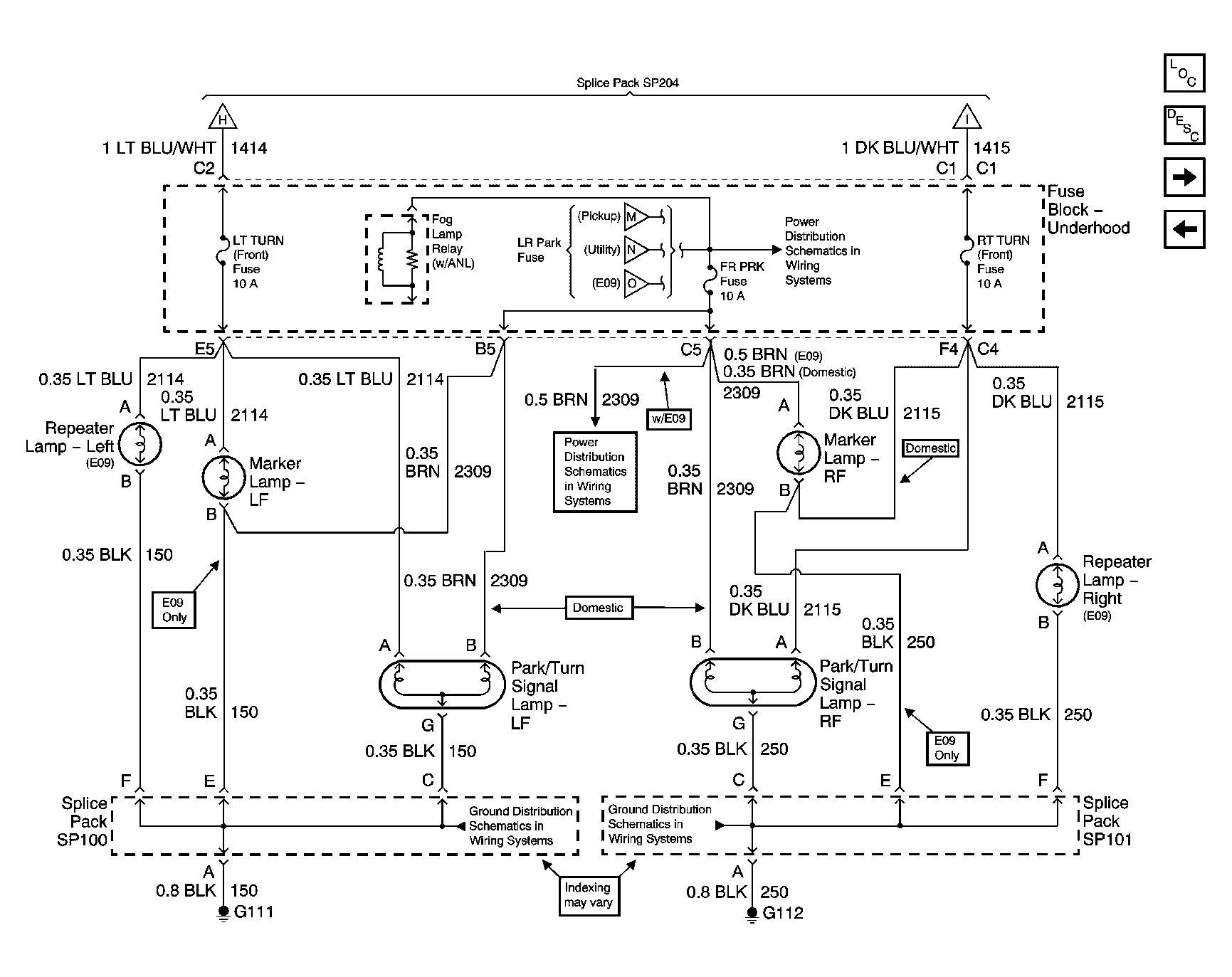

Fig 5: Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front

Courtesy of GENERAL MOTORS CORP.

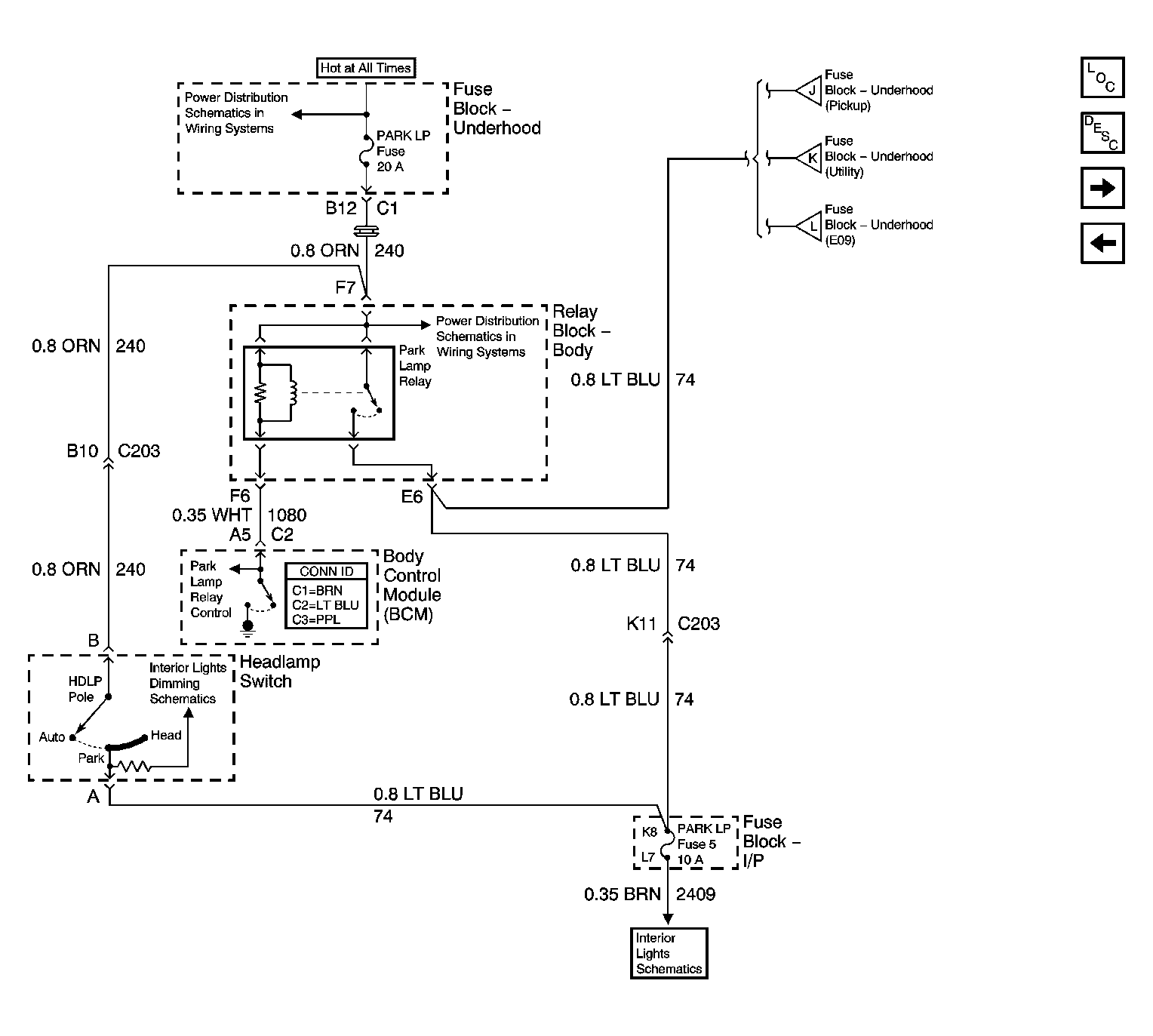

Fig 6: Park Lamp Control

Courtesy of GENERAL MOTORS CORP.

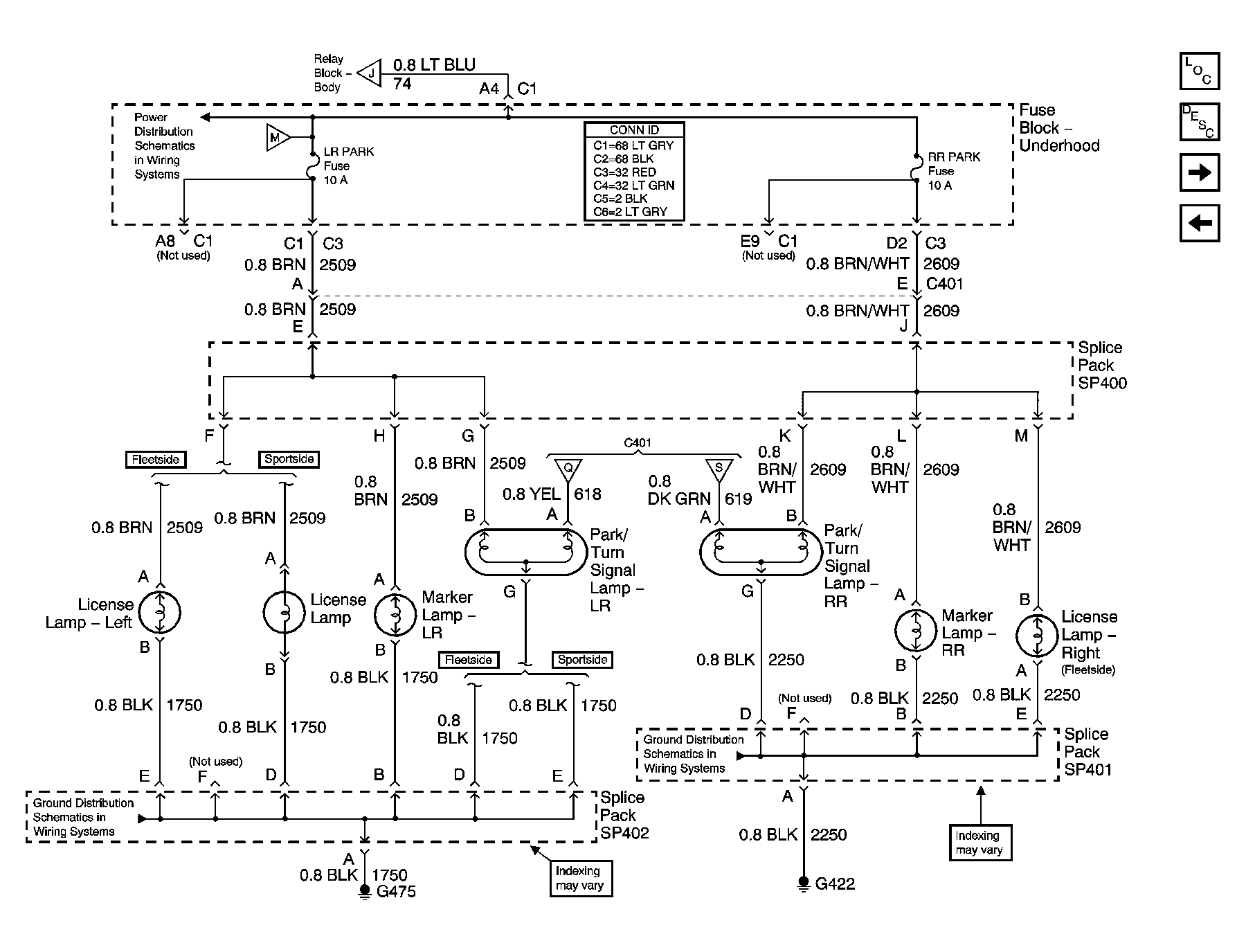

Fig 7: Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup

Courtesy of GENERAL MOTORS CORP.

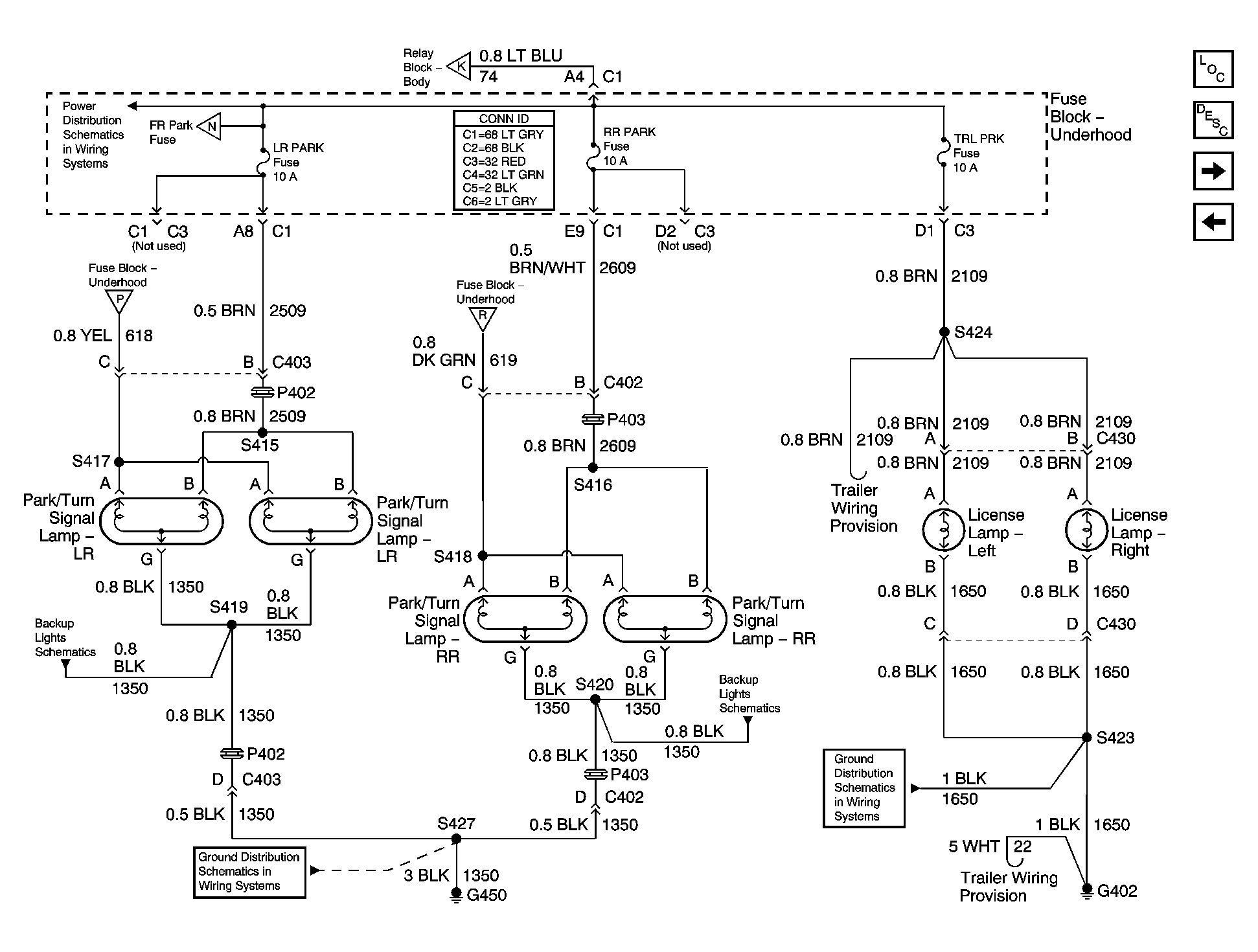

Fig 8: Park and License Lamps, Rear - Utility

Courtesy of GENERAL MOTORS CORP.

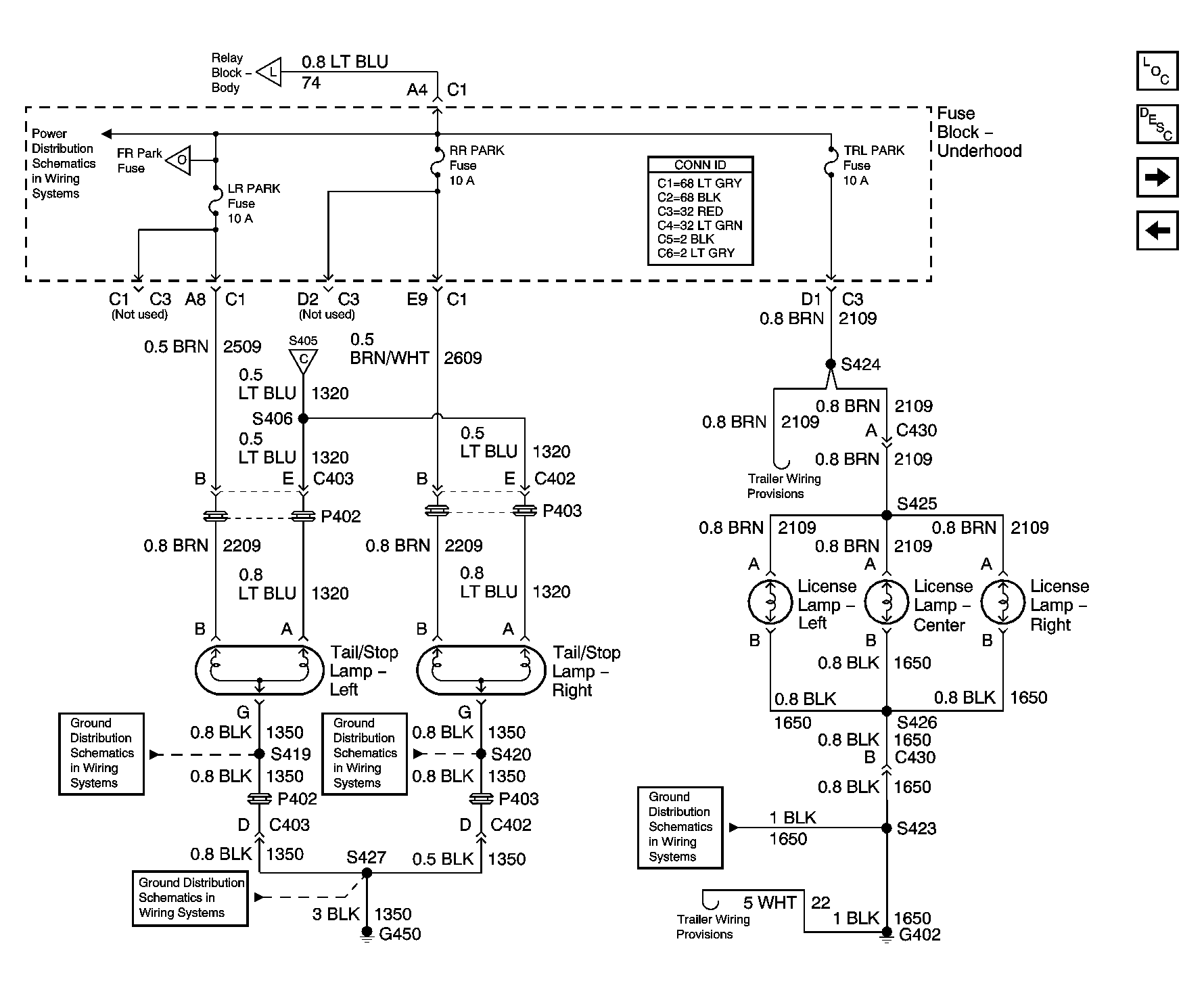

Fig 9: Tail, Stop and License Lamps - Export

Courtesy of GENERAL MOTORS CORP.

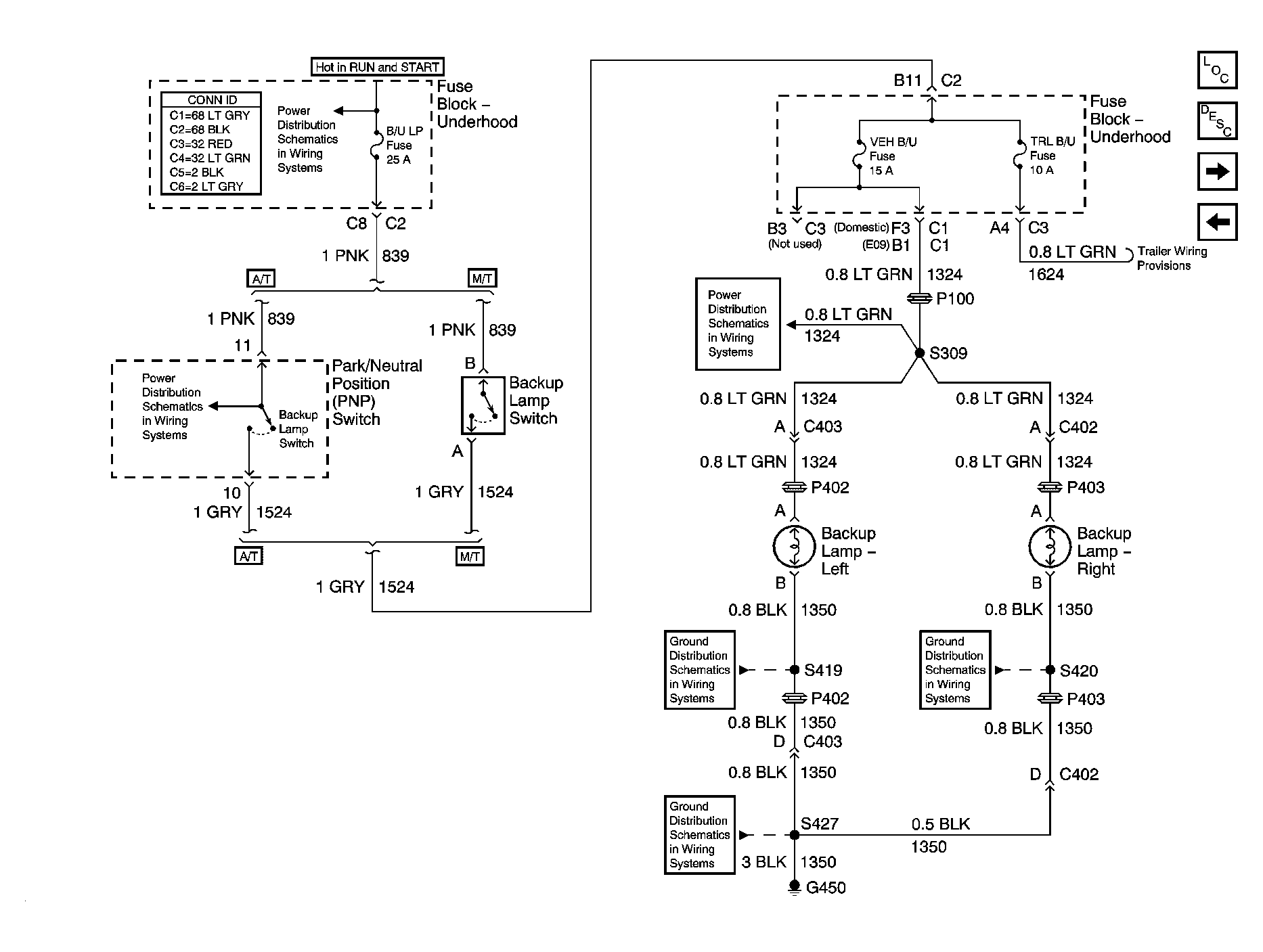

Fig 10: Backup Lamps - Utility

Courtesy of GENERAL MOTORS CORP.

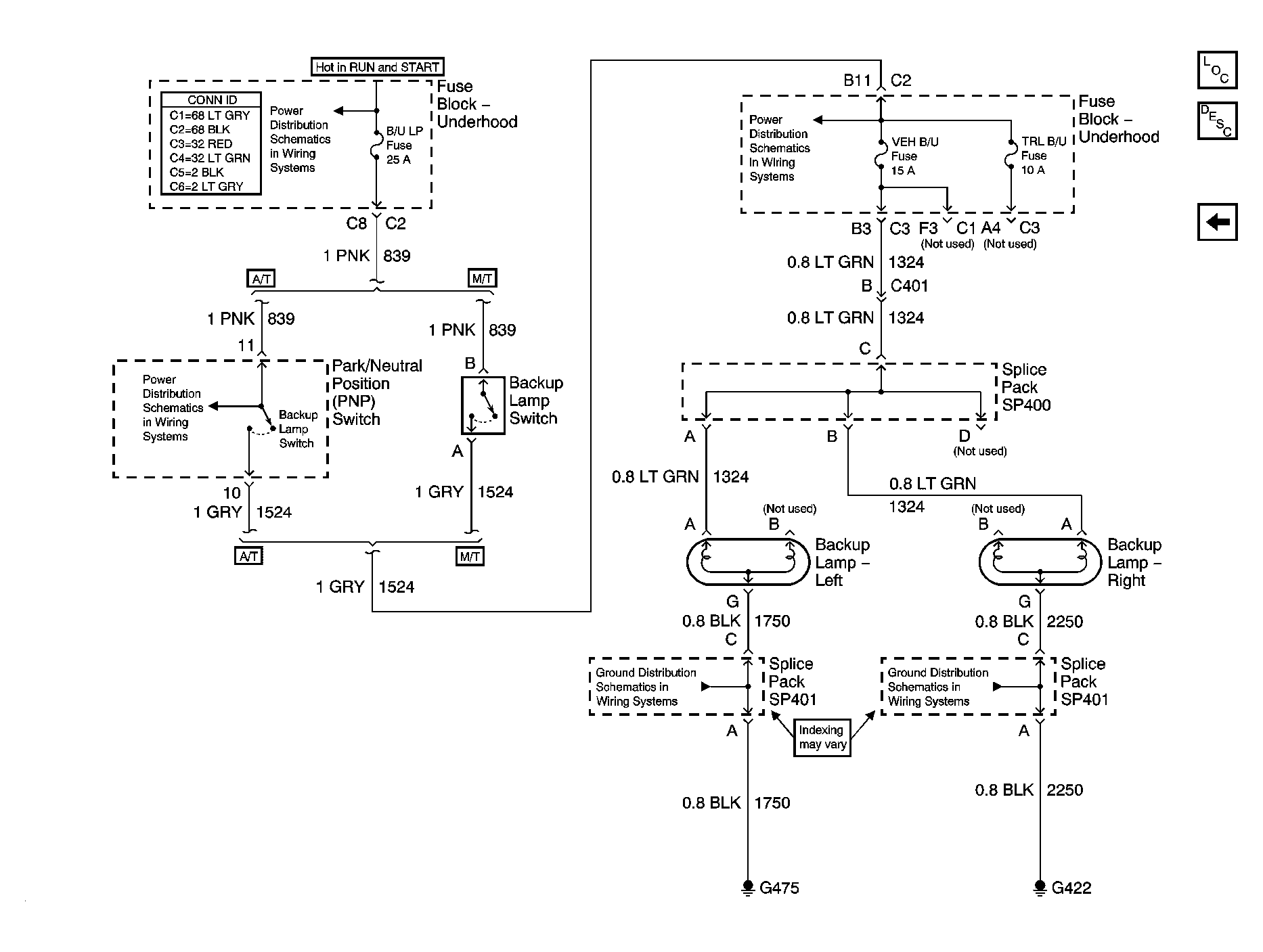

Fig 11: Backup Lamps - Pickup

Courtesy of GENERAL MOTORS CORP.
