Sunroof Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

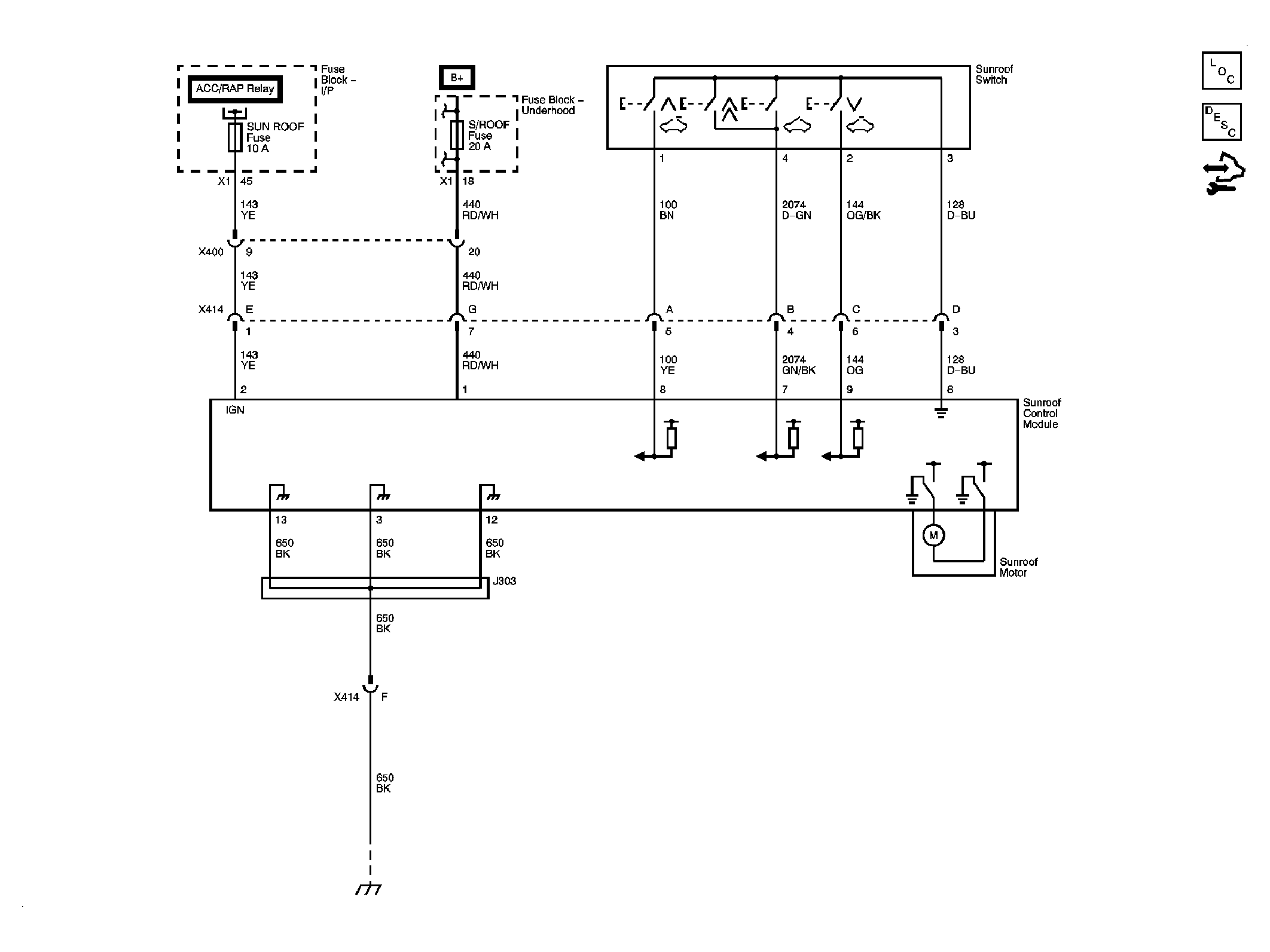

Fig 1: Sunroof Schematic
GM2080295Courtesy of GENERAL MOTORS CORP.
