Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

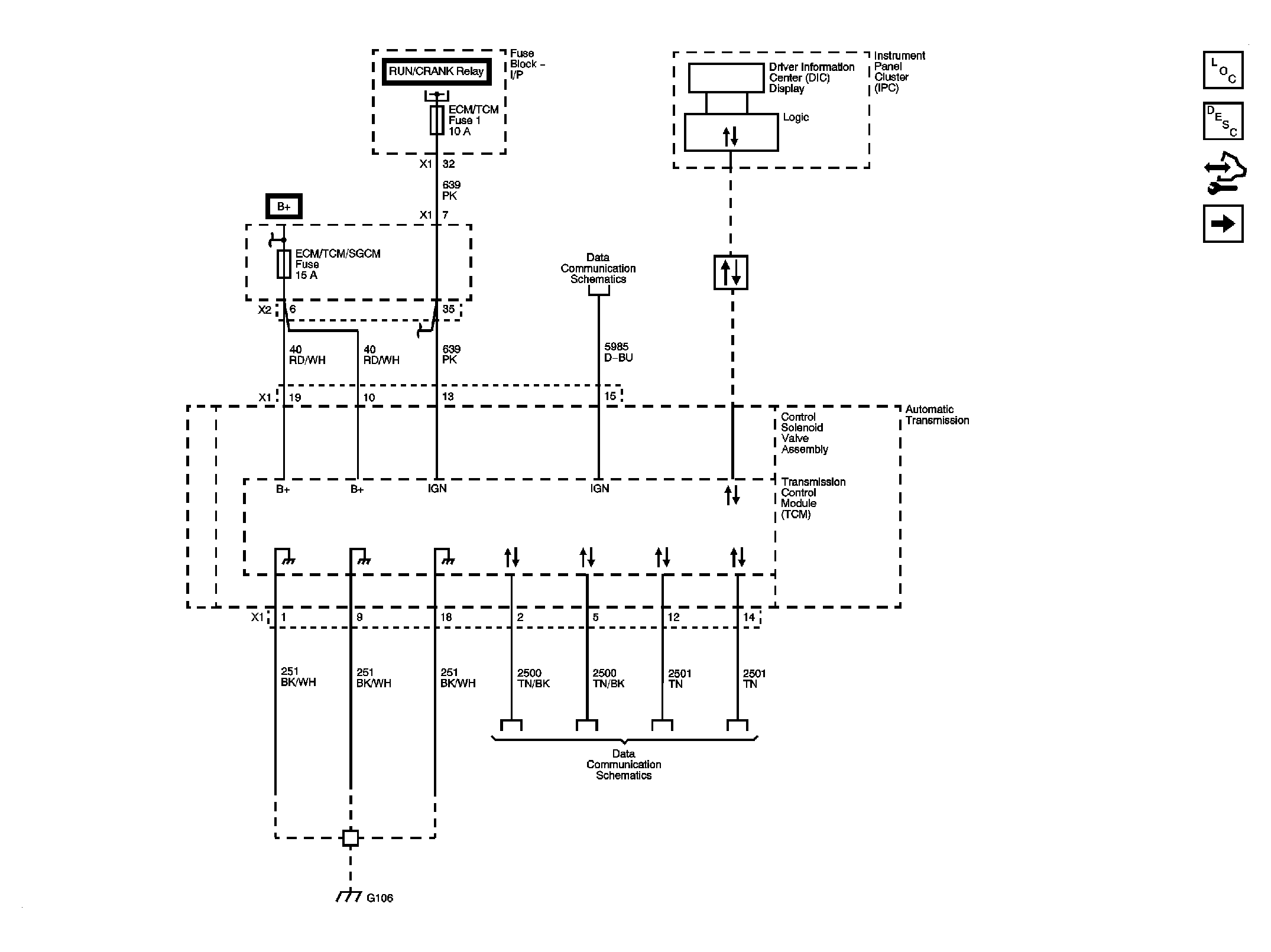

Fig 1: Module Power, Ground, Data Communications, MIL and Brake Signal (6T70/6T75)

Courtesy of GENERAL MOTORS CORP.

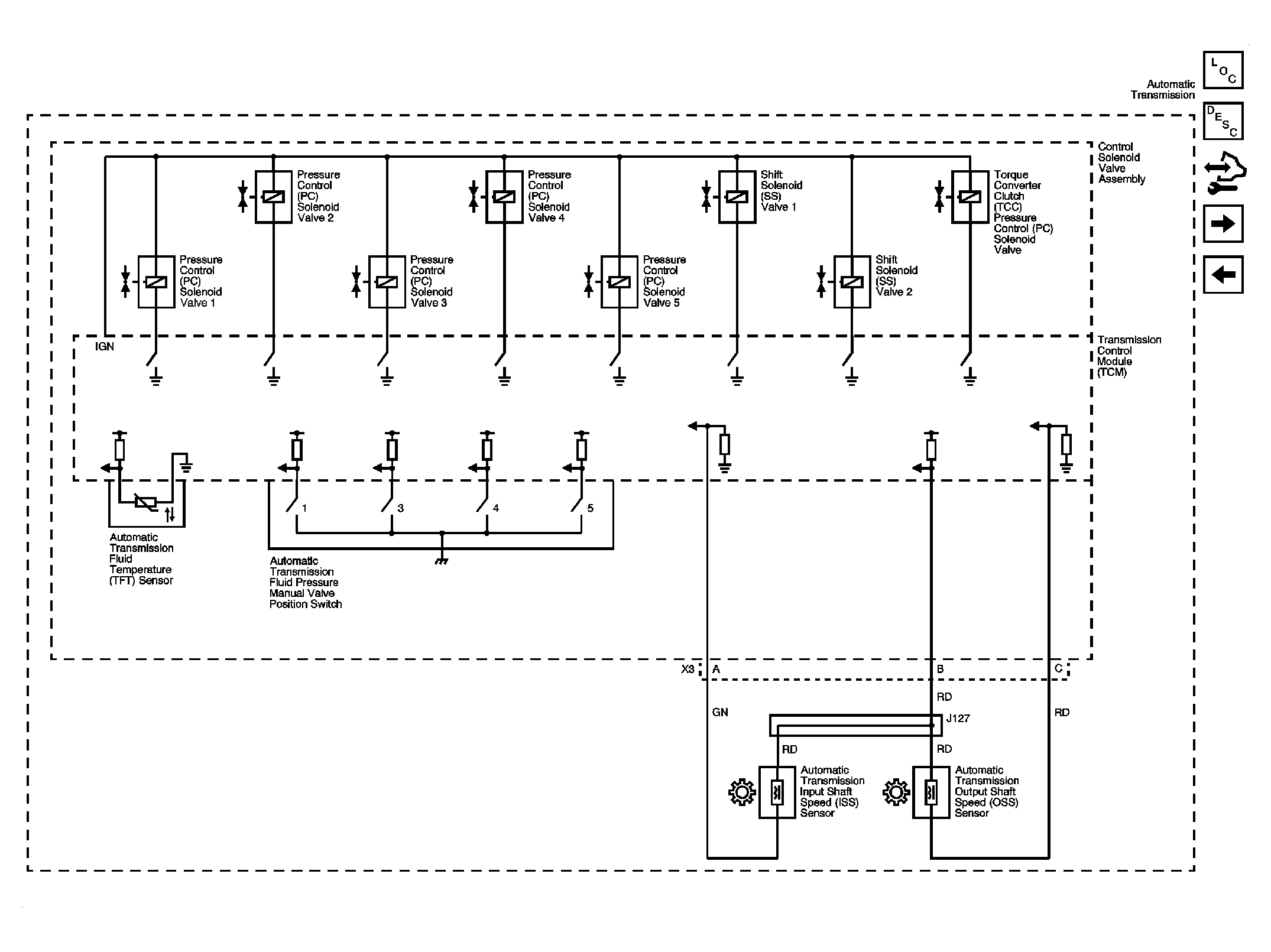

Fig 2: Pressure and Shift Controls (6T70/6T75)

Courtesy of GENERAL MOTORS CORP.

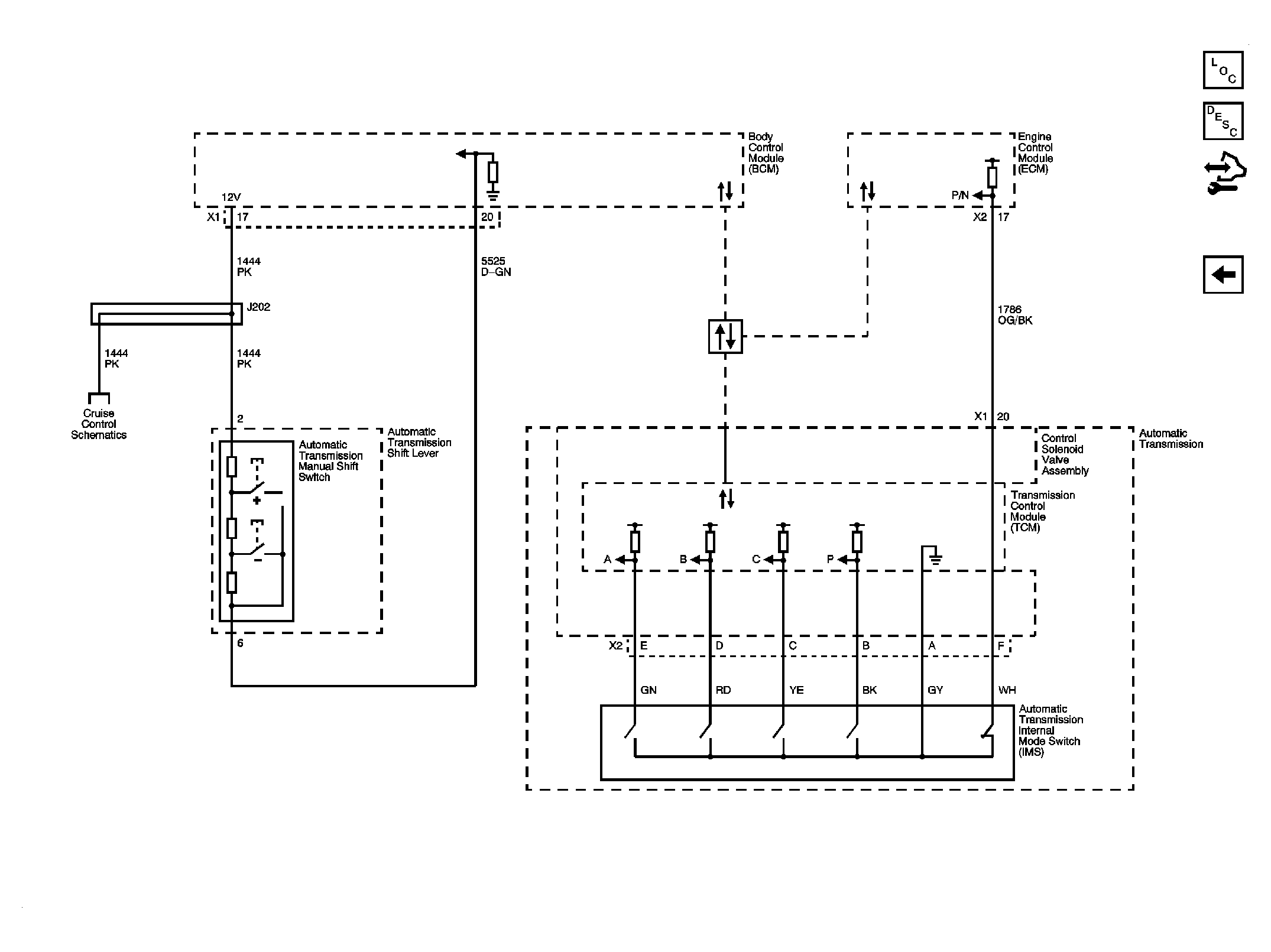

Fig 3: IMS and TapUp/TapDown (6T70/6T75)

Courtesy of GENERAL MOTORS CORP.
