Section 629 (Power Outlets)
>>
Schematic and Routing Diagrams
>>
Cigar Lighter/Power Outlet Schematics
Cigar Lighter/Power Outlet Schematics
WARNING:
This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Accessory Power Outlets
Courtesy of GENERAL MOTORS CORP.

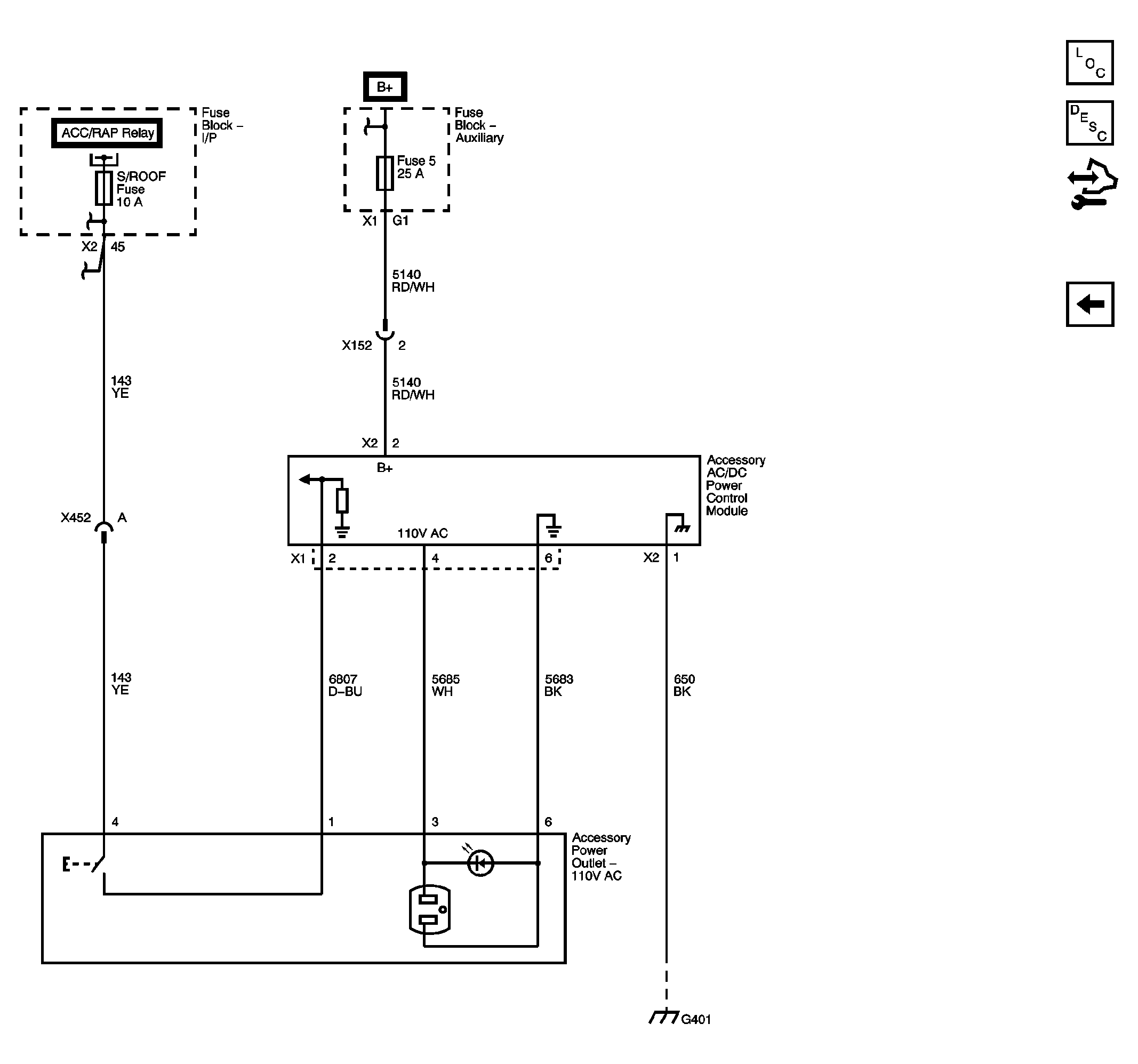

Fig 2: Accessory Power Outlet - 110 Volt
Courtesy of GENERAL MOTORS CORP.
