Auxiliary Fluid Pump Control Module Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

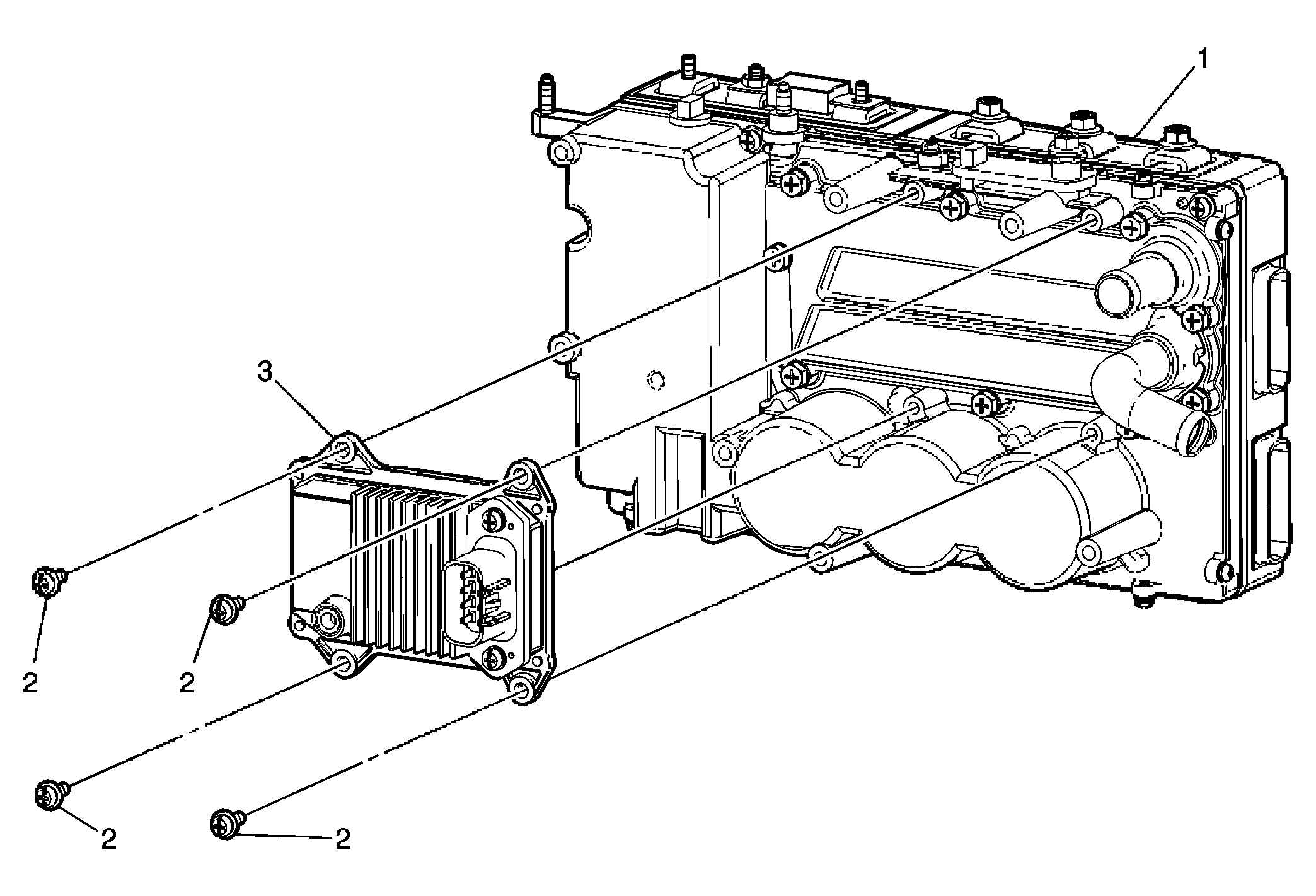

| Callout | Component Name |
|---|---|
| 1 | Generator Control Module Refer to Generator Control Module Replacement . Tip: Generator control module bracket must be removed in order to access the transaxle auxiliary fluid pump control module. |
| 2 | Transaxle Auxiliary Fluid Pump Control Module Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 5.8 N.m (51 lb in) |
| 3 | Transaxle Auxiliary Fluid Pump Control Module Tip: For programming setup information, refer to Control Module References . |
