SIR Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

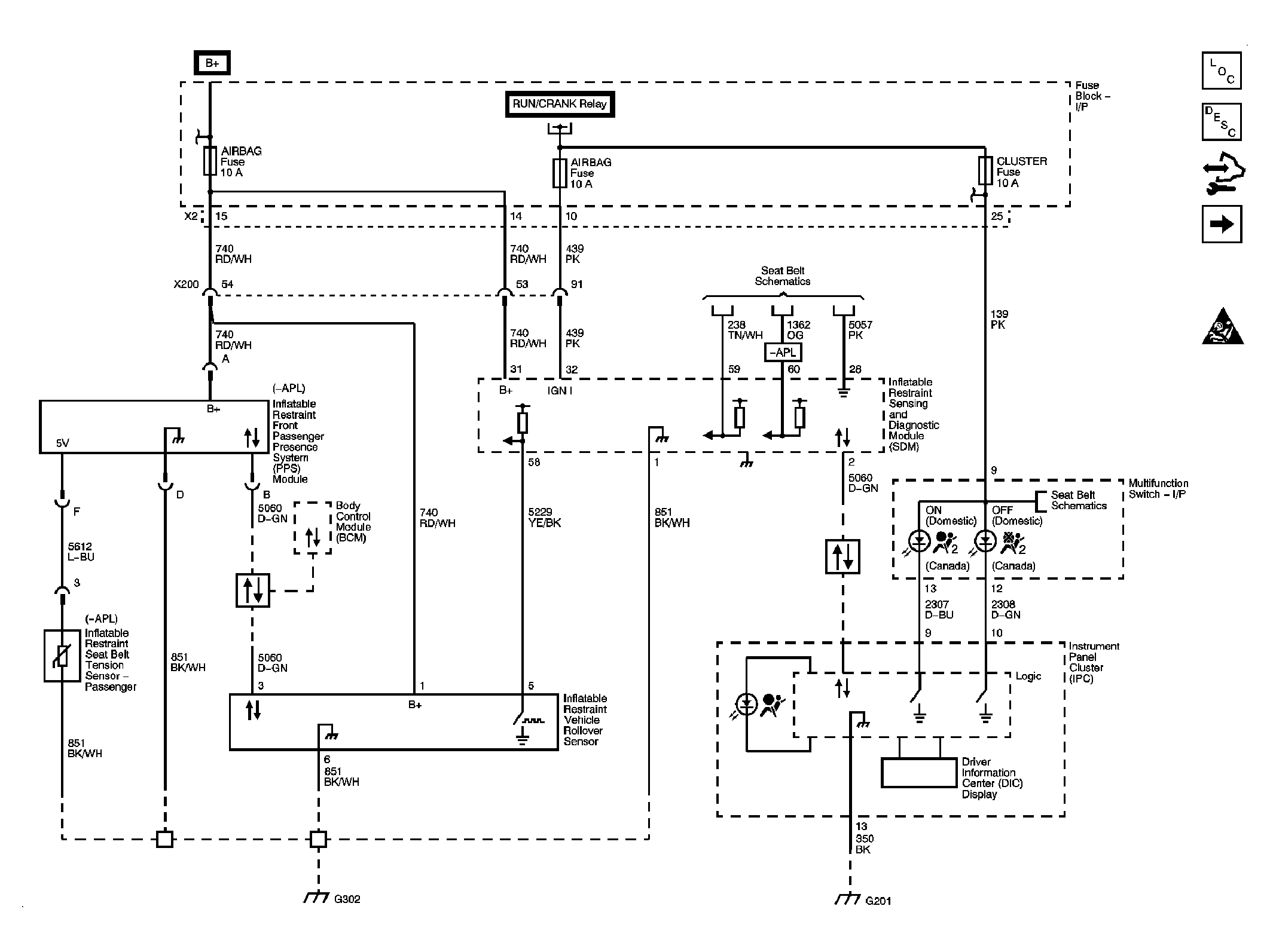

Fig 1: Module Power, Ground and Data Communications

Courtesy of GENERAL MOTORS CORP.

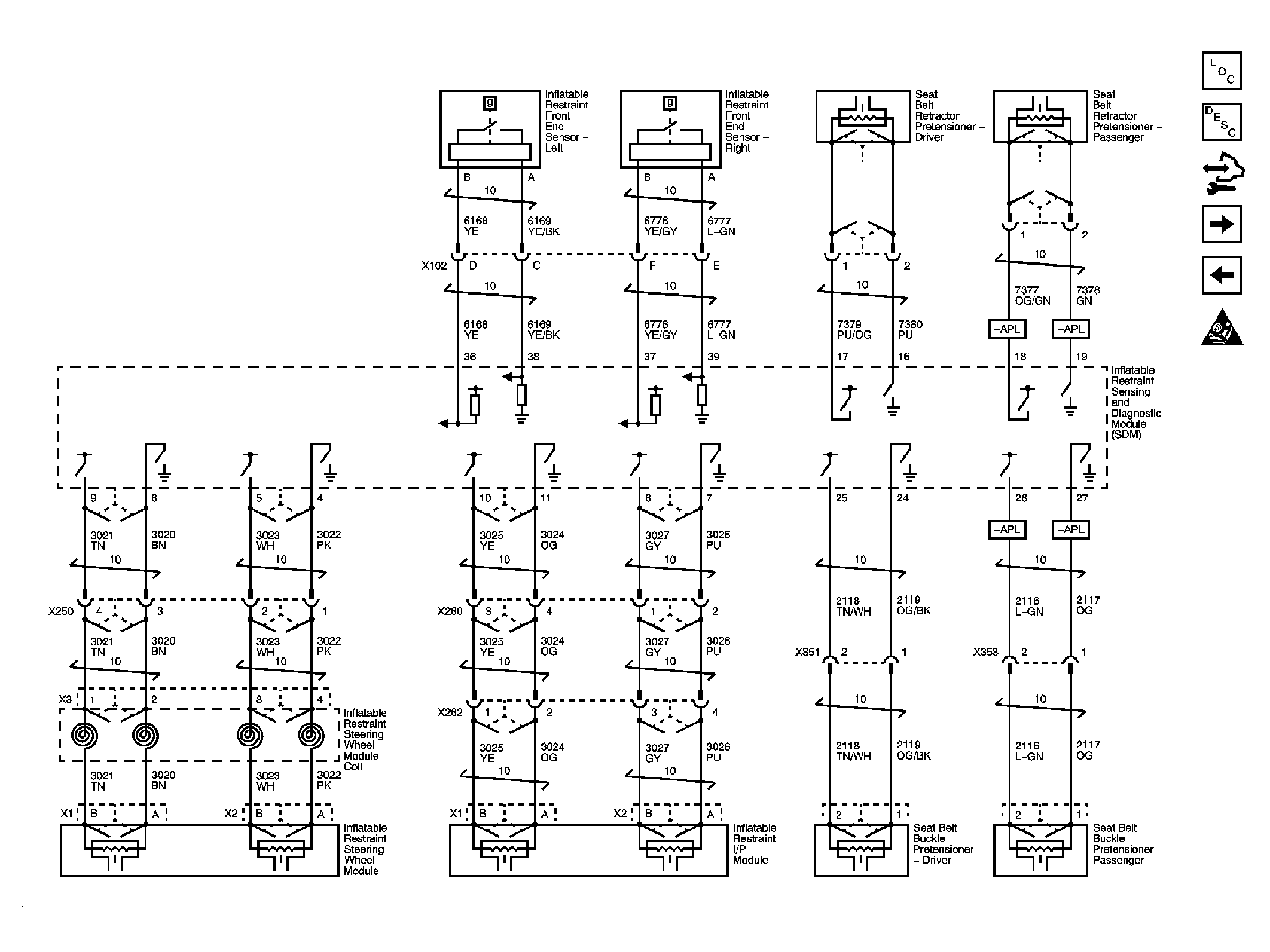

Fig 2: Front Sensors, Seat Belt Pretensioners

Courtesy of GENERAL MOTORS CORP.

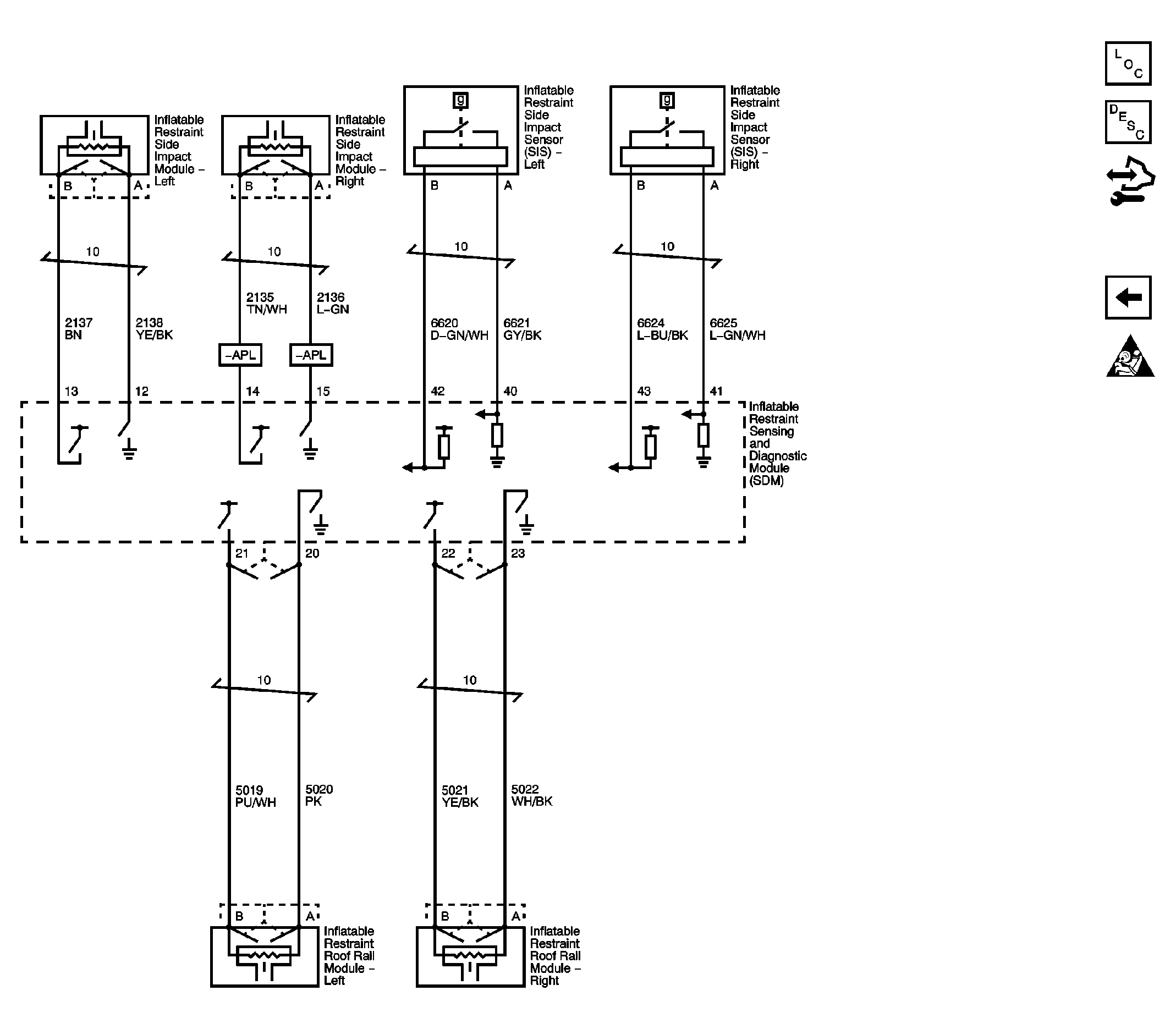

Fig 3: Roof Rail Modules and Side Impact Sensors

Courtesy of GENERAL MOTORS CORP.
