Transfer Case Control Schematics (Power, Ground, DLC, Transfer Case Encoder Motor)

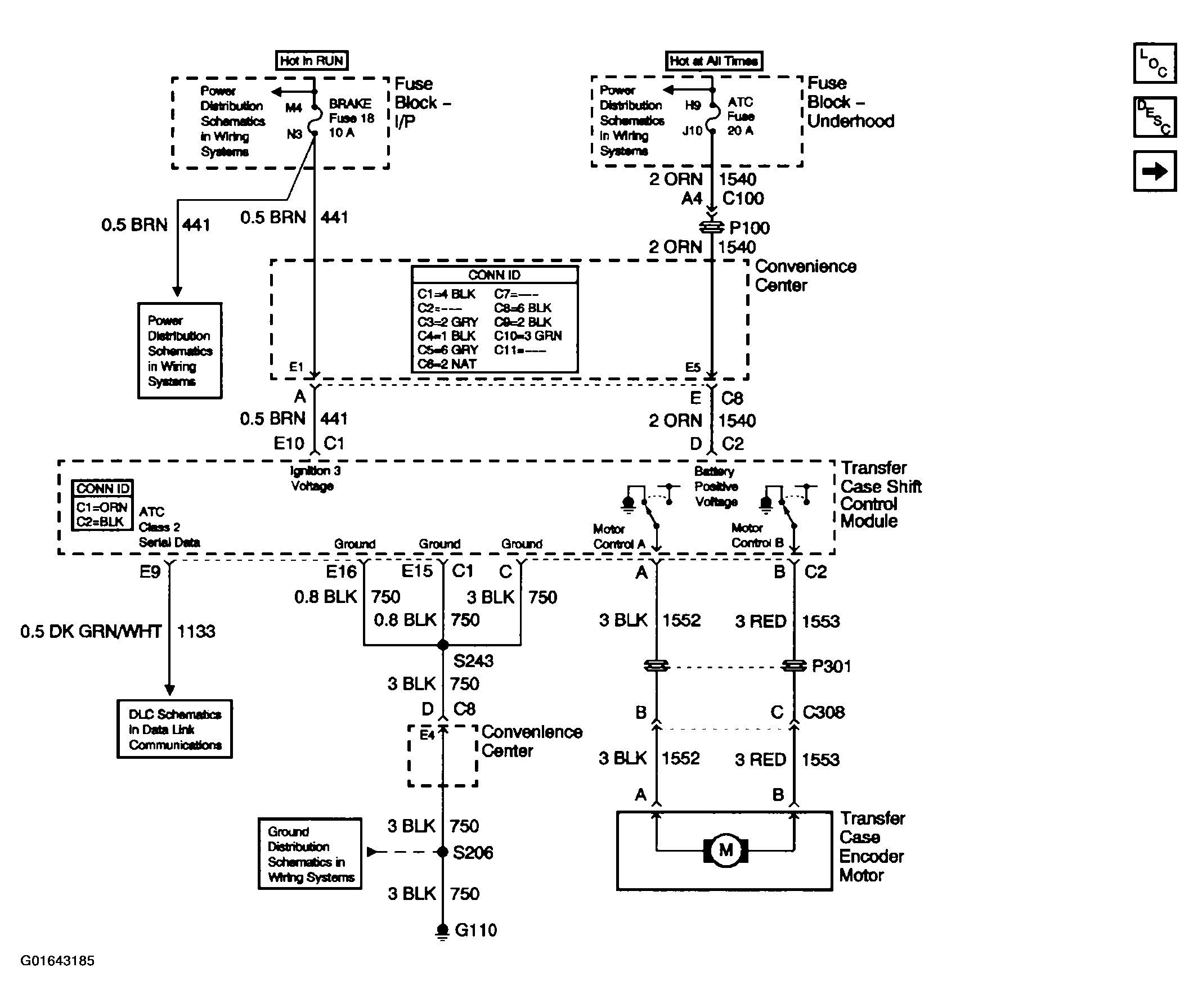

Fig 1: Transfer Case Control Schematics (Power, Ground, DLC, Transfer Case Encoder Motor)
G01643185Courtesy of GENERAL MOTORS CORP.
Fig 2: Transfer Case Control Schematics (Propshaft Speed Sensors)
G01643186Courtesy of GENERAL MOTORS CORP.
