Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the transfer case right rear speed sensor electrical connector.
  3. Remove the transfer case right rear speed sensor.

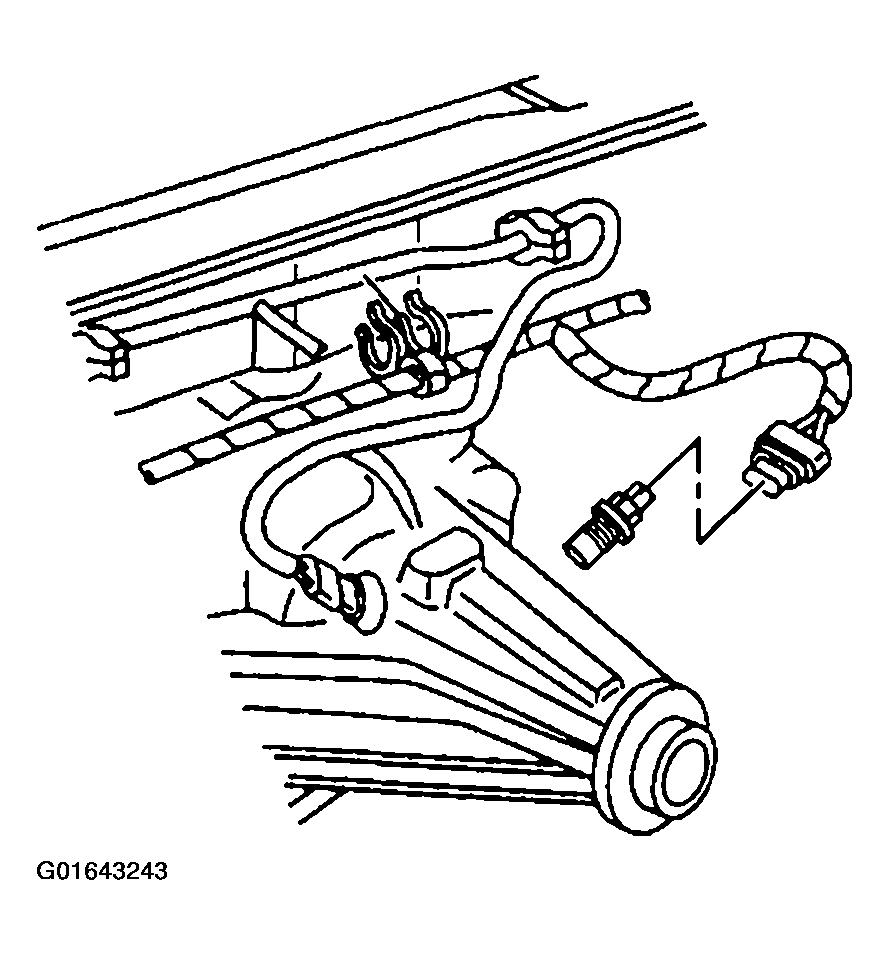

    Fig 1: Transfer Case Right Rear Speed Sensor Electrical Connector & Sensor
    G01643243Courtesy of GENERAL MOTORS CORP.
