Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case right rear speed sensor.

    Tighten

    Tighten the transfer case right rear speed sensor to 15 N.m (11 lb ft).

  2. Install the transfer case right rear speed sensor electrical connector.

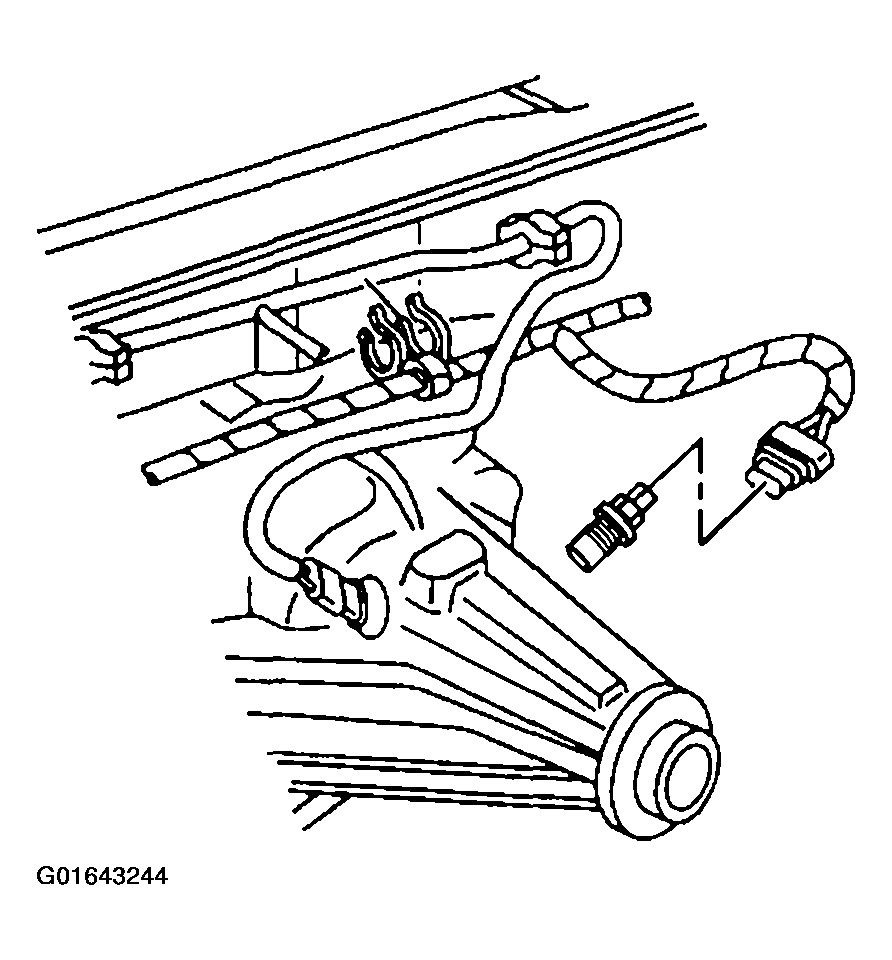

    Fig 1: Transfer Case Right Rear Speed Sensor Electrical Connector & Sensor
    G01643244Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
