Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the transfer case left rear speed sensor electrical connector.

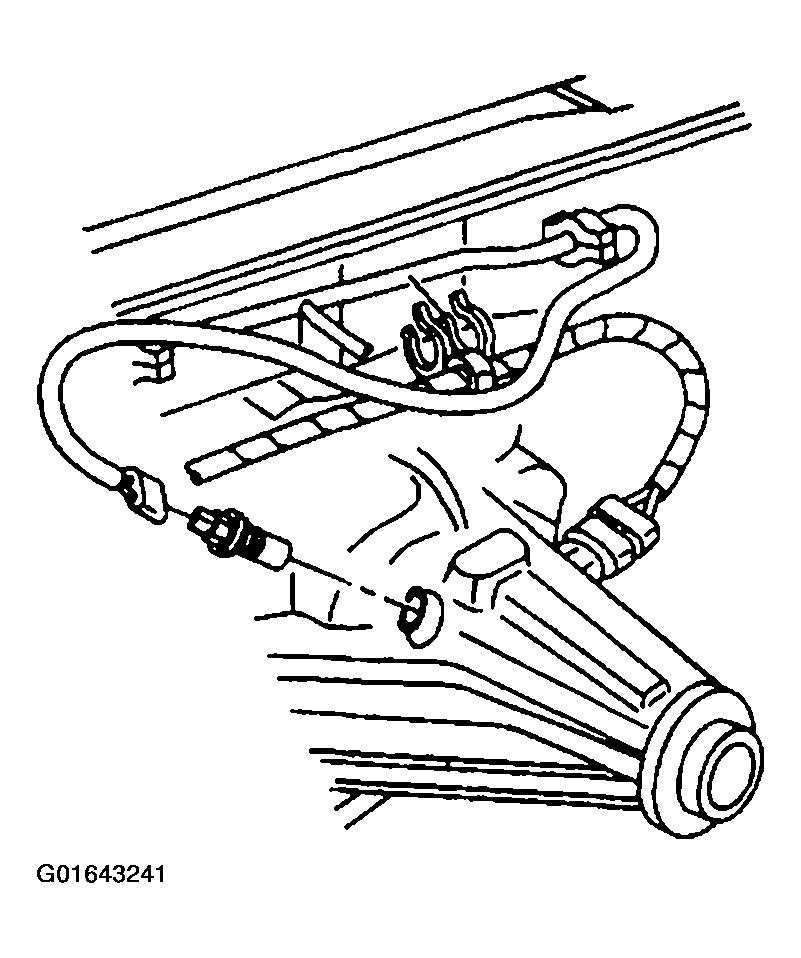

    Fig 1: Transfer Case Left Rear Speed Sensor Electrical Connector & Sensor
    G01643241Courtesy of GENERAL MOTORS CORP.
  3. Remove the transfer case left rear speed sensor.
