Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the transfer case front speed sensor electrical connector.

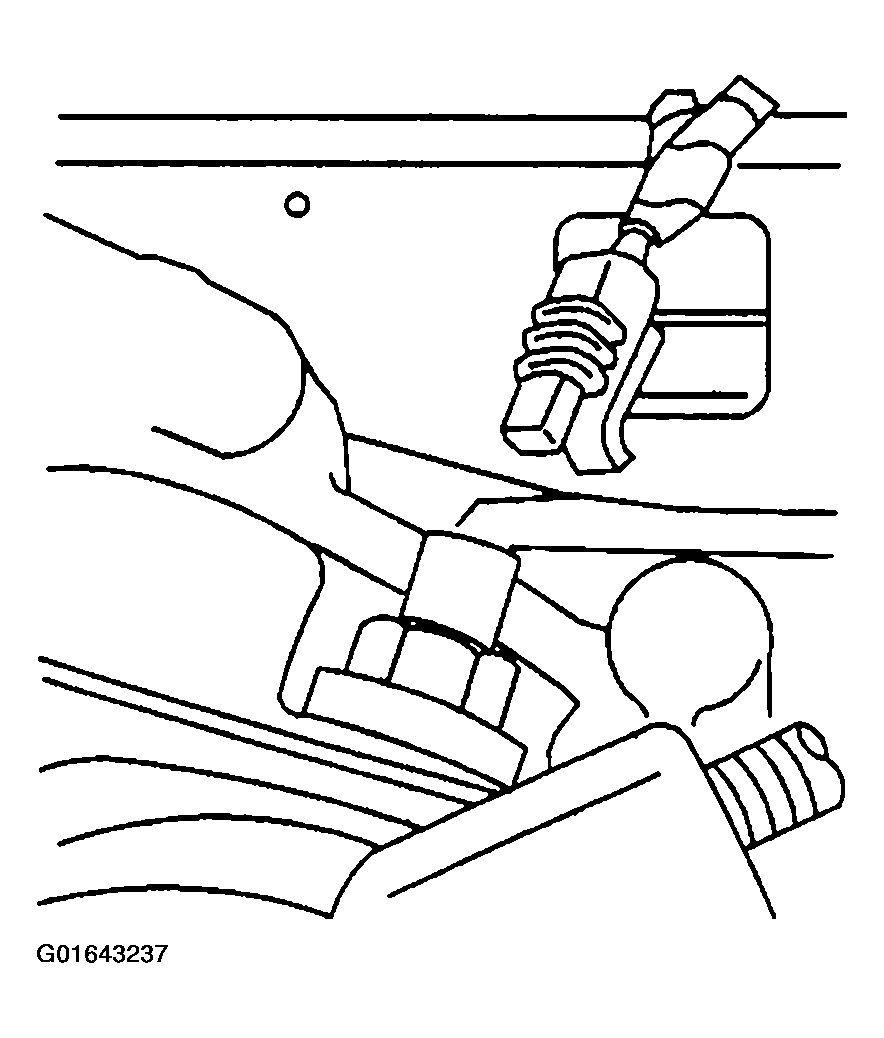

    Fig 1: Transfer Case Front Speed Sensor Electrical Connector
    G01643237Courtesy of GENERAL MOTORS CORP.
  3. Remove the transfer case front speed sensor.

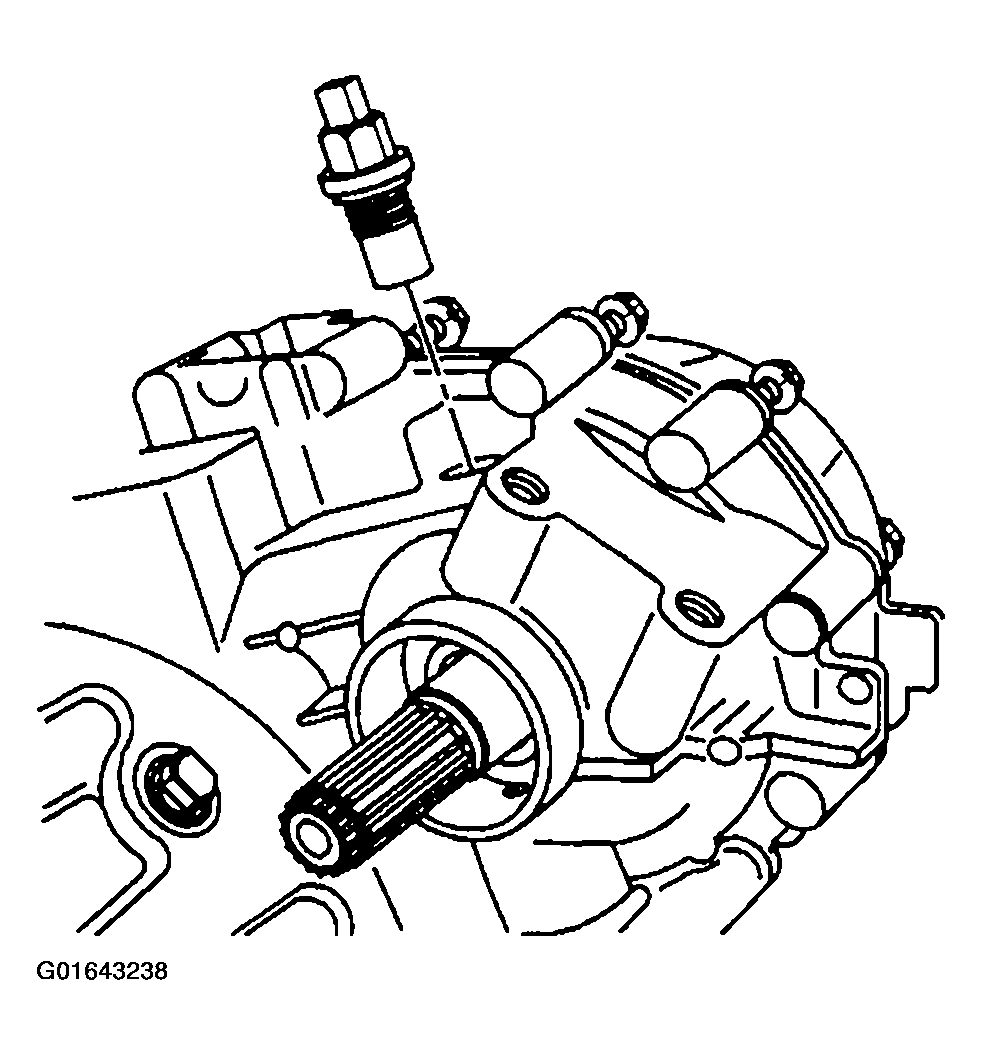

    Fig 2: Transfer Case Front Speed Sensor
    G01643238Courtesy of GENERAL MOTORS CORP.
