Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case front speed sensor.

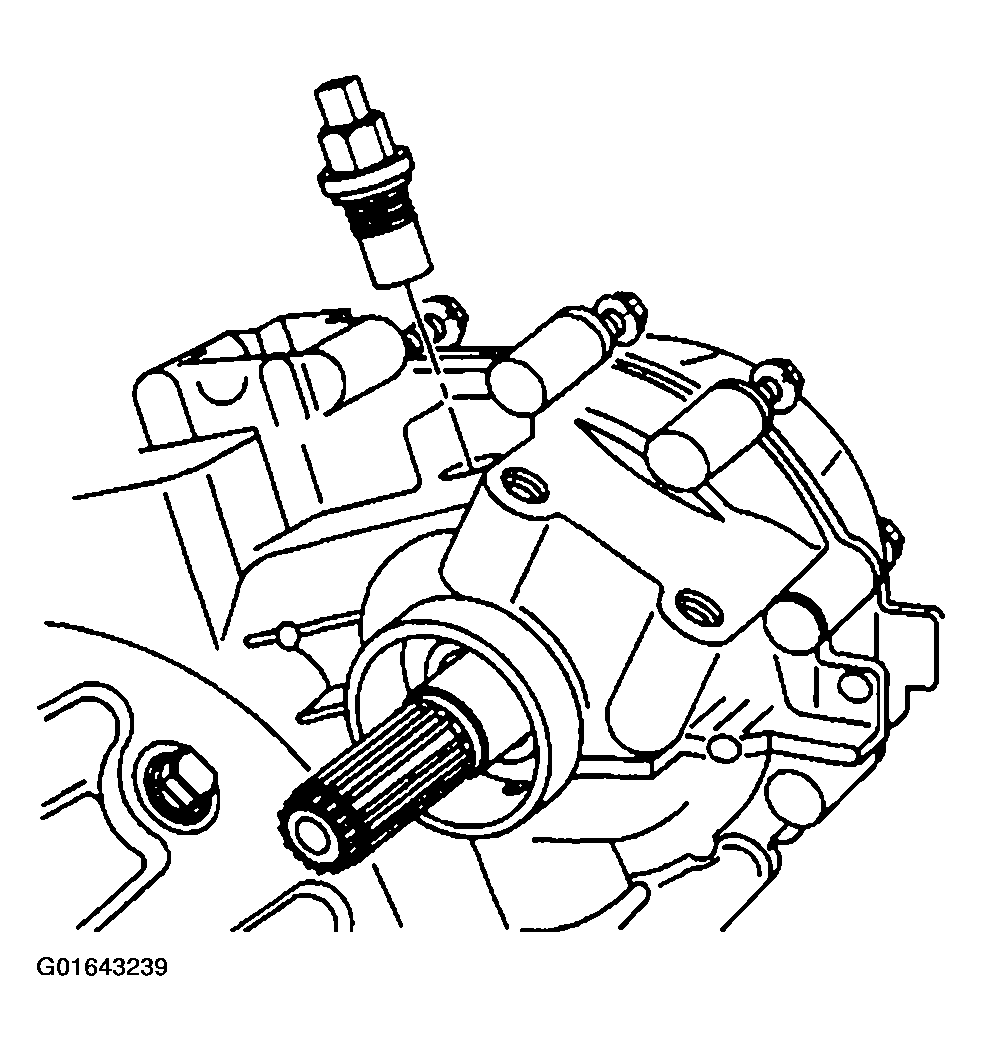

    Fig 1: Transfer Case Front Speed Sensor
    G01643239Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the transfer case front speed sensor to 15 N.m (11 lb ft).

  2. Install the transfer case front speed sensor electrical connector.

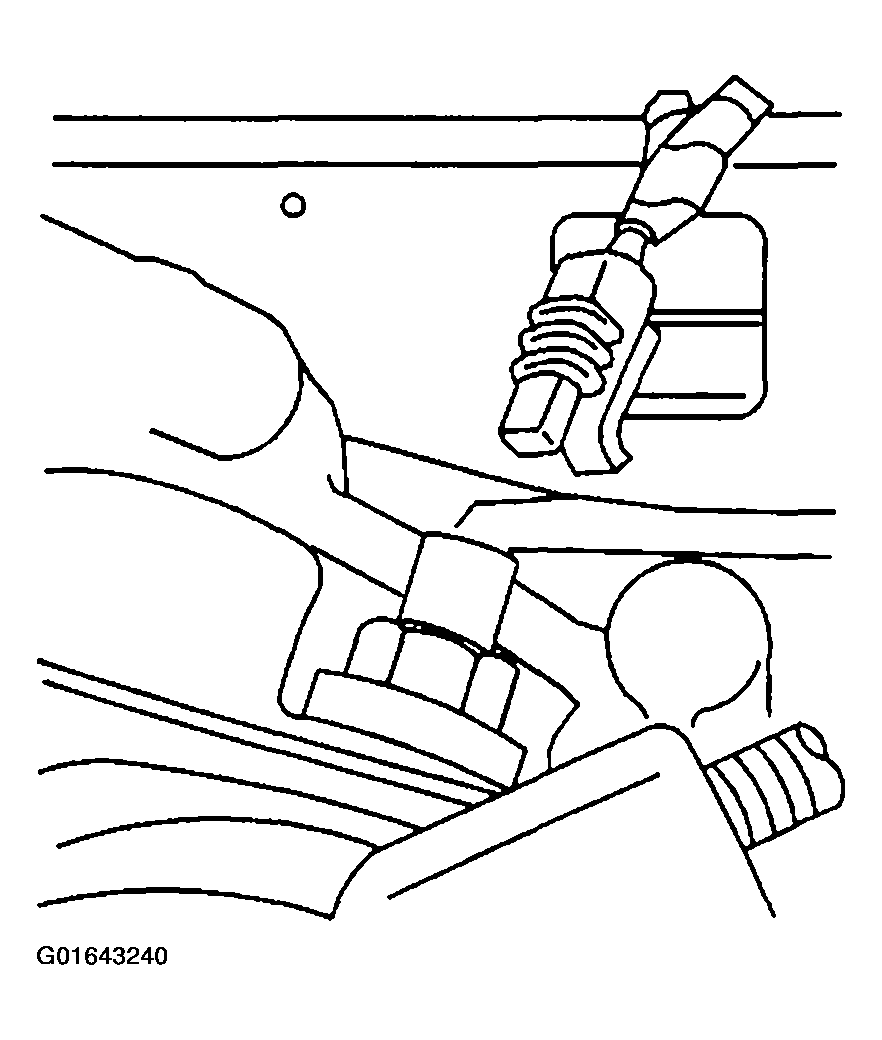

    Fig 2: Transfer Case Front Speed Sensor Electrical Connector
    G01643240Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
