Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the retaining nuts for the transfer case shield.
  3. Remove the transfer case shield.

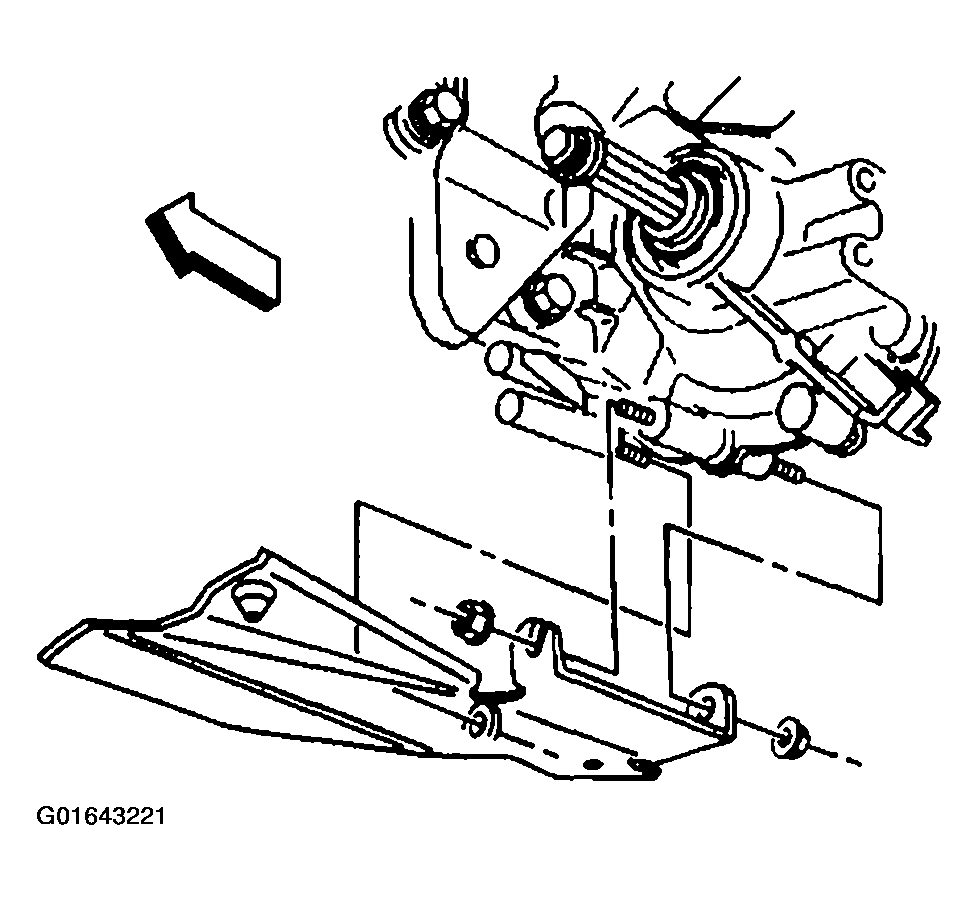

    Fig 1: Transfer Case Shield Retaining Nuts
    G01643221Courtesy of GENERAL MOTORS CORP.
