Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT .
  3. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  4. Remove the transfer case front output shaft dust seal.

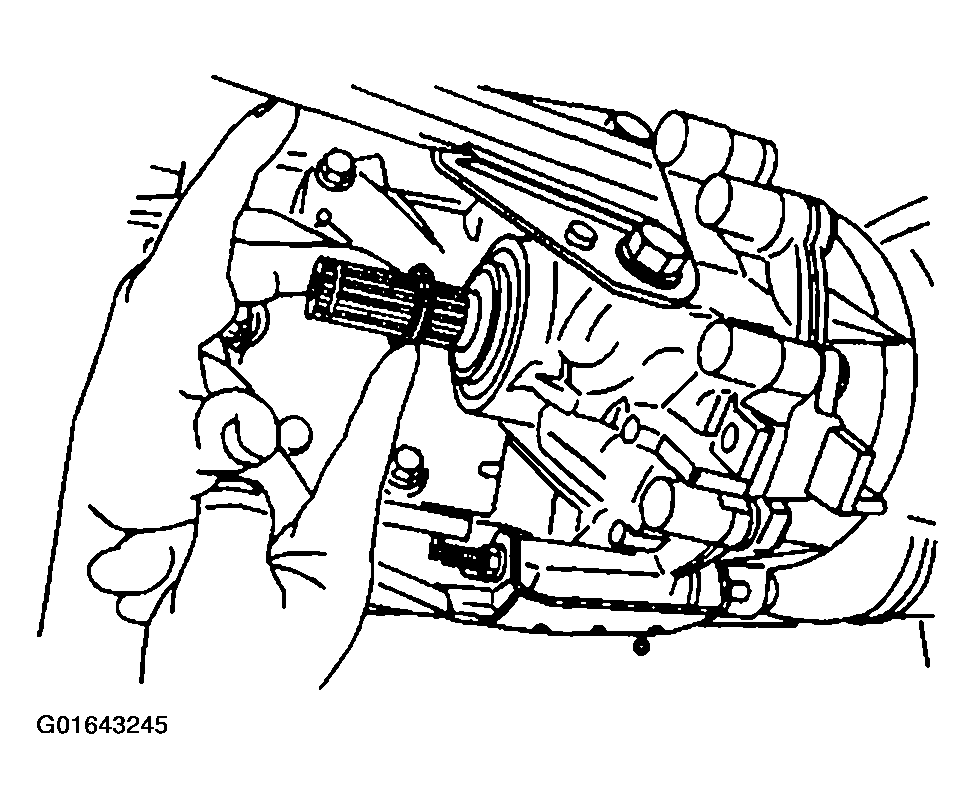

    Fig 1: Transfer Case Front Output Shaft Dust Seal
    G01643245Courtesy of GENERAL MOTORS CORP.
  5. Remove the transfer case front output shaft seal.

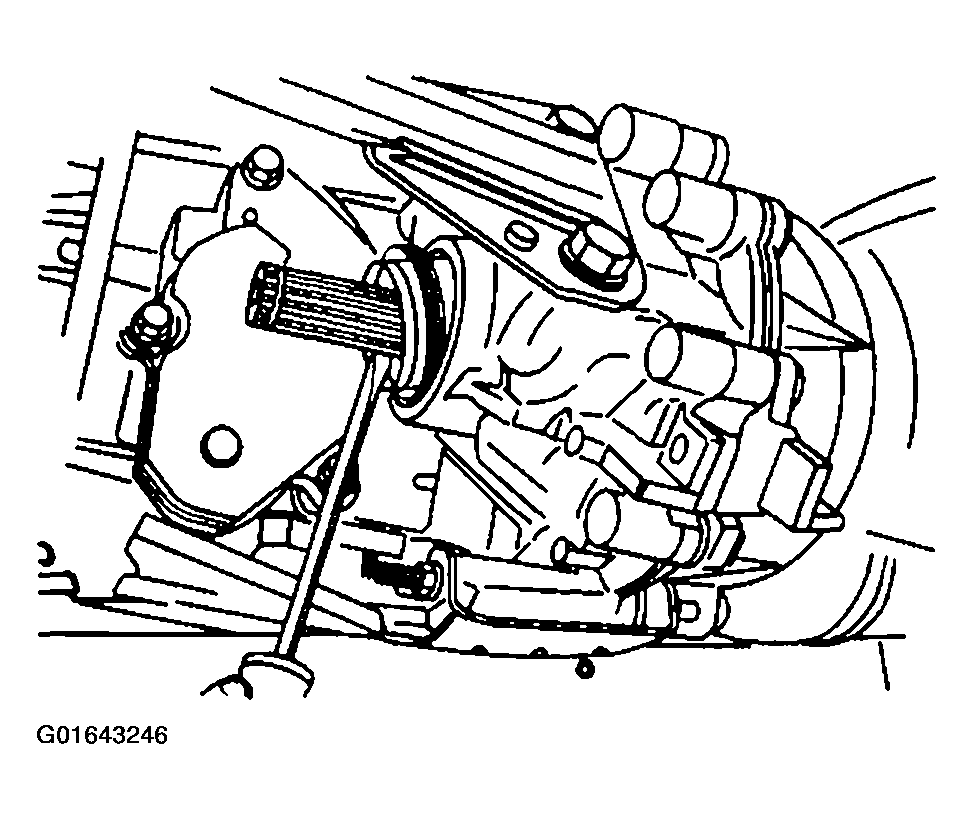

    Fig 2: Transfer Case Front Output Shaft Seal
    G01643246Courtesy of GENERAL MOTORS CORP.
