Installation Procedure

Install the J 44636-2 on the transfer case front output shaft.

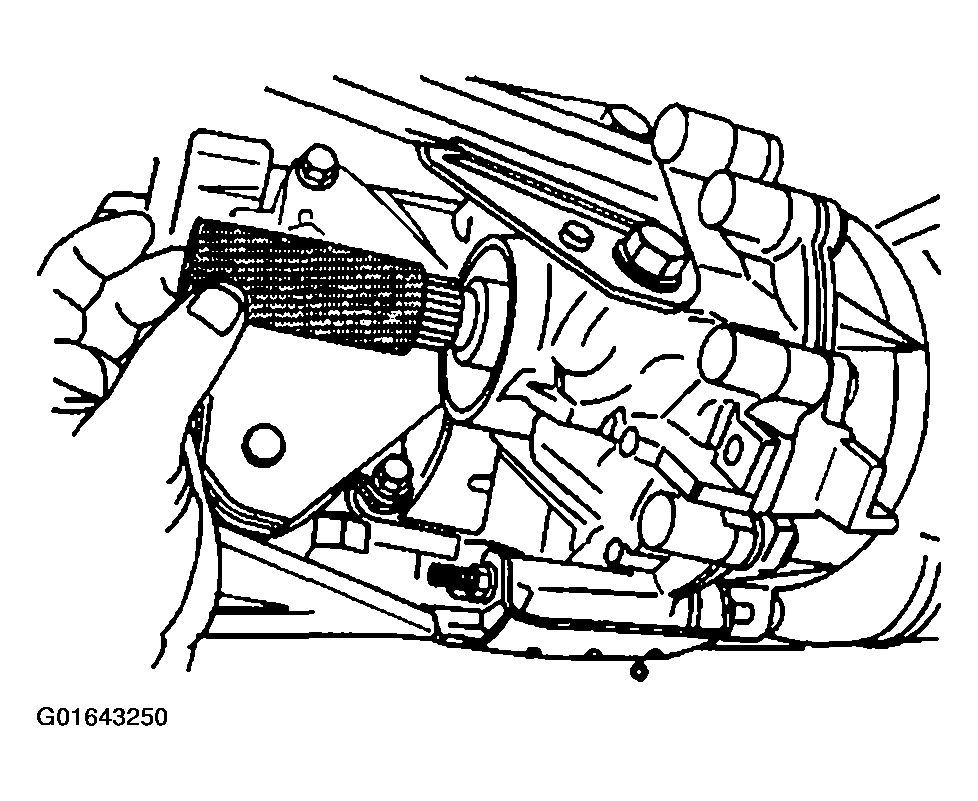

Fig 1: Installing J 44636-2 On Transfer Case Front Output Shaft
Courtesy of GENERAL MOTORS CORP.
Install the transfer case front output shaft seal on the J 44636-2.

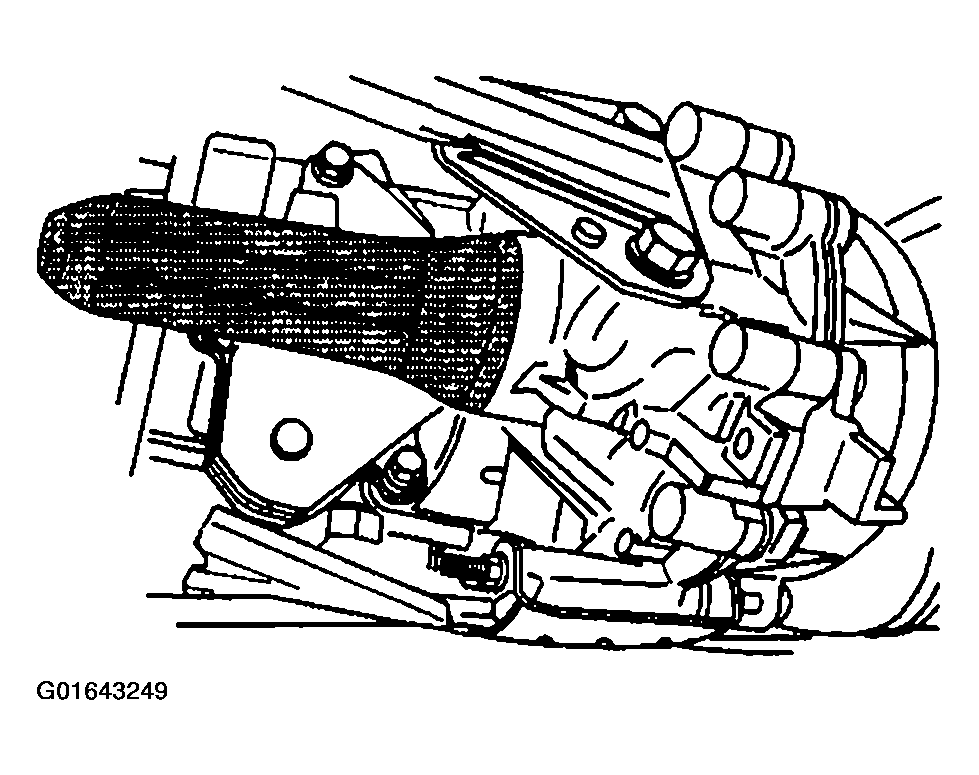

Fig 2: Installing Transfer Case Front Output Shaft Seal On J 44636-2
Courtesy of GENERAL MOTORS CORP.
Using the J 44636-1, install the transfer case front output shaft seal.

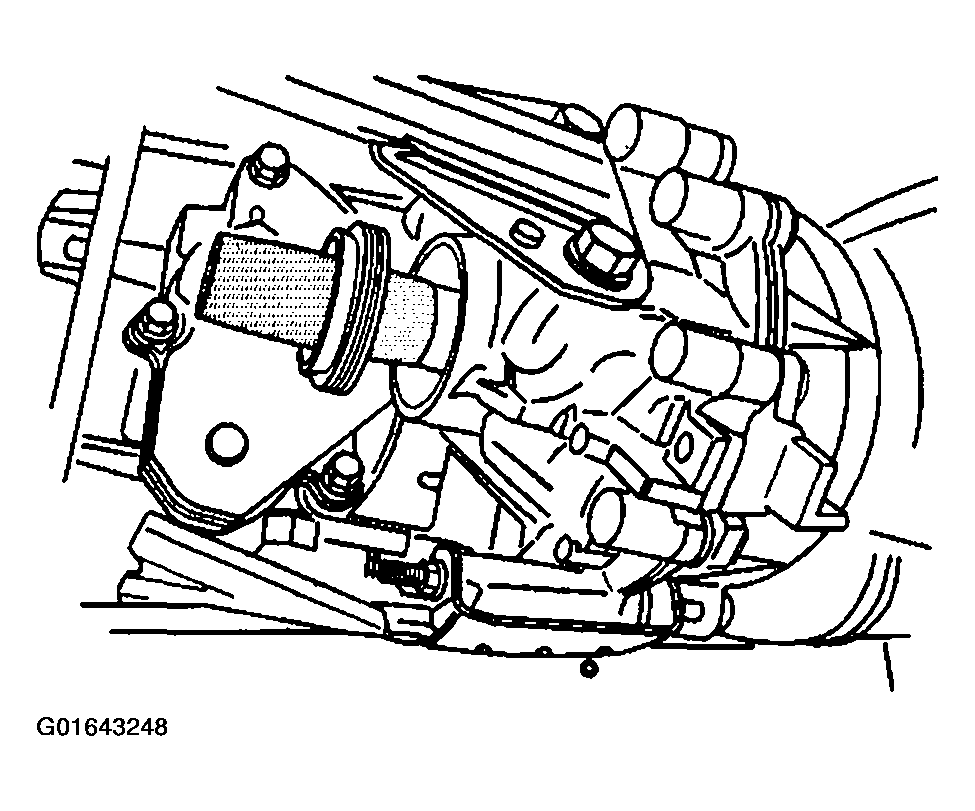

Fig 3: Installing Transfer Case Front Output Shaft Seal Using J 44636-1
Courtesy of GENERAL MOTORS CORP.
Remove the J 44636-1 from the transfer case front output shaft.
Remove the J 44636-2 from the transfer case front output shaft.

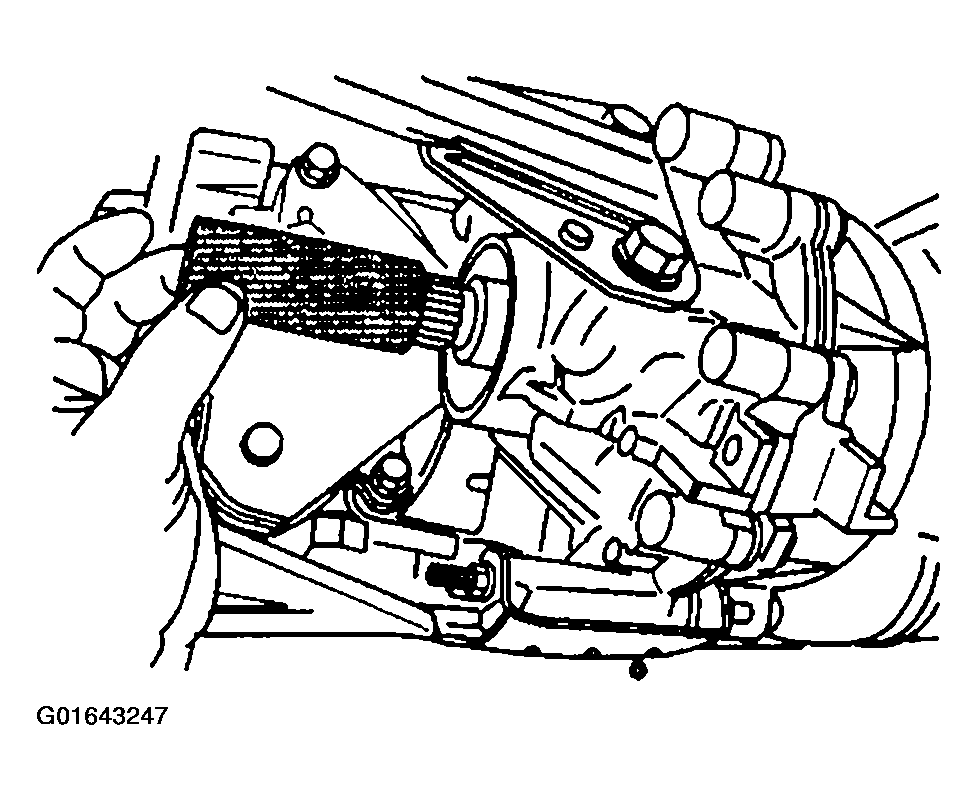

Fig 4: Removing J 44636-2 From Transfer Case Front Output Shaft
Courtesy of GENERAL MOTORS CORP.
Install the transfer case front output shaft dust seal.

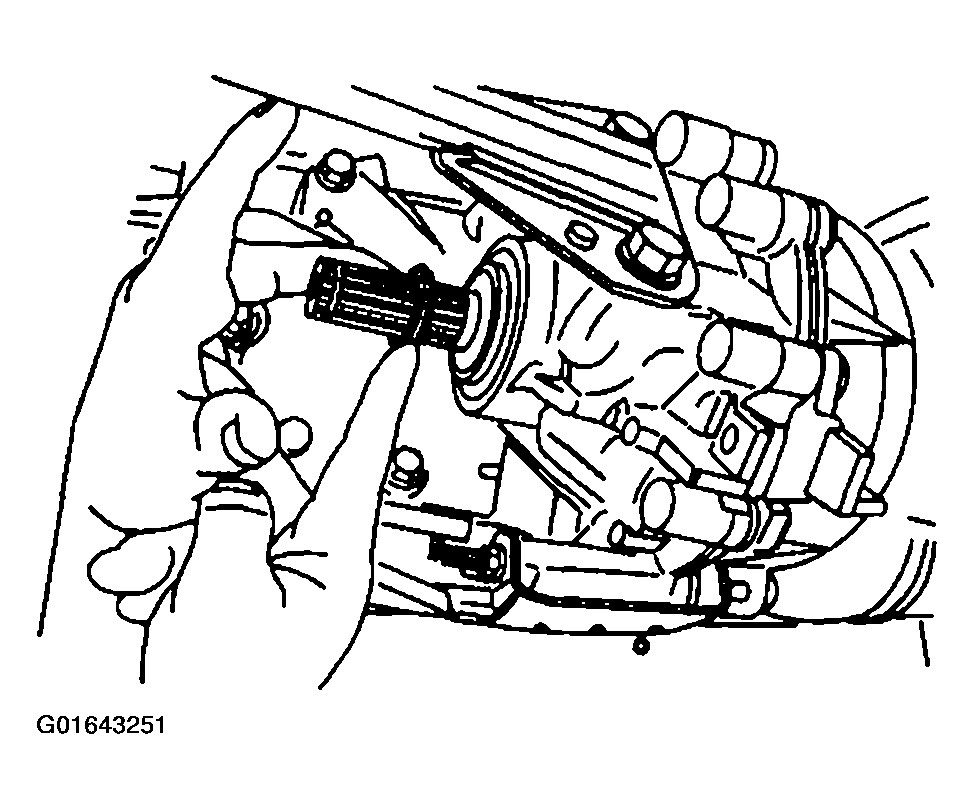

Fig 5: Transfer Case Front Output Shaft Dust Seal
Courtesy of GENERAL MOTORS CORP.
Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
Check the transfer case fluid level. Refer to TRANSFER CASE FLUID REPLACEMENT .
Install the transfer case shield. Refer to TRANSFER CASE SHIELD REPLACEMENT .
Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
