Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the engine brace mounting bolt.
  3. Remove the engine brace.

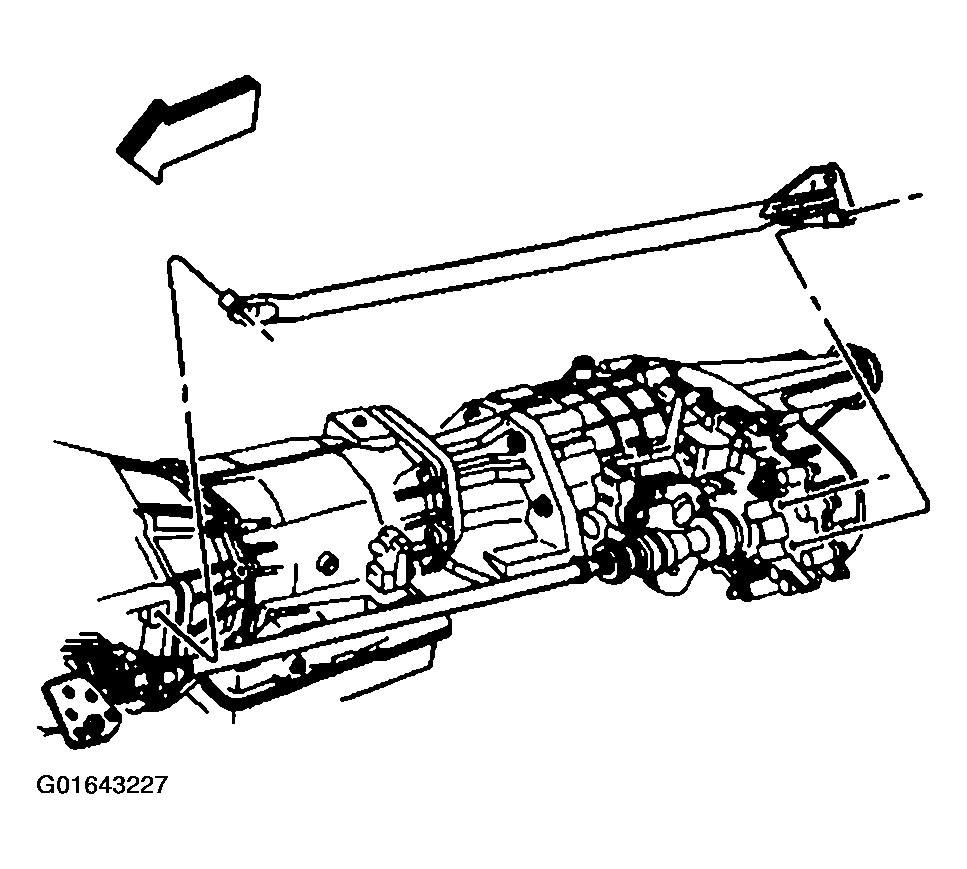

    4. Fig 1: Engine Brace
    G01643227Courtesy of GENERAL MOTORS CORP.
  4. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  5. Remove the motor/encoder electrical connector.

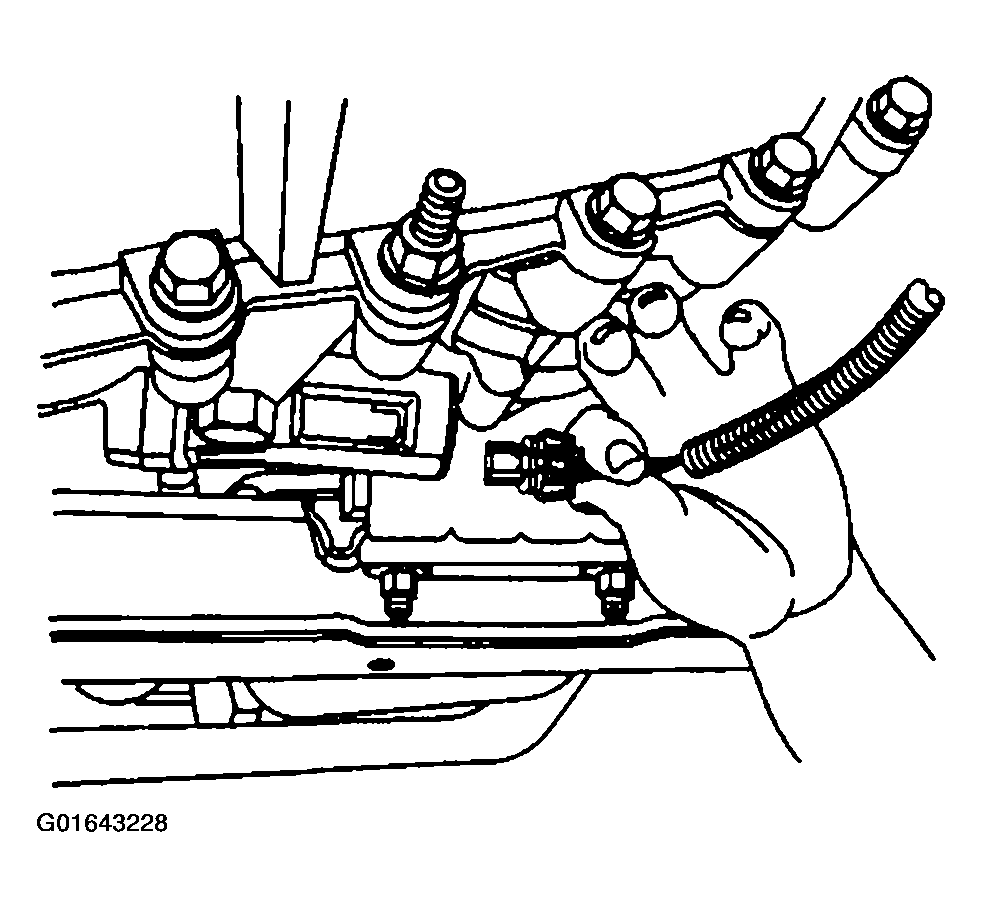

    Fig 2: Motor/Encoder Electrical Connector
    G01643228Courtesy of GENERAL MOTORS CORP.
  6. Remove the motor/encoder mounting bolts.

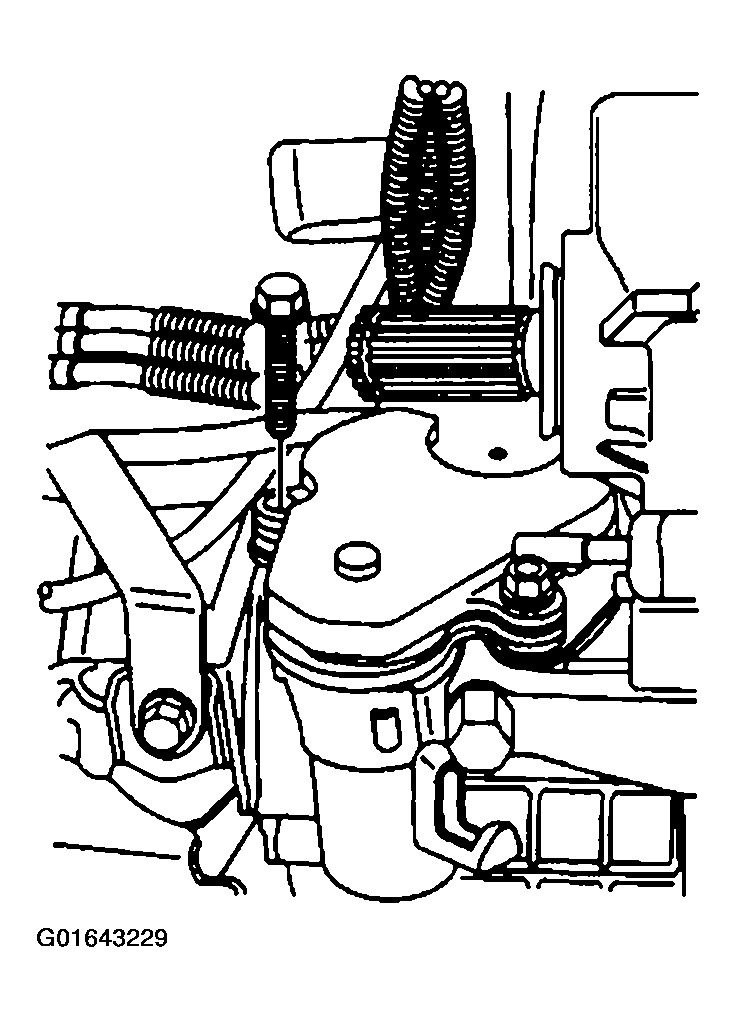

    Fig 3: Motor/Encoder Mounting Bolts
    G01643229Courtesy of GENERAL MOTORS CORP.
  7. Remove the motor/encoder assembly.

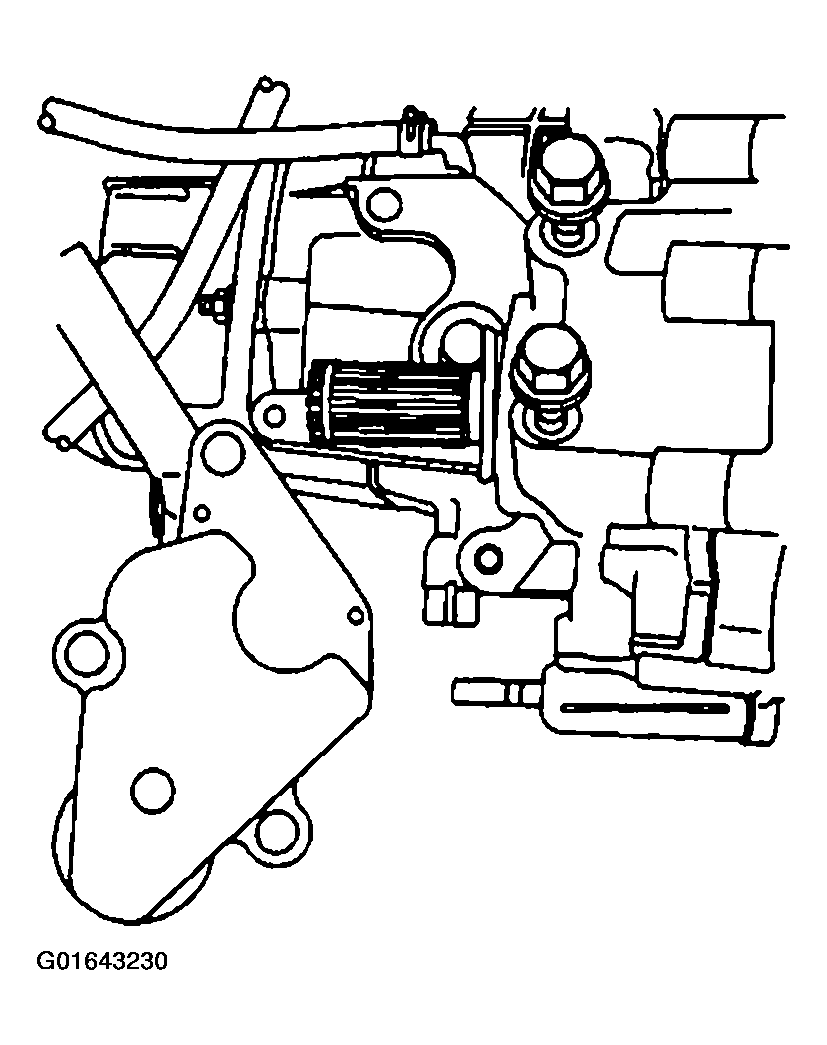

    Fig 4: Motor/Encoder Assembly
    G01643230Courtesy of GENERAL MOTORS CORP.
  8. Remove the motor/encoder gasket.

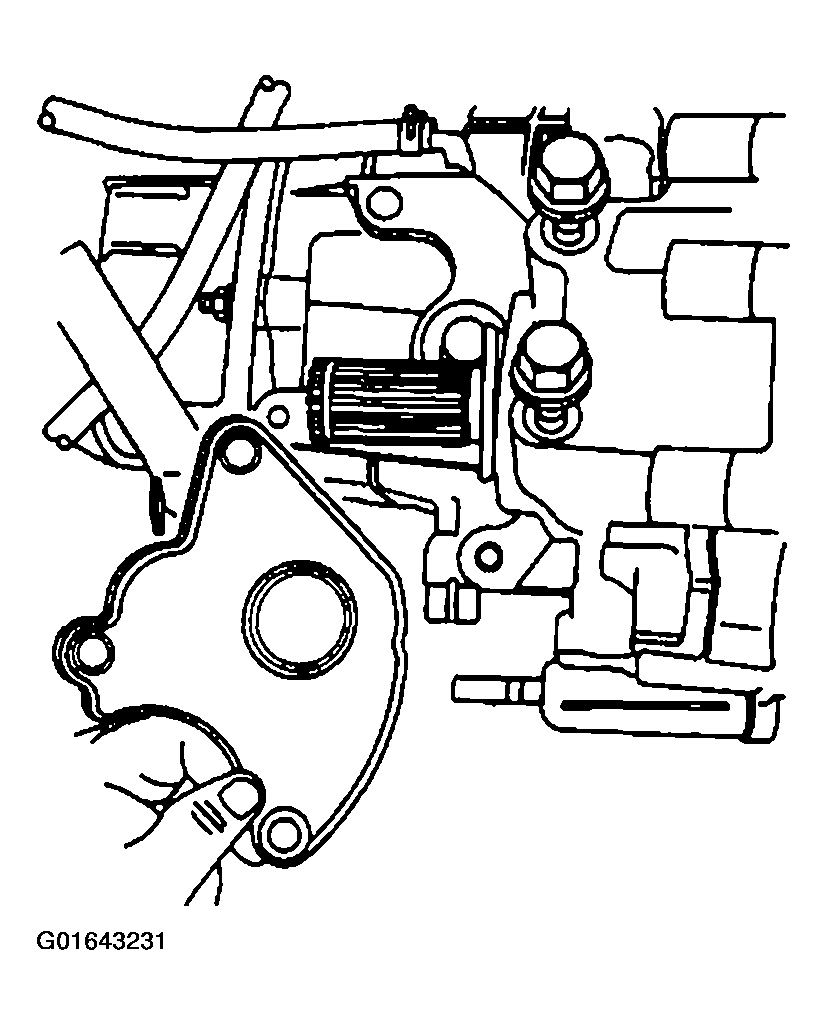

    Fig 5: Motor/Encoder Gasket
    G01643231Courtesy of GENERAL MOTORS CORP.
