Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the transfer case assembly. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT .
    NOTE: Do not damage the sealing surfaces of the transfer cases or the shafts when prying the seals for removal. Damaging the sealing surface may cause leakage or require replacement of the damaged component.
  3. Remove the transfer case input shaft seal.

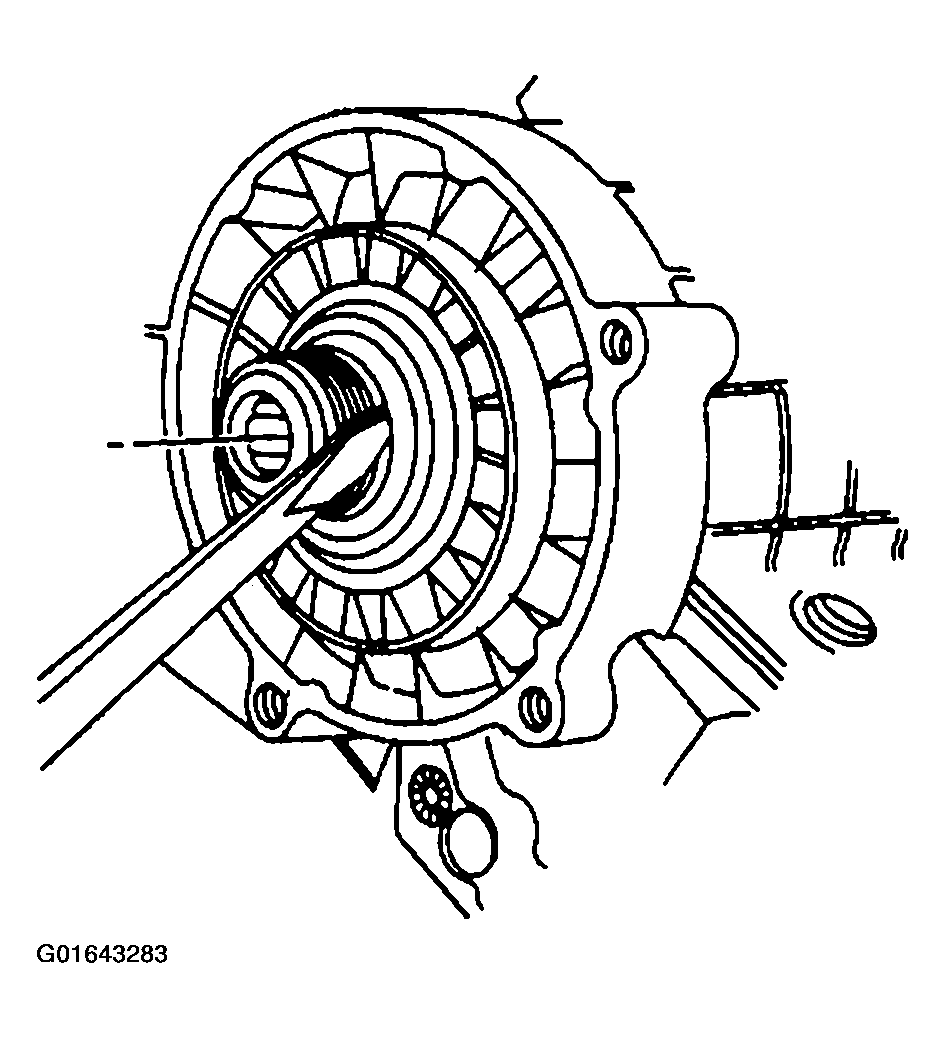

    Fig 1: Transfer Case Input Shaft Seal
    G01643283Courtesy of GENERAL MOTORS CORP.
