Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Determines if the transfer case shift control module is setting DTCs C0300 or C0305.
  2. 3. Helps determine if the DTC set due to a mechanical or an electrical fault.
  3. 4. Tests the integrity of the Motor Control circuit.
  4. 5. Determines whether the transfer case clutch pack is holding.

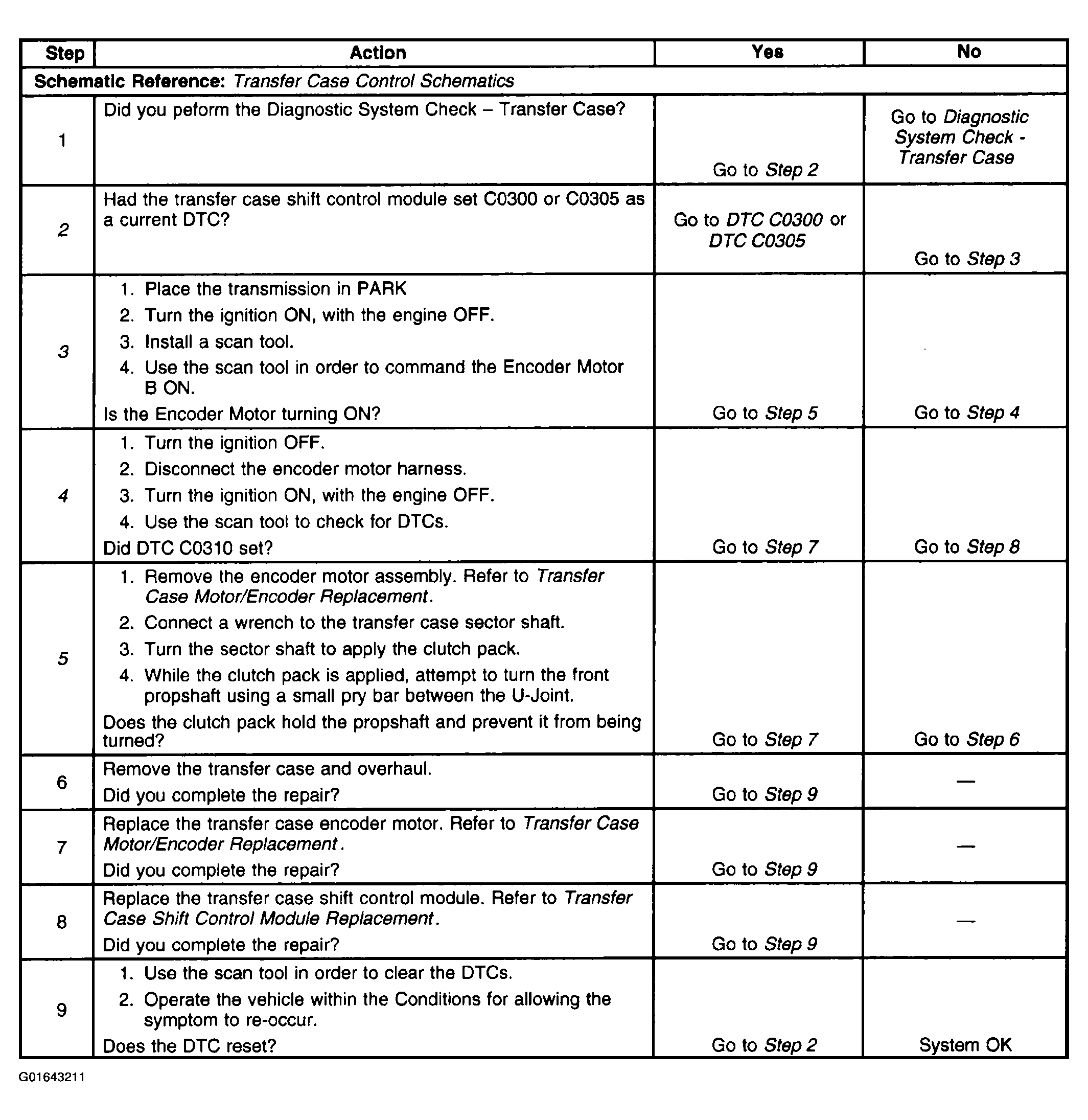

Fig 1: Transfer Case Will Not Correct Slip
G01643211Courtesy of GENERAL MOTORS CORP.
