Transfer Case Leak Diagnosis

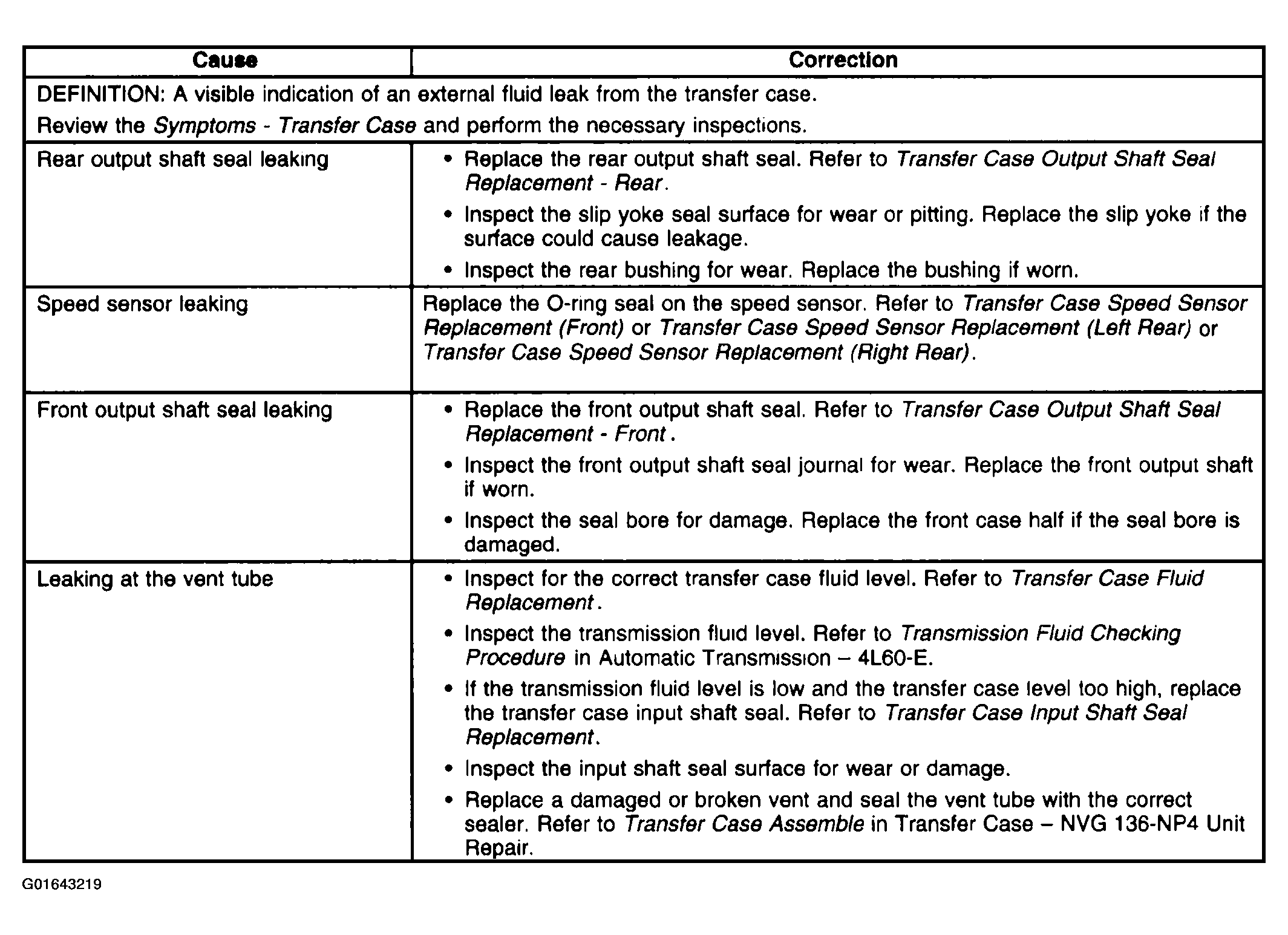

Fig 1: Transfer Case Leak Diagnosis (1 Of 2)

G01643219

Courtesy of GENERAL MOTORS CORP.

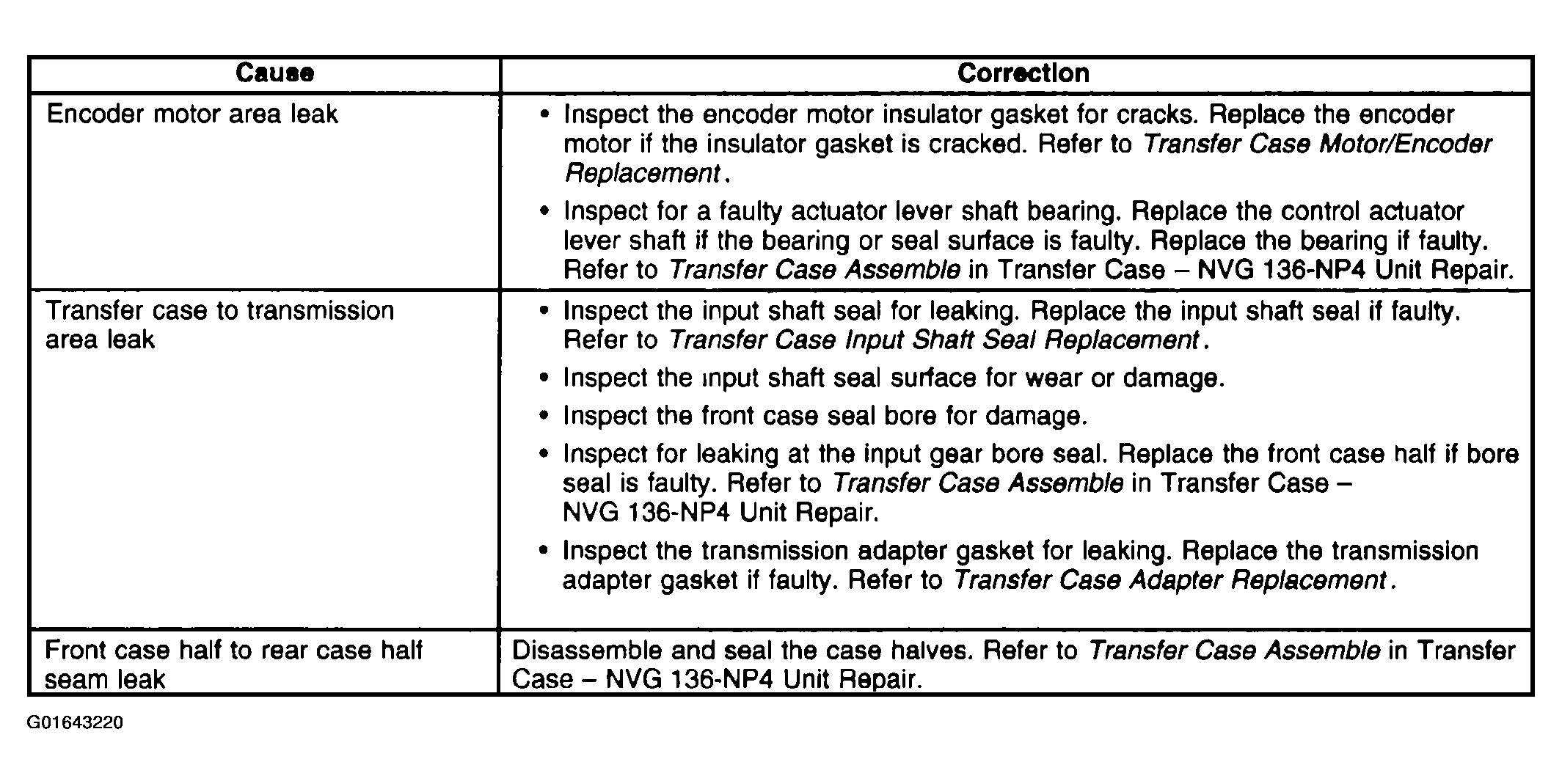

Fig 2: Transfer Case Leak Diagnosis (2 Of 2)

G01643220

Courtesy of GENERAL MOTORS CORP.
