Transfer Case Clunk during Acceleration and Deceleration

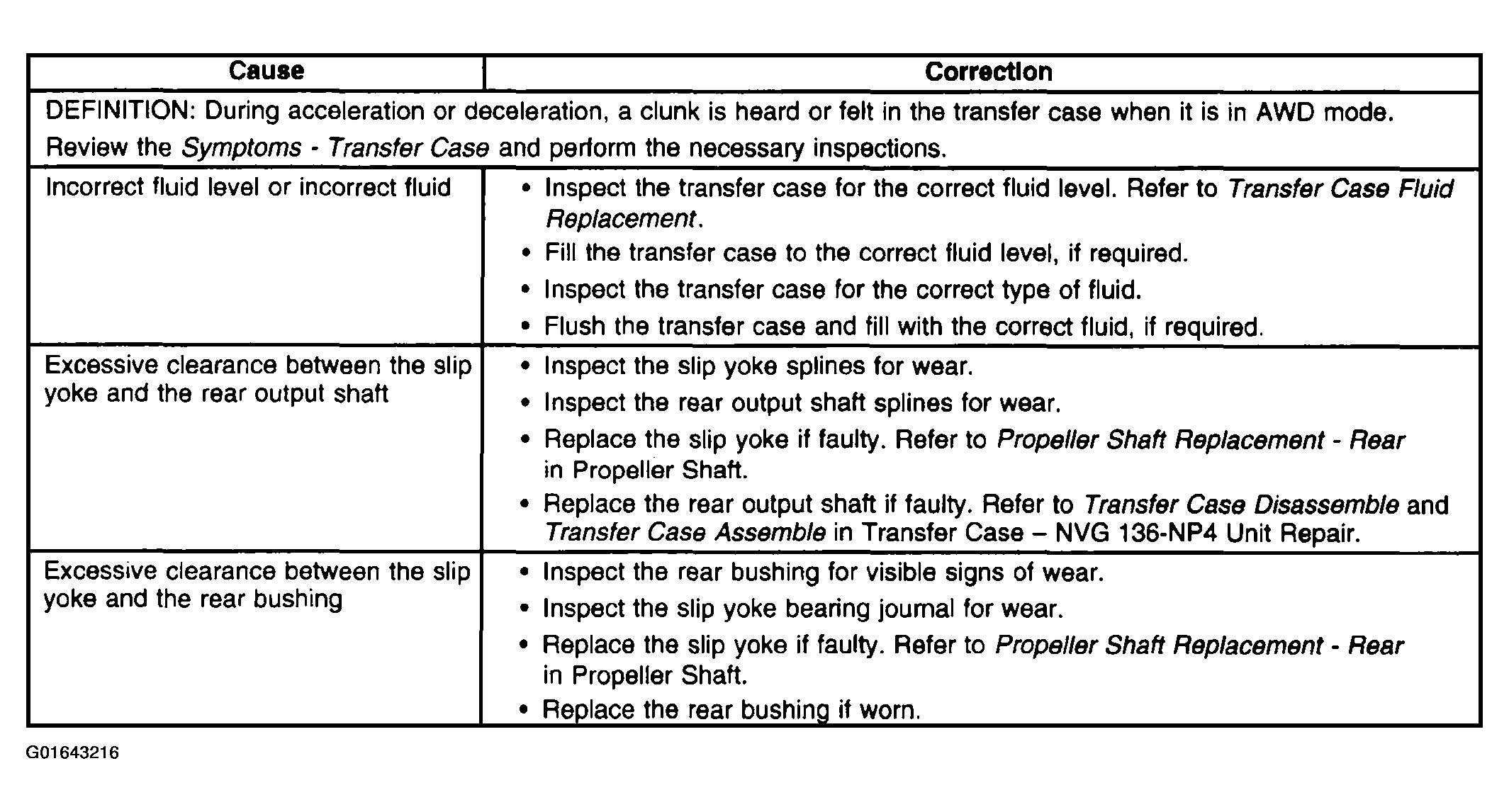

Fig 1: Transfer Case Clunk During Acceleration & Deceleration

G01643216

Courtesy of GENERAL MOTORS CORP.
