Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Determines whether the failure is the result of a faulty transfer case shift control module or the instrument cluster.

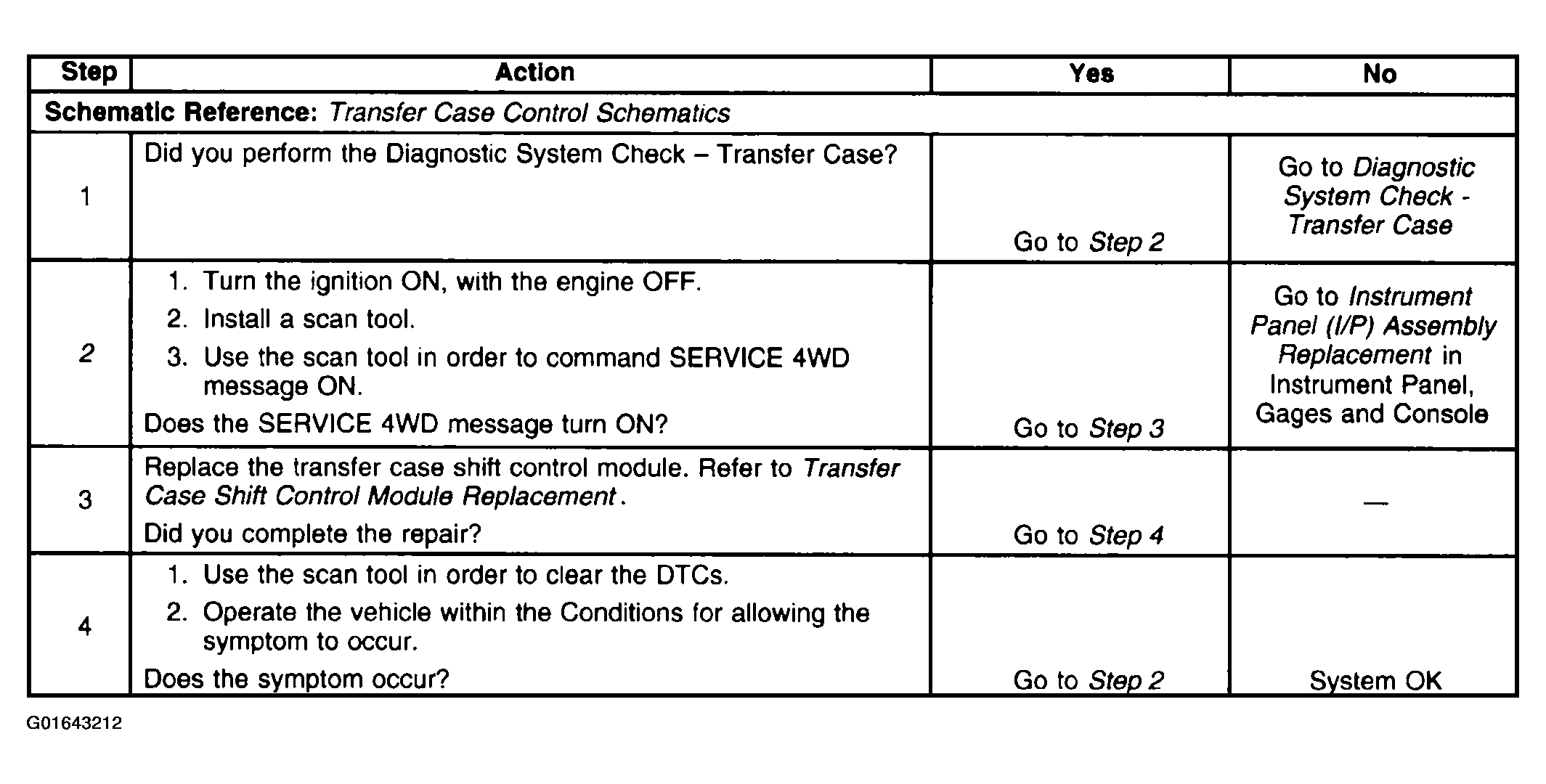

Fig 1: Service Indicator Inoperative
G01643212Courtesy of GENERAL MOTORS CORP.
