Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Tests Motor Control A for an open circuit.
  2. 3. Tests Motor Control B for an open circuit.
  3. 4. Tests for an open across the motor windings.

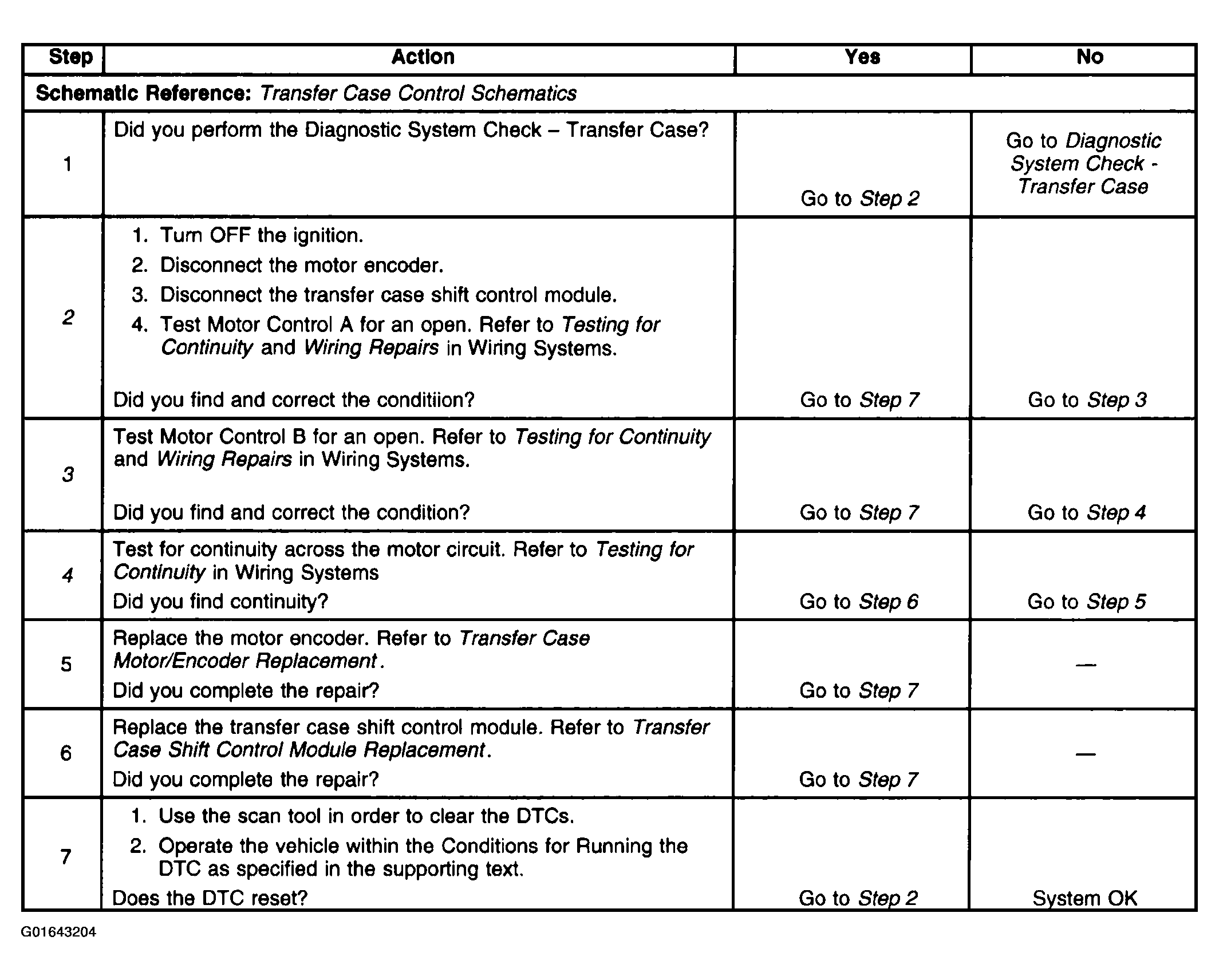

Fig 1: DTC C0310
G01643204Courtesy of GENERAL MOTORS CORP.
