Transfer Case Control Connector End Views

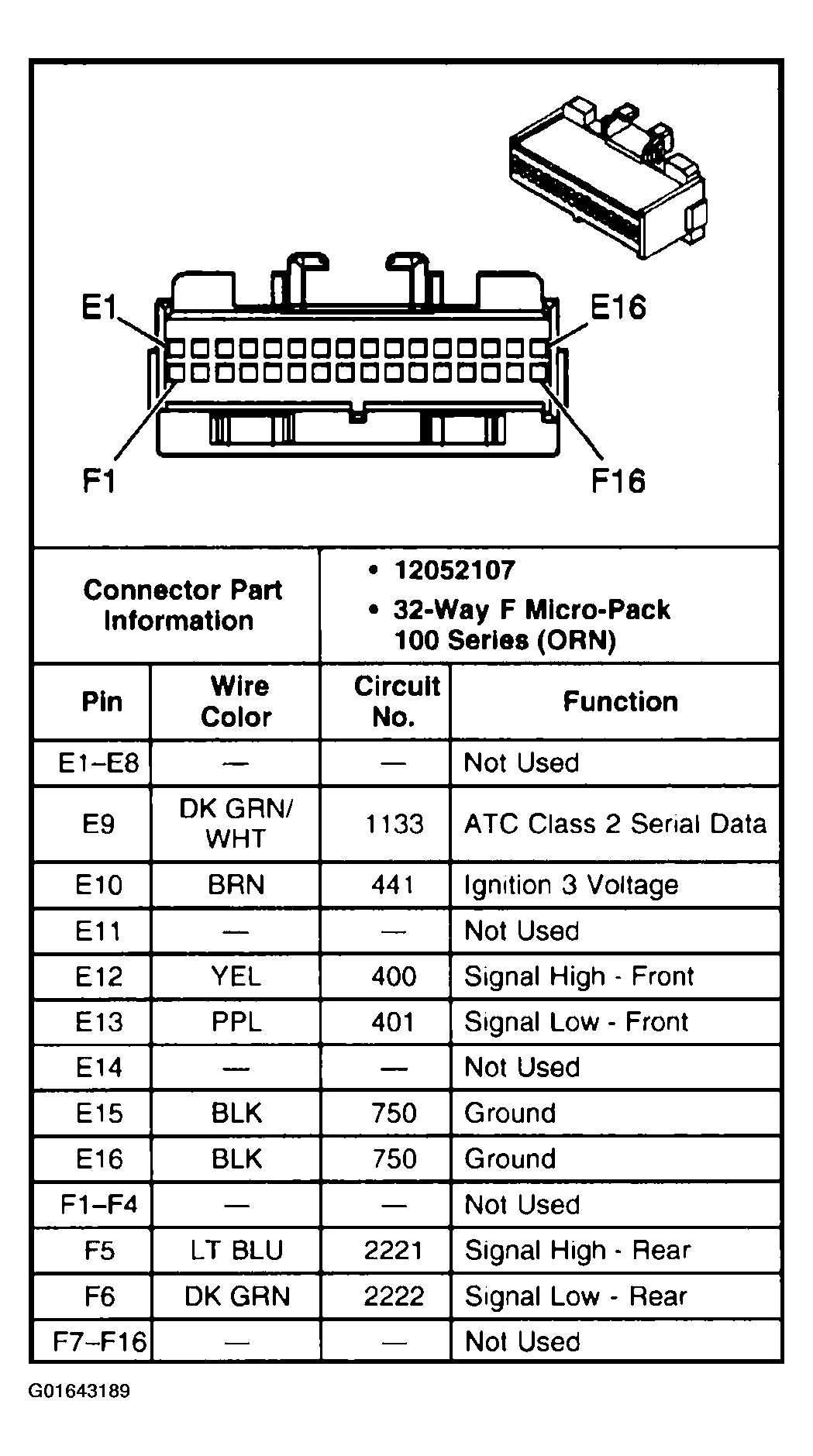

Fig 1: Transfer Case Shift Control Module C1

Courtesy of GENERAL MOTORS CORP.

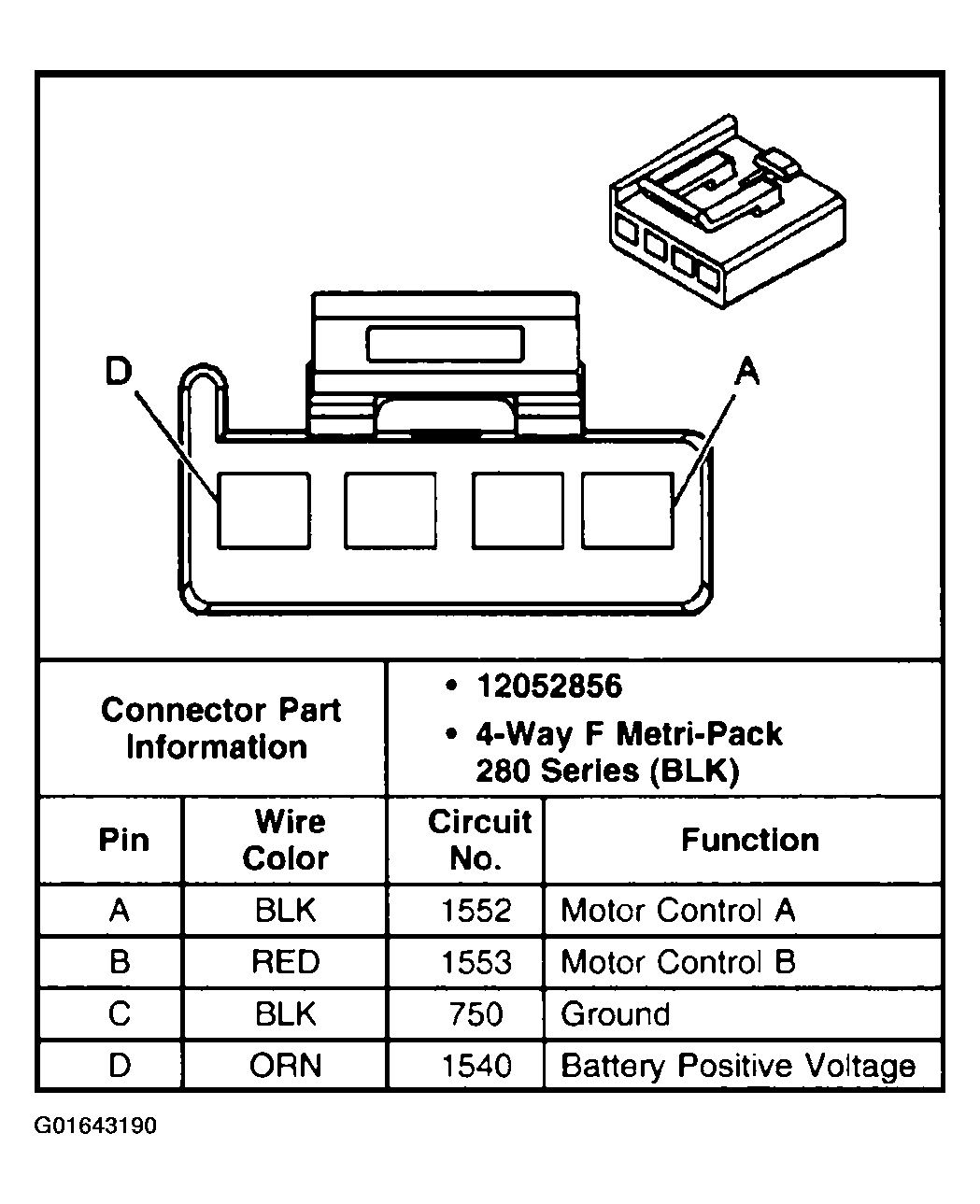

Fig 2: Transfer Case Shift Control Module C2

Courtesy of GENERAL MOTORS CORP.

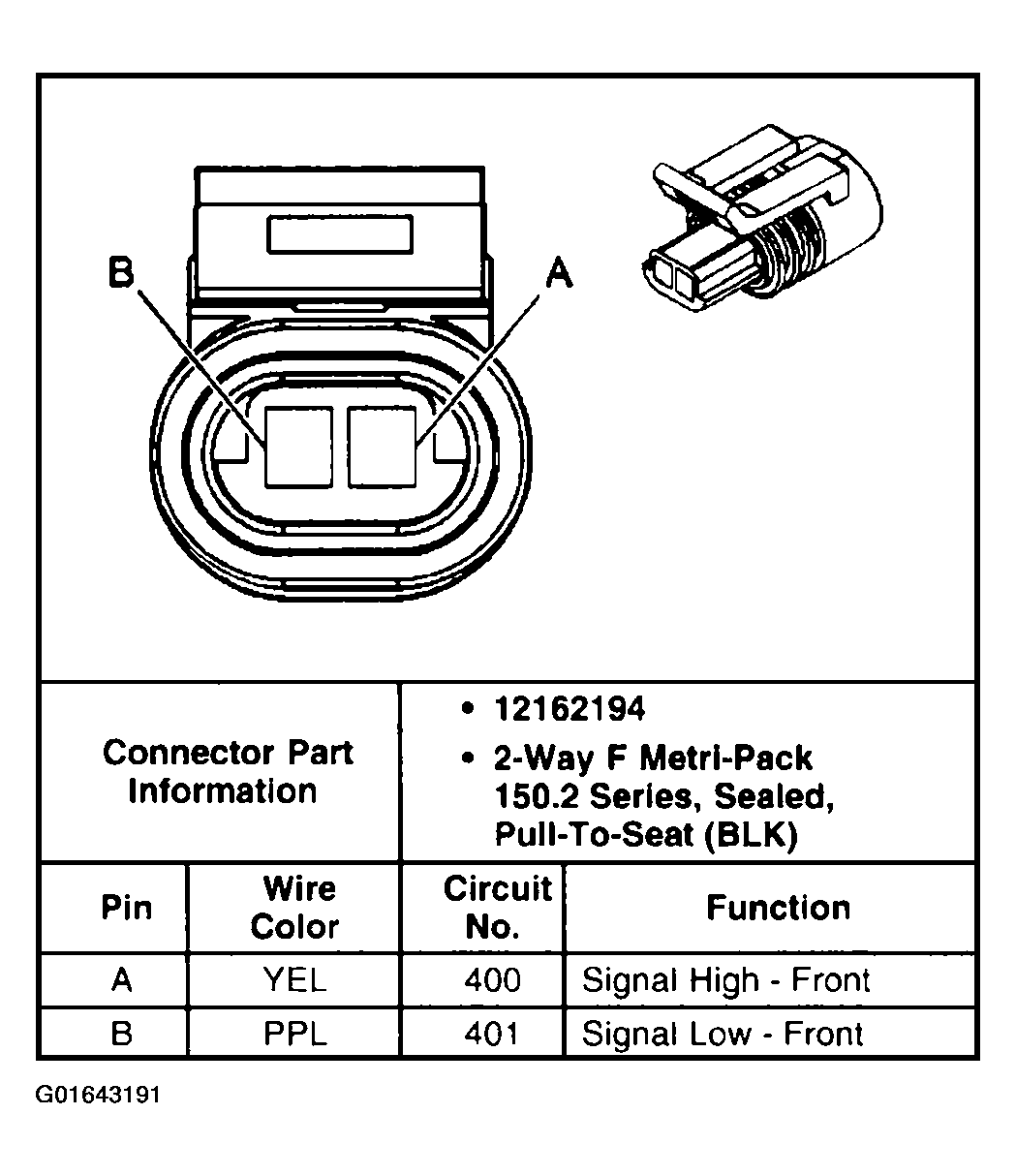

Fig 3: Propshaft Speed Sensor - Front

Courtesy of GENERAL MOTORS CORP.

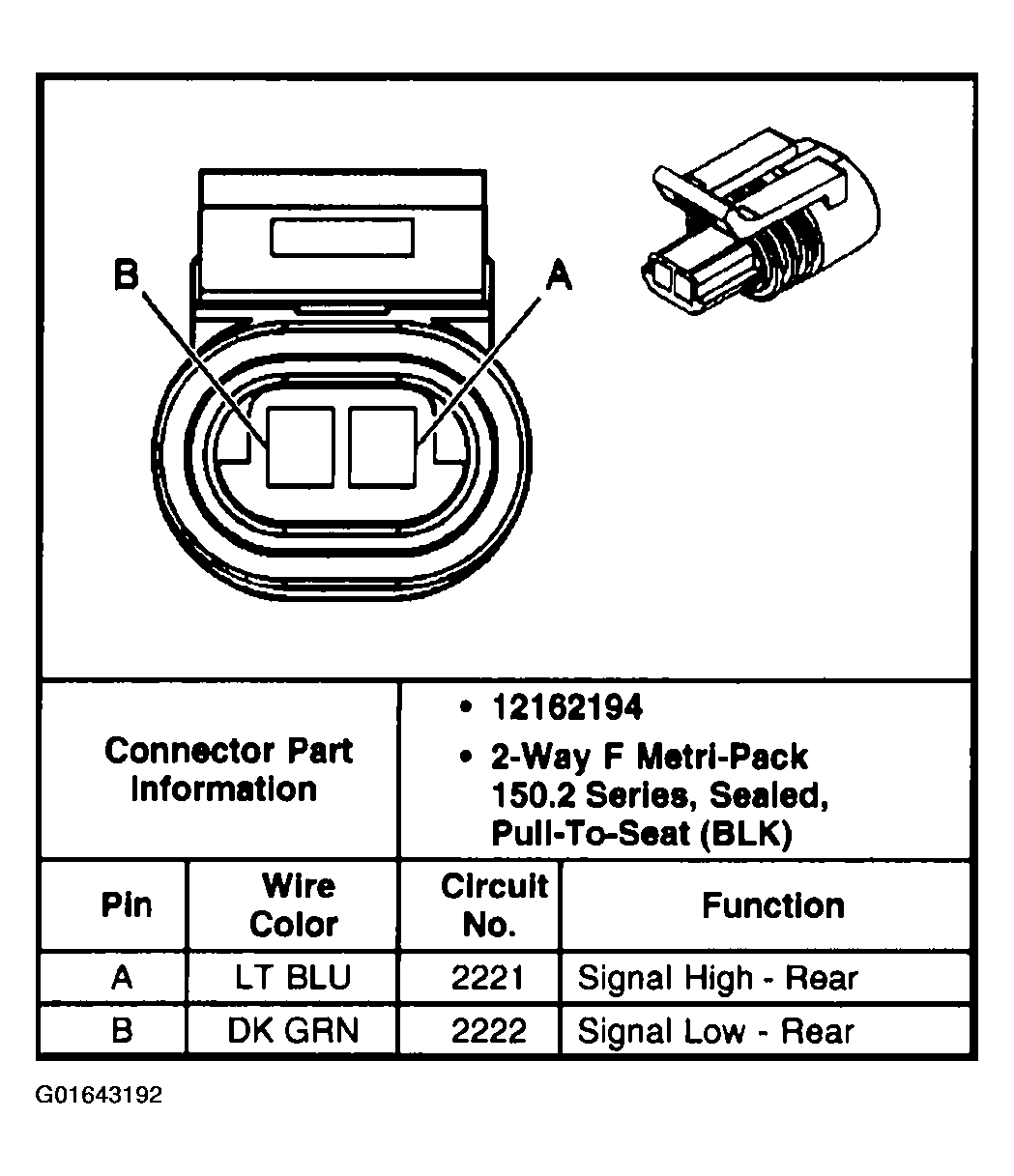

Fig 4: Propshaft Speed Sensor - Rear

Courtesy of GENERAL MOTORS CORP.

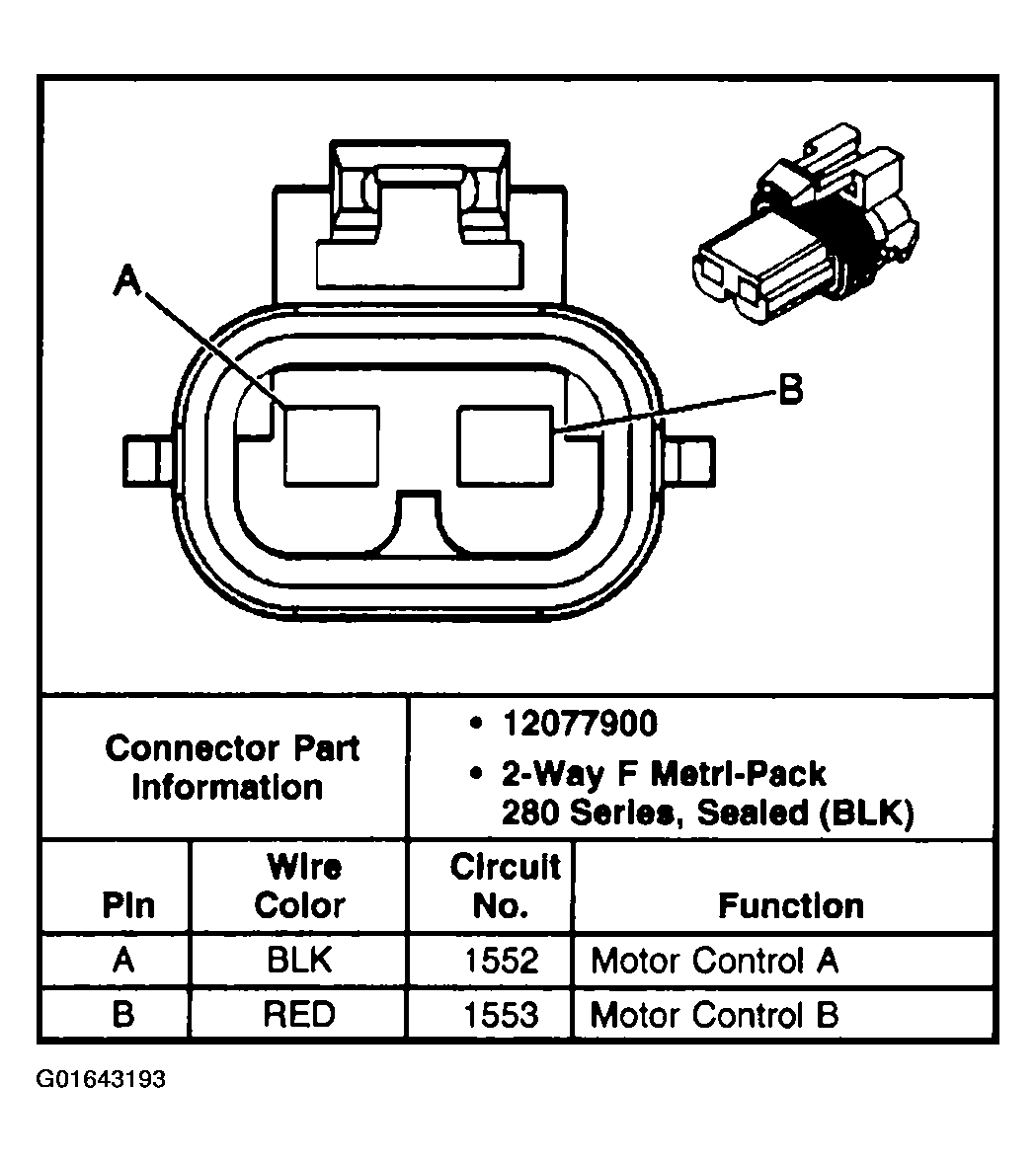

Fig 5: Transfer Case Encoder Motor

Courtesy of GENERAL MOTORS CORP.
