Transmission Fluid Temperature (TFT) Sensor Specifications

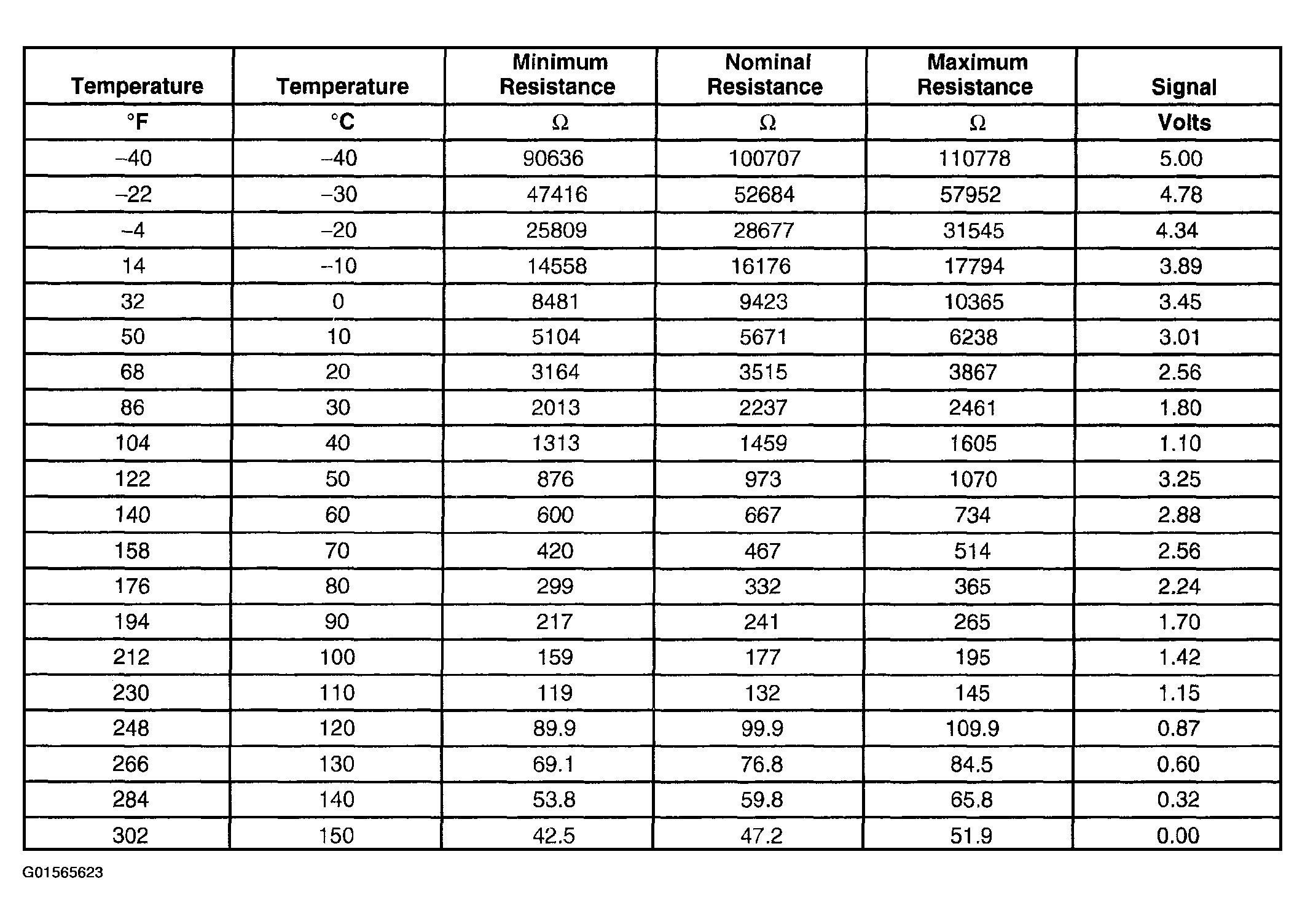

Fig 1: Transmission Fluid Temperature (TFT) Sensor Specifications

G01565623

Courtesy of GENERAL MOTORS CORP.
