Automatic Transmission - 4L60-E/4L65-E (Service & Replacement)
>>
Specifications
>>
Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic
Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

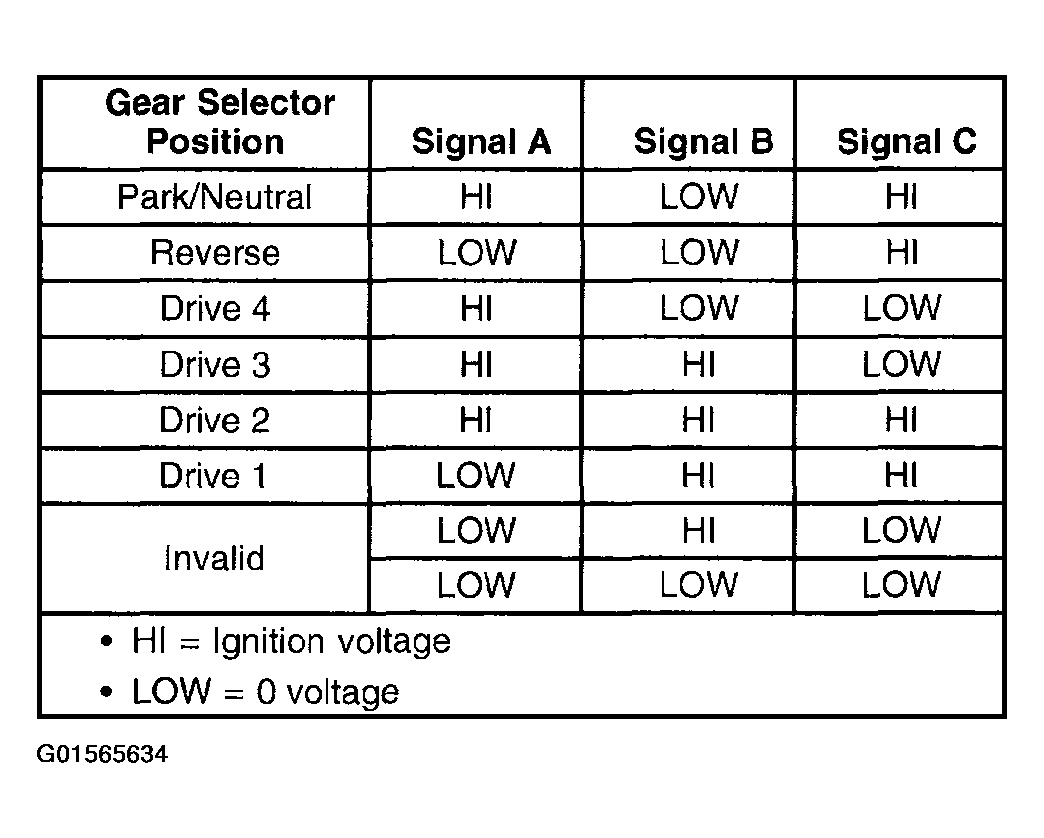

Fig 1: Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
