Range Reference

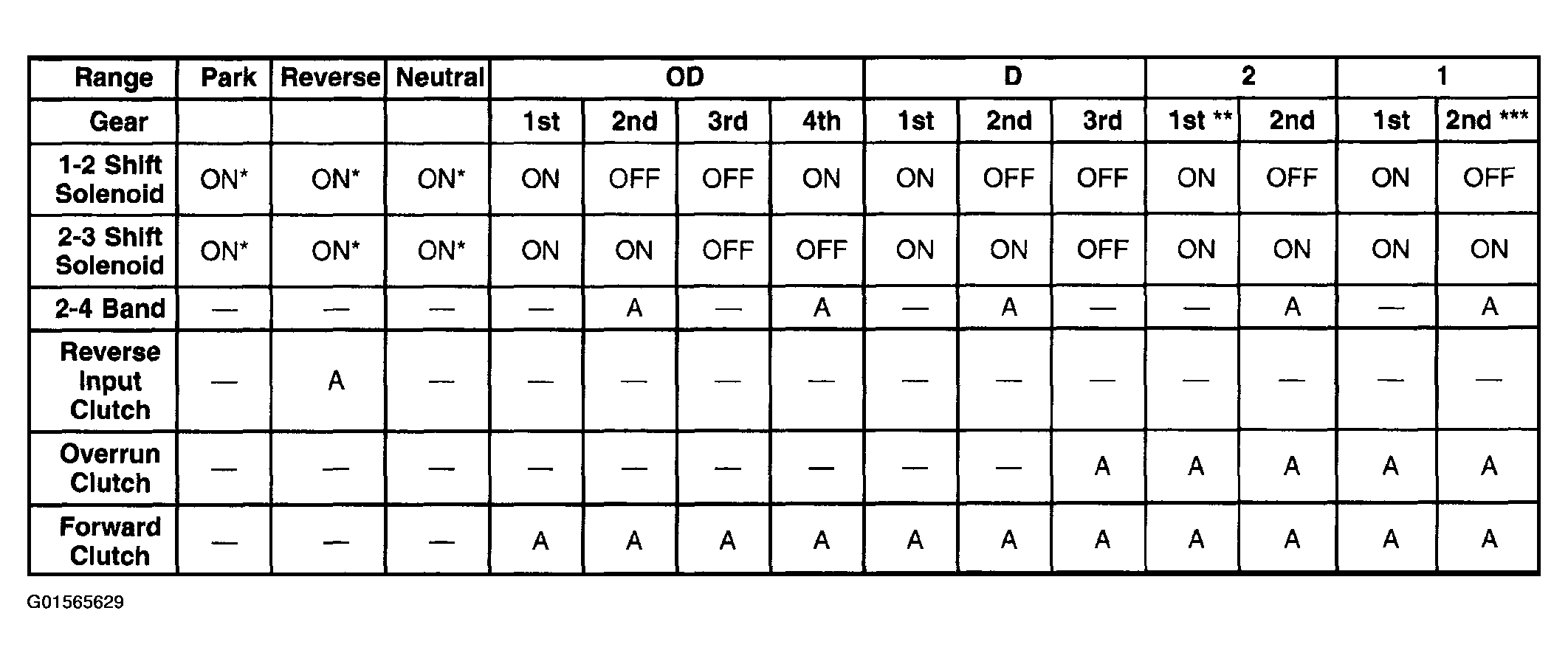

Fig 1: Range Reference (1 Of 2)

G01565629

Courtesy of GENERAL MOTORS CORP.

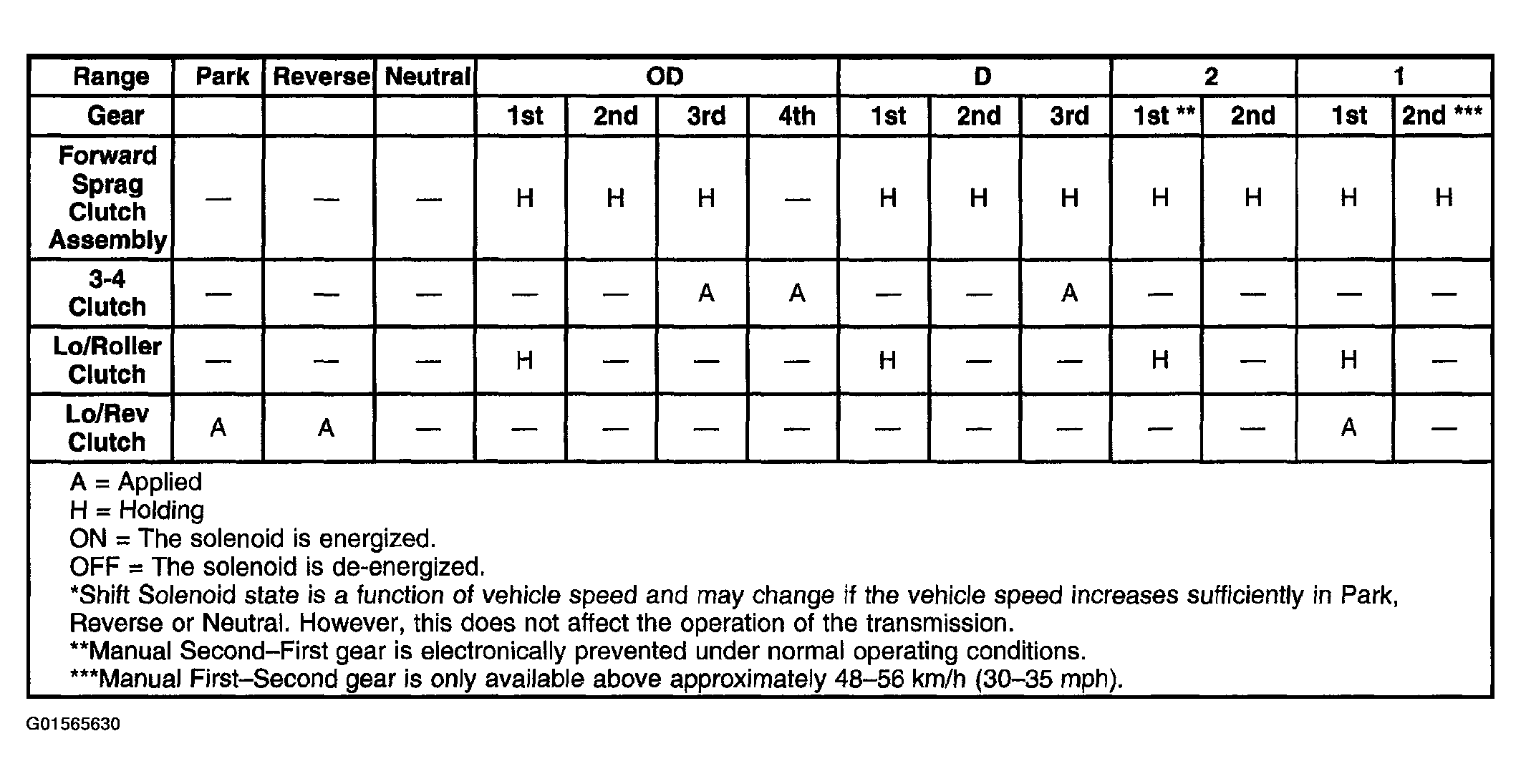

Fig 2: Range Reference (2 Of 2)

G01565630

Courtesy of GENERAL MOTORS CORP.
