Automatic Transmission Schematic Icons

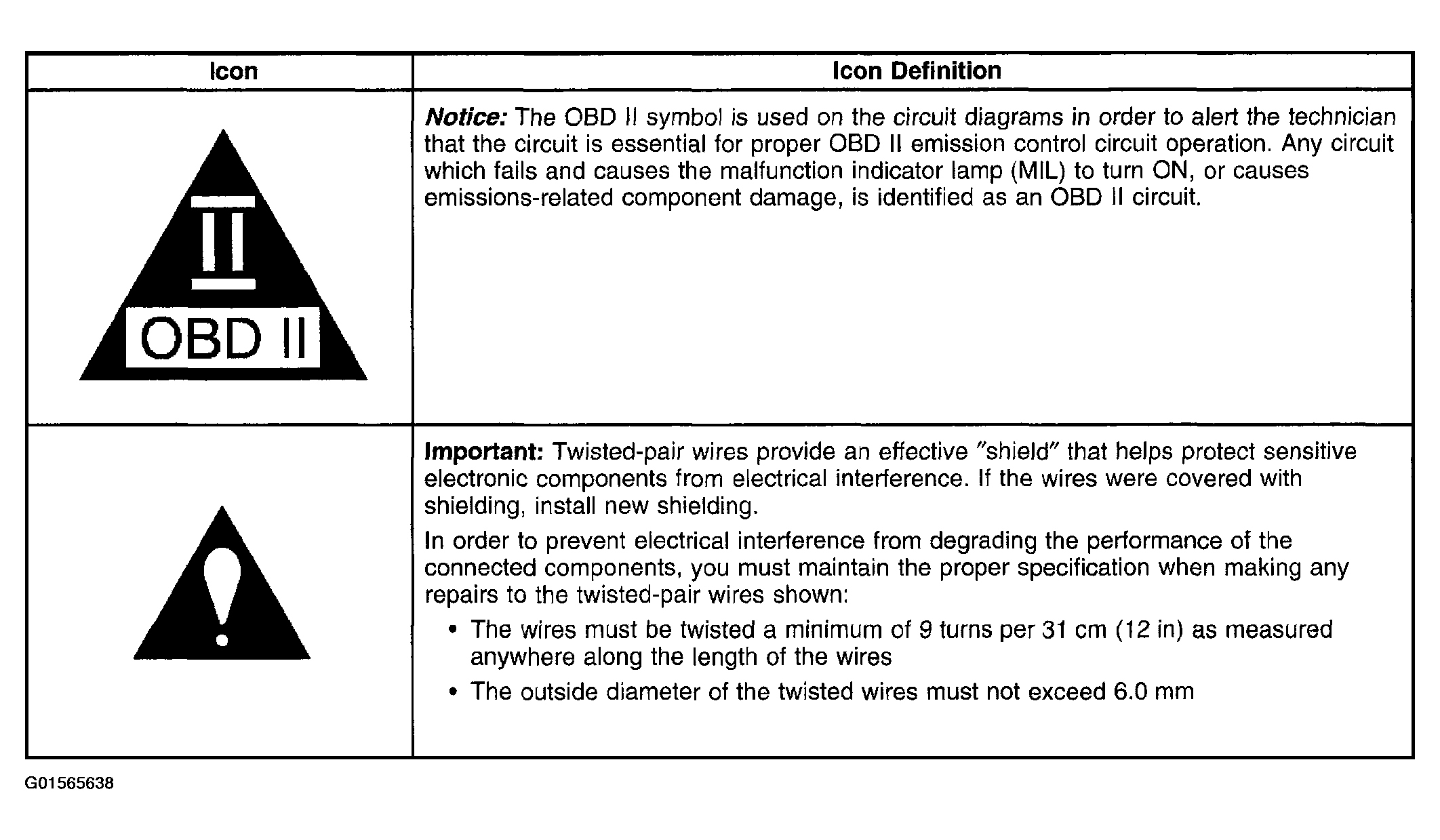

Fig 1: Automatic Transmission Schematic Icons

Courtesy of GENERAL MOTORS CORP.

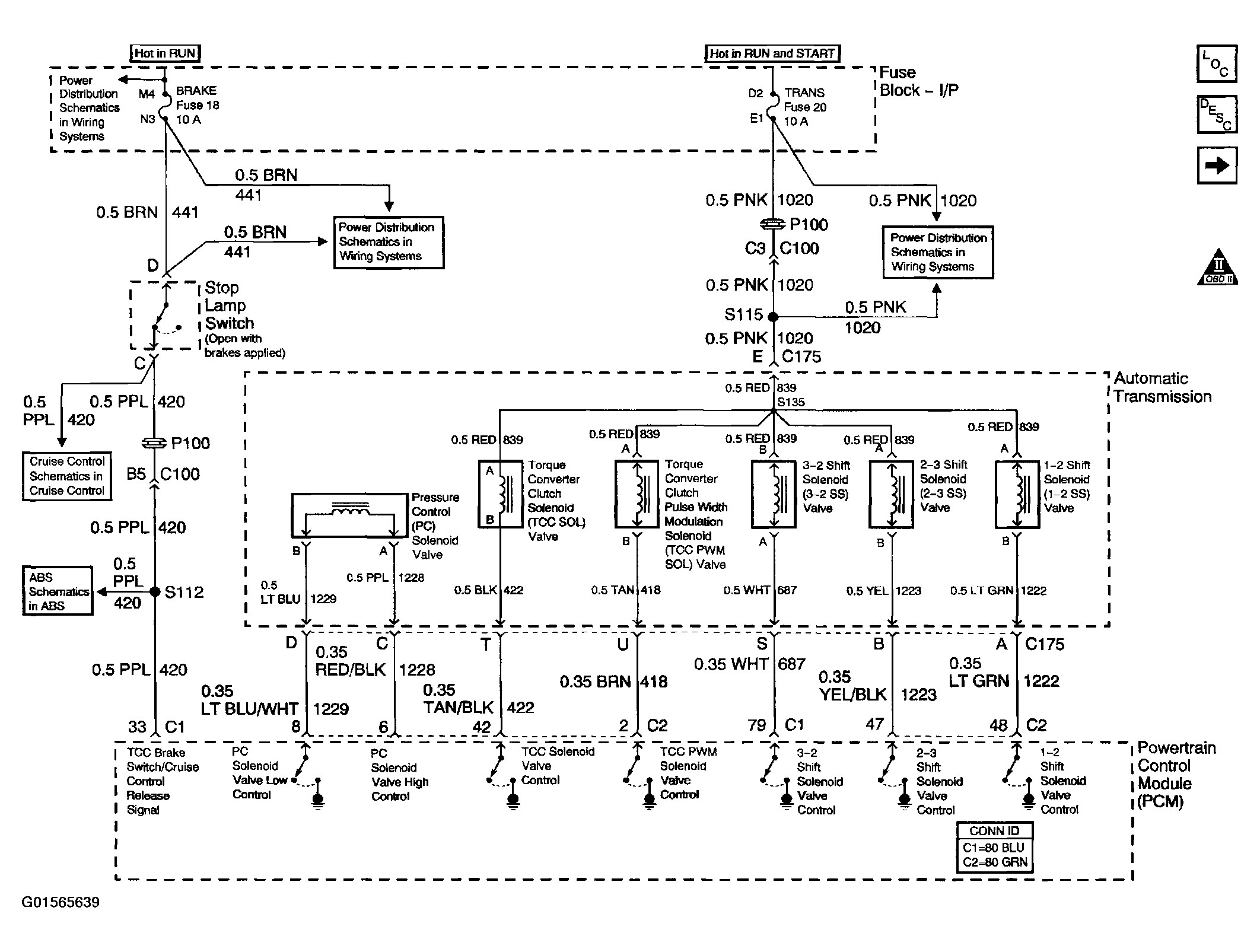

Fig 2: Automatic Transmission Controls Schematics (Stop Lamp Switch & Valve Controls)

Courtesy of GENERAL MOTORS CORP.

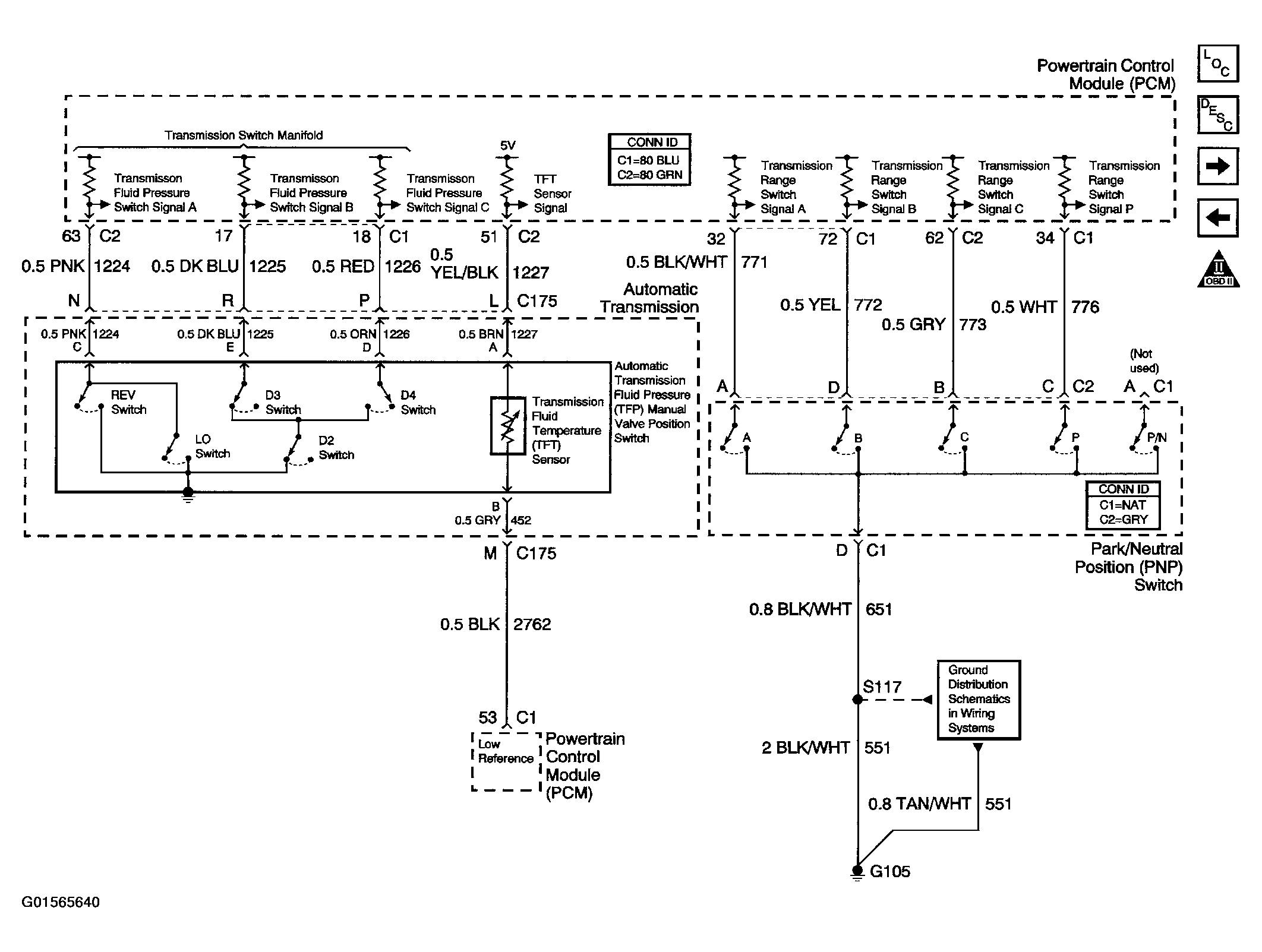

Fig 3: Automatic Transmission Controls Schematics (Switch Inputs & PNP Switch)

Courtesy of GENERAL MOTORS CORP.

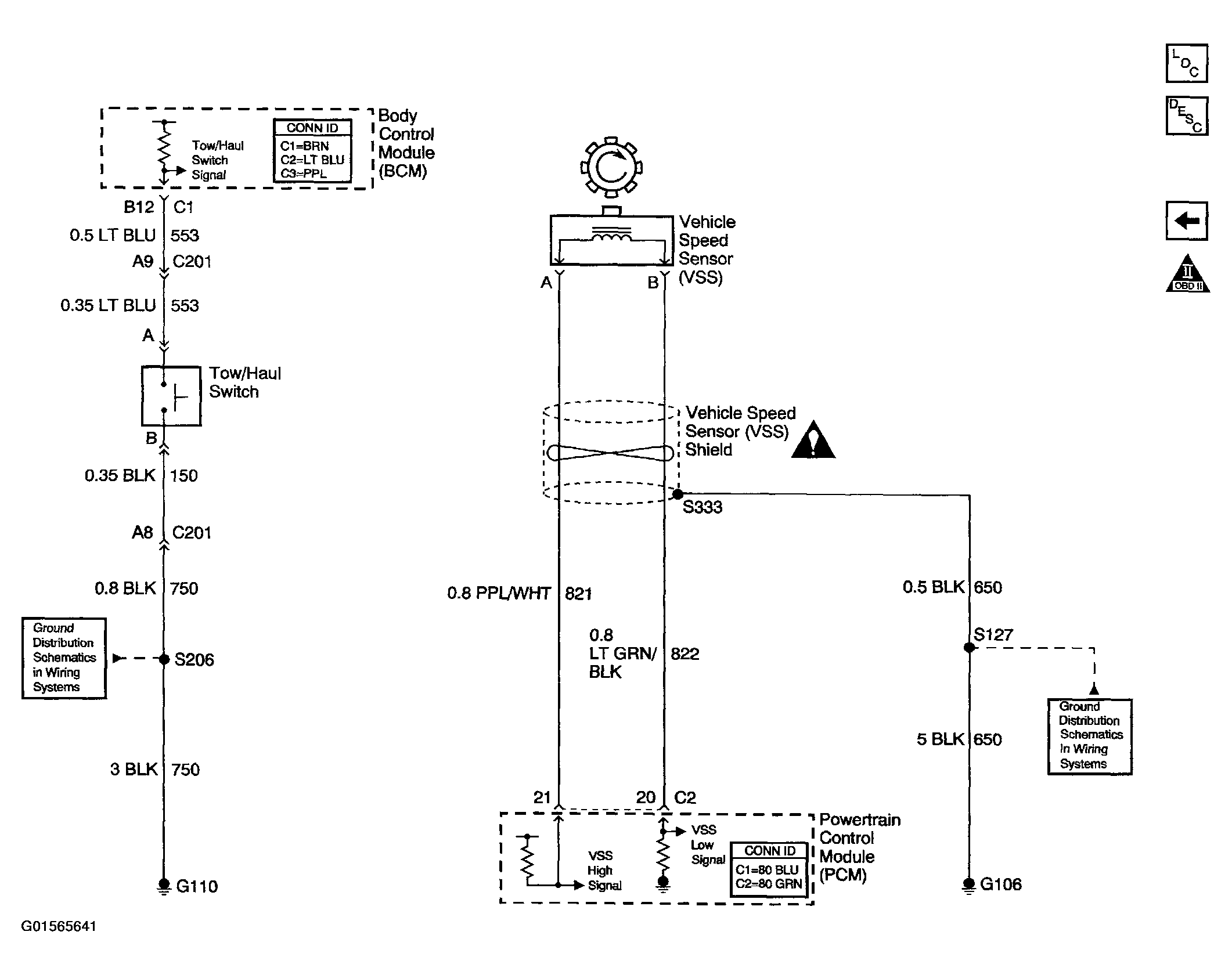

Fig 4: Automatic Transmission Controls Schematics (Tow/Haul Switch & VSS Inputs)

Courtesy of GENERAL MOTORS CORP.
