Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the harness connector.
  3. Remove the bolt.

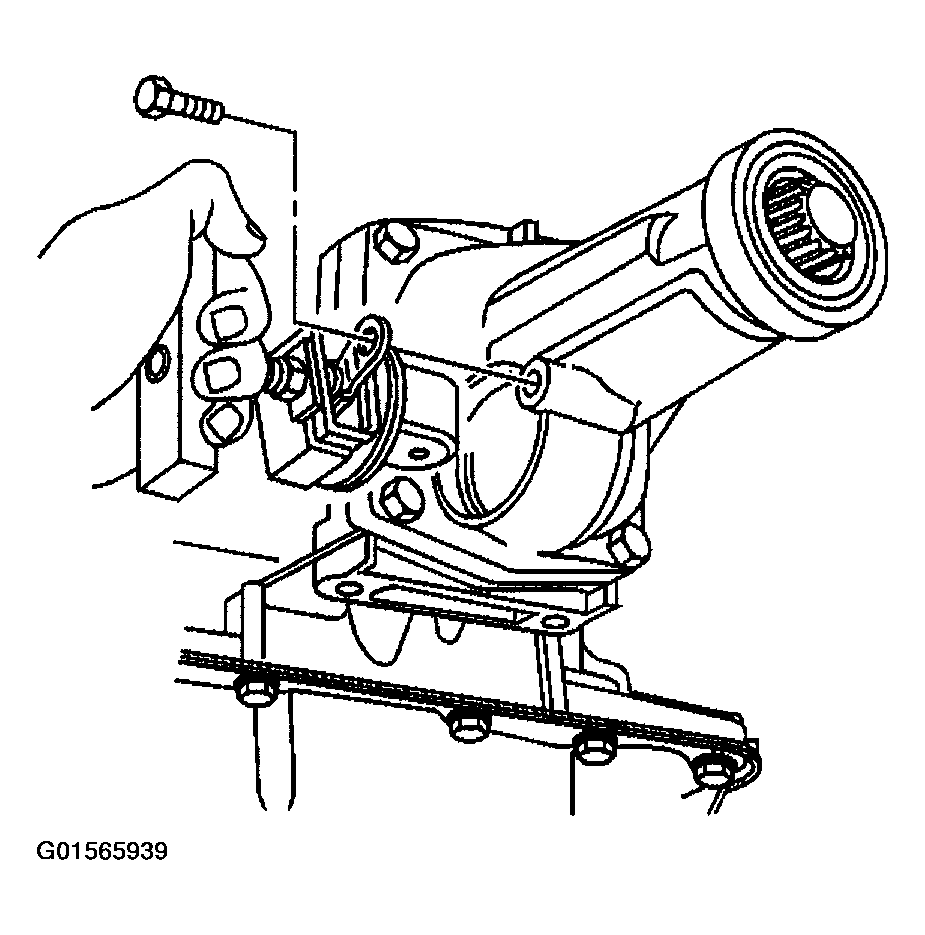

    Fig 1: Vehicle Speed Sensor
    G01565939Courtesy of GENERAL MOTORS CORP.
  4. Place a drain pan under the vehicle.
  5. Remove the vehicle speed sensor using J 38417  .
  6. Remove the O-ring seal.
