Installation Procedure

  1. Install the new speed sensor and O-ring seal using J 38417.
  2. Coat the seal with a thin film of transmission fluid.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolt.

    Tighten

    Tighten the bolt to 11 N.m (97 lb in).

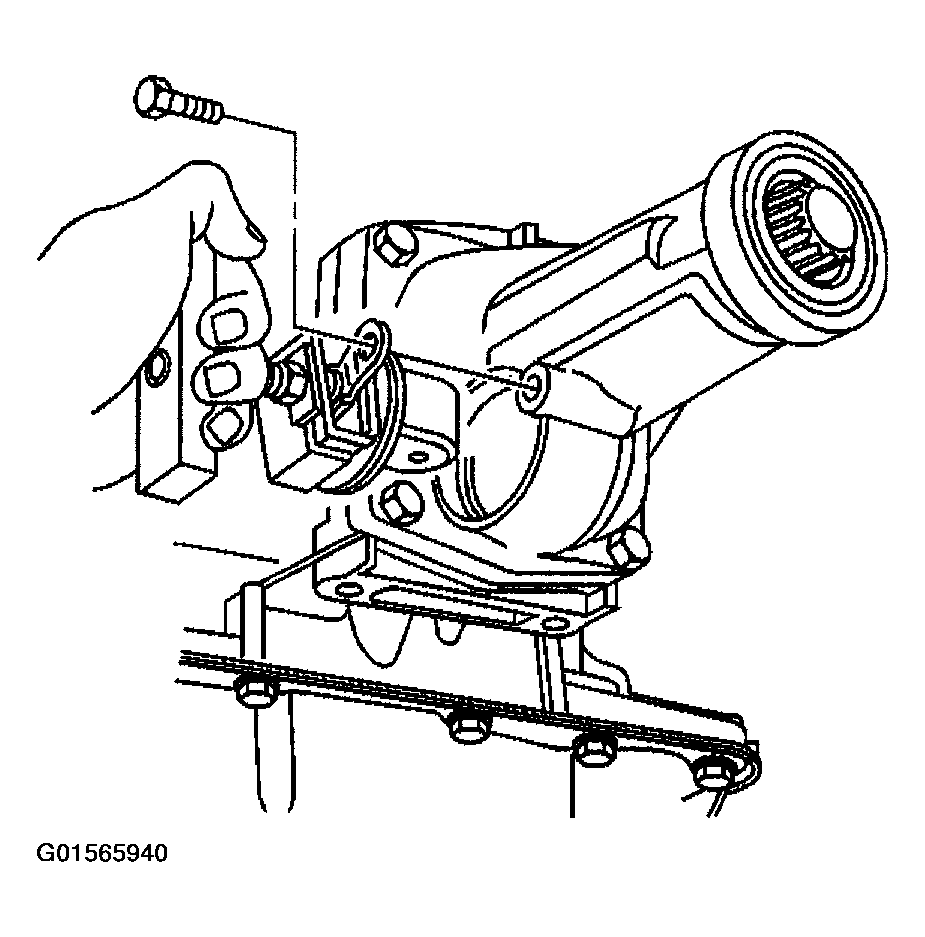

    Fig 1: Vehicle Speed Sensor
    G01565940Courtesy of GENERAL MOTORS CORP.
  4. Install the harness connector.
  5. Lower the vehicle.
  6. Refill the fluid as required.
